FiTech Standard Profile Polished 6 Qts Engine Oil Pan (130101)

The FiTech Standard Profile Polished 6 Qts Engine Oil Pan (130101) is specifically engineered for LS engine swaps in GM rear-wheel-drive vehicles. This standard profile oil pan is designed to provide adequate clearance and proper oil management in applications where chassis clearance is not a primary concern. With a 6-quart capacity, it supports up to a 4.25-inch crankshaft stroke, making it suitable for various stroker LS engine builds. Its cast aluminum construction and polished finish offer both durability and a clean aesthetic.

KEY FEATURES AND BENEFITS:

• Optimized for LS Swaps: Designed for LS engine swaps in GM rear-wheel-drive vehicles.
• Adequate Oil Capacity: Standard profile with a 6.00-quart total oil capacity (including filter).
• Stroker Engine Compatibility: Supports up to a 4.25-inch crankshaft stroke.
• Durable Construction: Cast aluminum construction with a polished finish.

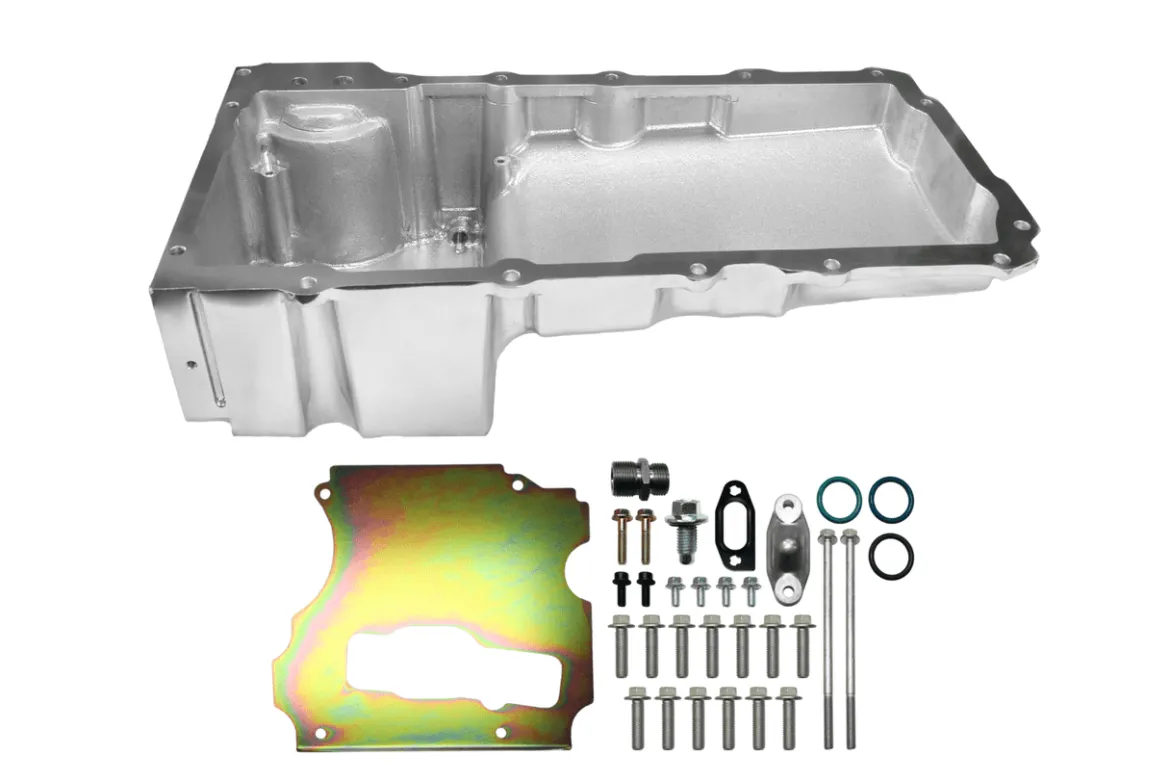

• Complete Installation Kit: Includes sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
• Wide Oil Filter Compatibility: Compatible with standard oil filters (AC Delco, Mobil, Wix, K&N).
• OEM Components: Uses OEM LS3 dipstick and dipstick tube.
• Windage Tray Compatibility: Designed to use a GM full-length windage tray.
• OEM Features: Includes OEM oil filter mounting, oil cooler port provision, engine NVH suppression, flange gasket and sealing, proper structural rigidity, and OEM bell-housing attachments.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 130101
• Sump Style: Wet
• Oil Pan Style: Street/Strip
• Sump Location: Rear
• Oil Pan Capacity: 6.00 quarts
• Maximum Stroke: 4.250 inches
• Oil Pan Depth: 5.700 inches
• Material: Aluminum
• Finish: Polished
• Baffled: Yes
• Compatibility: GM rear-wheel-drive applications originally equipped with a Small Block or Big Block Chevy engine.
• Oil Filter Compatibility: AC Delco PF48 or PF48E, Mobil M1-113, Wix 57060, and K&N HP-1017.
• Dipstick Compatibility: OEM LS3 Dipstick and Dipstick Tube (GM 12669528 & GM 12625031).
• Windage Tray Compatibility: GM full-length windage tray (GM Part #: 12611129).

HOW TO USE:

• Drain Engine Oil: Remove the existing engine oil from the vehicle.
• Remove Old Oil Pan: Detach the existing oil pan from the engine.
• Install Pickup Tube: Attach the included pickup tube to the oil pump.
• Apply Gasket and Sealant: Use the appropriate gasket and sealant on the FiTech 130101 oil pan.
• Secure Oil Pan: Position the oil pan onto the engine block and fasten it with the provided hardware.
• Install Additional Components: Attach the oil filter stud and oil passage cover.
• Insert Dipstick: Install the OEM LS3 dipstick and dipstick tube.
• Mount Windage Tray: Secure the GM full-length windage tray.
• Install Compatible Oil Filter: Use a recommended oil filter.
• Refill Engine Oil: Fill the engine with the required amount of oil.
• Check for Leaks: Start the engine and inspect for any leaks.

BENEFITS OF USING FITECH STANDARD PROFILE POLISHED 6 QTS ENGINE OIL PAN (130101):

• Optimized Clearance: Provides necessary clearance for LS engine swaps in GM rear-wheel-drive vehicles.
• Enhanced Oil Management: Ensures proper lubrication with a 6-quart capacity and baffled sump.
• OEM Compatibility: Maintains compatibility for easy installation and integration.
• Durable and Stylish: Features a polished aluminum finish for a strong yet aesthetically pleasing appearance.
• Stroker Engine Support: Compatible with LS builds using crankshaft strokes up to 4.25 inches.

FEATURES:

• Cast aluminum construction for strength.
• Polished exterior for a clean look.
• Integrated sump baffle for oil control.
• Designed for use with standard oil filters.
• Accommodates OEM LS3 dipstick and tube.
• Includes necessary installation hardware.
• OEM oil cooler port provision.
• OEM engine NVH suppression.
• OEM flange gasket and sealing.
• OEM bell-housing attachments.
