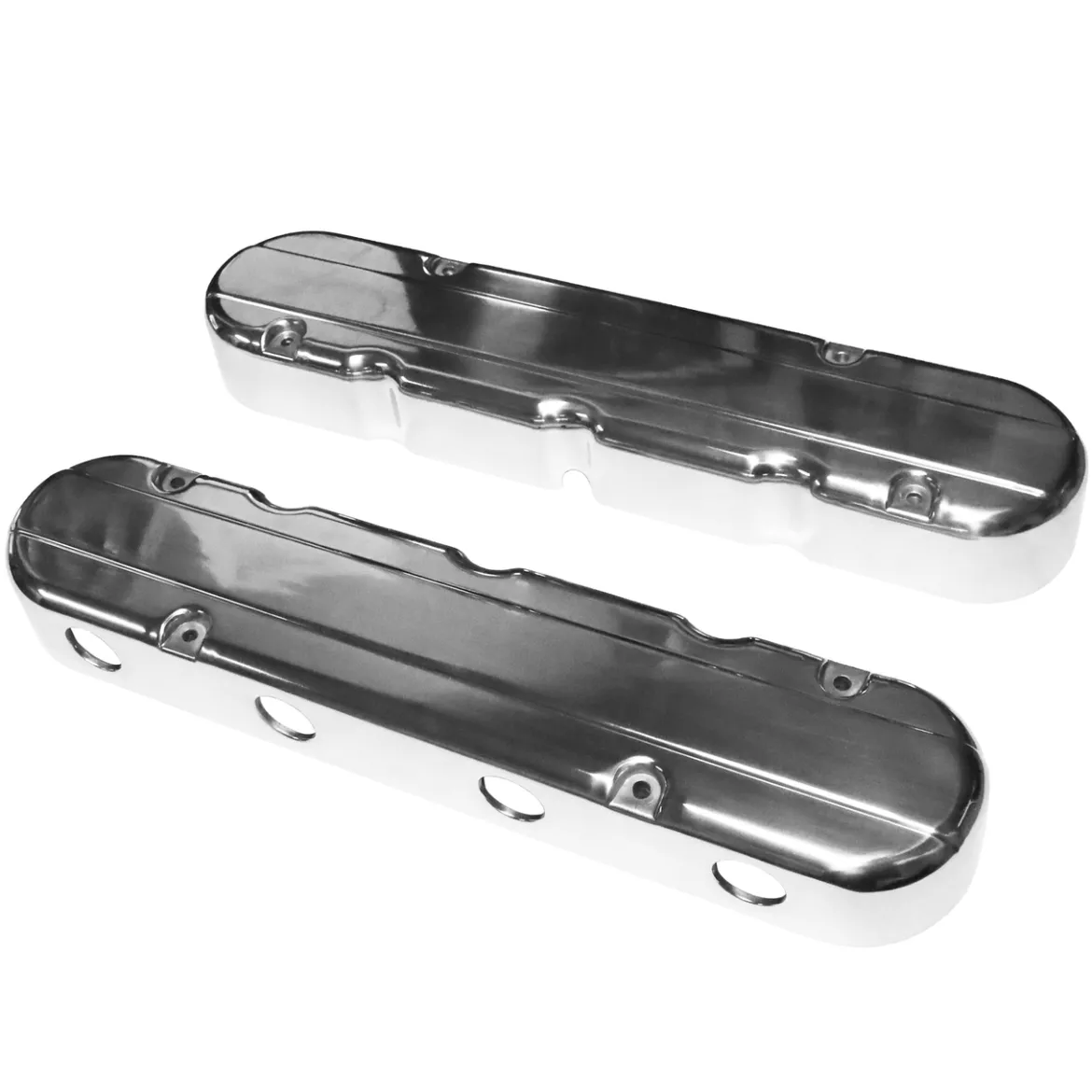

FiTech Tall Polished Valve Covers w/Coil Mounts/Smooth Covers (131103)

The FiTech Tall Polished Valve Covers w/Coil Mounts/Smooth Covers (131103) offer a significant aesthetic upgrade for LS-based engines. Designed for enthusiasts seeking to enhance the visual appeal of their engine bay, these valve covers provide a sleek, polished finish that complements a variety of engine styles. Crafted from cast aluminum, these covers deliver a custom look without compromising on the essential compatibility and functionality required for high-performance engines. Sold as a pair, this kit includes everything needed for installation, making it a straightforward way to elevate your engine’s appearance.

KEY FEATURES AND BENEFITS:

• Enhanced Engine Bay Aesthetics: The polished aluminum finish provides a clean and stylish look, significantly improving the overall appearance of your engine.
• Tall Design for Valve Train Clearance: With an overall height of 4.12 inches, these valve covers are specifically designed to clear most high-lift valve train options (up to <0.700”), making them suitable for performance builds.
• Versatile Coil Mounting: Equipped with coil mounting bosses, these valve covers accommodate both Gen 5 LS3 bolt spacing (72mm, angle mounted) and Gen 1 LS1 bolt spacing (65mm, straight mounted), offering flexibility for different coil types.
• Complete Installation Kit: The package includes an o-ringed oil filler cap, gaskets, and all necessary mounting hardware for both the valve covers and the coils, ensuring a hassle-free installation process.
• Durable Construction: Made from cast aluminum, these valve covers are built to withstand the rigors of the engine environment while maintaining their polished finish.
• Smooth Coil Covers: The 2-piece design incorporates smooth top style coil covers, contributing to the clean and uncluttered look of the engine bay.

SPECIFICATIONS:

• Part Number: 131103
• Product Line: FiTech Plus LS Valve Covers
• Compatibility: LS-based Engines
• Valve Cover Mounting Style: OEM Style retentioned bolts/pattern, Centerbolt
• Valve Cover Height: 4.12″ (104.6mm) Overall, Tall
• Valve Cover Top Style: Smooth Coil Cover, Plain
• Valve Cover Material: Cast Aluminum
• Finish: Polished
• Baffled: Yes
• Breathers Included: No
• Gaskets Included: Yes
• Grommets Included: Yes
• Mounting Hardware Included: Yes
• Quantity: Sold as a pair (2 Valve Covers, 2 Coil Covers)
• Notes: Includes oil fill cap and coil covers. Fits LS coils with 65mm and 72mm bolt spacing. Tall design clears most high-lift valve train options.

HOW TO USE:

• Preparation: Ensure the engine is cool and the vehicle is safely supported. Gather the necessary tools for removing the existing valve covers and installing the new FiTech valve covers.
• Remove Existing Valve Covers: Carefully remove the existing valve covers from the LS engine, taking note of the location of any hoses or wiring that may be attached. Clean the engine’s cylinder head surface where the new valve covers will be mounted.
• Install Gaskets: Place the provided gaskets onto the cylinder head surface, ensuring they are properly aligned with the bolt holes.
• Mount Valve Covers: Position the FiTech valve covers onto the cylinder head, aligning the bolt holes. Secure the valve covers using the included mounting hardware. Tighten the bolts to the manufacturer’s recommended torque specifications.
• Install Coil Packs: Determine the appropriate mounting location for your coil packs (either Gen 1 LS1 or Gen 5 LS3 style). Attach the coil packs to the designated mounting bosses on the FiTech valve covers using the included hardware.
• Install Oil Filler Cap: Place the provided o-ringed oil filler cap into the designated opening on one of the valve covers.
• Reconnect Components: Reattach any hoses or wiring that were disconnected during the removal of the old valve covers.
• Final Check: Double-check all connections and ensure that the valve covers and coil packs are securely mounted. Start the engine and check for any leaks or issues.

BENEFITS OF USING FITECH TALL POLISHED VALVE COVERS W/COIL MOUNTS/SMOOTH COVERS (131103):

• Improved Aesthetics: The polished aluminum finish instantly elevates the look of your engine bay, adding a touch of style and sophistication.
• Enhanced Valve Train Clearance: The tall design provides the necessary room for aftermarket high-lift valve train components, making them ideal for performance enthusiasts.
• Flexibility in Coil Mounting: The dual coil mounting options ensure compatibility with a wide range of LS coil types, simplifying the installation process.
• Comprehensive Kit: Including gaskets and mounting hardware means you have everything you need for installation, saving time and effort.
• Increased Durability: The cast aluminum construction ensures the valve covers can withstand the heat and demands of the engine environment.
• Clean and Organized Look: The smooth coil covers contribute to a cleaner, more organized appearance under the hood.

FEATURES:

• Polished Aluminum Finish: Provides a bright, reflective surface that enhances the engine’s appearance.
• Dual Coil Mounting Bosses: Accommodates both 65mm (LS1) and 72mm (LS3) coil bolt spacings.
• O-Ringed Oil Filler Cap: Ensures a tight seal and prevents oil leaks.
• Included Gaskets: Provides a proper seal between the valve cover and the cylinder head.
• Mounting Hardware Included: Simplifies installation with all necessary fasteners provided.
• Cast Aluminum Construction: Offers strength and durability.
• Smooth Top Coil Covers: Contributes to a sleek and uncluttered engine bay.
