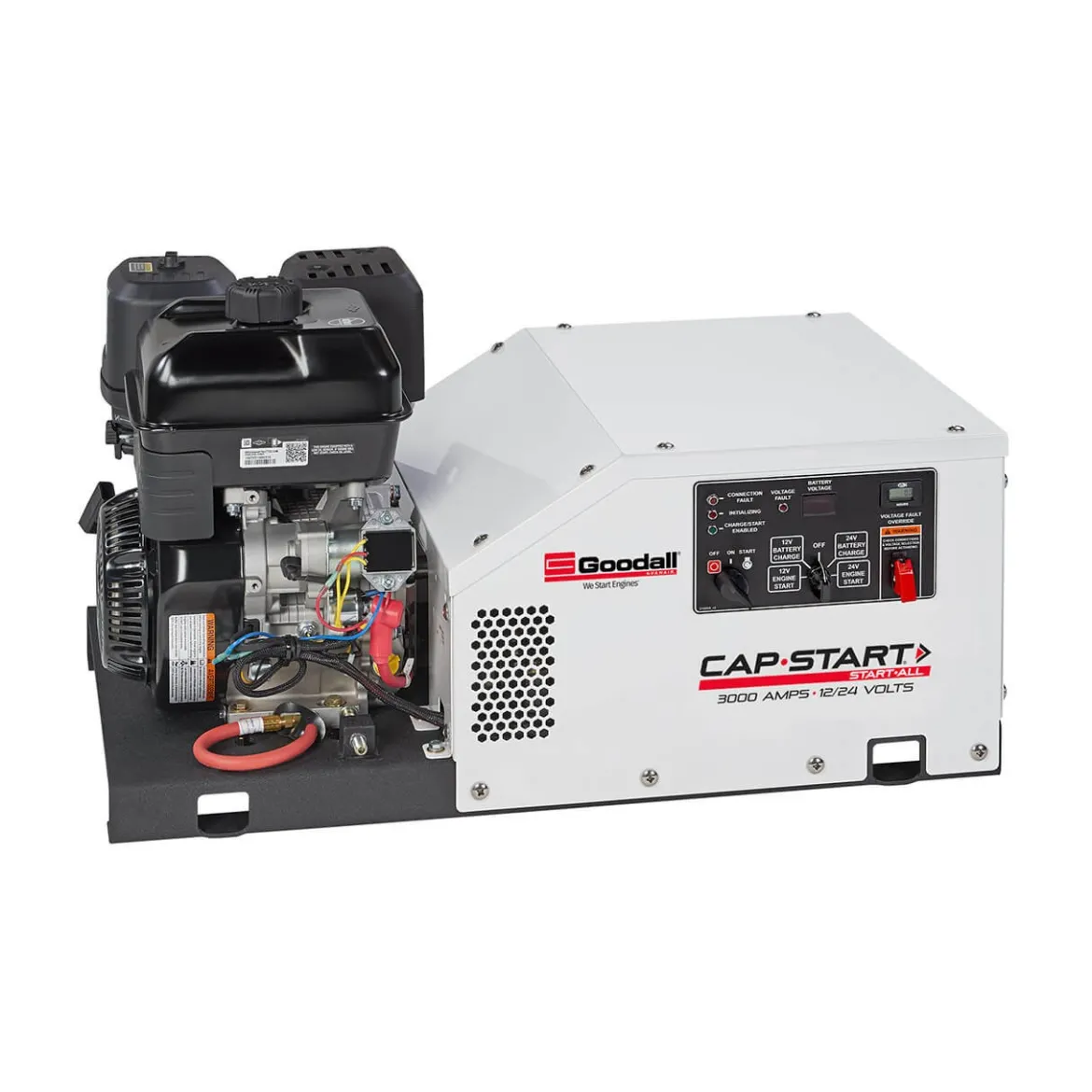

Goodall 051539 CAP-START3000 Vanair Super Capacitor 12/24V 3000 Amp Jump Starter

Goodall 051539 CAP-START 3000 Vanair Super Capacitor 12/24V 3000 Amp Jump Starter

12/24 Volt Start/Charge – 19 HP EFI Kohler® Gas Plus 24 CFM Air with 30’ 3/0 Arctic Grade Start Cable with 12V Fuel Pump. (no air tank, fuel tank or battery included). The CAP-START® 3000 Super Capacitor 12 Volt 3000 Amp Capacity Jumpstarter. The Goodall CAP-START® 3000 featuring the Super Capacitor (VSC™) provides instantaneous engine starting power to get vehicles back up and running…FAST! No more waiting for batteries to charge — getting the vehicles back to work in mere seconds! The CAP-START® 3000 is the fastest vehicle starting system on the market and can start all vehicles without downtime. Features include a Fast self-recharge rate of 15 seconds. Elevated starting potential to negate cable voltage loss. High output discharge of up to 3240 AMP, specifically designed to overcome the initial friction for starting rotation in cold engines, followed by continued output power of approximately 800-1000 AMP through the starting event. Able to maintain glow plug and machine/vehicle parasitic loads without draining the capacitor start system. Override function to allow for charging of batteries below 4V. 240 AMP 3-stage charging system. Time out technology to prevent battery over charge with over current monitoring. Weather protected electrical enclosure, reverse polarity protection, open, closed or low circuit safety, low engine oil pressure shut down, engine over temperature shut down and self-regulating 3-stage charging system. 30’ 3/0 starting cables. Flexible down to -67 °F (-55 °C), UL class K stranded copper utilized to minimize voltage drop.

THE FST™ 3000 IS PACKED WITH POWER TO GET YOU BACK ON THE ROAD… FAST

3000+ AMPS of Instantaneous Starting Power

12V Charging and Starting Capabilities

240 AMP 3-Stage Alternator for Fast Recharging

Industry leading Vanair Super Capacitor (VSC™)

PERFORMANCE

• Vanair Super Capacitor (VSC™)
• 3000 + AMPS Starting Capability
• 12V & 24V Charge & Start
• 240 AMP 3-Stage Alternator
• 5 HP Briggs & Stratton®
• Heavy-Duty Belt Drive System

CONVENIENCE

• Integrated Lifting Points
• Tough, Powder Coated Sheet Metal
• Corrosion-Resistant Galvanneal Steel Canopy
• Anderson Connector at Machine
• Gasoline Fuel

STARTING CABLES

• 30 Feet of 3/0 Polar-Grade Cable
• UL/AWG Specification Compliant
• Fine Stranded, Flexible Copper Wire
• Cold Weather Flexibility
• Tangle Resistant
• Chemical, Abrasion and Water Resistant
• Extruded Polarity Stripe for Safety

SAFETY

• Weather-Protected Electrical Enclosure
• Reverse Polarity Protection
• Open, Closed or Low Circuit Safety
• Low Engine Oil Pressure Shut Down
• Engine Over Temperature Shut Down
• Smart, Self-Regulating 3-Stage Charging System

CONTROL PANEL

• Engine Start/Stop Function
• Hour Meter
• Voltage Output Display
• Charge/Start Mode Selector
• Mode Indicator Lights
• System Fault Lights

OPTIONAL ACCESSORIES

• Industrial 3/0 Cables (25, 30 & 35 ft.)
• Vibration Isolators
• Cable Kits for Connection to Chassis Battery
• Maintenance Kit
• Cold Weather Kits
• 24 CFM Air Compressor

Product Features

• 12V & 12V/24V Starting: Up to 3240 AMP Starting Capability
• Fuel Capacity: Plumb to Chassis or Remote 11 Gal. tank
• Fuel Type: Gasoline
• Engine Type: 19 HP EFI Kohler
• Drive System: Dual V & Micro V Serpentine
• Battery: Tie to Chassis
• DC Alternator: 240 AMP 12V/24V DC
• 3000+ AMPs of Instant Starting Power
• 12V Charging and Starting Capabilities
• 240 AMP 3-Stage Alternator for Fast Recharging
• Innovative Vanair Super Capacitor (VSC)
