Goodall 61-803 Convert 12/24 dual cable to 12/24V single cable

Goodall 61-803 Convert 12/24 dual cable to 12/24V single cable

Update your old two cable 716 or 718 Start•All®

Stop using outdated technology! Get the benefit of reverse current protection to keep your generator safe and advanced voltage regulation for today’s sensitive vehicle electronics. Our Upgrade Kits provide simple operation with all the controls and instructions in one location. You’ll prefer the simplicity of full-power boosting through one set of cables. Upgrade Kits include Voltage Control provides regulated voltage that is safe for vehicles and on-board electronics. Reverse Current Shutdown Protection eliminates expensive repairs to the Start•All® if the unit runs out of gas. Reverse Polarity Protection will not allow the Start•All® to be turned on if the cables are not hooked up correctly. 30 ft., 1/0 cable with 1000 amp clamps with full-power jaws and polarity indicator. All-internal wiring, solenoids and switches, Volt and amp meters, Instructions and wiring diagram.

61-803 Kit Converts 2-cable systems to a 12/24 volt single cable unit (includes two new isolated ground generators)

• Upgrade kit for 11-716 and 11-718 dual cable set Start-All units
• For 12/24-volt boosting
• Includes 2 New Isolated Ground Generators
• This kit contains the parts needed to convert the older two cable system to a single cable, fully voltage regulated system.
• Regulated voltage (eliminates over voltage possibility)
• Easier to use, user friendly (all controls and instructions mounted on one side)
• One ON/OFF switch
• One set of cables with polarity indicator and Antizap® protection (Easier for operator to hook up with correct/incorrect warning lights. Full power realized through single cable set.)
• 800 amp clamps with full-power jaws, 30 ft. 1/0 cable
• Low battery warning light
• Surge protection
• Volt and amp meters to monitor boosting output

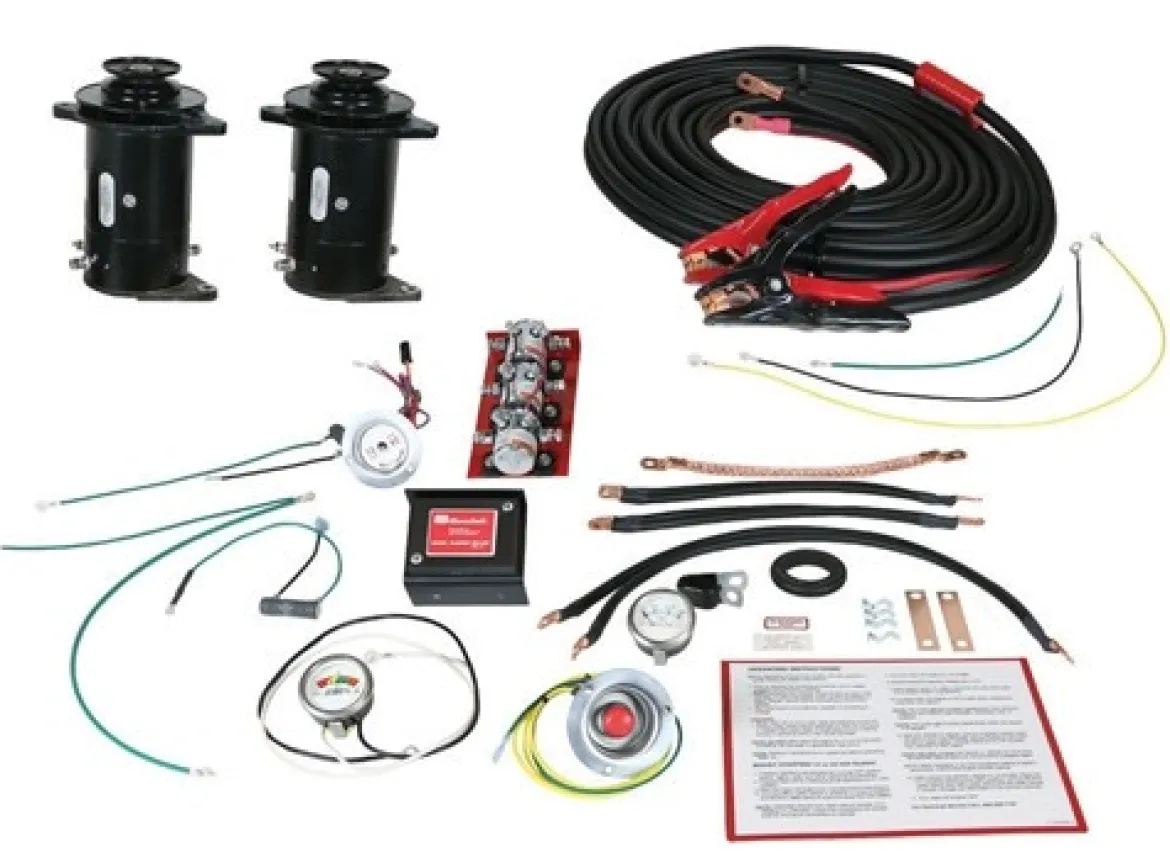

61-803 Parts List:

• 890-635S: Voltage Control Module
• 710-515: Instruction Label
• 710-534: Push to Energize Label
• 710-541: Switch Label 12 / 24 Volt
• 890-343: Ammeter Assembly
• 71-510S: Voltmeter 0-36 VDC
• 890-000: Energize Switch Assembly
• 77-321S: Resistor Assembly
• 79-510S: Generator, Isolated Ground
• 77-324: Resistor with Diode Assembly
• 70-436S: Cable Assembly 1/0 Ga. 800A with Clamps
• 890-316: Wire Assembly, 18″, 18 gauge Black
• 890-317: Wire Assembly, 21″, 12 gauge Green
• 890-313: Wire Assembly, 24″, 18 gauge Yellow
• 890-990: Wire Assembly, 11″, Green
• 890-420: Cable Assembly, DC Generator 13″ 4 gauge
• 890-419: Wire Assembly Generator to Finish Assembly
• 880-205: Shunt Strap 1/16″ Thick
• 680-785: Ground Strap 11″ x 5/16″
• 680-008: 5/32″ Rivets
• 680-049: Loop Cable Clamp
• 890-966: Switch Assembly, Boosting 12 / 24 Volt
• 680-494: Grommet, Round Rubber
• 890-018: Grommet, Round Rubber
• FORM 745: 61-803 Upgrade Manual
