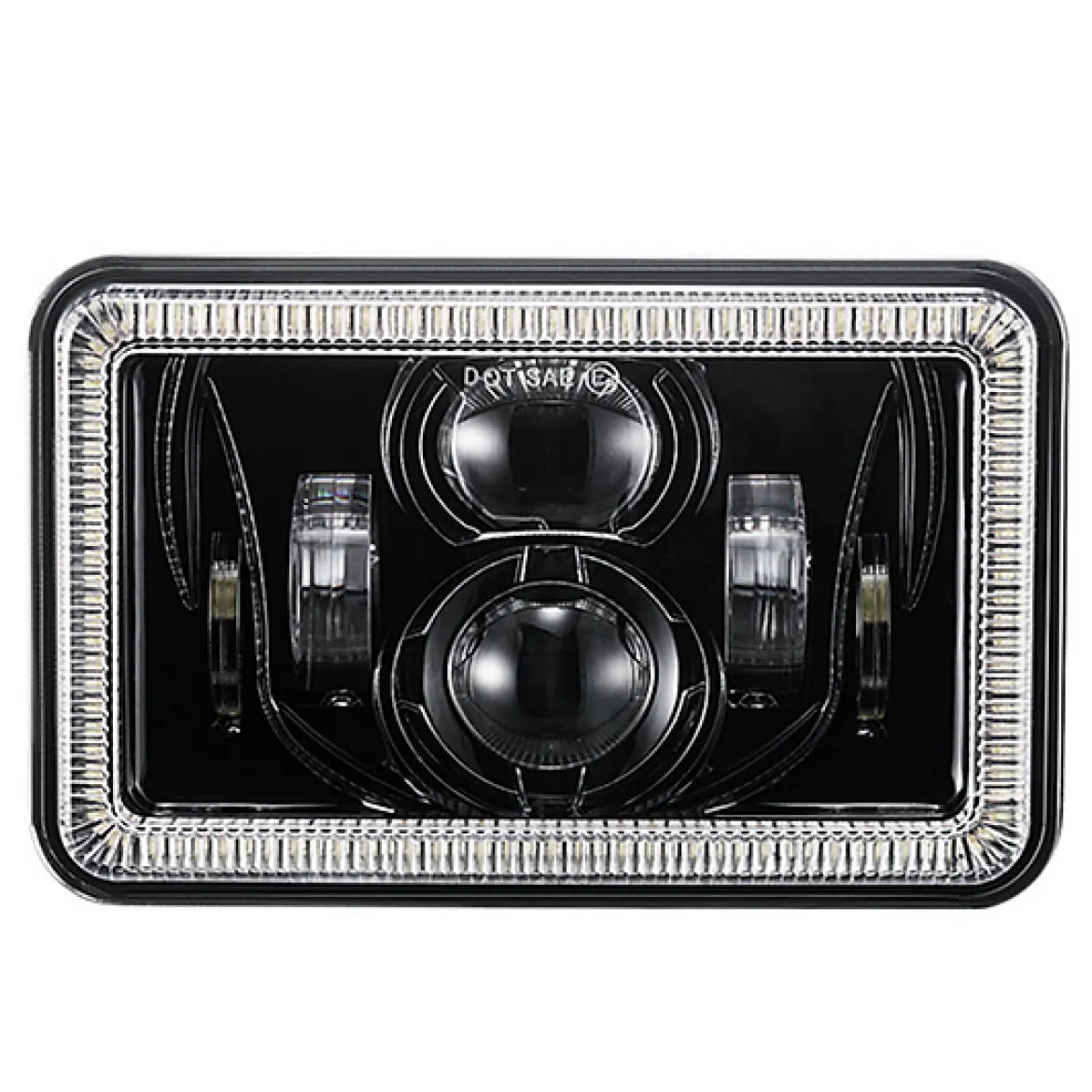

Haizer USA 4”x6” Blck Proj LED Headlight w/DRL&Turn Sig. (HZR-4686D-B)

Upgrade your vehicle’s lighting performance with the Haizer USA 4”x6” Blck Proj LED Headlight w/DRL&Turn Sig. (HZR-4686D-B). Designed to provide exceptional visibility and a sleek, modern appearance, this advanced headlight features integrated daytime running lights (DRL) and amber turn signals for improved road presence and safety. Its projector lens and high-powered LEDs deliver clear, focused illumination, while the black die-cast aluminum housing ensures durability and heat management. The headlight offers a universal 4×6 inch fit and comes equipped with a standard H4 connector, making installation quick and simple across a wide range of vehicles.

KEY FEATURES AND BENEFITS:

• Integrated Daytime Running Lights & Turn Signals: Bright white DRLs enhance daytime visibility while amber LEDs ensure clear signaling to other drivers.
• Advanced Projector Lens: Provides a concentrated and efficient light beam for improved road clarity and reduced glare.
• High-Performance LED Lighting: Delivers powerful illumination on both high and low beams for safer nighttime driving.

SPECIFICATIONS:

• Part Number: HZR-4686D-B
• Size: 4×6 Inches
• Power: 55W
• High Beam: 11 x 5W LED, 3,500 LM
• Low Beam: 6 x 5W LED, 2,800 LM
• Halo Color: White DRL and Amber Turn Signal
• Color Temperature: 6,500K
• Housing Material: Die-cast aluminum
• Housing Color: Black
• Lens Material: Polycarbonate
• Waterproof Rate: IP67
• Lifespan: > 50,000 Hours
• Connector: Standard H4
• Warranty: 12 Months
• Included in Product: One (1) Haizer HZR-4686D-B 4×6” Projector LED Headlight with DRL & Turn Signals (Sold By The Unit)

HOW TO USE:

1. Preparation: Ensure your vehicle’s electrical system is turned off and the battery is disconnected. Gather tools such as a screwdriver or wrench if needed.
2. Remove Old Headlight: Detach the existing 4×6 inch sealed beam headlight and unplug the H4 connector and other wiring as necessary.
3. Connect New Headlight: Insert the Haizer HZR-4686D-B’s H4 connector into your vehicle’s headlight socket securely.
4. Wire DRL and Turn Signal: Connect the white DRL wire to a 12V ignition-switched power source and the amber wire to your vehicle’s turn signal wiring. Refer to your vehicle’s wiring diagram for accuracy.
5. Mount New Headlight: Position the headlight in the mounting bucket and secure it using existing brackets or screws.
6. Test Functionality: Reconnect the vehicle’s battery and verify that high beam, low beam, DRL, and turn signals operate correctly. Adjust headlight alignment as needed.

BENEFITS OF USING HAIZER USA 4”X6” BLCK PROJ LED HEADLIGHT W/DRL&TURN SIG. (HZR-4686D-B):

• Enhanced Road Visibility: Bright LED projection improves nighttime driving clarity with a broader and more focused beam.
• Increased Daytime Presence: Integrated DRLs make your vehicle more visible to others during daylight conditions.
• Clearer Signaling: Amber LEDs provide clear turn signal visibility to nearby drivers and pedestrians.
• Modern Vehicle Appearance: Sleek black housing and LED lighting add a stylish and updated look to your vehicle.
• Long-Term Reliability: Rated for over 50,000 hours and protected with an IP67 waterproof design to ensure consistent performance.

FEATURES:

• Durable Construction: Features a black die-cast aluminum housing and impact-resistant polycarbonate lens for long-lasting performance.
• Universal Compatibility: Fits 4×6 inch headlight applications and uses a standard H4 connector for straightforward plug-and-play installation.
• Weather-Resistant Design: IP67 waterproof rating offers protection against dust and water exposure in all driving conditions.
