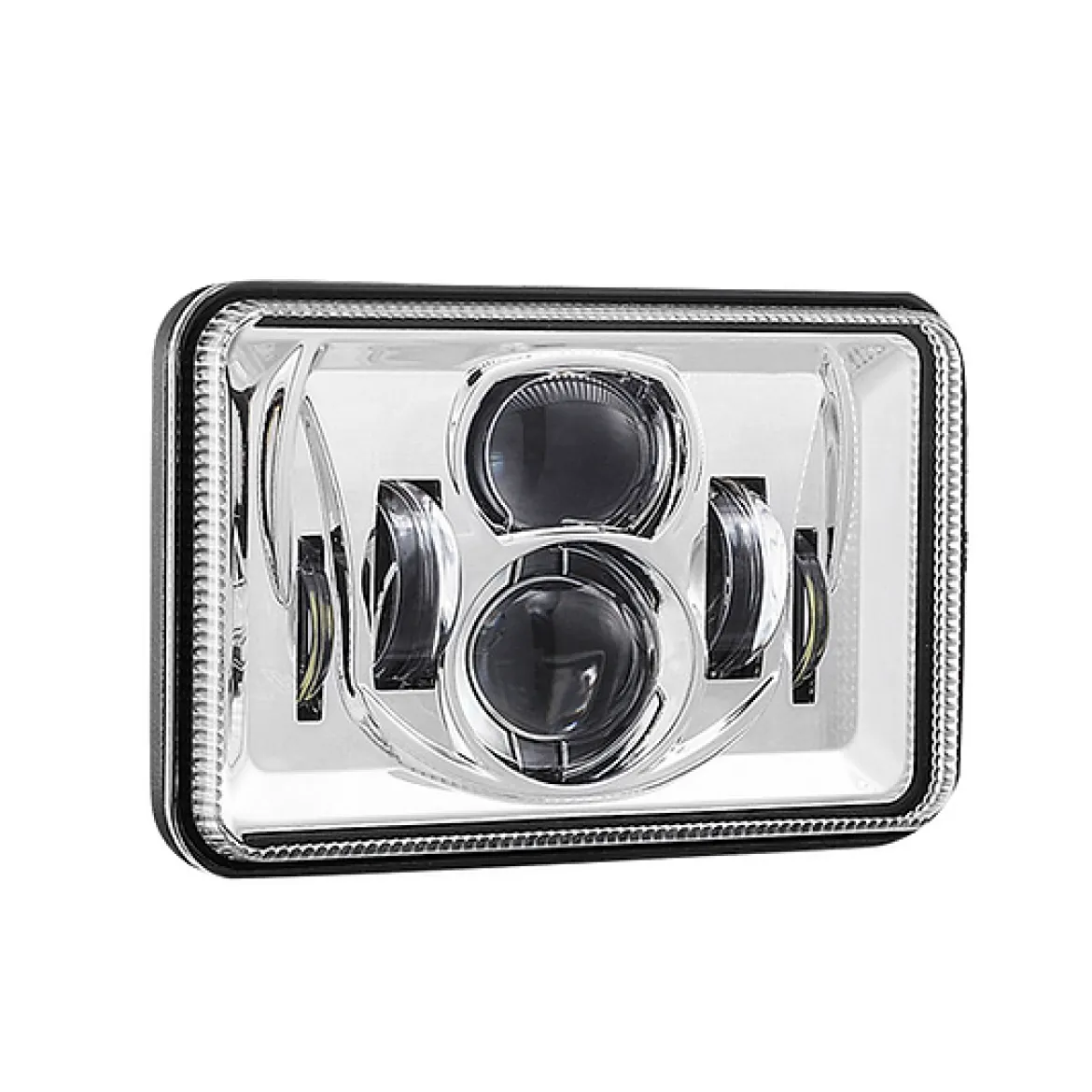

Haizer USA 4”x6” Chrome Projector LED Headlight (HZR-4686)

The Haizer USA 4”x6” Chrome Projector LED Headlight (HZR-4686) is engineered to significantly enhance nighttime visibility and driving safety. Equipped with an advanced projector lens, this headlight delivers focused and powerful illumination, making road conditions and obstacles clearer in low-light environments. With high-intensity LED technology, the HZR-4686 ensures reliable performance while maintaining energy efficiency. Its robust die-cast aluminum body and impact-resistant polycarbonate lens provide durability and weather resistance. Designed with universal fitment and a sleek chrome finish, this headlight not only boosts functionality but also adds a modern touch to your vehicle’s aesthetics.

KEY FEATURES AND BENEFITS:

• Advanced Projector Lens: Provides sharp and concentrated light output for enhanced road clarity.
• High Output LEDs: 11 x 5W LEDs deliver 3,500 lumens on high beam, and 6 x 5W LEDs produce 2,800 lumens on low beam.
• Cool White Illumination: 6,500K color temperature mimics daylight for improved visibility and reduced eye strain.
• Sturdy Build Quality: Constructed with a die-cast aluminum housing and impact-resistant polycarbonate lens for long-term durability.
• Weather Resistant: Rated IP67 to protect against dust and water ingress.
• Longevity: Designed to operate for over 50,000 hours, minimizing the need for replacements.
• Easy Installation: Comes with a standard H4 connector for plug-and-play compatibility.
• Stylish Finish: Chrome/black housing enhances the modern appeal of your vehicle.

SPECIFICATIONS:

• Part Number: HZR-4686
• Size: 4×6 Inches
• Power: 55W
• High Beam: 11 x 5W LED, 3,500 Lumens
• Low Beam: 6 x 5W LED, 2,800 Lumens
• Color Temperature: 6,500K
• Housing Material: Die-cast aluminum
• Housing Color: Chrome / Black
• Lens Material: Polycarbonate
• Waterproof Rate: IP67
• Lifespan: > 50,000 Hours
• Connector: Standard H4
• Warranty: 12 Months
• Included in Product: One Haizer HZR-4686 4×6″ Projector LED Headlight unit with standard H4 connector

HOW TO USE:

1. Safety First: Turn off your vehicle’s engine and disconnect the battery before starting the installation.
2. Access Headlight Assembly: Remove the grille or trim as needed to reach the existing headlight.
3. Disconnect Old Headlight: Unplug the H4 connector and remove any clips or screws securing the current headlight.
4. Remove Old Headlight: Gently pull out the headlight from the mounting area.
5. Install New Headlight: Fit the Haizer HZR-4686 into the mounting location properly.
6. Secure Headlight: Reinstall the mounting hardware to hold the headlight in place.
7. Connect Electricals: Plug the vehicle’s H4 wiring harness into the new headlight.
8. Test Functionality: Reconnect the battery and test both high and low beam functions.
9. Adjust Beam: Aim the headlight beam appropriately using the vehicle’s adjustment mechanism if needed.
10. Reassemble Trim: Replace any trim or grille pieces removed during the process.

BENEFITS OF USING HAIZER USA 4”X6” CHROME PROJECTOR LED HEADLIGHT (HZR-4686):

• Enhanced visibility for improved nighttime and all-weather driving safety.
• Focused projector beam minimizes glare and maximizes road illumination.
• Reduces energy consumption compared to halogen lights.
• Chrome finish offers a modernized vehicle appearance.
• Long-lasting LED technology reduces maintenance frequency.
• Universal 4×6” fit ensures wide vehicle compatibility.
• Stable and consistent light output enhances driving confidence.
• Improved detection of road hazards, pedestrians, and other vehicles.

FEATURES:

• Projector lens system for focused light distribution.
• 55W total power with high-output 5W LEDs.
• 6,500K white light for maximum clarity.
• Durable die-cast aluminum housing in chrome/black finish.
• Impact-resistant polycarbonate lens for added protection.
• IP67 rating ensures performance in wet and dusty environments.
• Lifespan exceeding 50,000 hours.
• Standard H4 plug for easy installation.
• Universal 4×6” fit for broad application.
• 12-month limited warranty.
• Sold individually for customized replacement needs.
