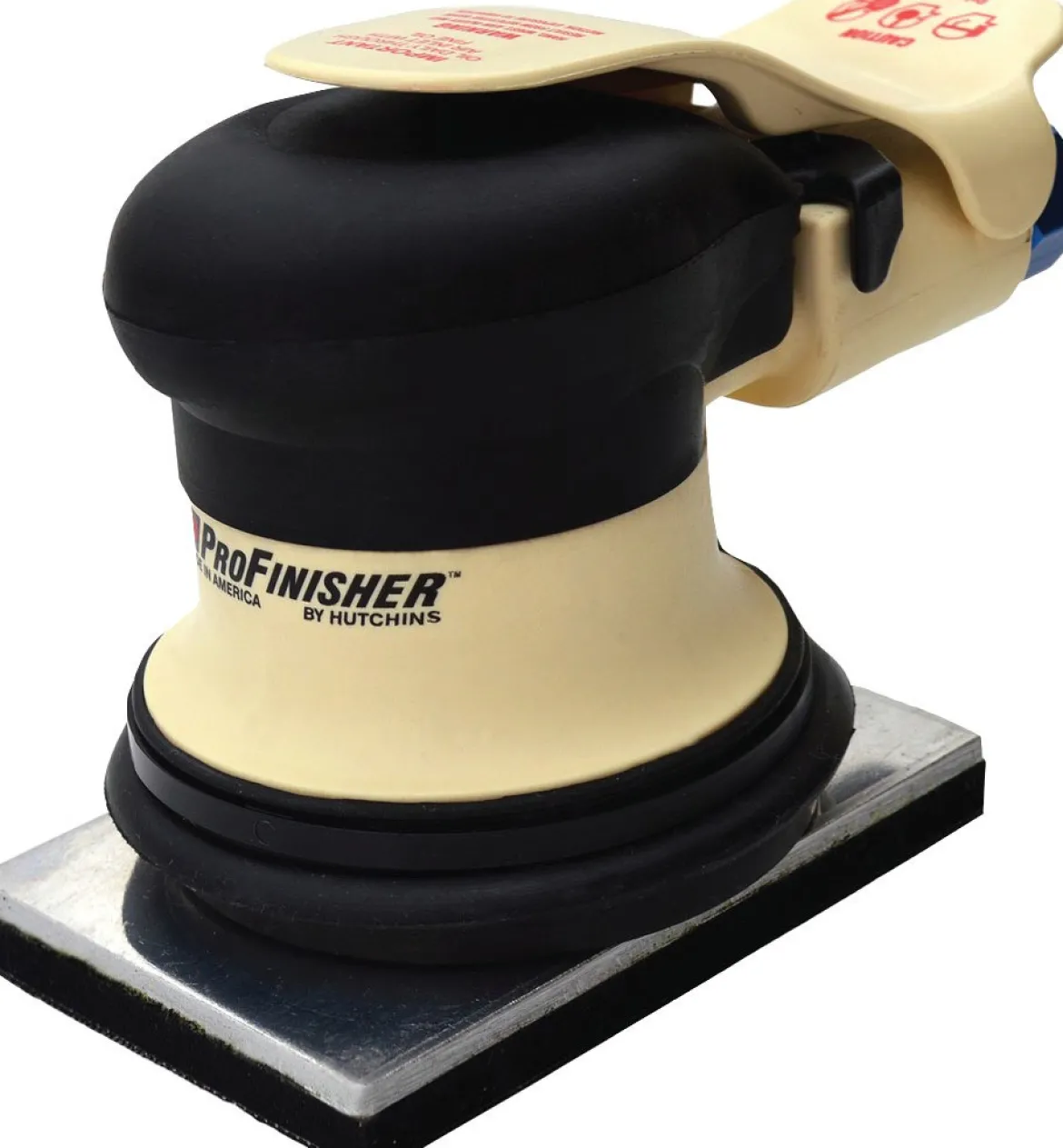

Hutchins 2-3/4″ X 4″ Hook 3/32″ Offset Orbital Sander (504)

The Hutchins 2-3/4″ X 4″ Hook 3/32″ Offset Orbital Sander (504) is a pneumatic sanding tool designed for precision work in auto body shops and woodworking environments. This specialized sander excels at reaching tight spaces and preparing surfaces for painting or finishing. Its rectangular pad and controlled orbit make it an excellent choice for detailed de-nibbing, new panel preparation, and working on contoured surfaces like bumpers.

KEY FEATURES AND BENEFITS:

• Precise 3/32″ Offset Orbit: Provides a tight, controlled sanding pattern, making it ideal for fine finishing and access to intricate areas.
• 2-3/4″ x 4″ Rectangular Hook Pad: Perfectly sized for detailed work, allowing for efficient sanding in recessed sections and on narrow surfaces. The hook pad design ensures quick and secure attachment of standard hook and loop sandpaper rolls and scuff pads.
• Air-Powered Efficiency: Operates at 12,000 RPM with 0.25 HP, delivering consistent power and smooth operation for professional results with low air consumption (10.7 CFM).
• Optimal for Auto Body & Finishing: Specifically suited for tasks like new panel preparation, de-nibbing, paint preparation, and sanding difficult-to-reach areas such as bumpers.
• Operator Comfort Design: Engineered to direct cold exhaust away from the user, enhancing comfort during extended use.
• Simplified Maintenance: Features an easy-to-replace drop-in motor assembly, minimizing downtime and simplifying routine servicing.

SPECIFICATIONS:

• Pad Size: 2-3/4″ x 4″
• Pad Type: Hook
• Offset/Orbit: 3/32″
• RPM: 12,000
• Air Consumption: 10.7 CFM
• Weight: 1 lb 9 oz
• Noise Level: 81 dBA
• Air Connection: 1/4″ NPT
• Horsepower: 0.25 HP
• Country of Origin: USA

HOW TO USE:

• Connect Air Supply: Attach the sander to a clean, regulated air supply using a 1/4″ NPT fitting. Ensure your air compressor can provide at least 10.7 CFM at the recommended pressure for optimal performance.
• Attach Sanding Pad: Select the appropriate 2-3/4″ hook and loop sandpaper or scuff pad for your application. Align the pad with the hook and loop surface on the sander’s base and press firmly to secure it.
• Adjust Air Pressure (If Needed): While the sander operates at a set RPM, consistent air pressure is crucial. Consult your air compressor’s manual for optimal pressure settings for pneumatic tools.
• Begin Sanding: Hold the sander firmly and apply light, even pressure to the surface. Allow the sander’s orbit to do the work, moving it in a consistent, overlapping pattern across the area. Avoid pressing too hard, as this can reduce effectiveness and potentially damage the surface.
• Clean Up: After use, disconnect the air supply. Clean any dust or debris from the sander’s pad and body. Store the sander in a clean, dry place.

BENEFITS OF USING HUTCHINS 2-3/4″ X 4″ HOOK 3/32″ OFFSET ORBITAL SANDER (504):

• Achieve a smooth, high-quality finish on various surfaces, especially in automotive and woodworking projects.
• Efficiently prepare new panels and de-nib surfaces for painting, ensuring better paint adhesion and appearance.
• Easily access and sand recessed areas and complex contours, which are challenging for larger or round sanders.
• Experience reduced operator fatigue due to the lightweight design and effective exhaust redirection.
• Benefit from extended tool life and minimal downtime thanks to the robust construction and user-friendly maintenance features.
• Save time and effort on detailed sanding tasks, improving overall project efficiency and quality.

FEATURES:

• Incorporates a five-vane composite motor for consistent power delivery.
• Cylinder and housing construction designed for longevity and performance.
• Exhaust is strategically directed away from the operator.
• Velcro pads facilitate quick and secure attachment of abrasives.
• Built-in pad release mechanism for easy changing of sanding pads.
• Motor assembly is designed for simple drop-in replacement.
• Produces a low noise level of 81 dBA during operation.
