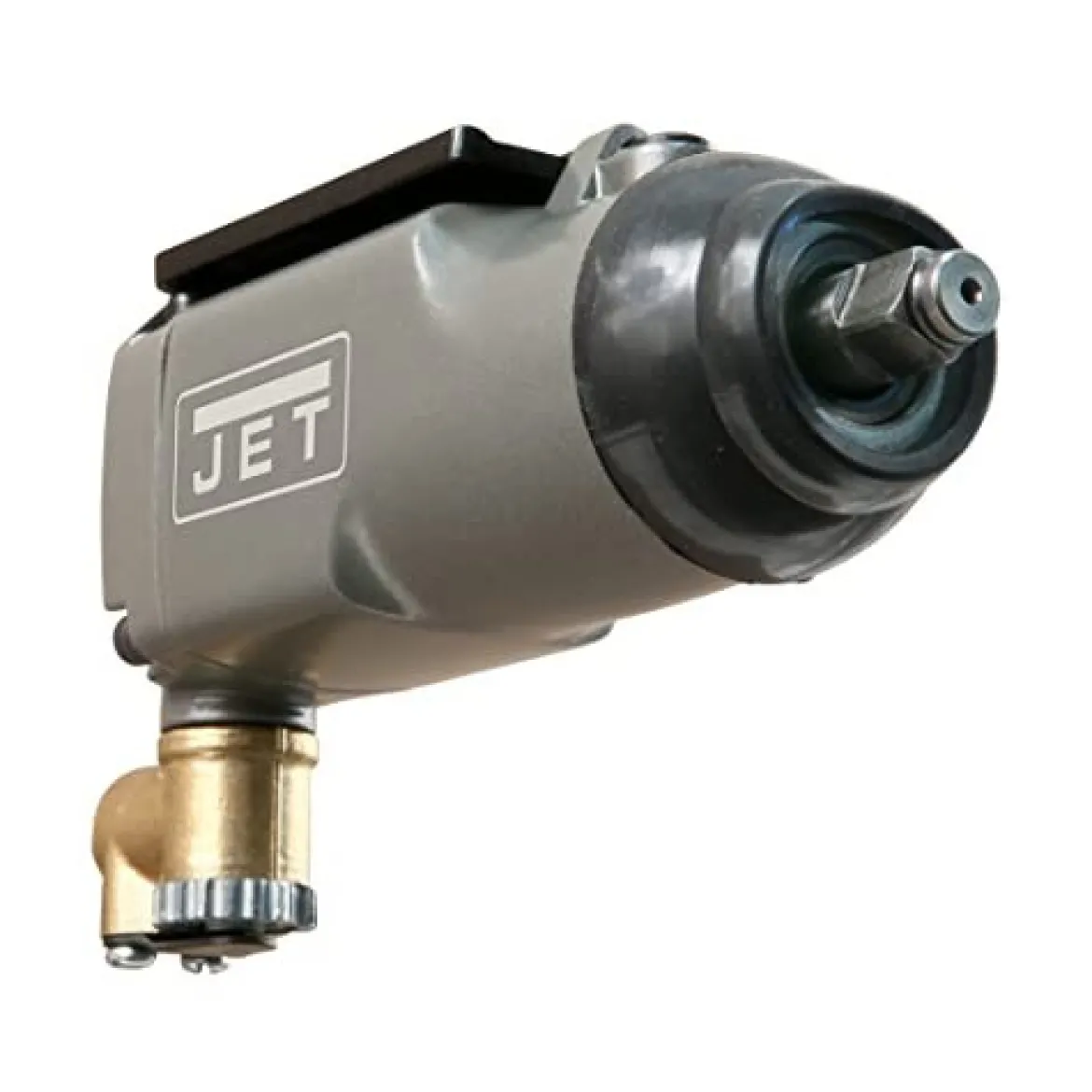

Jet JAT-100 Model 12000 RPM 3/8-Inch Butterfly Impact Wrench (505100)

The Jet JAT-100 Model 12000 RPM 3/8-Inch Butterfly Impact Wrench (505100) is a versatile tool designed to handle small fastener jobs with ease and precision. Its compact size and lightweight construction make it ideal for working in tight spaces, while its powerful motor delivers up to 75 ft-lbs of maximum torque.

KEY FEATURES AND BENEFITS:

• Compact and Lightweight: Easy to handle and maneuver in tight spaces.
• Powerful Performance: Delivers up to 75 ft-lbs of maximum torque for efficient work.
• Variable Speed Control: Precisely adjust speed for different applications.
• 360-Degree Swivel Air Inlet: Flexible hose placement for convenient use.
• Built-in Regulator: Easily adjust air pressure for optimal performance.

SPECIFICATIONS:

• Drive size: 3/8 inch
• Working torque: 5-50 ft-lbs
• Maximum torque: 75 ft-lbs
• Free speed: 12,000 RPM
• Air consumption: 3 CFM
• Air inlet: 1/4 inch NPT
• Weight: 2 pounds
• Length: 5-7/8 inches
• Warranty: 2 years

HOW TO USE:

1. Connect the air hose: Connect the air hose to the 360-degree swivel air inlet.
2. Adjust the air pressure: Use the built-in regulator to adjust the air pressure based on the fastener size and material.
3. Grip the impact wrench: Firmly hold the impact wrench with both hands.
4. Squeeze the trigger: Activate the tool by squeezing the trigger.
5. Apply the impact wrench: Use the wrench on the fastener and gradually increase pressure until it is tightened or loosened.
6. Release the trigger: Stop the tool by releasing the trigger.

BENEFITS OF USING Jet JAT-100 Model 12000 RPM 3/8-Inch Butterfly Impact Wrench (505100):

• Increased efficiency: Quickly and easily tighten or loosen fasteners.
• Reduced fatigue: Lightweight design minimizes user fatigue during extended use.
• Versatility: Suitable for various applications, including transmission servicing, bench work, and assembly.
• Durability: Built to last with high-quality materials and construction.
• Precision control: Variable speed throttle allows for precise adjustments.

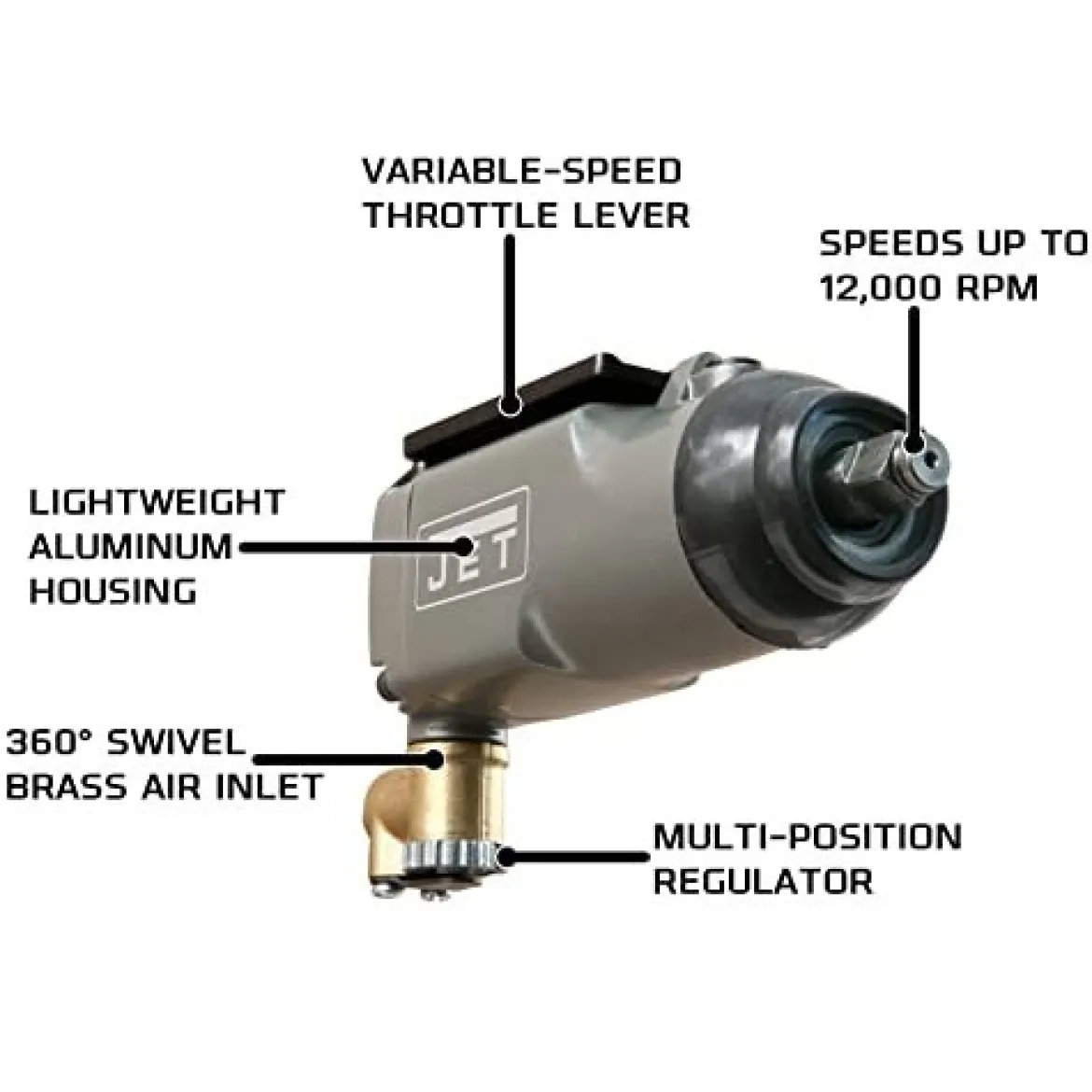

FEATURES:

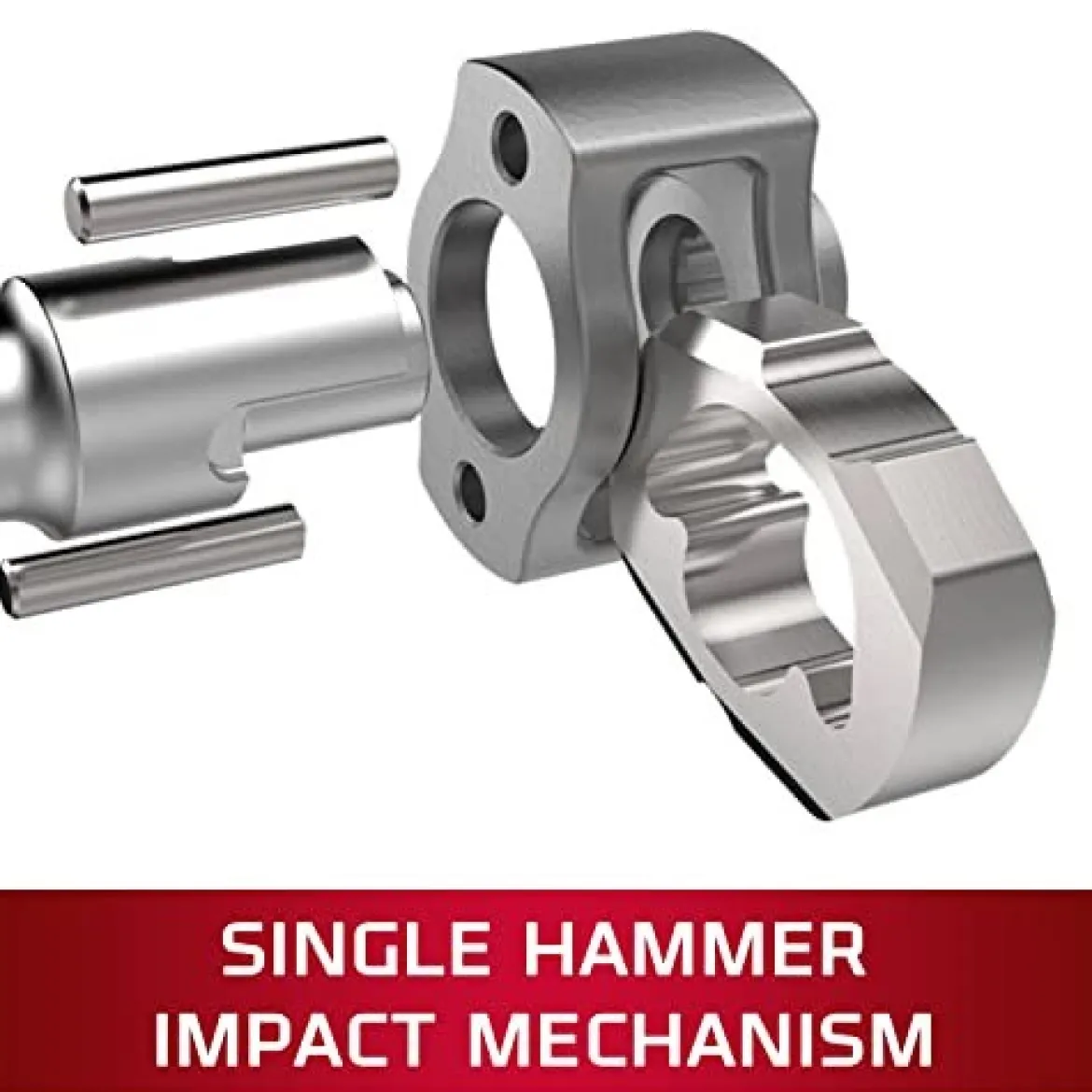

• Single hammer impact mechanism for smooth power delivery
• Aluminum construction for durability and weight reduction
• Built-in multi-position regulator for convenient air pressure adjustment
• 360-degree swivel brass air inlet for flexible hose placement
