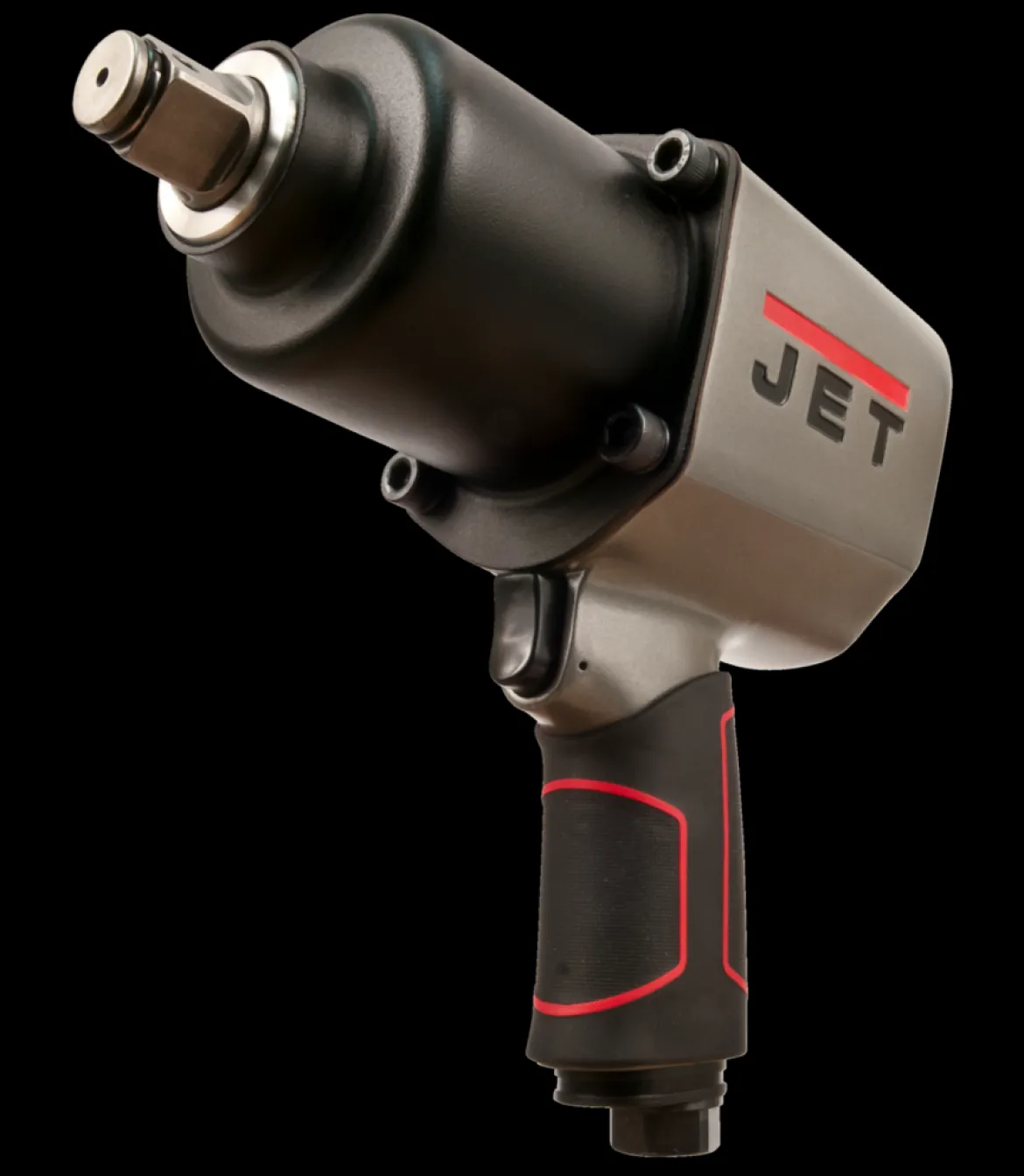

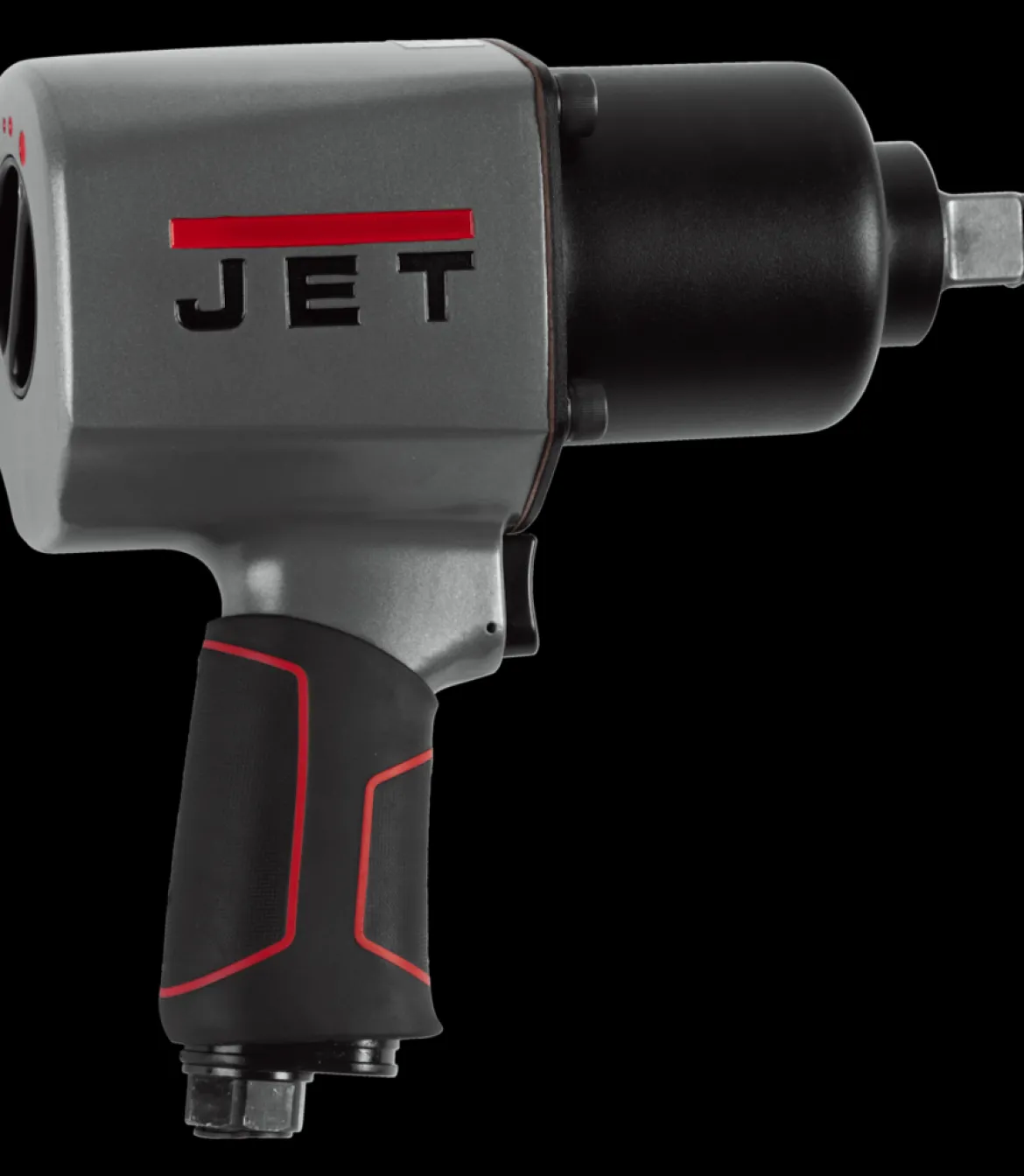

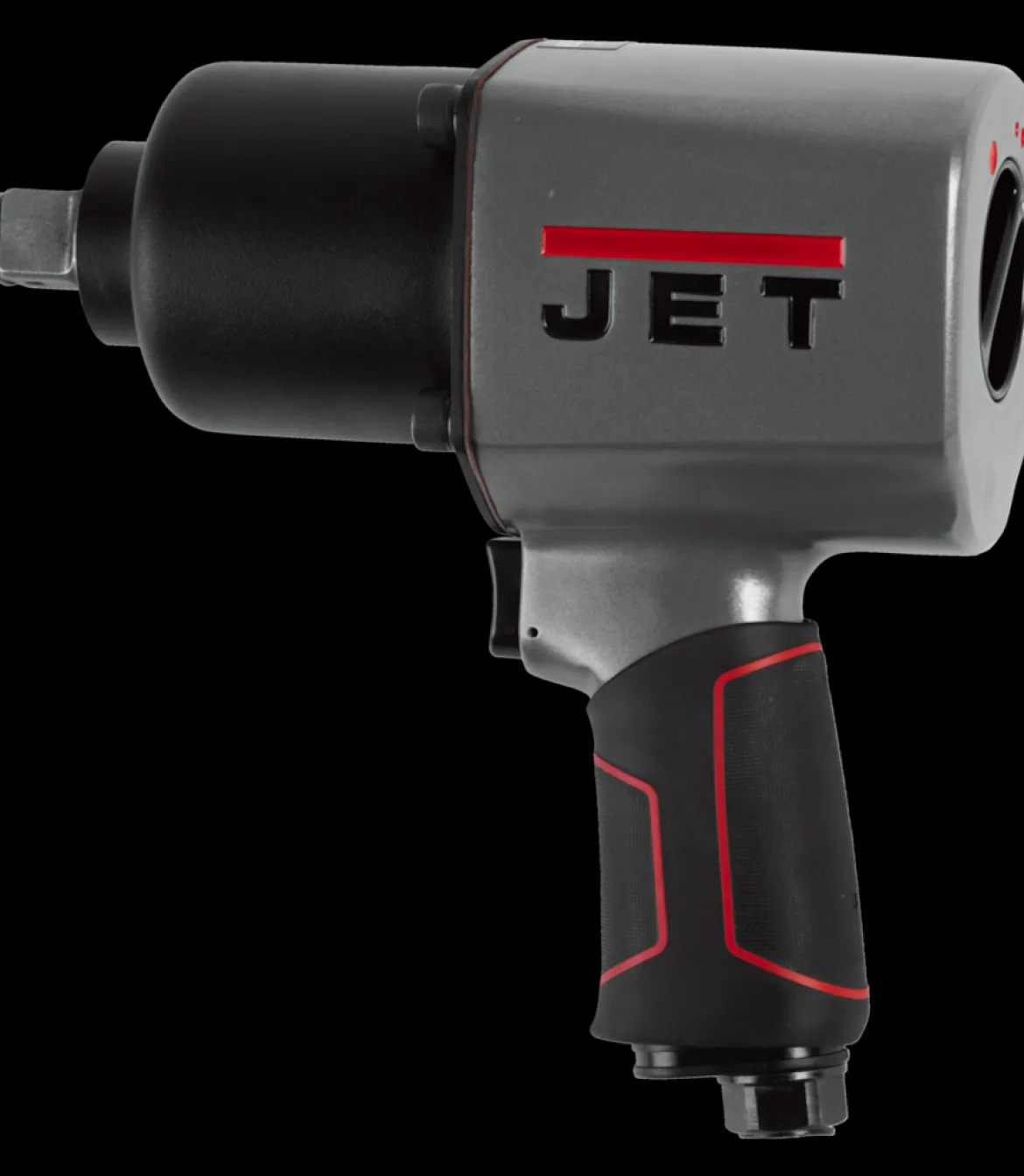

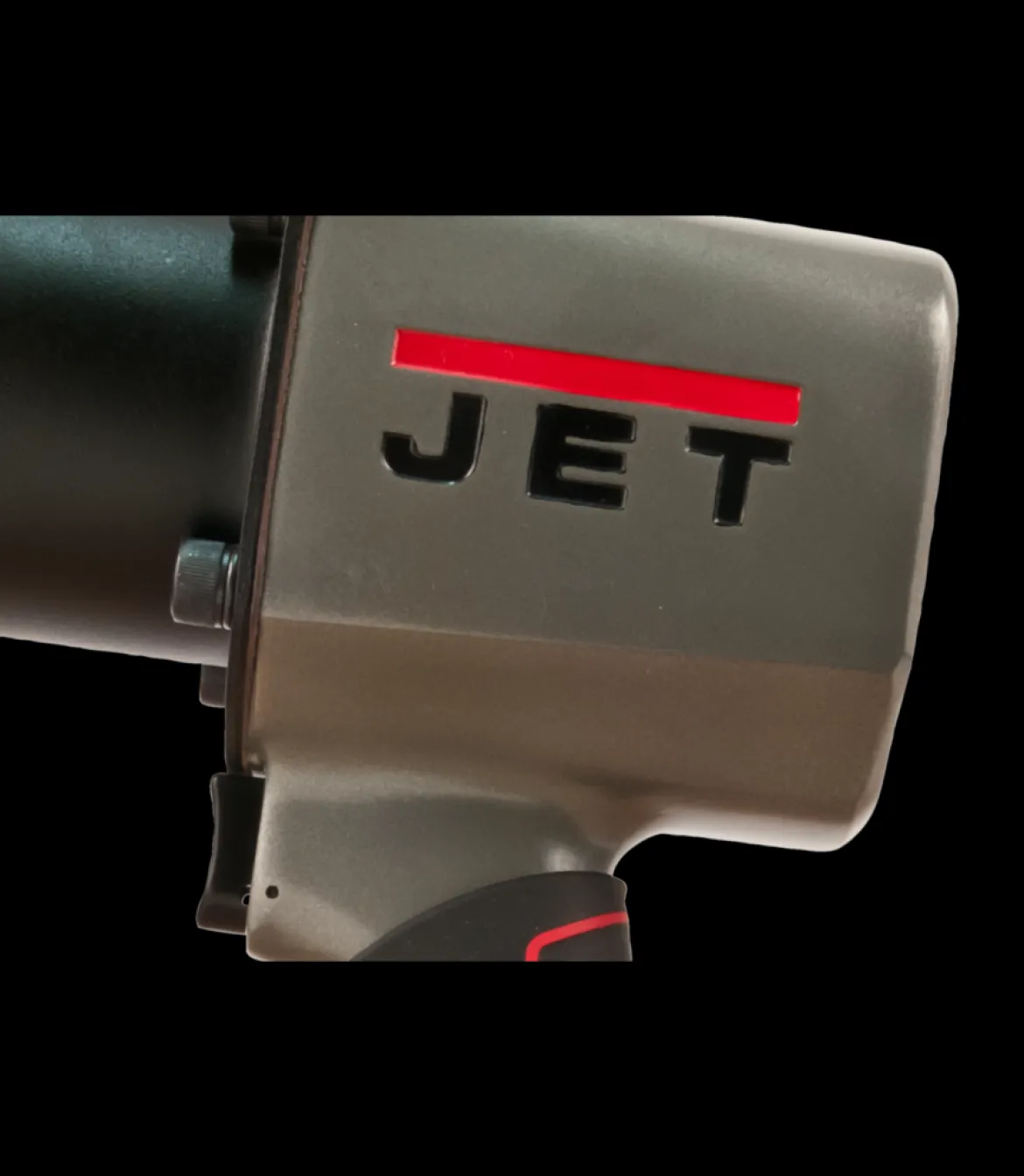

Jet JAT-105 3/4 Inch Impact Wrench, R8 Series (505105)

Jet JAT-105 3/4 Inch Impact Wrench, R8 Series (505105) is a powerful and durable tool designed for demanding work environments. Built for professionals, this impact wrench offers exceptional performance and comfort.

KEY FEATURES AND BENEFITS

• Powerful Performance: Delivers 1,500 ft-lbs of max torque with a twin hammer impact mechanism for efficient fastening and loosening.
• Comfortable Operation: Ergonomic grip reduces vibration, minimizing user fatigue during extended use.
• Lightweight Design: Aluminum construction makes the tool easy to handle, improving productivity.
• Versatile Control: Three-position forward power setting and full reverse provide flexibility for various tasks.
• Durable Construction: Built to withstand heavy-duty use, ensuring long-lasting performance.

SPECIFICATIONS

• Drive Size: 3/4 inch
• Max Torque: 1,500 ft-lbs
• Working Torque: 200-1,300 ft-lbs
• Free Speed: 5,500 RPM
• Bolt Capacity: 1 inch
• Anvil Retainer Type: Ring/Hole
• Overall Length: 8-3/4 inches
• Air Consumption: 9.5 CFM
• Vibration Value: 12.9 m/s²
• Noise Level: 101 dB
• Air Inlet: 3/8 NPT
• Air Hose: 1/2 inch ID
• Air Pressure: 90 PSI

HOW TO USE

1. Connect the Air Hose: Attach the air hose to the 3/8 inch NPT air inlet of the impact wrench.
2. Select the Power Setting: Ensure the desired power setting is selected using the 3-position forward power control.
3. Grip the Handle: Hold the ergonomic handle firmly and squeeze the trigger to activate the tool.
4. Reverse Direction: Pull the reverse lever to change the direction.
5. Stop the Tool: Release the trigger to stop the impact wrench.

BENEFITS OF USING JET JAT-105 3/4 INCH IMPACT WRENCH, R8 SERIES (505105)

• Increased Productivity: Powerful performance and lightweight design boost productivity.
• Reduced User Fatigue: Ergonomic grip and vibration reduction enhance comfort.
• Versatility: Adjustable power settings and reverse function accommodate various tasks.
• Durability: Reliable for long-term use in demanding environments.

FEATURES

• Twin hammer impact mechanism
• Ergonomic grip
• Lightweight aluminum construction
• 3-position forward power setting
• Full reverse
• Feather touch trigger
• 2-year warranty
