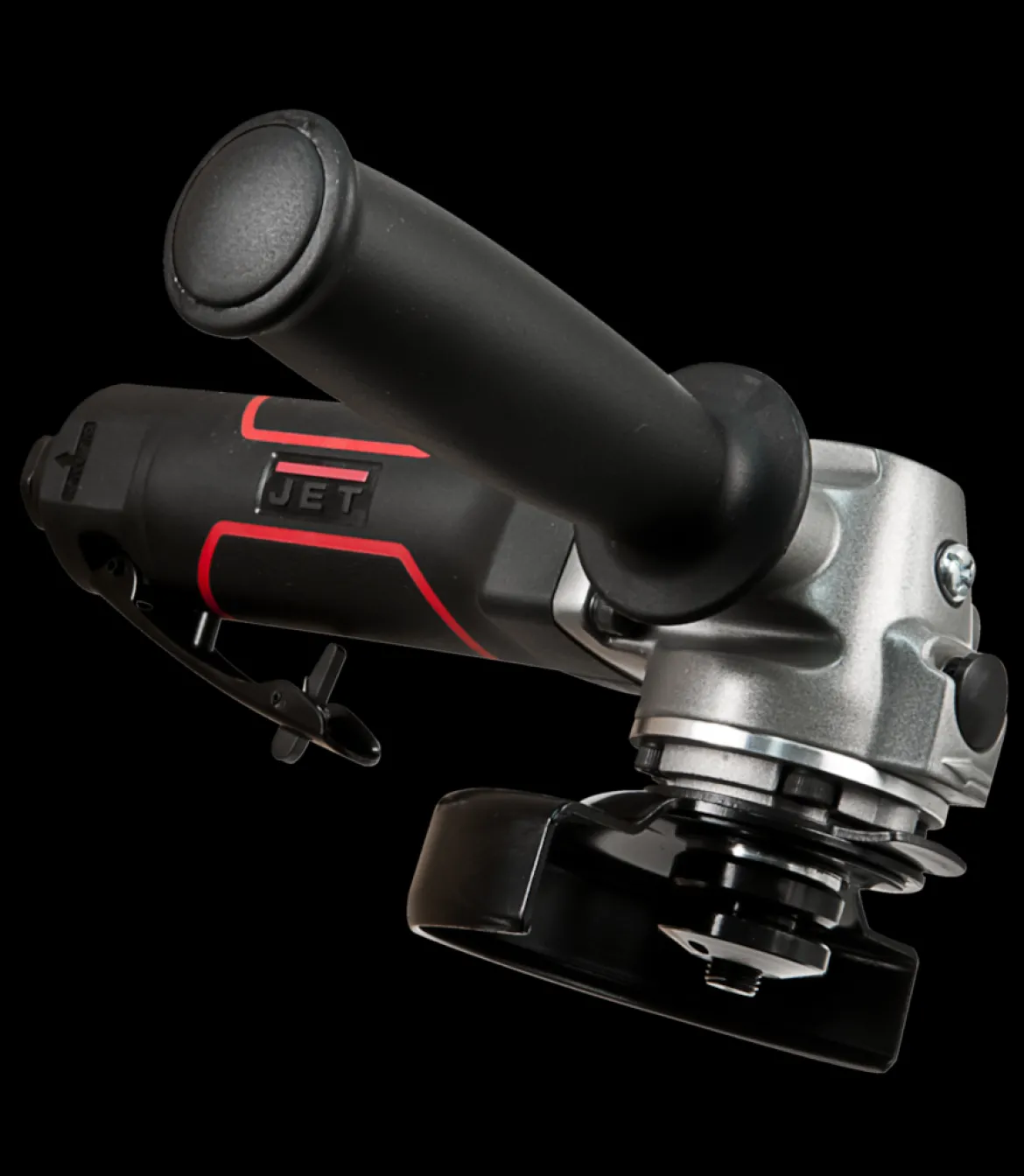

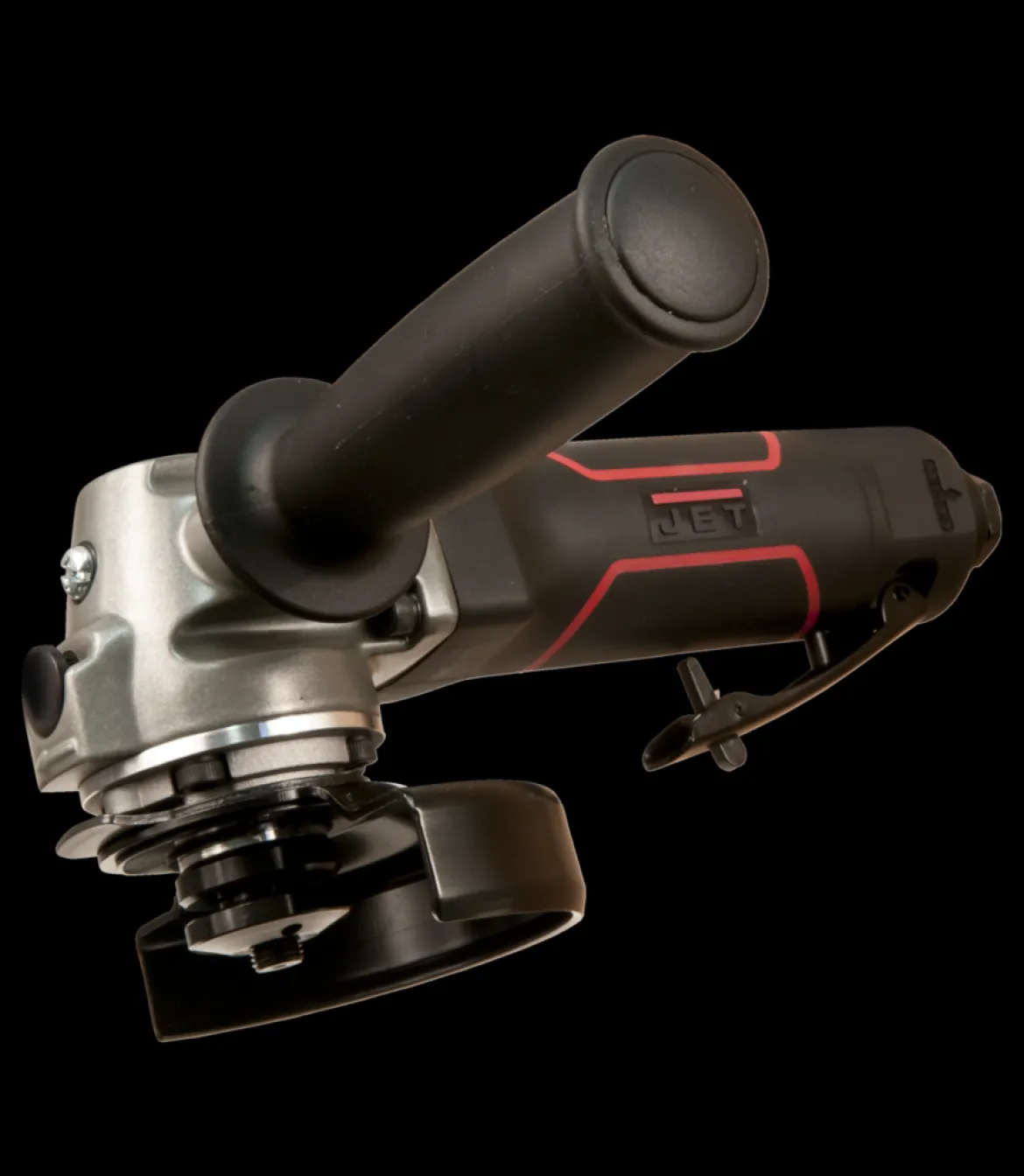

Jet JAT-450 12000 RPM 4-Inch Angle Grinder (505450)

The Jet JAT-450 12000 RPM 4-Inch Angle Grinder (505450) is a robust and reliable tool designed for heavy-duty applications. Built for durability and operator comfort, this grinder offers a range of features to enhance performance and safety.

KEY FEATURES AND BENEFITS

• Powerful Performance: Delivers 0.9 HP and 12,000 RPM for efficient cutting and grinding.
• Enhanced Safety: Adjustable wheel guard with multiple positions and safety throttle lock prevent accidents.
• Comfortable Operation: Ergonomic handle reduces hand fatigue for extended use.
• Durable Construction: Rugged ball-bearing design withstands demanding conditions.
• Versatile Use: Two-position auxiliary handle for optimal control.

SPECIFICATIONS

• Brand: Jet
• Model: JAT-450
• Wheel Size: 4 inches
• Power: 0.9 HP
• Speed: 12,000 RPM
• Dimensions: 28.4 cm x 15 cm x 11.2 cm
• Weight: 2018 g (4.4 lbs)
• Vibration Value: 1.2 m/s²
• Air Pressure: 90 PSI
• Noise Level: 92 dB
• Spindle Thread: 3/8″-24 UNF
• Air Consumption: 4 CFM
• Air Inlet: 1/4 NPT
• Overall Length: 9-3/8 inches
• Air Hose: 3/8 inches

HOW TO USE

1. Inspect the Grinder: Ensure all parts are securely fastened and in good condition.
2. Attach Grinding Wheel: Securely tighten the grinding wheel using the spindle lock.
3. Adjust Wheel Guard: Position the wheel guard for optimal visibility and safety.
4. Connect Air Hose: Connect the air hose to the grinder’s air inlet and secure it properly.
5. Turn On Air Compressor: Start the air compressor to provide the necessary air supply.
6. Operate Grinder: Gradually increase the speed using the variable-speed throttle. Maintain a firm grip on the grinder and use both hands for control.
7. Safety Precautions: Wear appropriate safety gear, including eye protection, ear protection, and a dust mask. Maintain a safe working distance and avoid touching the spinning grinding wheel.

BENEFITS OF USING JET JAT-450 12000 RPM 4-INCH ANGLE GRINDER (505450)

• Increased efficiency due to powerful performance.
• Improved safety with adjustable wheel guard and safety lock.
• Enhanced comfort through ergonomic design.
• Extended tool life thanks to durable construction.
• Versatility for various applications with adjustable handle.

FEATURES

• Adjustable wheel guard
• Ergonomic grip
• Two-position auxiliary handle
• Rugged ball-bearing design
• Variable-speed throttle
• Safety throttle lock
• Precision spiral bevel gears
