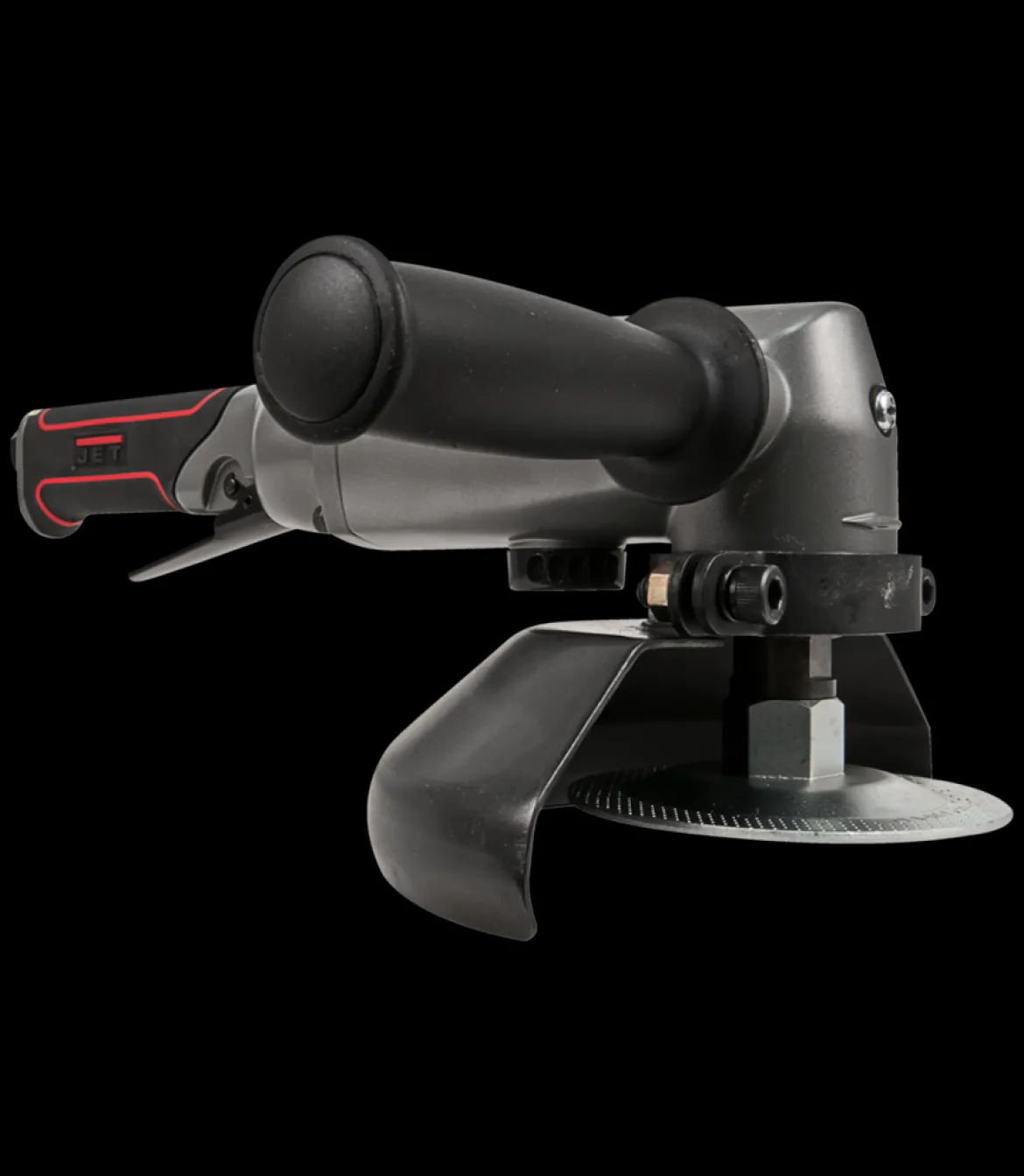

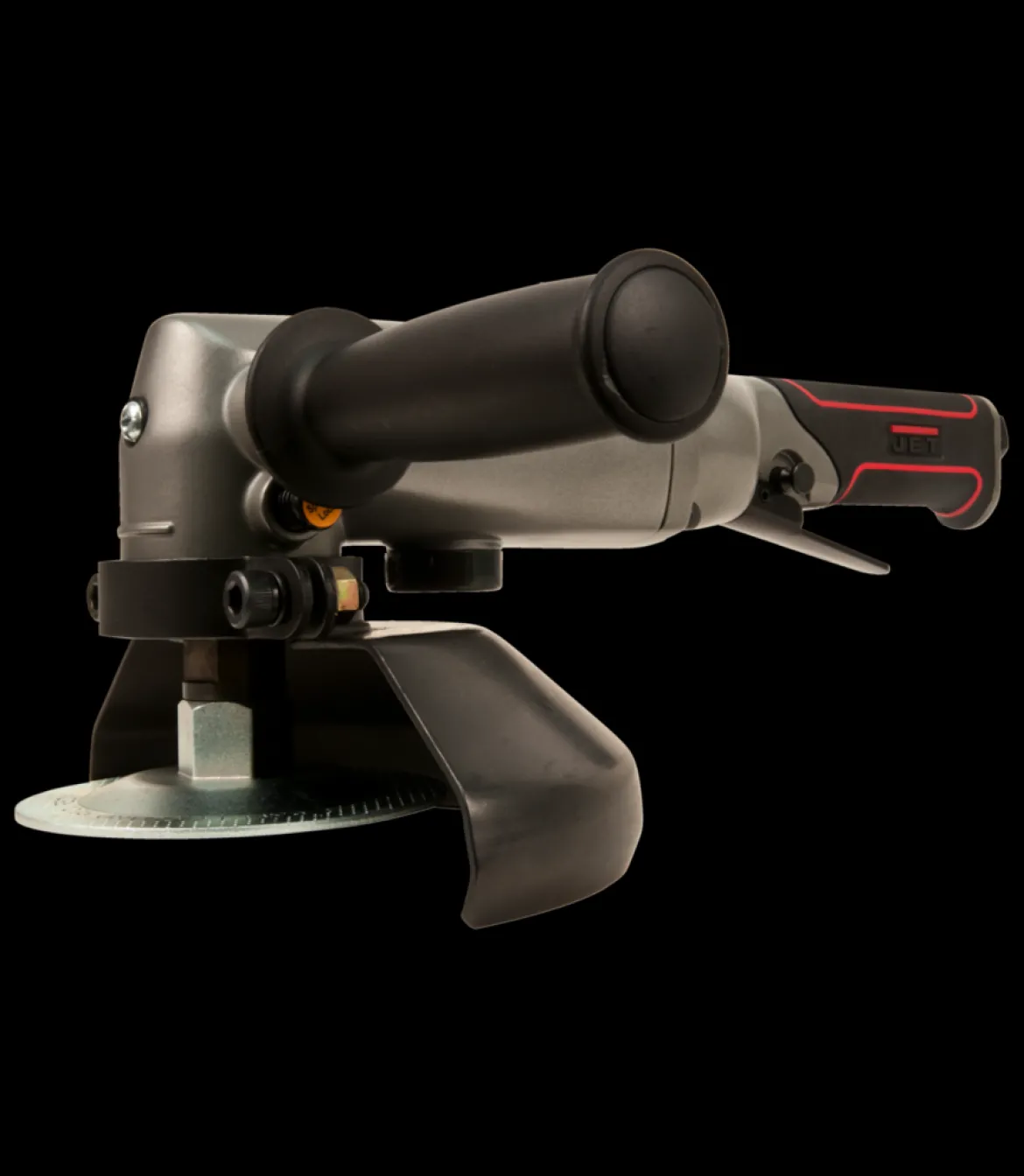

Jet JAT-452 R8 Series 7 Inch Angle Grinder (505452)

The Jet JAT-452 R8 Series 7 Inch Angle Grinder (505452) is a robust tool designed for efficient and safe grinding, cutting, and polishing tasks. Built for heavy-duty applications, this angle grinder delivers exceptional performance and durability.

KEY FEATURES AND BENEFITS:

• Powerful Performance: Equipped with a 1.3 HP motor, it provides ample power to tackle demanding jobs.
• Enhanced Safety: The adjustable swivel guard and safety throttle lock prioritize user protection.

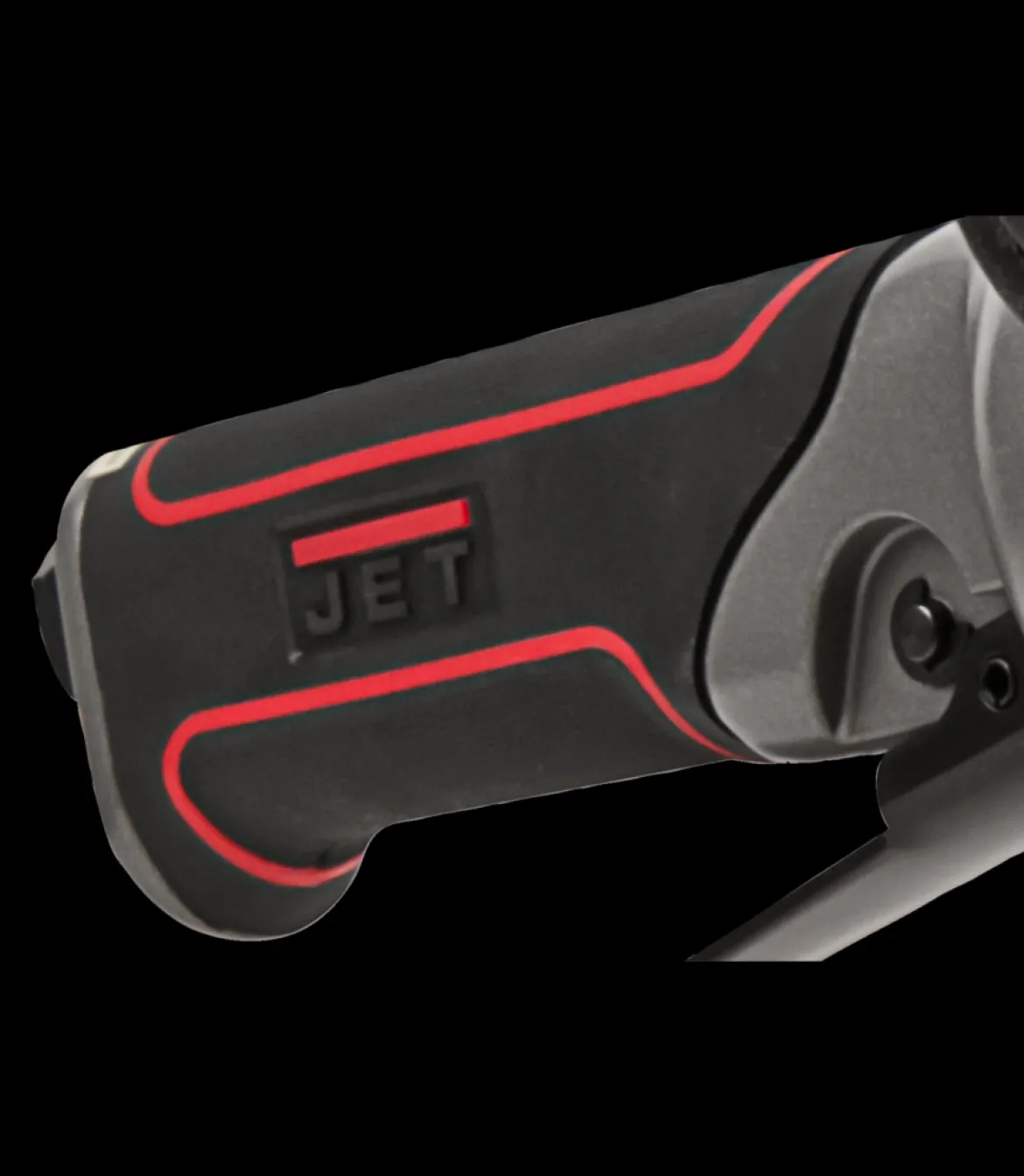

• Comfortable Operation: The ergonomic grip reduces vibration and fatigue, ensuring comfortable extended use.
• Efficient Workflow: Tool-less wheel changes and variable speed control optimize productivity.
• Durable Construction: Built with rugged ball-bearing design for long-lasting performance.

SPECIFICATIONS:

• Wheel Size: 7 x 7/8 x 1/4 inches
• Free Speed: 8,500 RPM
• Horsepower: 1.3 HP
• Weight: 7.7 lbs
• Overall Length: 13-3/4 inches
• Air Consumption: 6 CFM
• Noise Level: 104 dB(A)
• Vibration Value: 4.3 m/s²
• Air Inlet: 3/8 inch NPT
• Air Hose: 3/8 inch ID
• Air Pressure: 90 PSI
• Spindle Thread: 5/8″- 11 UNC

HOW TO USE:

1. Inspect the Angle Grinder: Check for any damage or wear before use.
2. Attach the Grinding Wheel: Securely fasten the desired grinding wheel to the spindle using the spindle lock.
3. Adjust the Guard: Position the adjustable guard to protect the user from flying debris.
4. Connect Air Hose: Connect the air hose to the angle grinder’s air inlet and ensure a secure connection.
5. Turn on Air Compressor: Start the air compressor to provide the necessary air pressure.
6. Grip the Angle Grinder: Hold the angle grinder firmly with both hands, using the auxiliary handle for support.
7. Engage the Throttle: Gradually increase the speed using the variable-speed throttle.
8. Perform Grinding Task: Apply the angle grinder to the workpiece with steady and controlled movements.
9. Release Throttle and Turn Off Air Compressor: When finished, release the throttle, and turn off the air compressor.
10. Disconnect Air Hose: Disconnect the air hose from the angle grinder.

BENEFITS OF USING JET JAT-452 R8 SERIES 7 INCH ANGLE GRINDER (505452):

• Increased efficiency and productivity due to powerful performance and user-friendly features.
• Enhanced safety with adjustable guard and safety throttle lock.
• Improved comfort with ergonomic design and reduced vibration.
• Durability and longevity thanks to rugged construction.
• Versatility for various grinding, cutting, and polishing applications.

FEATURES:

• 7-inch wheel size
• Adjustable swivel guard

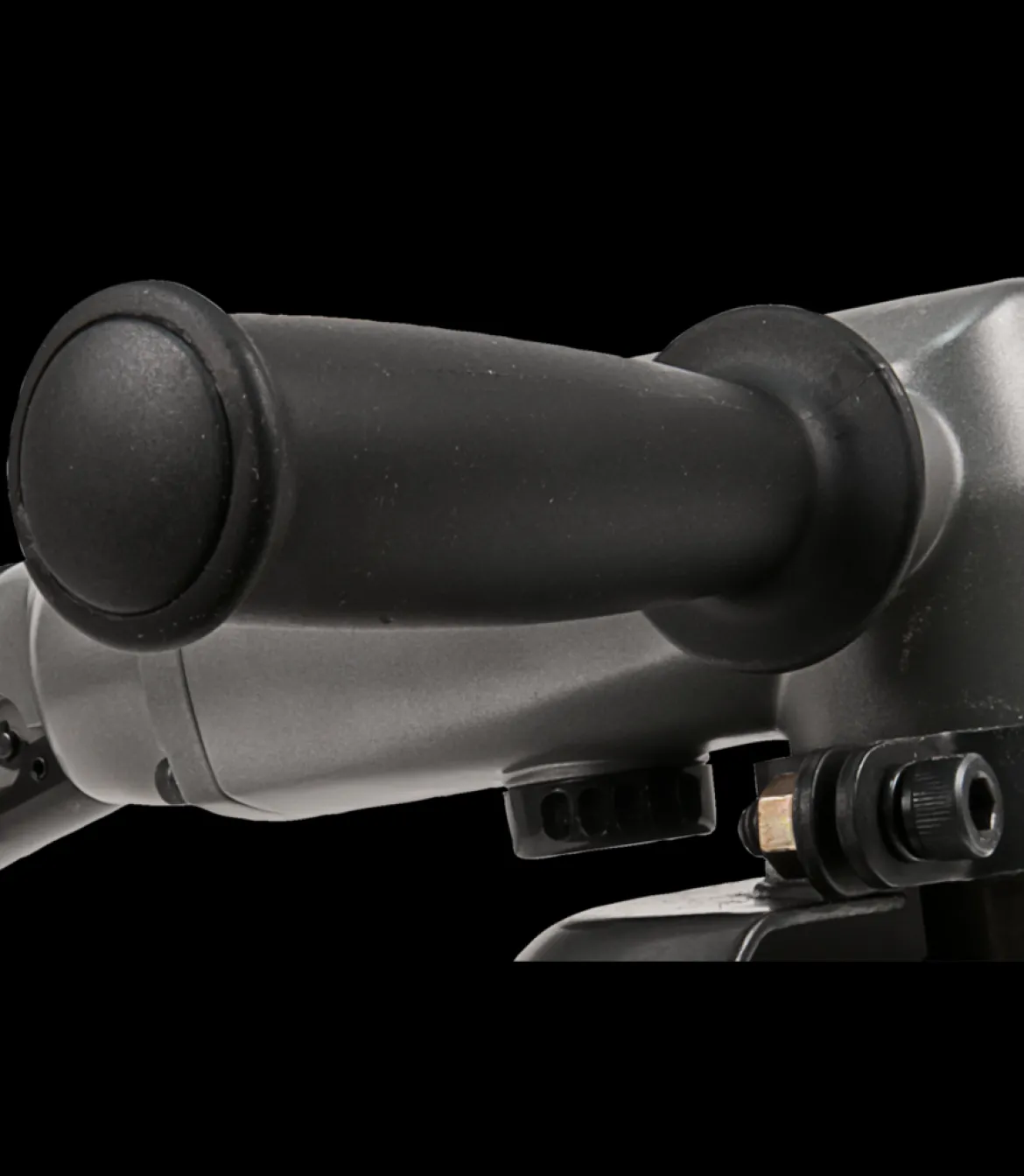

• Two-position auxiliary handle
• Ergonomic grip
• Rugged ball-bearing construction
• Variable-speed throttle with safety lock
• Tool-less wheel guard
• Precision spiral bevel gears
• Tapered angle gear housing
• Lightweight aluminum construction
