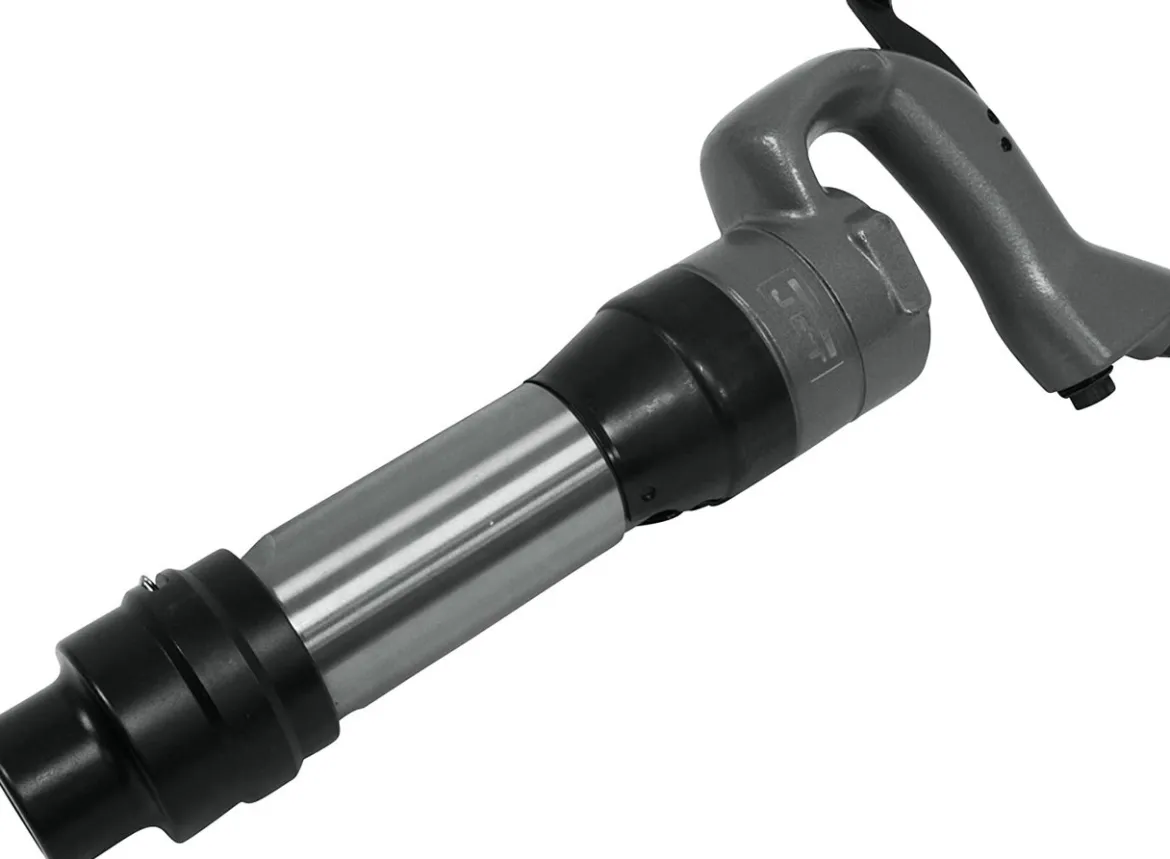

Jet JCT-3642 3″Stroke Open Handle Chipping Hammer Round Shank (550642)

Jet JCT-3642 3″ Stroke Open Handle Chipping Hammer Round Shank (550642) is a heavy-duty tool designed for efficient and powerful chipping. Built with a focus on user comfort and tool durability, this chipping hammer is a valuable asset for any construction or demolition project.

KEY FEATURES AND BENEFITS

• Open Handle Design: Reduces user fatigue by effectively dissipating impact energy.
• Heat-Treated Cylinder and Piston: Enhances durability and extends tool life.
• Heavy-Duty Construction: Built to withstand demanding jobsite conditions.
• Reliable Valve Design: Ensures consistent performance.
• Includes Standard Retainer: Convenient and ready to use.

SPECIFICATIONS

• Model Number: JCT-3642
• Shank Bushing Style: Round
• Shank Bushing Size: 0.680 inches
• Piston Stroke: 3 inches
• Bore Size: 1-1/8 inches
• Air Consumption: 8 CFM
• Air Inlet: 3/8″ NPT
• Min. Air Hose: 1/2″ ID
• Blows Per Minute: 1500
• Noise Level: 98 dB
• Overall Length: 15-1/4 inches
• Weight: 16 lbs
• Gross Weight: 18 lbs
• Warranty: 2 years

HOW TO USE

1. Inspect the Tool: Before use, carefully examine the chipping hammer for any damage or wear.
2. Connect Air Hose: Attach a clean, dry air hose to the 3/8″ NPT air inlet. Ensure a secure connection.
3. Wear Protective Gear: Always wear safety glasses, hearing protection, and a dust mask when operating the chipping hammer.
4. Hold the Tool Firmly: Grip the open handle with both hands, ensuring a secure hold.
5. Engage the Air Supply: Turn on the compressed air supply.
6. Control the Chipping Hammer: Guide the tool with smooth and controlled movements. Apply steady pressure to the chisel.
7. Monitor Air Pressure: Maintain optimal air pressure for efficient operation.
8. Regular Maintenance: Clean the tool after each use and lubricate moving parts as needed.

BENEFITS OF USING JET JCT-3642 3″ STROKE OPEN HANDLE CHIPPING HAMMER ROUND SHANK (550642)

• Increased Efficiency: Powerful performance for faster task completion.
• Reduced User Fatigue: Open handle design minimizes discomfort during extended use.
• Improved Durability: Heat-treated components withstand heavy-duty applications.
• Reliable Operation: Consistent performance for dependable results.
• Cost-Effective: Durable construction and long lifespan provide excellent value.

FEATURES

• Heavy-duty design
• Open handle
• Round shank
• Heat-treated cylinder and piston
• Reliable valve design
• Includes standard retainer
• 2-year warranty
