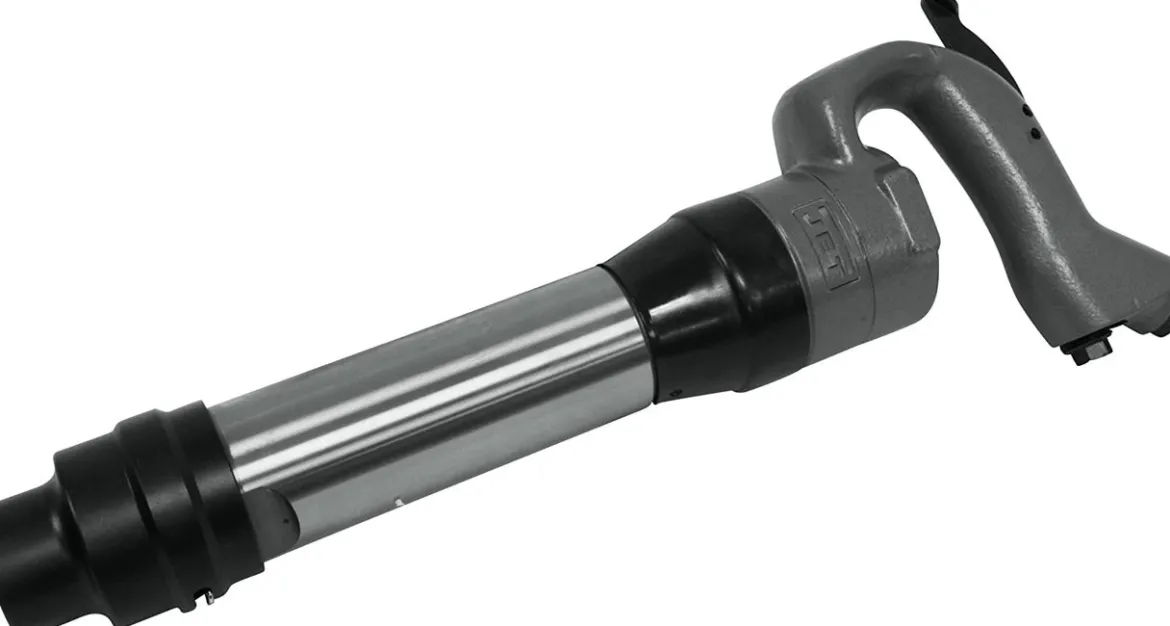

Jet JCT-3644 4″ Stroke Open Handle Chip Hammer w/ Round Shank (550644)

Jet JCT-3644 4″ Stroke Open Handle Chip Hammer w/ Round Shank (550644) is a heavy-duty chipping hammer designed for efficient and comfortable operation. This tool features an open handle design that effectively dissipates impact energy, reducing user fatigue and enhancing safety. Built with a heat-treated cylinder and piston, it ensures long-lasting durability. The hammer is compatible with standard oval collars and retainers, offering versatility for various applications.

KEY FEATURES AND BENEFITS

• Open handle design: Reduces user fatigue and improves safety by efficiently dispersing impact energy.
• Heat-treated cylinder and piston: Enhances durability and extends the tool’s lifespan.
• Heavy-duty valve design: Ensures reliable performance under demanding conditions.
• Round shank: Compatible with a wide range of pneumatic tools.
• Accepts standard oval collars and retainers: Provides versatility for various chipping tasks.

SPECIFICATIONS

• Model Number: JCT-3644
• Air Consumption: 9 CFM
• Air Inlet: 3/8 NPT
• Blows Per Minute: 1400
• Bore Size: 1-1/8 inch
• Min. Air Hose: 1/2 inch
• Noise Level: 98 dBA
• Overall Length: 16-5/8 inch
• Piston Stroke: 4 inch
• Shank Bushing Size: 0.680 inch
• Vibration Value: 23.5 m/s²
• Weight: 18 lbs
• Gross Weight: 20 lbs
• Shank Bushing Style: Round
• Warranty: 2 years

HOW TO USE

1. Inspect the chipping hammer: Check for any damage or wear before use.
2. Connect the air hose: Securely attach the air hose to the 3/8 inch NPT air inlet.
3. Choose the appropriate chisel: Select the chisel that best suits your task.
4. Install the chisel: Insert the chisel into the hammer and secure it with the retainer.
5. Turn on the air compressor: Ensure the air compressor is running and providing adequate air pressure.
6. Grip the handle firmly: Maintain a secure grip on the open handle to control the chipping hammer.
7. Apply the chipping hammer to the surface: Gently apply the chisel to the surface and gradually increase pressure as needed.
8. Move the chipping hammer in a controlled manner: Use smooth and consistent motions to remove material efficiently.
9. Wear appropriate safety gear: Always wear safety goggles, gloves, and hearing protection when using a chipping hammer.

BENEFITS OF USING JET JCT-3644 4″ STROKE OPEN HANDLE CHIP HAMMER W/ ROUND SHANK (550644)

• Reduced user fatigue due to the open handle design.
• Increased safety through effective impact energy dissipation.
• Durable construction for long-lasting performance.
• Versatile compatibility with standard oval collars and retainers.
• Efficient material removal for various applications.

FEATURES

• Open handle design
• Heat-treated cylinder and piston
• Heavy-duty valve design
• Round shank
• Accepts standard oval collars and retainers
• Durable construction
