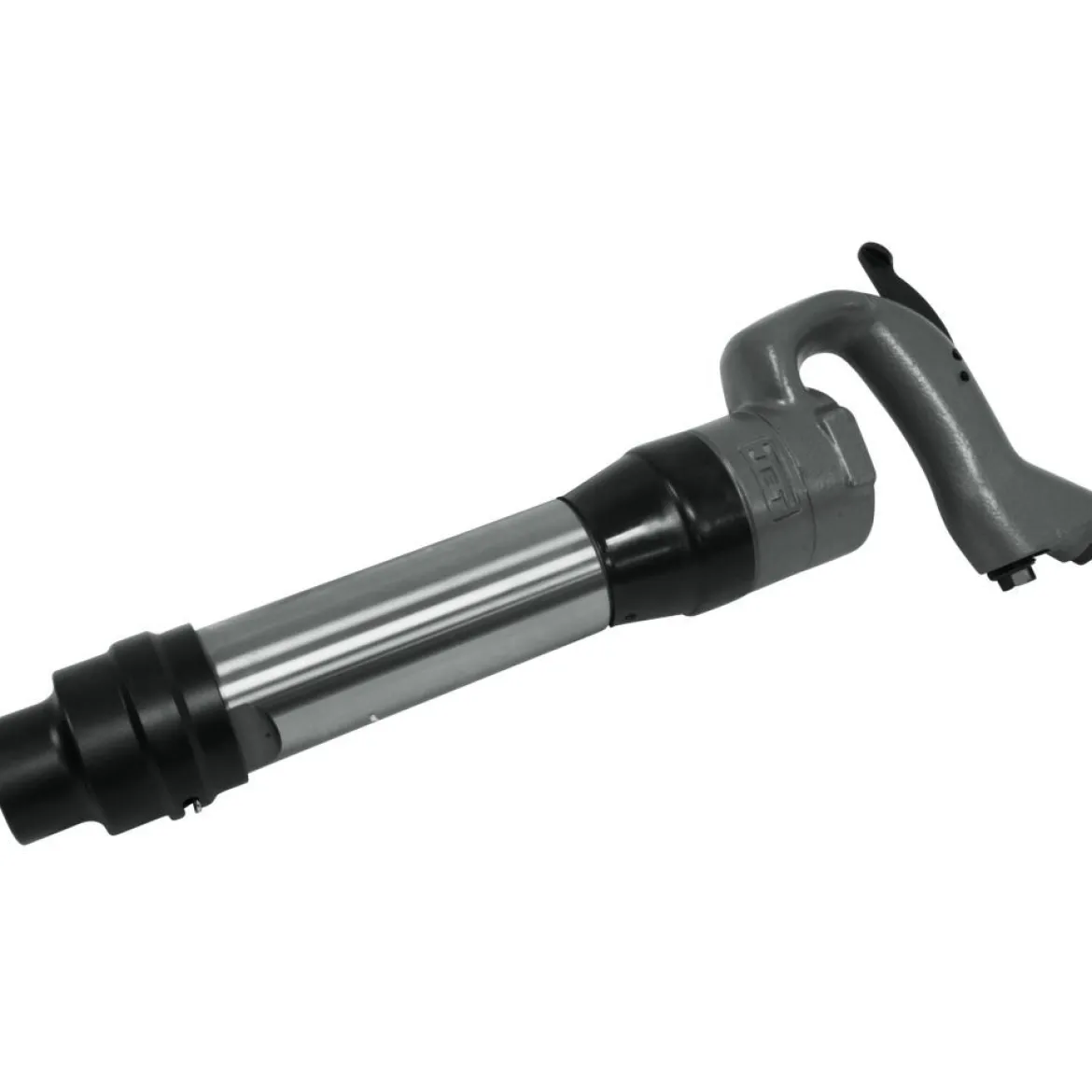

Jet JCT-3645 4″ Stroke Open Handle Chipping Hammer Hex Shank (550645)

Jet JCT-3645 4″ Stroke Open Handle Chipping Hammer Hex Shank (550645) is a heavy-duty tool designed for efficient concrete removal, demolition, and other tough jobs. This 4-inch open handle chipping hammer features a hex shank for secure attachment and reliable performance.

KEY FEATURES AND BENEFITS

• Powerful Performance: Delivers high impact energy for fast and efficient material removal.
• Durable Construction: Heat-treated cylinder and piston for long-lasting use.
• Ergonomic Design: Open-style forged handle reduces user fatigue and improves comfort.
• Safe Operation: Outside trigger for better control and reduced hand strain.
• Versatile: Compatible with standard oval collared chisels and retainers.

SPECIFICATIONS

• Model Number: JCT-3645
• Part Number: 550645
• Stroke: 4 inches
• Shank: Hex
• Air Consumption: 9 CFM
• Air Inlet: 3/8 NPT
• Blows Per Minute: 1400
• Bore Size: 1-1/8 inch
• Min. Air Hose (ID): 1/2 inch
• Noise Level: 98 dBA
• Overall Length: 16-5/8 inches
• Vibration Value: 23.5 m/s²
• Warranty: 2 years
• Weight: 18 pounds
• Gross Weight: 20 pounds
• Shank Bushing Size: 0.580 inch
• Shank Bushing Style: Hex

HOW TO USE

1. Safety First: Wear appropriate safety gear, including eye protection, ear protection, and gloves.
2. Connect Air Hose: Securely connect the air hose to the 3/8 NPT air inlet.
3. Attach Chisel: Insert the desired chisel into the hex shank and tighten securely.
4. Start Compressor: Turn on the air compressor to provide the necessary air pressure.
5. Grip Handle: Hold the open handle firmly with both hands.
6. Operate Trigger: Squeeze the trigger to activate the chipping hammer.
7. Control Movement: Guide the chisel with smooth and controlled motions.
8. Regular Maintenance: Clean the chipping hammer after each use and lubricate moving parts as needed.

BENEFITS OF USING JET JCT-3645 4″ STROKE OPEN HANDLE CHIPPING HAMMER HEX SHANK (550645)

• Increased productivity due to its powerful performance.
• Reduced downtime thanks to durable construction.
• Improved user comfort and safety with ergonomic design.
• Versatility for various chipping and demolition tasks.
• Backed by a reliable 2-year warranty.

FEATURES

• Open-style forged handle
• Heat-treated cylinder and piston
• Heavy-duty valve design
• Compatible with standard oval collared chisels and retainers
• 2-year warranty
