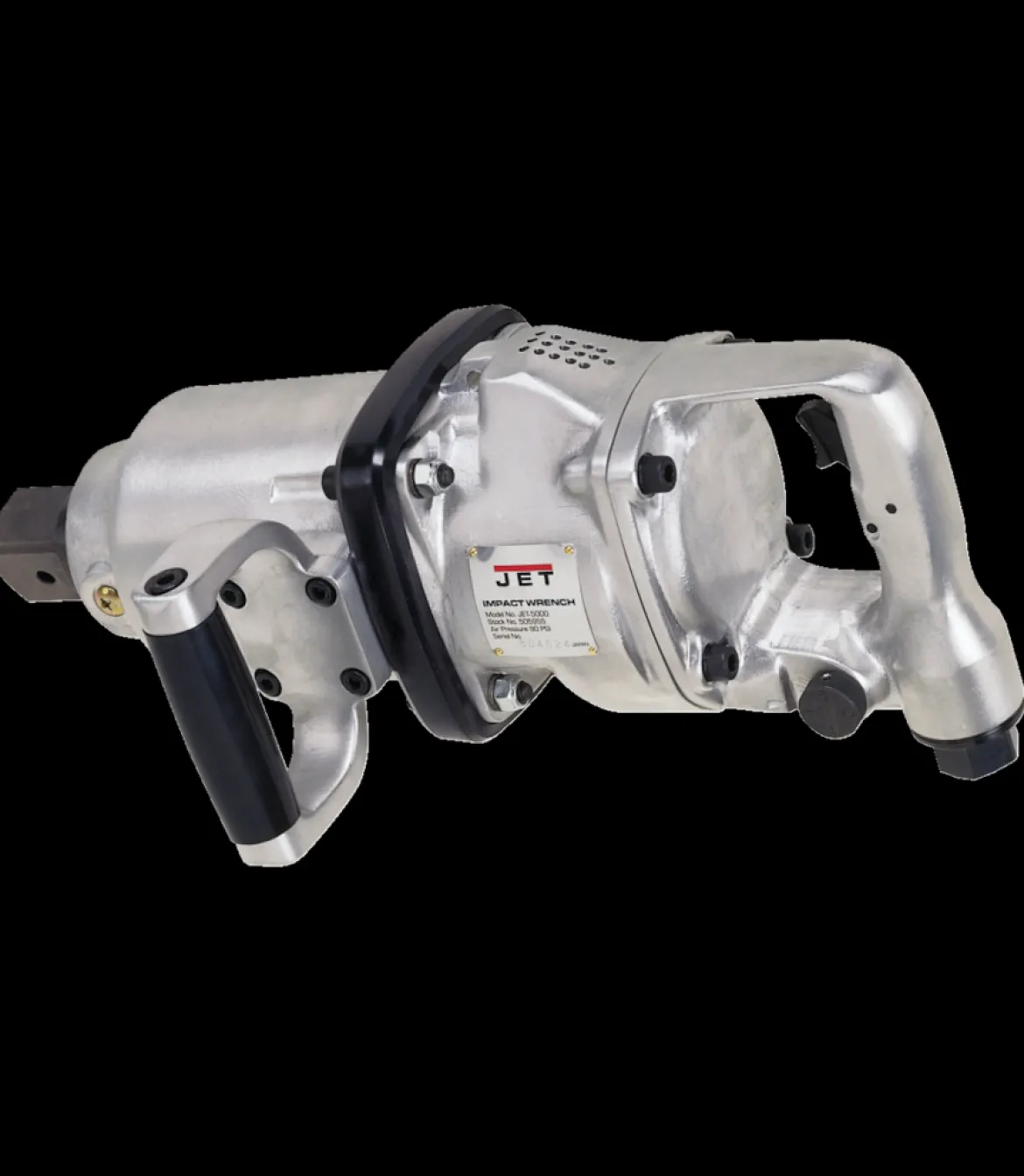

Jet JET-5000 1.5 Inch D-Handle Impact Wrench (505955)

The Jet JET-5000 1.5 Inch D-Handle Impact Wrench (505955) is a heavy-duty impact wrench designed for demanding industrial applications. Built with a sturdy all-steel construction, this tool delivers impressive power with a maximum torque of 3400 ft-lbs.

KEY FEATURES AND BENEFITS

• Powerful Performance: Generates 3400 ft-lbs of maximum torque for efficient fastening and loosening of tough bolts.
• Durable Construction: All-steel build ensures long-lasting reliability in harsh work environments.
• Precise Control: Variable speed trigger and built-in regulator allow for accurate adjustments.
• Comfortable Operation: D-handle design with inside trigger and cushioned auxiliary handle for ergonomic use.
• Noise Reduction: Muffled handle exhaust minimizes operator fatigue.

SPECIFICATIONS

• Air Pressure: 90 PSI
• Free Speed: 3000 RPM
• Max Torque: 3400 ft-lbs
• Air Inlet: 1/2″ NPT
• Overall Length: 16 inches
• Square Drive: 1-1/2 inches
• Bolt Capacity: 2 inches
• Anvil Retainer Type: Hole
• Vibration Value: 8.3 m/s²
• Air Consumption: 44 CFM
• Working Torque: 680-2720 ft-lbs
• Noise Level: 99 dB
• Air Hose: 3/4 inch ID
• Classification: Super-Duty

HOW TO USE

1. Connect the Air Hose: Securely attach the 3/4 inch air hose to the 1/2 inch NPT air inlet.
2. Adjust Air Pressure: Set the desired air pressure using the built-in regulator.
3. Select Forward or Reverse: Choose the appropriate direction by pressing the forward/reverse switch.
4. Control Speed: Gradually squeeze the variable speed trigger to increase or decrease the impact wrench’s speed.
5. Attach Socket: Insert the desired socket into the 1-1/2 inch square drive.
6. Operate the Tool: Position the impact wrench on the fastener and apply pressure while pulling the trigger.
7. Release Trigger: Once the fastener is tightened or loosened, release the trigger.

BENEFITS OF USING JET JET-5000 1.5 INCH D-HANDLE IMPACT WRENCH (505955)

• Increased Productivity: Due to powerful performance and fast operation.
• Reduced User Fatigue: With comfortable design and noise reduction features.
• Enhanced Safety: With precise control and durable construction.
• Versatility: For handling a wide range of heavy-duty fastening tasks.

FEATURES

• Proprietary impact mechanism
• Heavy-duty all-steel construction
• Variable speed trigger and built-in regulator
• Easy-to-reach forward/reverse switch
• Muffled handle exhaust
• D-handle design with inside trigger
• Cushioned auxiliary handle
