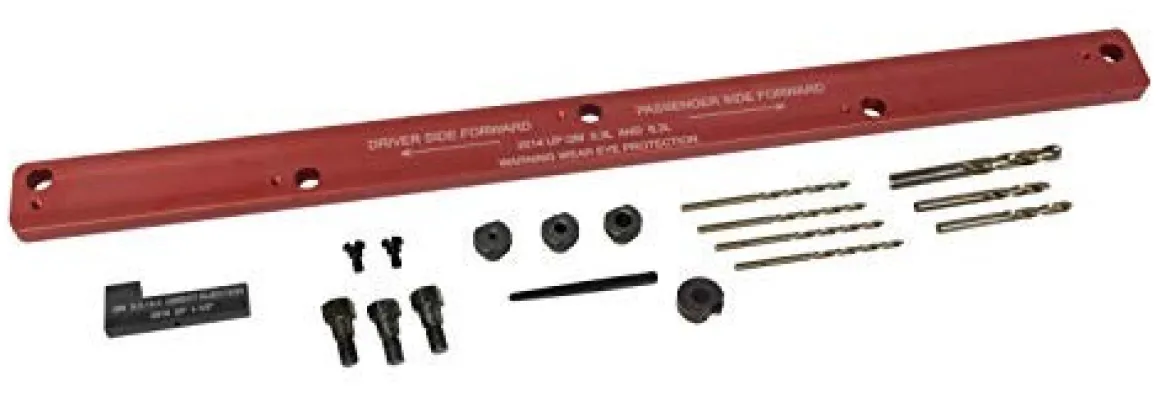

Lisle GM Ecotec3 5.3L & 6.2L Manifold Drill Template (71650)

The Lisle GM Ecotec3 5.3L & 6.2L Manifold Drill Template (71650) is a specialized tool designed to safely and efficiently remove broken exhaust manifold bolts from GM EcoTech3 5.3L and 6.2L engines. This tool prevents damage to the cylinder head, which can be costly and time-consuming to repair.

KEY FEATURES AND BENEFITS:

• Precise Alignment: The template’s tapered bolts and center base plate ensure accurate positioning over the broken bolt hole.
• Easy Positioning: The slip-fit bushing allows you to move from hole to hole without repositioning the entire base plate, saving time and effort.
• Efficient Removal: A screw extractor is included to remove the broken bolt.
• Damage Prevention: If the extractor cannot be used, the included bushing guides drilling to the correct tap size, minimizing the risk of damaging the cylinder head.

SPECIFICATIONS:

• Manufacturer: Lisle Corporation
• Part Number: 71650
• UPC: 083045716501
• HS Code: 8205595560
• Shipping Weight: 3 lbs

HOW TO USE:

• Align the Template: Position the template’s center base plate over the broken bolt hole, ensuring accurate alignment with the tapered bolts.

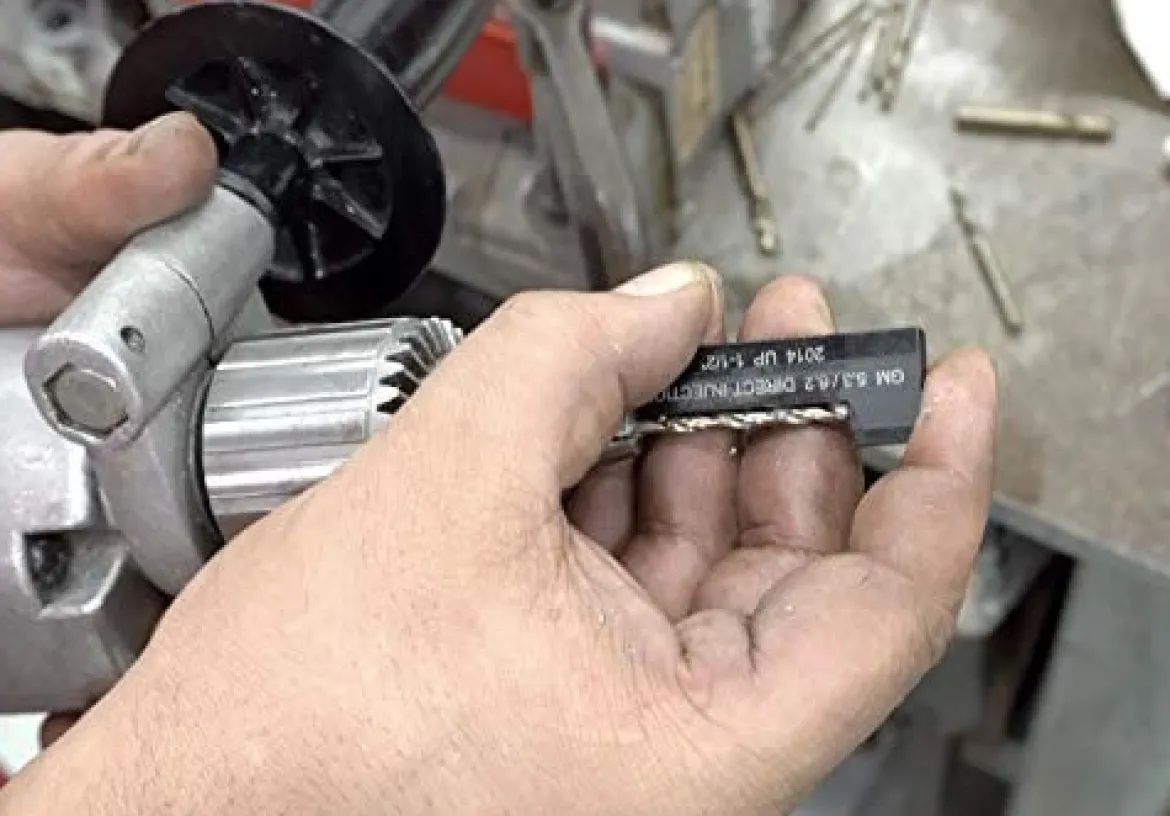

• Select the Bushing: Choose the appropriate bushing size for the broken bolt.
• Drill the Hole: Use the bushing as a guide to drill a pilot hole at the correct angle.
• Extract the Bolt: Insert the screw extractor into the drilled hole and carefully remove the broken bolt.
• Clean the Area: Remove any debris or metal shavings from the hole.

BENEFITS OF USING LISLE GM ECOTEC3 5.3L & 6.2L MANIFOLD DRILL TEMPLATE (71650):

• Prevents Costly Cylinder Head Damage: Safeguards against expensive repairs.
• Saves Time and Effort: Features precise alignment and easy positioning.
• Includes All Necessary Tools: Provides everything needed for efficient removal.
• Minimizes Risk of Further Damage: Ensures a safer removal process.

FEATURES:

• Tapered Bolts: For accurate alignment.
• Slip-Fit Bushing: For easy positioning.
• Screw Extractor: For efficient bolt removal.
• Bushing: For guided drilling to prevent damage.
