Master Tailgaters Dodge Ram (2009-2017) Black Replacement Tailgate Handle with Backup Camera (MT-DR09B)

Dodge Ram 2009-2017 Black Tailgate Handle with Color Backup Camera

Color:

• Black

For Use With:

• Dodge Ram 1500, 2500, 3500 (Years 2009-2017)

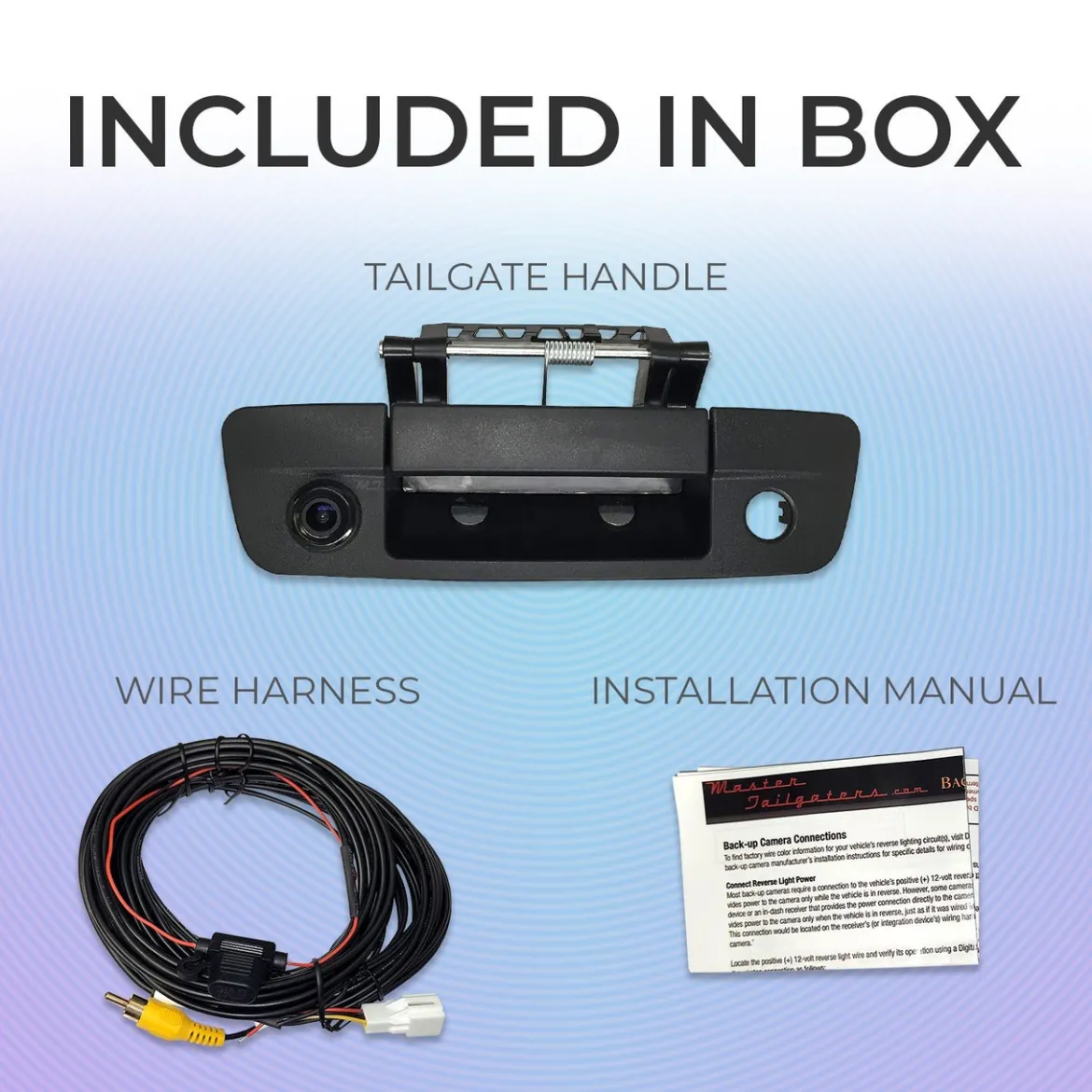

What’s Included:

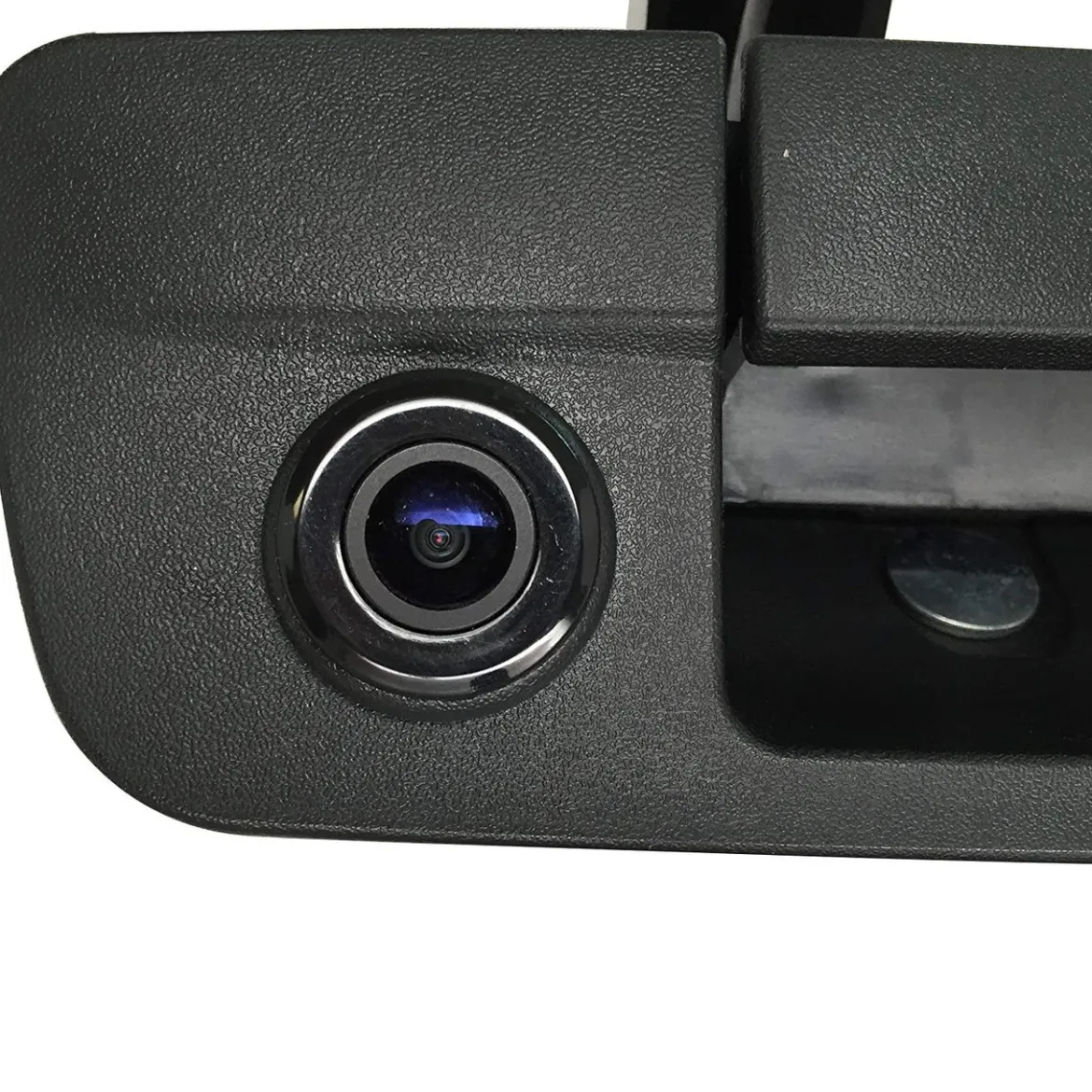

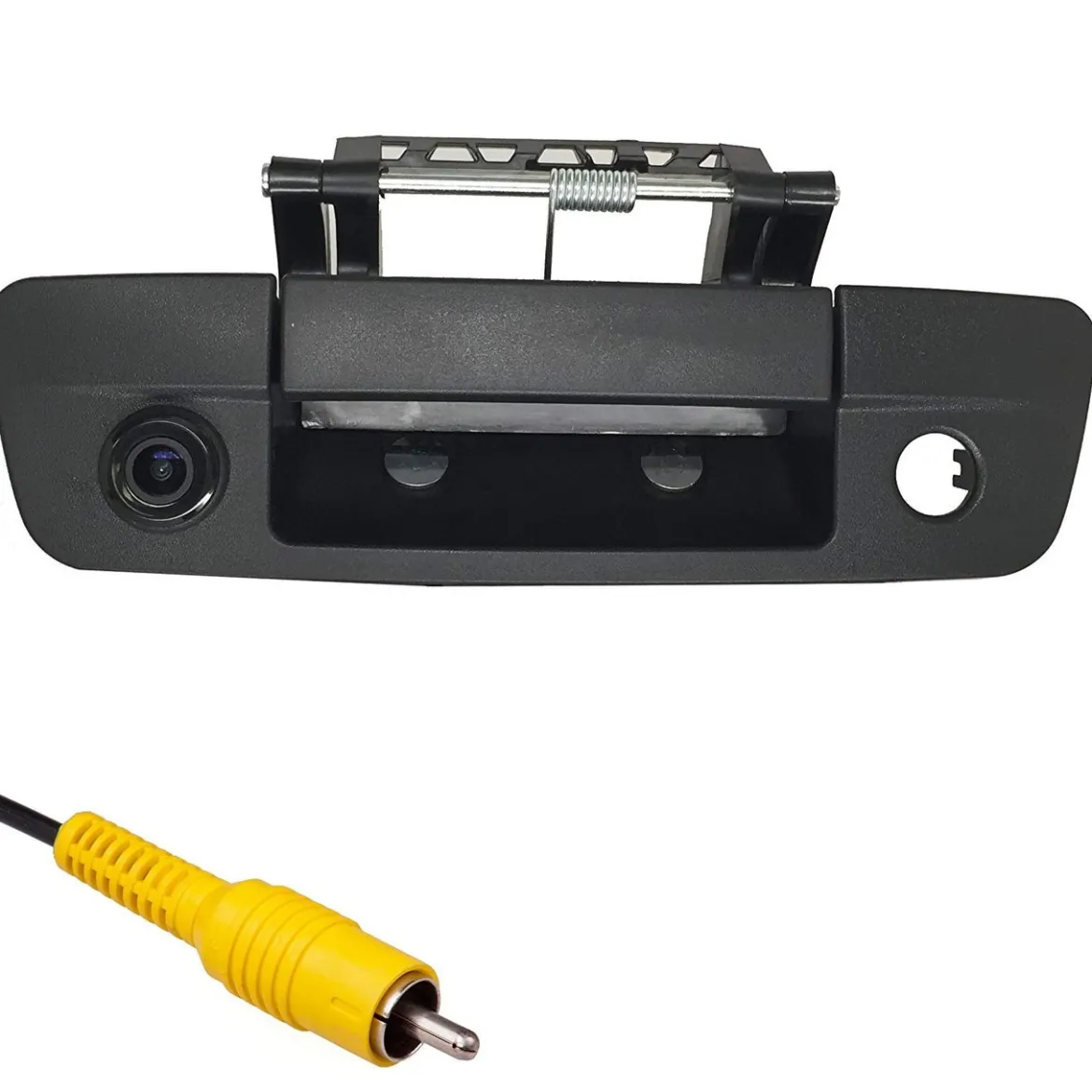

• Tailgate Handle with Backup Reverse Camera

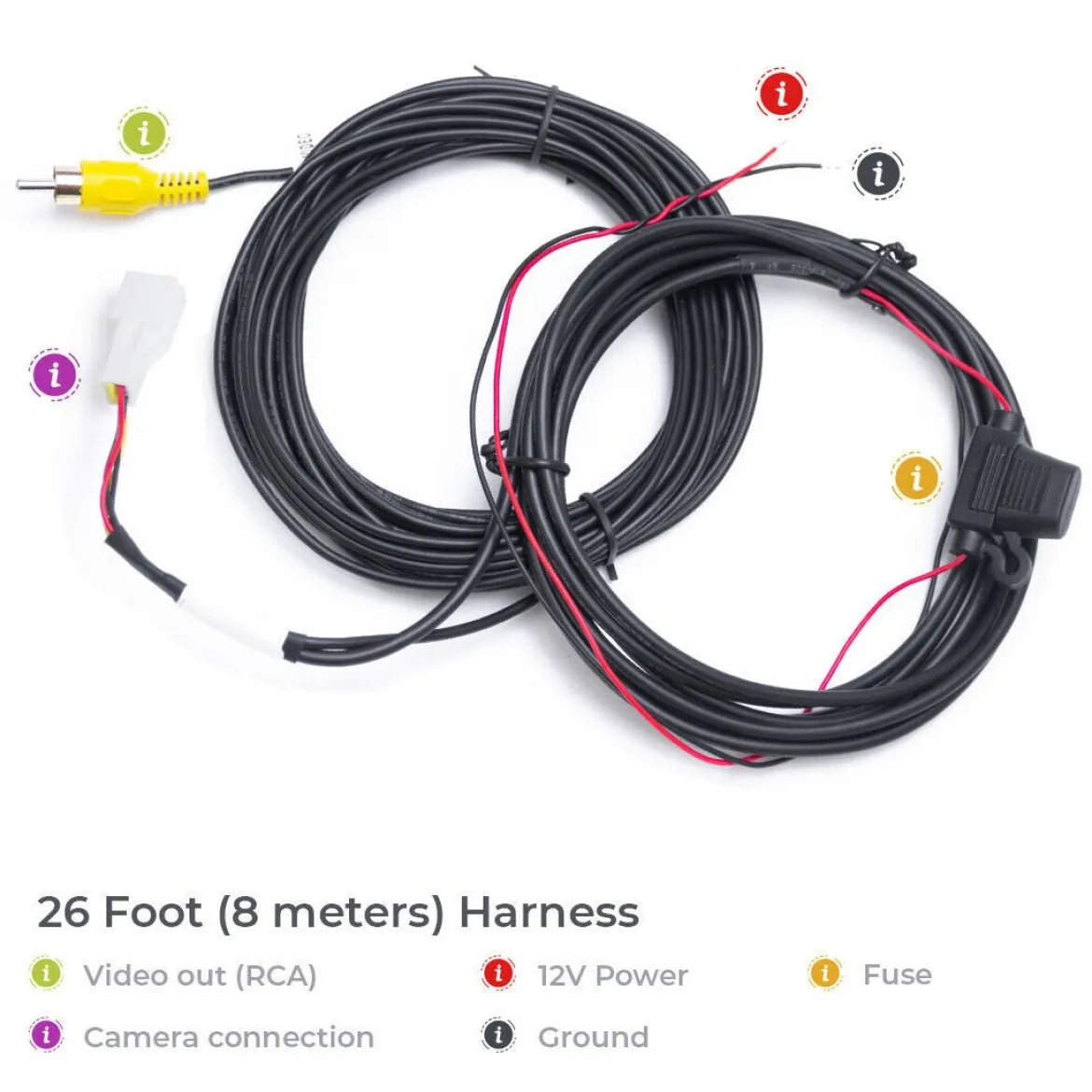

• 26 Foot Video and Power Cable
• Installation Instructions
• 2 YEAR NO QUESTIONS ASKED WARRANTY

This camera connects to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12V source that is on all the time, or if you only want it when you reverse you can connect it to the reverse tail lights.

This is an aftermarket tailgate and camera, not OEM. If you plan to install this in a factory radio you most likely will need another connector (not provided).

Camera Specs:

• Sensor: On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
• Minimum Illumination : .1 Lux light sensitivity
• Signal System: NTSC/PAL
• Effective Pixels: 728 x 582
• Electronic Shutter: 1/50 to 1/100,000 seconds
• Resolution: 600 TV lines

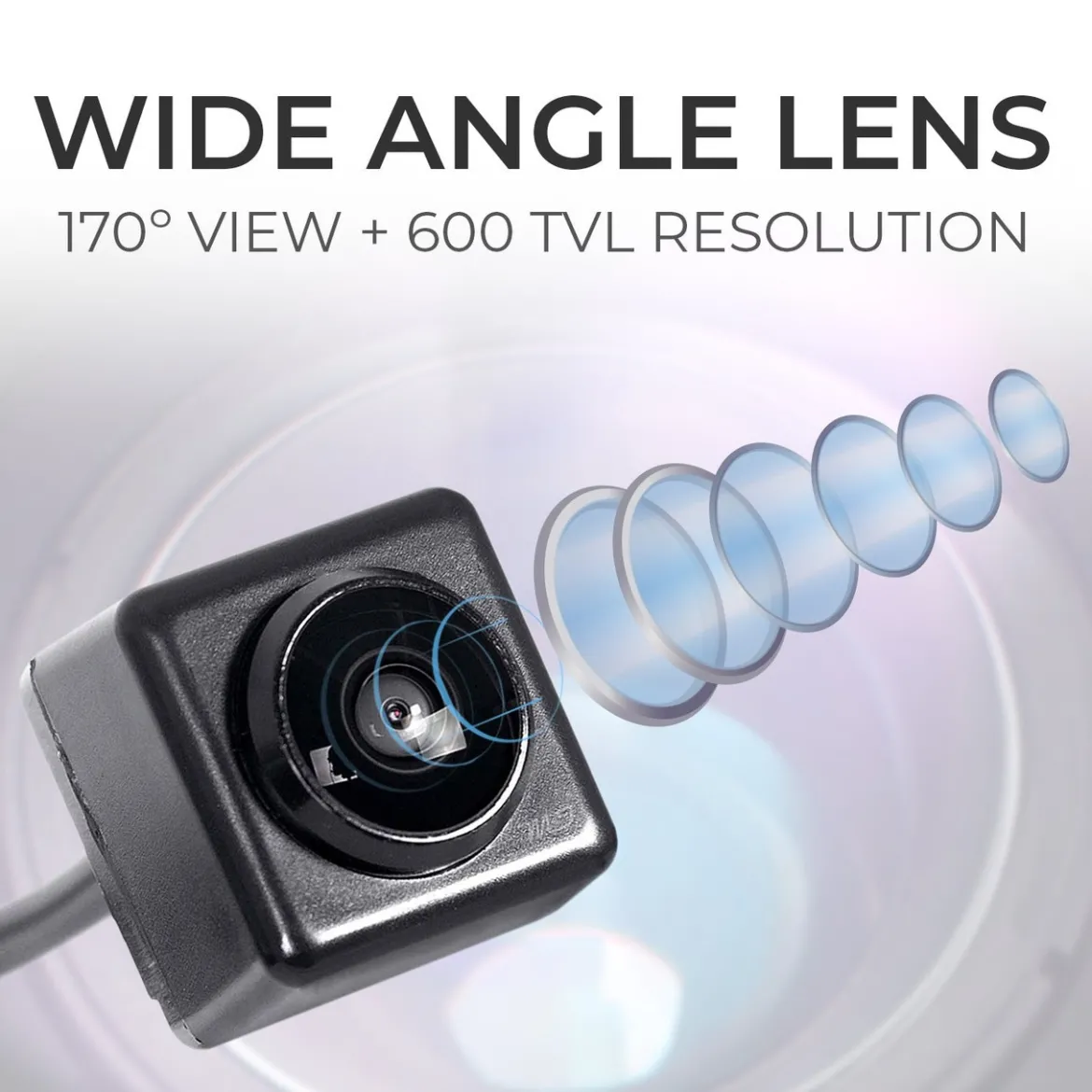

• Angle: 170 Degrees

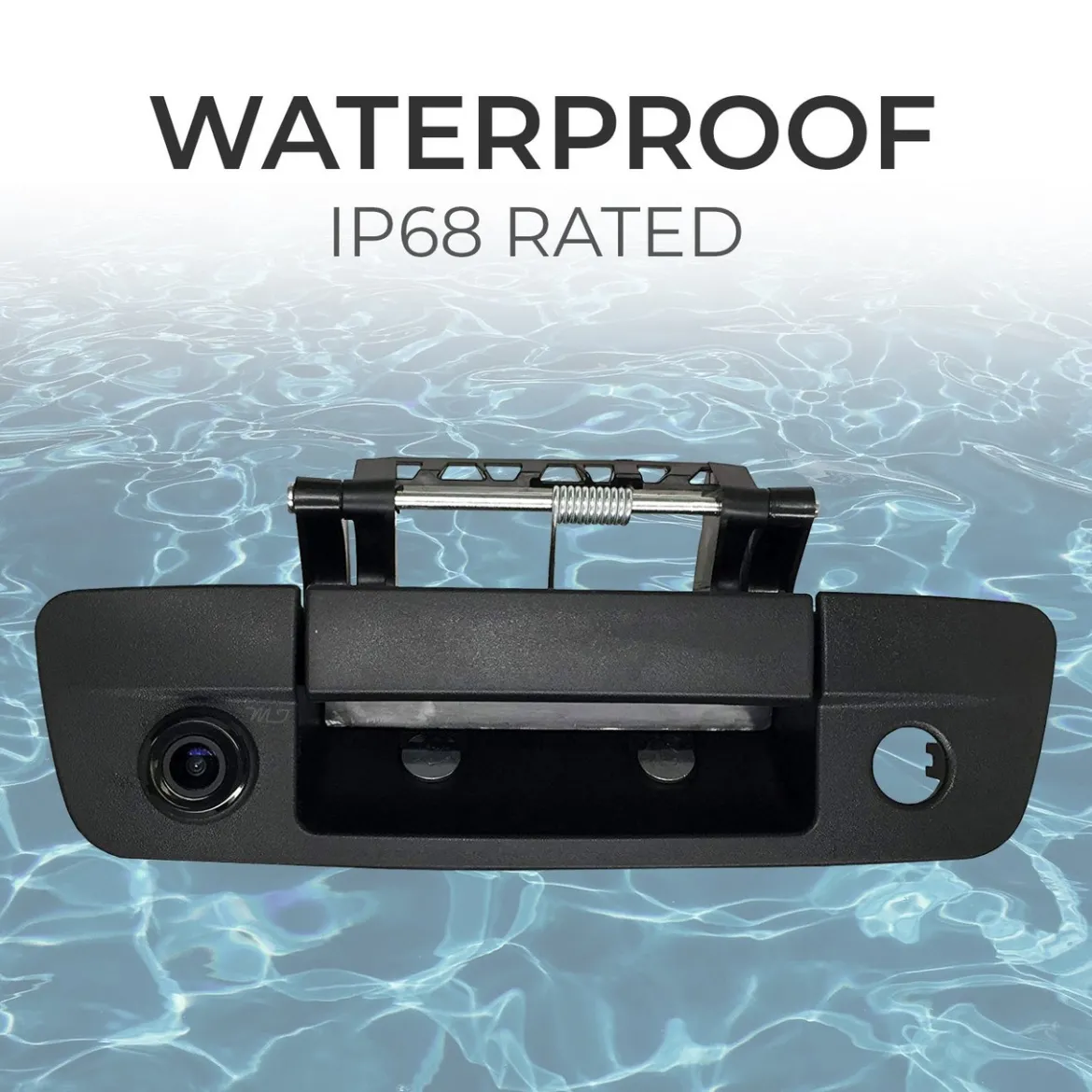

• Waterproof Rating: IP68
• Power: DC 12V
• Video Cable:26 Feet (8 Meters)

Attention:
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
