Mastercool 43060-TB Turbo/Intake Diagnostic Smoke Machine

Mastercool 43060-TB Turbo/Intake Diagnostic Smoke Machine

For all turbo, intakes, exhaust, vacuum lines and vacuum components, manifolds, passenger compartment window and sunroof, headlight/tail-light fixtures and muchmore. Not for EVAP testing. This unit provides the option of compressed air, inert gases and a built-in internal compressor to inject the smoke into the system.

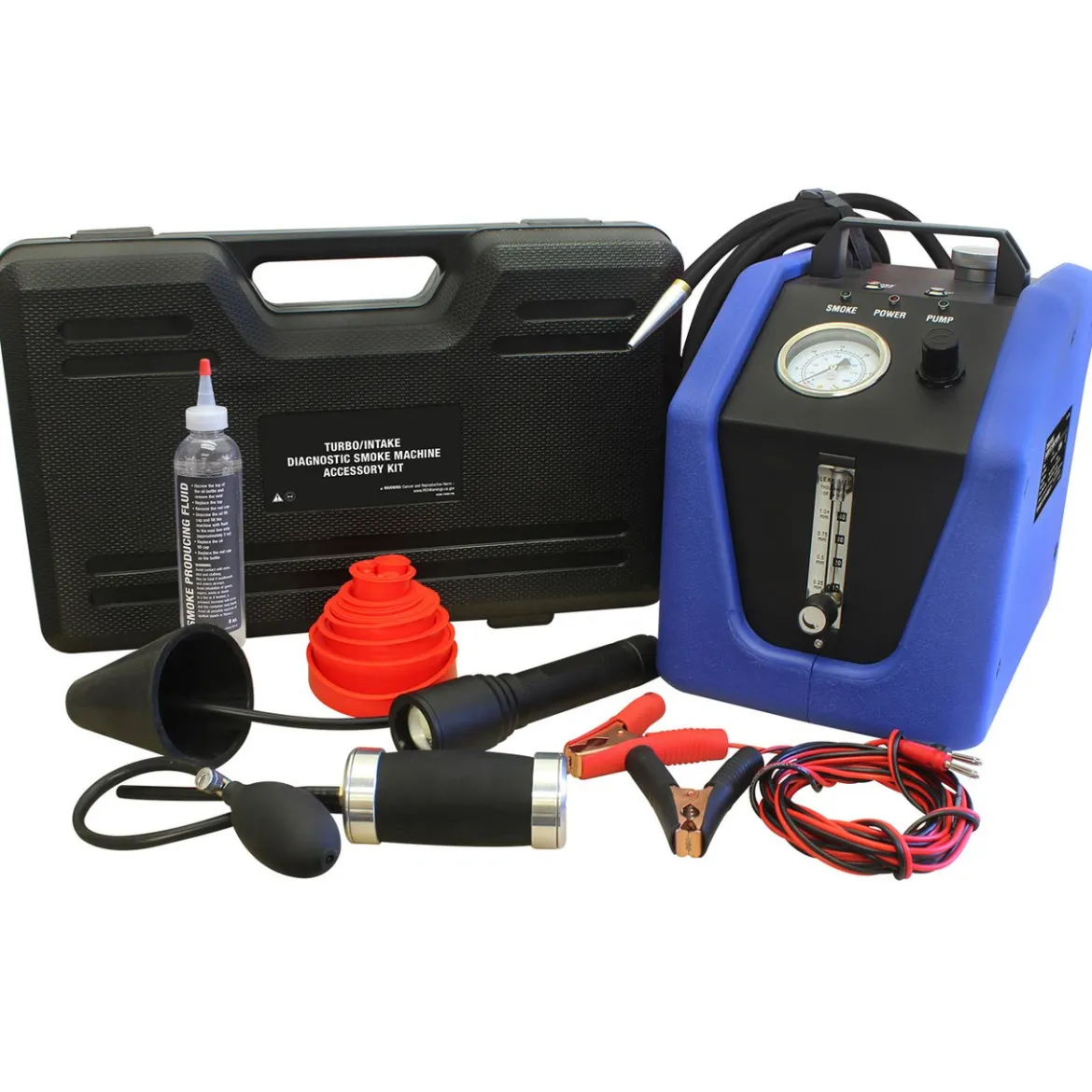

Accessories included: inflatable intake bladder, full set of block off caps, exhaust cone, high intensity battery powered smoke illuminating flashlight and 8 oz smokeproducing fluid

• Compact, heavy-duty design for years of reliable service
• Multiple options for smoke injection include built-in internal compressor, shop air and inert gases
• Quick smoke generation
• Built-in safety pressure relief valve
• Pressure can be regulated from 0 to 28 PSI
• Large easy to read pressure decay gauge 0 – 30 PSI
• Non-toxic and non-corrosive smoke
• 10’ 12V power cables with durable clamps
• Heavy-duty 10’ smoke injection hose
• Velcro strap for hose and power cable storage

Specifications:

• Voltage: 12 VDC
• Input Pressure: Max 100 psi (8.2 bar)
• Output Pressure:Internal Pump Max 22 psi (150 kPa) /External Pressure Source Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
• Weight: 11.5 lbs (5.2 Kg)(Shipping Weight: 22 lbs (10 Kg))
• Power Consumption: Max 6.5 Amps
• Operating Temperature: 0 °F to 140°F (-17°C to 60°C )
• Operating Humidity: No Restrictions
• Operating Altitude: No Restrictions
• Vapor Output Hose: 10 feet
• Power Cable: 10 feet
• Pressure Supply: Air/Inert gas/Pump
