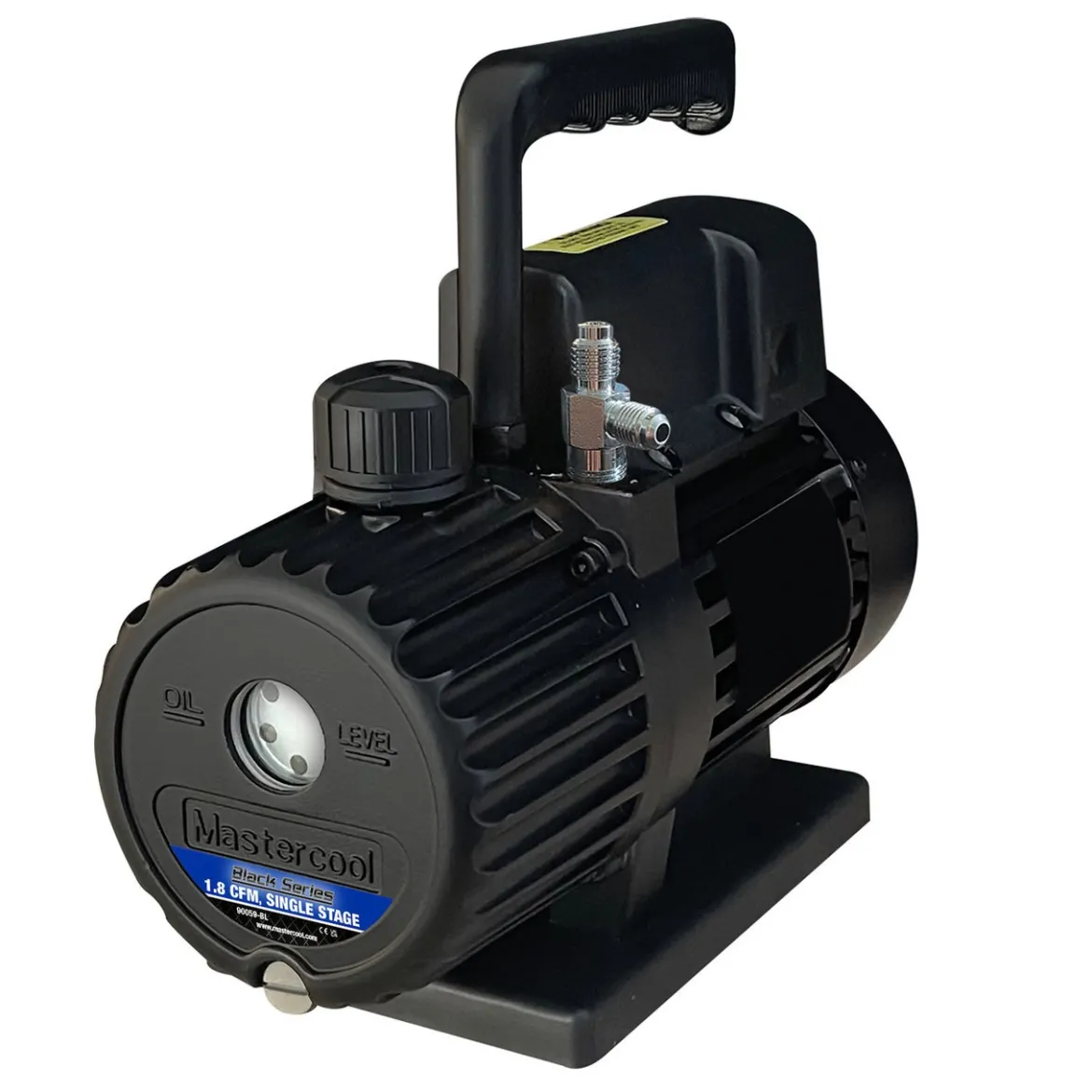

Mastercool Black Series 1.8 CFM Vacuum Pump Single Stage (90059-BL)

Mastercool’s “Black Series” vacuum pumps are durable and time tested to stand up to the most grueling conditions and will provide years of reliable service. This vacuum pump providesthe power and mobility necessary for a wide variety of applications.

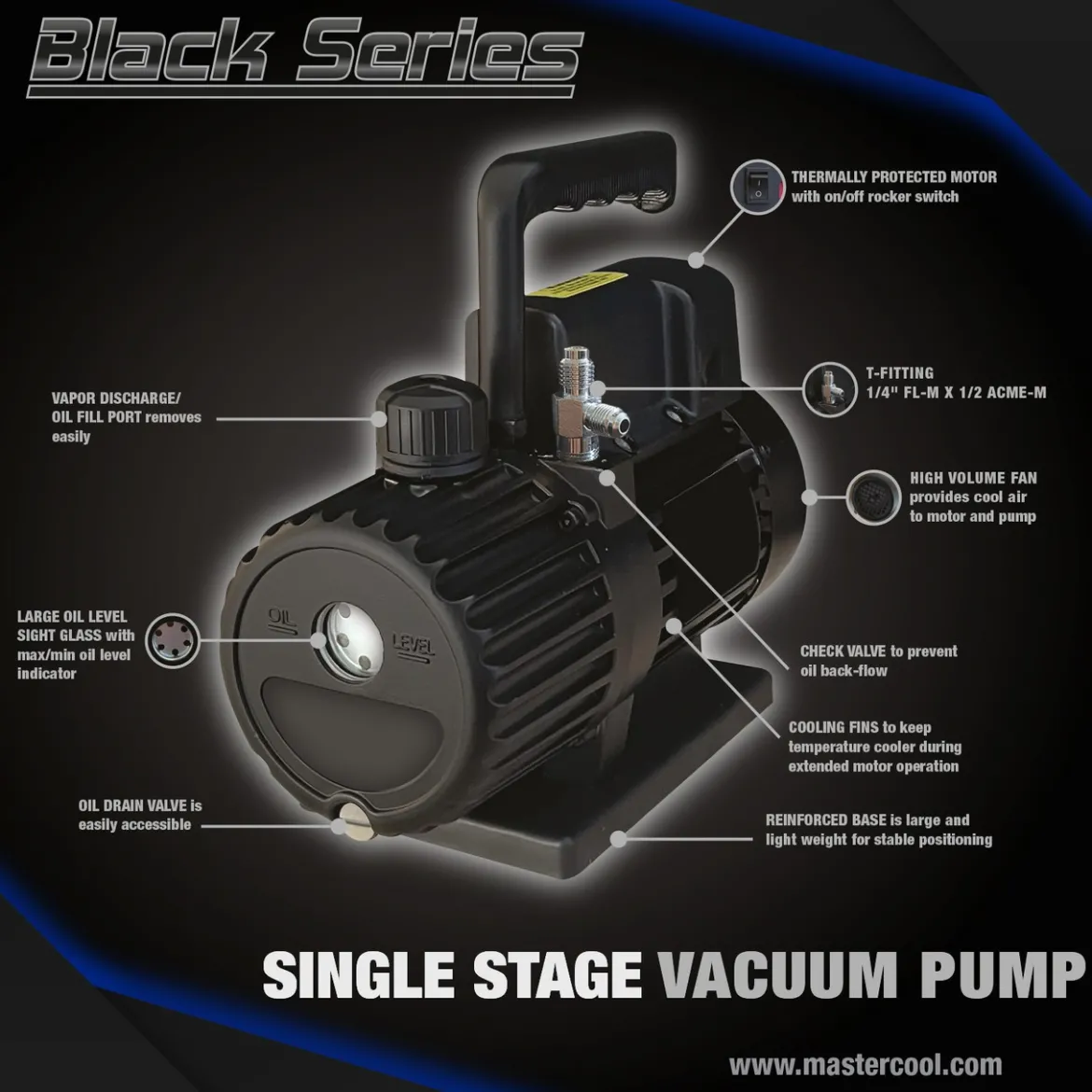

FEATURES:

• Refined cartridge machining process creates an improved surface finishextending the longevity of the pump life
• Expanded internal oil path creates less friction and ultimately less heat
• Upgraded seals insure maximum vacuum
• U.S. designed and tested
• Easy grip handle
• Easily removable vapor discharge/oil fill port
• Large oil level sight glass with max/min level indicator
• Easily accessible oil drain valve
• Thermally protected motor with on/off rocker switch
• T-Fitting 1/4″ FL-M x 1/2 ACME-M
• High volume fan provides cool air to motor and pump
• Check valve prevents oil back-flow
• Cooling fins keep temperature cooler during extended operation
• Large, light weight reinforced base for stable positioning

SPECIFICATIONS:

• Stages: 1
• Free air displacement: 1.8 CFM
• Ultimate vacuum: 80 microns
• Motor: 1/4 HP
• Pump speed: 1720 RPM
• Electrical specs: 110/120 V, 60 Hz
• Power: 110 V cable
• Weight: 14 lbs (6.35 kg)
• Dimensions: 30 x 15 x 26 cm
