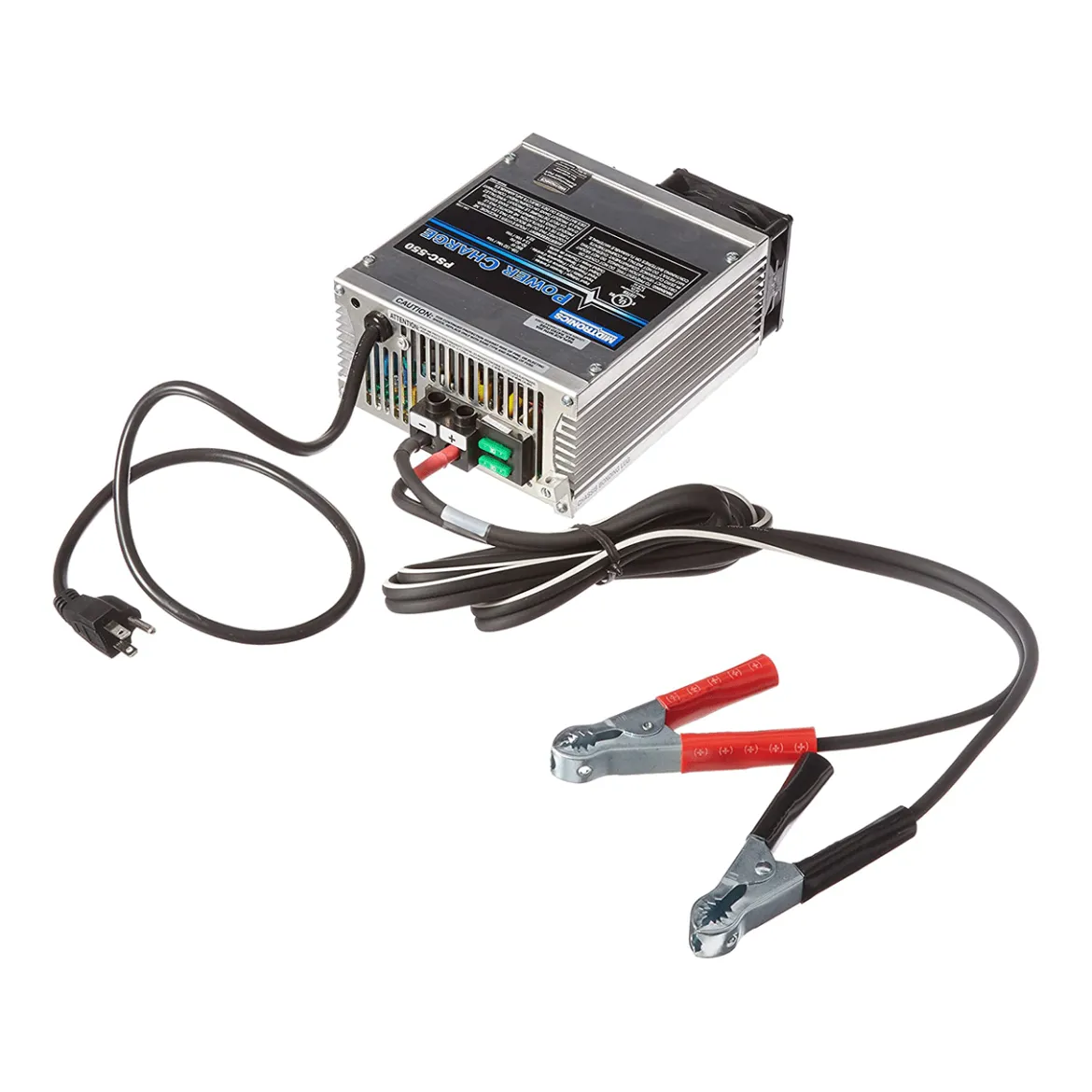

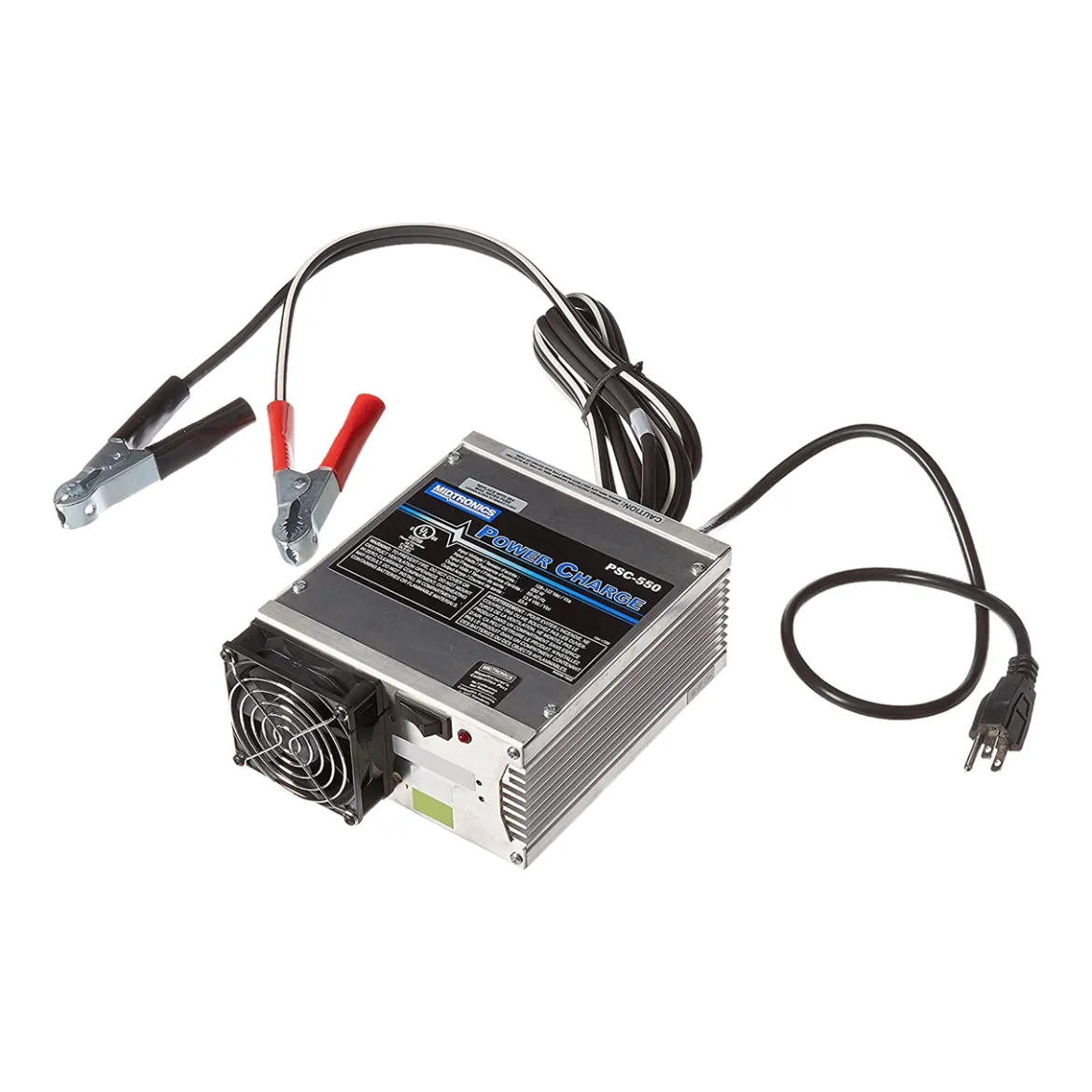

Midtronics Kit Fully Automatic 12V 55A Regulated DC Power Supply (PSC-550S)

Midtronics Kit Fully Automatic 12V 55A Regulated DC Power Supply (PSC-550S) offers an advanced switch-mode design that provides a cleaner, more reliable power source than traditional chargers. Ideal for service reflashing, complex maintenance, or showroom demonstrations, the Midtronics PSC550S seamlessly converts 120V AC input into a nearly noise-free, nominal 13.4V DC output. This power supply ensures optimal charging without overcharging, maintaining precise control over battery voltage for various automotive needs, including lead-acid battery support during complex diagnostics and vehicle reflash processes.

• Specifications and Dimensions:
  • Maximum Output: 55 A
  • Output Voltage: Approx. 13.4V DC at full load
  • Voltage Tolerance: ��0.7% (no load)
  • Ripple and Noise: <50 mV rms
  • Efficiency: Typically >100%
  • Line Regulation: 100 mV rms
  • Load Regulation: <1%
  • Thermal Protection: Active
  • Working Temperature: 0-40��C
  • Fuse Protection: Internal breaker
  • Leads: 6 ft removable clamp set
• Benefits:
  • Delivers stable and reliable power suitable for charging and maintaining battery state-of-charge
  • Advanced regulation prevents overcharging and sustains necessary battery voltage
  • Portable design with high-quality, detachable cables for easy service and transport
• Features:
  • Multiple protection features include reverse polarity protection via replaceable fuses, brownout input protection, over-current protection with cycle-by-cycle peak limiting, and over-temperature protection
  • Commercial-grade design with heavy-duty components for prolonged use
  • Proportional fan control circuit sets fan speed based on the converter’s internal ambient temperature, reducing noise
