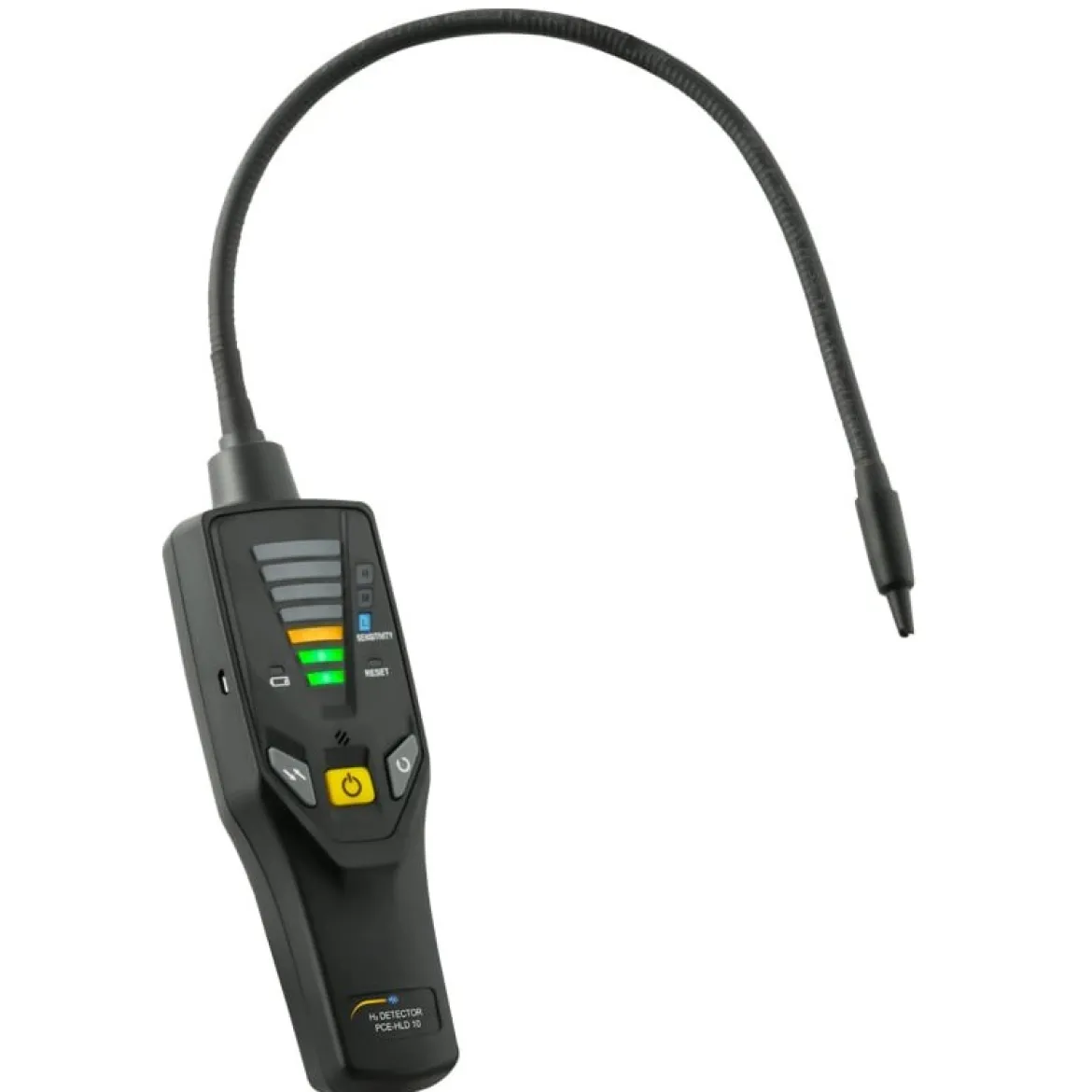

PCE Instruments Hydrogen Gas Leak Detector with Adjustable Sensitivity (PCE-HLD 10)

PCE Instruments Hydrogen Gas Leak Detector with Adjustable Sensitivity (PCE-HLD 10) is designed for detecting hydrogen gas leaks in industrial settings. This handheld device features adjustable sensitivity levels and a semi-rigid 40 cm (15.7″) probe for easy access to tight spaces. It provides real-time feedback with an audible alarm and visual indicator.

With three adjustable sensitivity levels, this gas leak detector can detect leaks as small as 5 ppm. The device automatically calibrates to ambient hydrogen concentration, ensuring accurate detection.

• Specifications and Dimensions
  • High sensitivity: >2 g (0.07 oz) per year
  • Medium sensitivity: >15 g (0.53 oz) per year
  • Low sensitivity: >30 g (1.05 oz) per year
  • Alarm: Audible and visual
  • Warm-up time: 45 seconds
  • Battery life: Approx. 12 hours
  • Power supply: 4 x 1.5 V AA batteries
  • Automatic shutdown: 10 minutes
  • Operating conditions: 0 … 40 °C / 32 … 104 °F, <80% RH, non-condensing
  • Storage conditions: -10 … 60 °C / 14 … 140 °F, <70% RH, non-condensing
  • Hose length: 40 cm / 15.7″
  • Dimensions: 213 x 65.5 x 53.5 mm
  • Weight: 400 g / 14.1 oz
• Key Features and Benefits
  • Hydrogen gas leak detector with three adjustable sensitivity levels
  • Quickly detects hydrogen leaks as low as 5 ppm
  • Semi-rigid probe allows easy access to confined areas
  • Bar display with traffic light function for easy visualization
  • Audible and visual alarm signals for reliable detection
  • Portable design with long battery life for extended use
  • Automatic calibration for consistent and accurate readings
  • Durable construction for industrial and commercial applications
• Includes
  • 1 x Gas Leak Detector PCE-HLD 10
  • 1 x Transport case
  • 4 x 1.5 V AA batteries
  • 1 x Instruction manual
