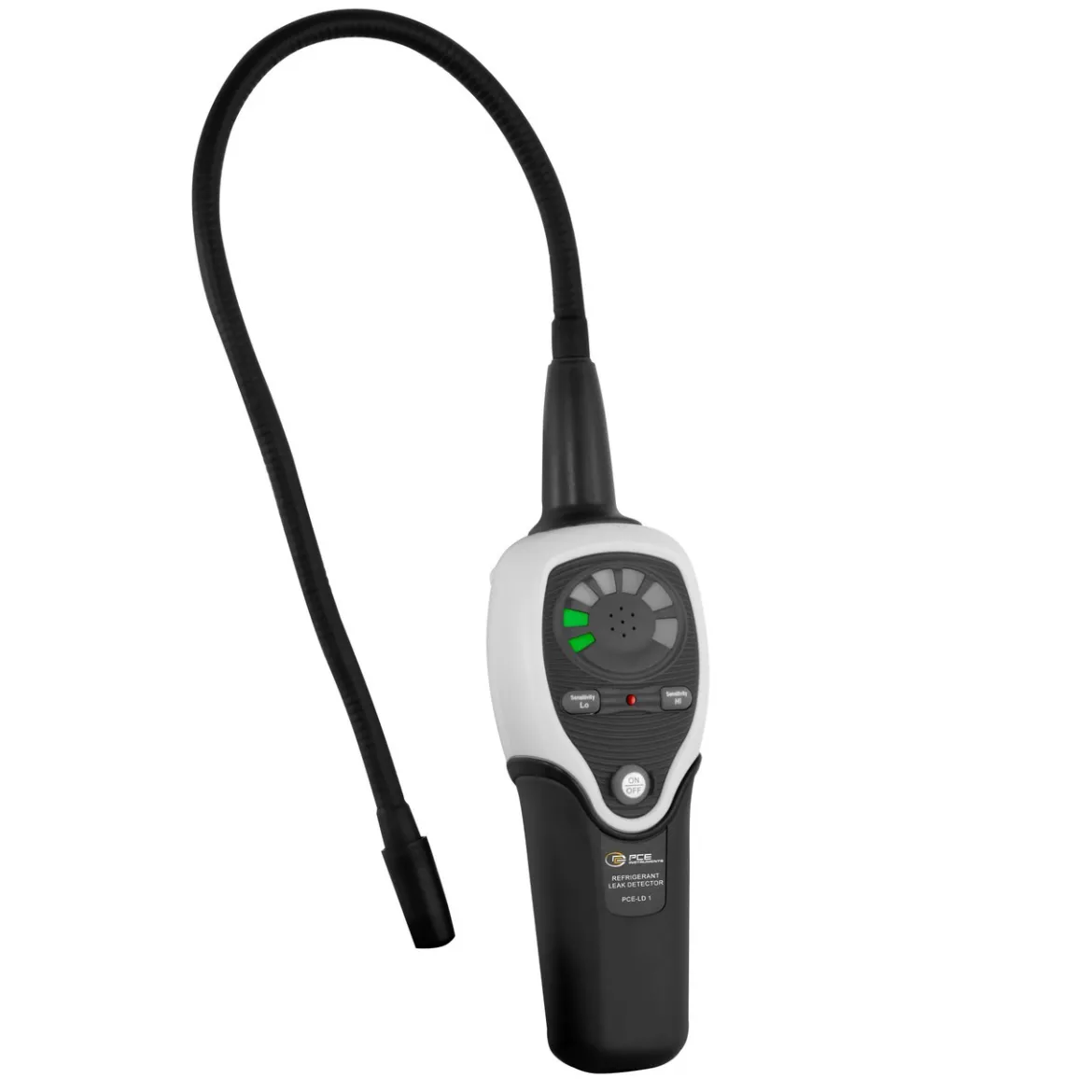

PCE Instruments Leak Detector (PCE-LD 1)

PCE Instruments Leak Detector (PCE-LD 1) is a portable handheld device designed to detect refrigerant gas leaks in HVACR and refrigeration systems. With its high sensitivity, this leak detector can pinpoint leaks in CFC and HFC gases, including R-134a, R-404A, Freon R-407C, R-410A, and R-22.

The flexible 390 mm probe allows easy access to hard-to-reach areas, making it ideal for technicians and service professionals. This leak detector features adjustable high and low sensitivity settings to ensure precise leak detection in various environments.

• Specifications and Dimensions
  • Sensitivity: Adjustable high/low (per SAE J1627 rating criteria)
  • Detection sensitivity:
    • 6 g/yr or 30 g/yr for R-22 and R-134a
    • 8 g/yr or 40 g/yr for R-404A, R-407C, and R-410A
  • Warm-up Time: Approx. 90 seconds
  • Detected Gases: CFC / HFC refrigerants including R-134a, R-404A, Freon R-407C, R-410A, and R-22
  • Compliance: EN 14624
  • Test Cycle: Continuous
  • Sensor Tube Length: Approx. 390 mm / 15.35 in
  • Power Supply: 4 x AA batteries
  • Battery Life: Approx. 40 hours of normal use
  • Auto Shut-Off: After 10 minutes of inactivity
  • Dimensions: 173 x 66 x 56 mm / 6.8 x 2.6 x 2.2 in
  • Weight: < 1 lb / 400 g
• Key Features and Benefits
  • Detects refrigerant gas leaks in HVAC and refrigeration systems
  • Adjustable high and low sensitivity for precise detection
  • Flexible 390 mm probe reaches difficult areas
  • Audible and visual alarms indicate gas concentration
  • Tricolor LED indicator for easy leak detection
  • Automatic shut-off after 10 minutes to conserve battery life
  • Lightweight and portable for field service applications
  • Includes leak check bottle for accurate testing
