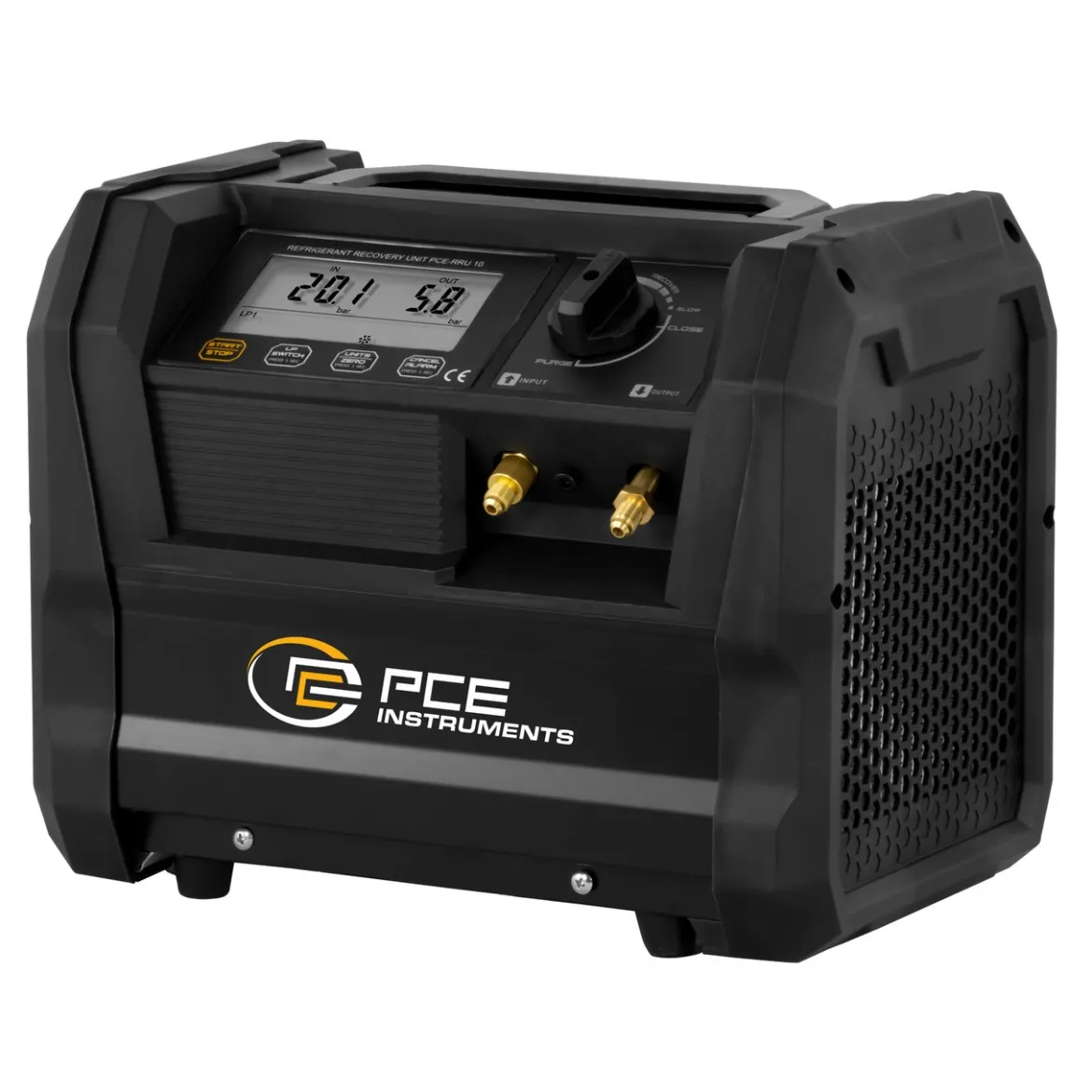

PCE Instruments Refrigerant Recovery Unit with Oil-Free Compressor (PCE-RRU 10)

PCE Instruments Refrigerant Recovery Unit with Oil-Free Compressor (PCE-RRU 10) is designed for HVAC professionals who need efficient and safe refrigerant recovery. This unit handles refrigerants from classes A1, A2L, and A2 with ease, offering adjustable extraction speeds and a self-cleaning purge function.

Equipped with an oil-free 2-piston compressor and a high-performance brushless motor, this refrigerant recovery unit ensures fast and reliable operation. The built-in pressure gauge allows for real-time monitoring, while the automatic shut-off feature enhances safety by stopping recovery when pressure exceeds 38.5 bar.

• Specifications and Dimensions
  • Pressure Range: 0 … 38.5 bar
  • Liquid Extraction Rate:
    • R134a: 2.6 kg/min
    • R22: 2.9 kg/min
    • R410A: 3.9 kg/min
  • Push/Pull Extraction Rate:
    • R134a: 7.5 kg/min
    • R22: 8.5 kg/min
    • R410A: 9.5 kg/min
  • Refrigerants Supported: R401C, R22, R134a, R407C, R410A, R32, R1234YF, and more
  • Motor Power: 1 HP
  • Compressor: Oil-free, air-cooled
  • Display Type: LCD with backlight
  • Overpressure Protection: 38.5 bar
  • Speed: 1450 RPM
  • Connections: 1/4″ SAE
  • Protection Class: IP20
  • Power Supply: 110V – 240V AC, 50/60 Hz
  • Weight: 10.75 kg (device only)
  • Dimensions (L x W x H): 380 x 250 x 300 mm
• Key Features and Benefits
  • Compatible with refrigerant classes A1, A2L, and A2
  • Oil-free 2-piston compressor for efficient recovery
  • Automatic shut-off at 38.5 bar for added safety
  • Easy operation with a rotary control
  • Large LCD display with backlight for clear readings
  • Integrated purge function for system cleaning
  • Portable and lightweight design for easy transport

• Includes
  • 1 x PCE-RRU 10 Refrigerant Recovery Unit
  • 1 x Carrying Strap
  • 1 x Refrigerant Filter
  • 1 x Filter Connection Hose
  • 1 x OFP Cable for DOT Bottles (varies by country)
  • 1 x Power Cable
  • 1 x User Manual
