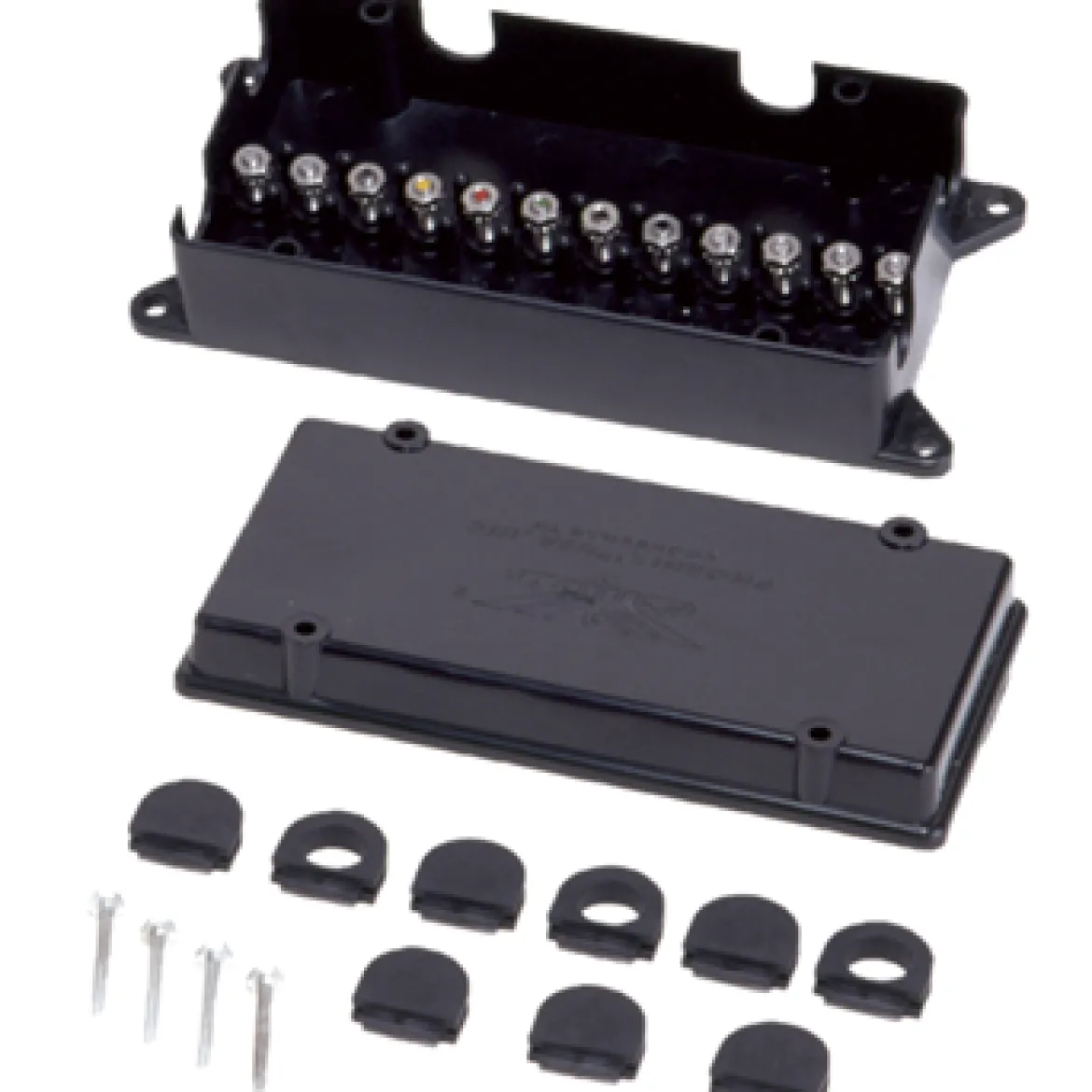

Phoenix USA 12-Pole Electrical Junction Box (PH3320)

The Phoenix USA 12-Pole Electrical Junction Box (PH3320) is a practical and reliable solution for organizing and connecting multiple electrical circuits in a variety of applications, including cars, trucks, trailers, and recreational vehicles. This 2-piece junction box is designed to provide a secure and centralized point for wiring, helping to prevent clutter, reduce the risk of short circuits, and simplify electrical system maintenance and modifications. Constructed from durable black ABS plastic (based on available information), the PH3320 is built to withstand typical environmental conditions encountered in automotive and trailer use. Its 12 poles offer ample connection points for various electrical components, making it an essential component for managing complex wiring systems. The included mounting feet and hardware ensure a straightforward and secure installation.

KEY FEATURES AND BENEFITS:

• Twelve Connection Points: Provides ample terminals for connecting multiple wires and electrical devices.
• Organized Wiring: Centralizes electrical connections, reducing clutter and improving overall system organization.
• Enhanced Safety: Helps prevent short circuits and potential electrical hazards by providing secure and insulated connections.
• Durable Construction: Made from robust materials (likely ABS plastic) for longevity and resistance to typical wear and tear.
• Easy Installation: Features external mounting feet and includes necessary hardware for a simple and secure mounting process.
• Versatile Application: Suitable for use in cars, trucks, trailers, RVs, and other applications requiring multiple electrical connections.
• Two-Piece Design: Offers ease of access during installation and maintenance.

SPECIFICATIONS:

• Product Name: Phoenix USA Electrical Junction Box 12 Pole 2 Pc No Words
• Manufacturer Part Number: PH3320
• Brand: Phoenix USA
• Number of Poles: 12
• Construction: 2-Piece
• Material: Black ABS Plastic (based on available information)
• Approximate Dimensions: 8.750″ (Length) x 3.840″ (Width) x 2.550″ (Height)
• Mounting Type: External Mounting Feet
• Mounting Hardware: Included
• Weight (Approximate): 0.68 lbs (8.8 ounces)
• UPC: 831872012439
• Compatibility: Suitable for use in automotive (cars, trucks), trailer, and recreational vehicle (RV) electrical systems.

HOW TO USE:

1. Preparation: Identify the location where the junction box will be mounted. Ensure there is sufficient space and a solid mounting surface. Gather the necessary tools, including a screwdriver, wire stripper, and potentially a drill for pilot holes.
2. Mounting the Base: Position the base of the junction box on the chosen surface. Mark the locations for the mounting screws using the integrated mounting feet as a guide.
3. Drilling Pilot Holes (If Necessary): If mounting to a hard surface, drill pilot holes at the marked locations to aid in screw insertion.
4. Securing the Base: Align the base of the junction box with the pilot holes (or marked locations) and secure it using the included mounting screws. Ensure the base is firmly attached.
5. Wiring Connections: Identify the wires that need to be connected within the junction box. Strip the ends of the wires to expose the conductive core.
6. Connecting Wires to Poles: Loosen the terminal screws on the appropriate poles within the junction box. Insert the stripped end of each wire securely under the terminal plate. Tighten the terminal screws to ensure a firm electrical connection. Ensure that wires from different circuits are connected to the appropriate terminals as needed for your application.
7. Organizing Wires: Arrange the wires neatly within the junction box, ensuring they are not strained or likely to cause shorts.
8. Attaching the Cover: Once all wiring is complete and organized, carefully align the cover of the junction box with the base. Secure the cover using the integrated latches or screws (depending on the exact design).
9. Testing: After installation, thoroughly test all connected electrical components to ensure proper functionality and that all connections are secure.

BENEFITS OF USING THE PHOENIX USA 12-POLE ELECTRICAL JUNCTION BOX (PH3320):

• Provides a centralized and organized wiring point to reduce clutter.
• Makes troubleshooting and maintenance easier with accessible terminals.
• Minimizes the risk of short circuits through insulated, secure connections.
• Ensures long-term durability with protective ABS plastic construction.
• Speeds up installation thanks to included mounting hardware and easy-to-use design.
• Accommodates various vehicle and trailer wiring needs with 12 terminals.

FEATURES:

• Twelve independent terminals to manage distinct electrical circuits.
• Two-part enclosure provides convenient access for maintenance.
• External flange mounting ensures simple installation to various surfaces.
• Included fasteners allow for immediate, secure mounting.
• Black insulating housing protects internal connections and external components.
• Compact rectangular form fits into tight installation spaces.
• Clearly defined connection points aid in accurate wiring organization.
