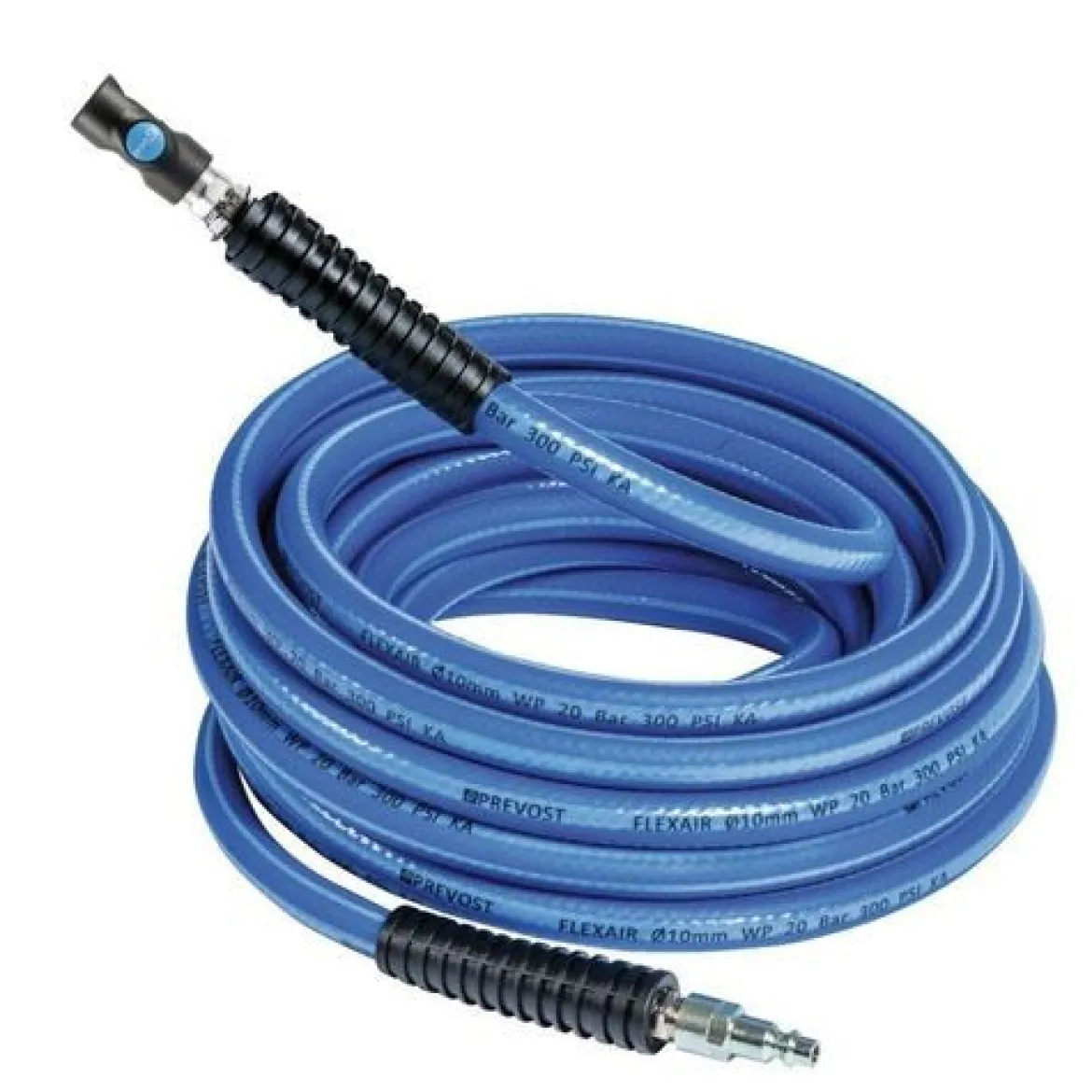

Prevost 3/8″ x 50′ Automotive FLEXAIR w/ Coupling & Plug (RSTRUSB3850)

Prevost 3/8″ x 50′ Automotive FLEXAIR w/ Coupling & Plug (RSTRUSB3850) is engineered for professional and demanding environments, particularly within automotive and industrial settings. This high-performance hose combines flexibility with robust construction to deliver an optimal air supply for pneumatic tools and equipment. Crafted from a hybrid polymer, it offers the best qualities of PVC and rubber, resulting in a hose that is both easy to manage and resistant to common wear. The RSTRUSB3850 comes complete with a Prevo S1 Industrial Style Safety Quick Coupler and a corresponding plug adapter, ensuring a secure, leak-tight connection and immediate readiness for use straight out of the package. Its design prioritizes operational efficiency and user safety, featuring a non-marring composite body coupler with a quick-release button for convenient, one-handed tool changes. The hose maintains a consistent operating pressure, supporting the peak performance of your air tools. Its ability to resist kinking and its wide temperature tolerance further enhance its utility in various working conditions. The pressed metal sleeves and non-scratch sheath add an extra layer of protection, contributing to the hose’s extended service life. Whether for routine maintenance, repair tasks, or general workshop applications, the Prevost FLEXAIR hose provides a dependable and efficient conduit for compressed air, simplifying tasks and improving workflow in professional environments.

KEY FEATURES AND BENEFITS:

• Hybrid Polymer Construction: Combines PVC and rubber for exceptional flexibility, reducing kinking and tangling, while enhancing overall toughness.
• Integrated Safety Quick Coupler: Features a Prevo S1 Industrial Style Safety Quick Coupler (USI 06) and a Plug Adapter (URP 06) for secure, leak-tight connections and immediate readiness.
• Optimized Air Flow: Designed to provide an efficient and consistent flow rate, ensuring pneumatic tools operate at their peak performance.
• Enhanced User Safety: The safety coupling allows for safe, one-step pressure release and disconnection of air tools, protecting the user and equipment.
• Wide Temperature Range: Operates reliably in temperatures ranging from +5°F to +140°F (-15°C to +60°C), making it suitable for various working conditions.
• Ready-to-Use Assembly: Ships with all necessary fittings factory-installed, making it leak-tight and prepared for immediate deployment upon purchase.

SPECIFICATIONS:

• Inside Diameter: 3/8 inches
• Length: 50 feet
• Material: Hybrid Polymer (PVC and rubber blend)
• Operating Pressure: 29 to 174 PSI
• Maximum Pressure: Up to 300 PSI
• Temperature Rating: +5°F to +140°F (-15°C to +60°C)
• Thread Type (if fittings removed): 3/8″ Male NPT on both ends
• Included in Product: Prevost 3/8″ x 50′ FLEXAIR Hose, Prevo S1 Industrial Style Safety Quick Coupler (USI 06), Plug Adapter (URP 06)

HOW TO USE:

1. Connect to Air Compressor: Ensure your air compressor is turned off. Attach the plug adapter end of the Prevost hose to the air outlet of your compressor or air preparation unit. Secure the connection tightly.
2. Connect Pneumatic Tool: Take your pneumatic tool and insert its male air plug into the female Prevo S1 safety quick coupler on the other end of the Prevost hose. Push firmly until it clicks and locks into place.
3. Activate Air Compressor: Turn on your air compressor and allow it to build up to your desired operating pressure.
4. Operate Tool: Once the compressor reaches the set pressure, you can begin using your pneumatic tool.
5. Disconnect Tool Safely: To disconnect, press the quick-release button on the Prevo S1 safety coupler. This will first release the air pressure, then allow you to remove the tool plug in a controlled manner, enhancing safety.
6. Store Hose: After use, disconnect the hose from the compressor and coil it neatly for storage in a dry, protected area.

BENEFITS OF USING PREVOST 3/8″ x 50′ AUTOMOTIVE FLEXAIR W/ COUPLING & PLUG (RSTRUSB3850):

• Reduces the likelihood of tangles and kinks during operation due to its advanced hybrid material.
• Promotes a safer working environment through its integrated quick-release safety coupler.
• Minimizes downtime with its pre-assembled, ready-to-use configuration.
• Supports consistent air flow, which is crucial for the efficient performance of air tools.
• Offers increased service life with its protective sheath and strong end connections.
• Provides adaptability across a broad range of temperatures without compromising performance.

FEATURES:

• Equipped with precision-engineered pressed metal sleeves for enhanced connection integrity.
• Features a non-scratch sheath to protect surfaces and the hose from abrasive damage.
• The composite body of the coupler resists impact and marring.
• Designed to be highly manageable, simplifying movement and storage.
• ISO 4414 compliant safety coupling system.
• Allows for single-handed connection and disconnection of air tools.
