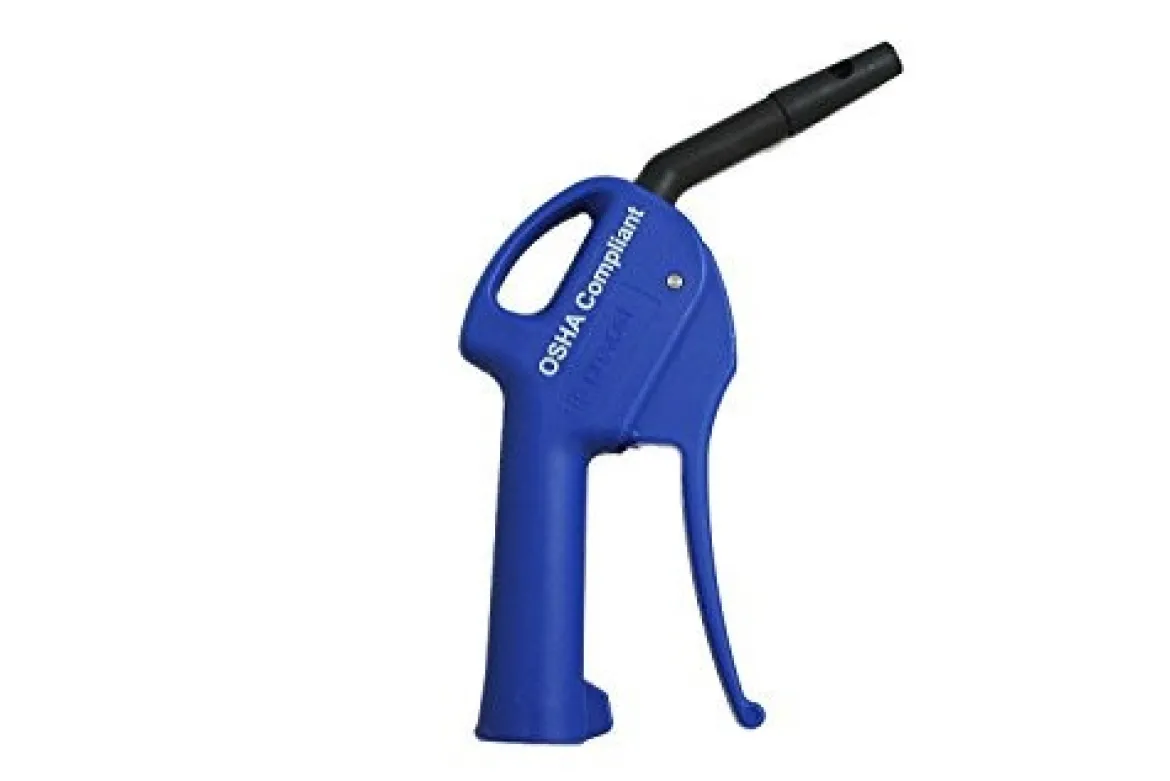

Prevost Blow Gun – OSHA Nozzle Skin Pack (27202OSHS)

The Prevost Blow Gun – OSHA Nozzle Skin Pack (27202OSHS) is a high-performance compressed air tool designed for cleaning, drying, and dust removal. Built with advanced materials and an ergonomic design, it ensures safe, efficient, and precise operation. Complying with OSHA standards, this blow gun provides enhanced safety while delivering powerful airflow for various applications, including automotive, industrial, and general workshop maintenance. Its lightweight composite body and progressive trigger design minimize user fatigue during extended use.

KEY FEATURES AND BENEFITS:

• OSHA Compliant Nozzle: Meets OSHA regulations (41 CFR § 50-204-8 and 29 CFR 1910.242.b) for static pressure limitation, ensuring safe operation even if the nozzle is blocked.
• High-Efficiency Venturi Nozzle: Boosts airflow while optimizing air consumption for faster and more effective cleaning and drying.
• Advanced Composite Body: Lightweight, impact-resistant polyamide composite with a non-slip, insulated grip for improved handling and durability.
• Precise Airflow Control: Progressive trigger allows users to finely adjust airflow intensity for different tasks.
• Long-Lasting Internal Components: Brass internal parts and nitrided steel plug ensure durability and leak-free operation, while a sealed body protects components from contaminants.

SPECIFICATIONS:

• NPT Female Thread: 1/4″ FNPT
• Maximum Operating Pressure: 145 psi (10 bar)
• Service Temperature Range: 5°F to 158°F (-15°C to +70°C)
• Air Consumption (at 87 psi): 7.7 CFM
• Noise Level (at 87 psi): 90 dBA
• Blowing Force (at 87 psi): 9.5 Ozf
• Dynamic Pressure (at 87 psi @ 4″): 17 psi
• Weight: 0.26 lbs (approx.)

HOW TO USE:

1. Connect to Air Supply: Attach the 1/4″ FNPT inlet of the blow gun to a compatible air line. Ensure the air compressor is off and depressurized during setup.
2. Verify Pressure: Adjust the compressor regulator to the recommended operating pressure (around 87 psi) without exceeding 145 psi.
3. Aim Safely: Point the nozzle away from yourself and others. Use safety gear like glasses or a face shield.
4. Control Airflow: Lightly squeeze the progressive trigger for gentle airflow or fully press for maximum force.
5. Perform Task: Use the controlled airflow to clean or dry surfaces as needed, maintaining a safe distance.
6. Disconnect: Turn off the air supply, depressurize, and disconnect the blow gun when finished.

BENEFITS OF USING PREVOST BLOW GUN – OSHA NOZZLE SKIN PACK (27202OSHS):

• Ensures safety compliance by adhering to strict OSHA pressure regulations.
• Improves cleaning efficiency with high-volume Venturi nozzle airflow.
• Reduces operator fatigue due to its lightweight and ergonomic design.
• Adapts to various applications from delicate dusting to heavy debris removal.
• Delivers reliable, long-term performance with durable construction and sealed components.

FEATURES:

• Angled 3″ composite extension with Venturi nozzle.
• Pistol-style ergonomic grip for user comfort.
• Brass precision-machined internal components.
• Nitrided steel plug for secure sealing.
• Hermetically sealed body to block dust and contaminants.
• Smooth body profile for easy hanging and storage.
• RoHS and REACH compliant materials.
• Impact-resistant, scratch-proof composite body.
• Insulated design for improved comfort during use.
