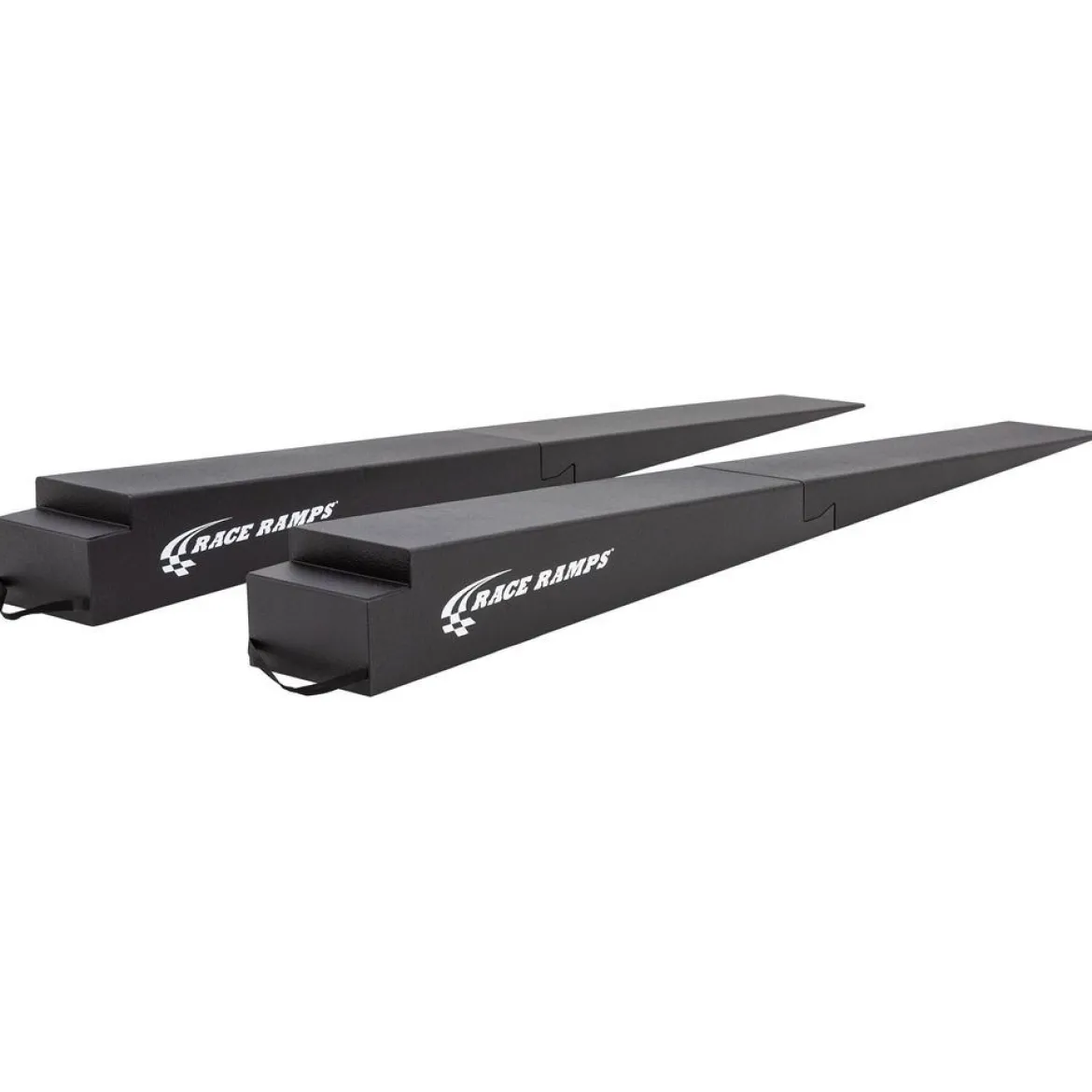

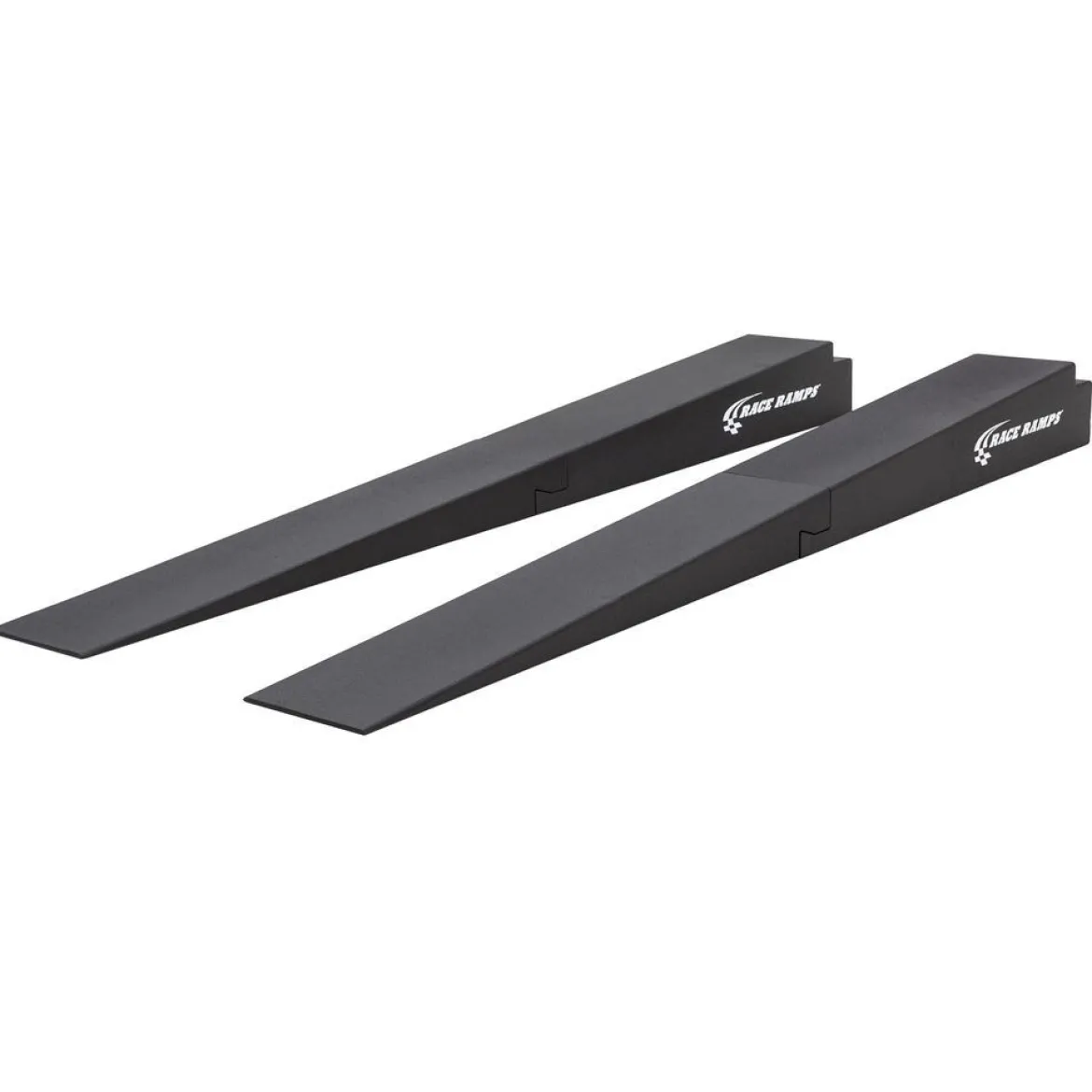

Race Ramps 11″ Height Two-Piece Trailer Ramps (RR-TR-11-2)

The Race Ramps 11″ Height Two-Piece Trailer Ramps (RR-TR-11-2) provide an effective solution for safely loading low-profile vehicles, such as race cars, sports cars, and other lowered automobiles, into trailers. Designed to eliminate scraping and damage often associated with steep trailer ramps, these innovative two-piece ramps create a gradual and controlled incline. Their unique construction and thoughtful design ensure a smooth transition from ground to trailer, making transport effortless whether for track days, car shows, or long-distance trips.

KEY FEATURES AND BENEFITS:

• Gentle Approach Angle: The ramps offer a low initial approach angle of just 4.3 degrees, gradually increasing to 5.4 degrees at the top section. This shallow incline is crucial for preventing the scraping of front bumpers, splitters, or the undercarriage of vehicles with limited ground clearance.

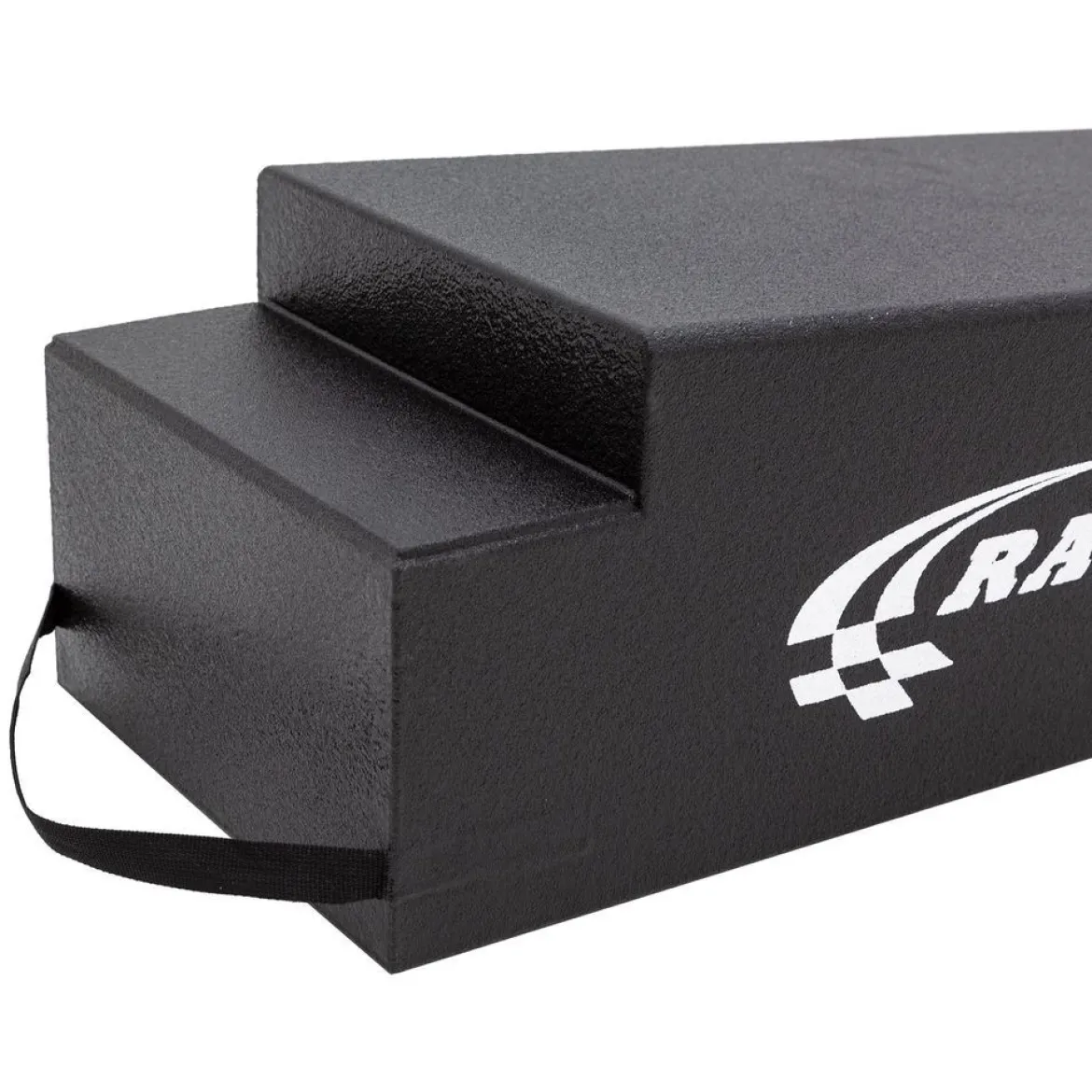

• Integrated Trailer Door Notch: Each ramp features a precisely engineered 5-inch long by 3-inch high notch. This design allows your trailer door or existing ramp to rest securely within the notch, creating a continuous, level surface for seamless vehicle entry into the trailer.
• High Load Capacity: While each individual ramp is engineered to support up to 1,500 pounds, the system is designed to accommodate a total vehicle weight of up to 6,000 pounds. This robust capacity ensures they can handle a wide range of performance and low-profile vehicles.
• Lightweight and Maneuverable: Despite their strength and large size, each complete ramp (composed of two pieces) weighs only 17 pounds. This remarkable lightness makes them exceptionally easy to handle, transport, and position, significantly reducing effort during setup and storage.
• Secure Anti-Slip Surface: The ramps are coated with a proprietary anti-slip material that provides superior traction. This ensures that the ramps remain stable on various surfaces, including concrete and asphalt, and prevents the vehicle’s tires from slipping during the loading process.

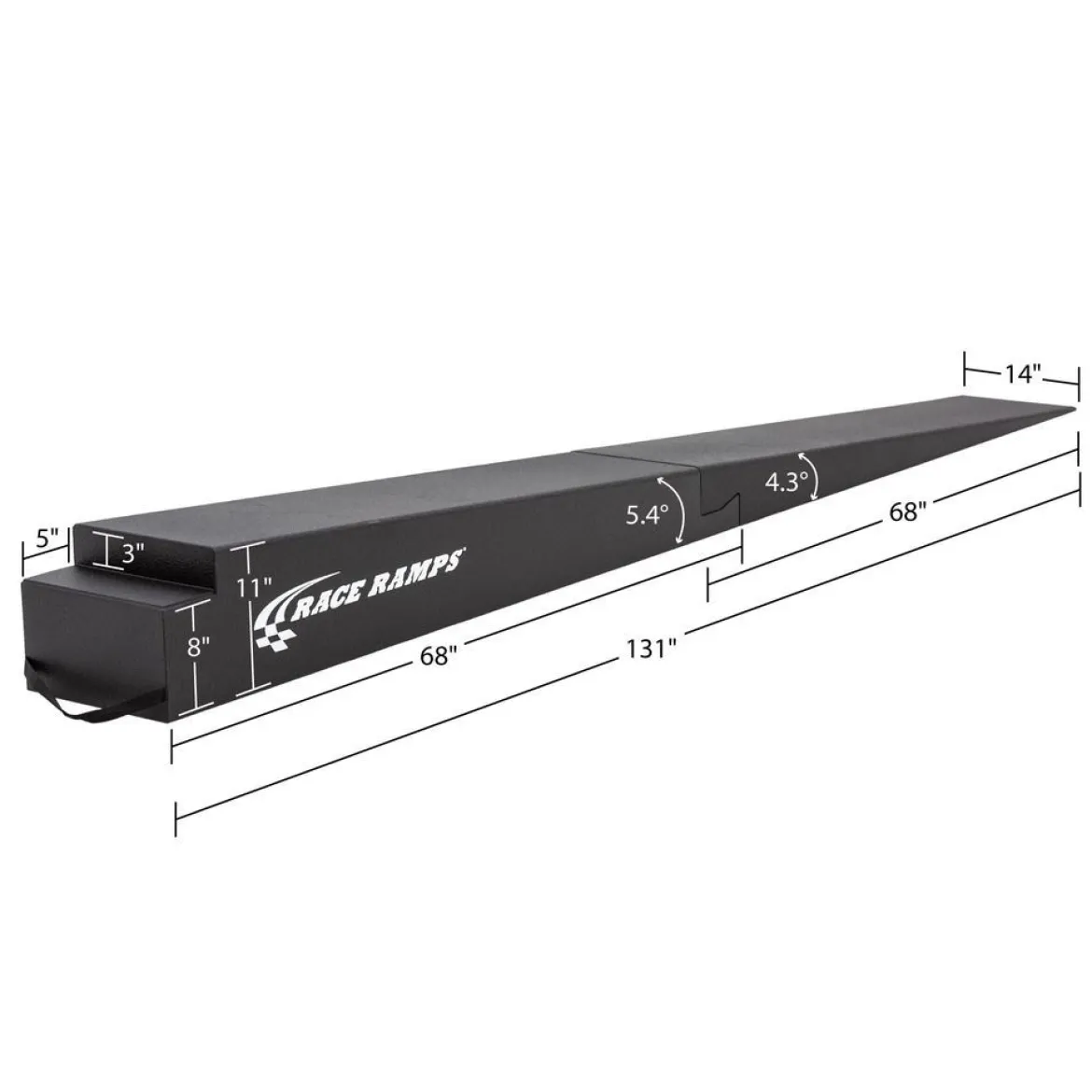

SPECIFICATIONS:

• Model Number: RR-TR-11-2
• Length (Total): 131 inches
• Length (Each Piece): Approximately 68 inches
• Width: 14 inches
• Height: 11 inches
• Approach Angle (Initial): 4.3 degrees
• Approach Angle (Overall/Top Piece): 5.4 degrees
• Notch Size: 5 inches (Length) x 3 inches (Height)
• Maximum Capacity (Per Ramp): 1,500 lbs
• Total Vehicle Weight Capacity: 6,000 lbs
• Weight (Per Ramp): 17 lbs
• Maximum Tire Width: 12 inches
• Color: Black
• Material: 100% Solid, High-Density Foam with Traction Coating
• Included in Purchase: 1 pair of two-piece trailer ramps (total of 4 individual ramp sections).

HOW TO USE:

1. Inspect Ramps: Before each use, visually inspect all ramp sections for any signs of damage. Do not use if any damage is present.
2. Prepare Surface: Ensure the ground where you will place the ramps is flat, level, and free of debris. The ramps must make full, stable contact with the ground.

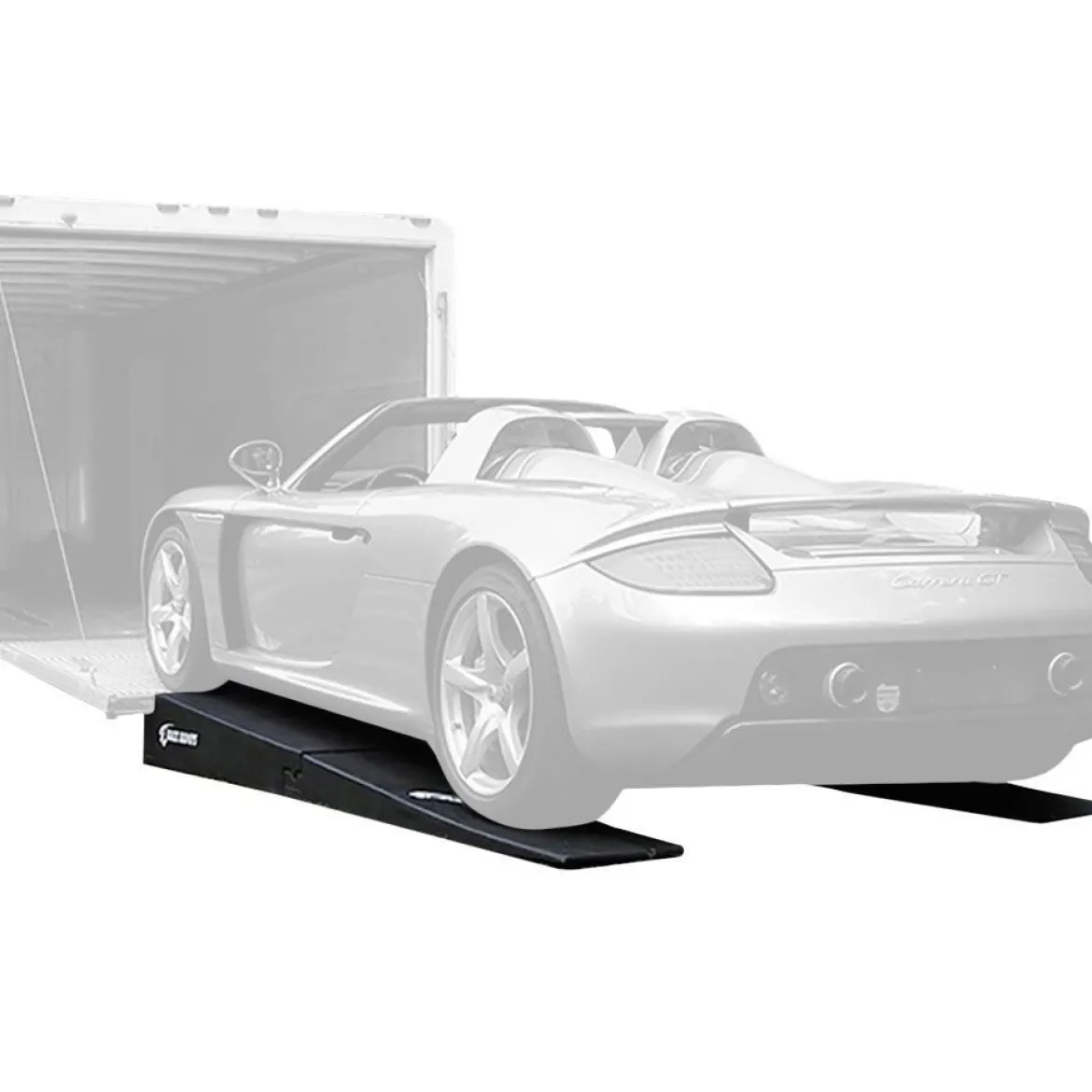

3. Position Ramps: Slide the two sections of each ramp together securely. Place the assembled ramps directly in front of your trailer’s existing ramp or door.
4. Engage Notch: Carefully lower your trailer door or existing ramp so that it rests firmly and fully within the designated 5-inch long by 3-inch high notch on the Race Ramps. This creates a smooth, continuous loading surface.
5. Align Vehicle: Ensure your vehicle’s steering wheel is straight and the vehicle is perfectly aligned with the ramps.
6. Load Vehicle: Drive your vehicle slowly and steadily up the ramps. Avoid sudden acceleration or braking. It is highly recommended to have another person observe and guide the driver during the loading process for safety and precision.
7. Secure Vehicle: Once the vehicle is fully inside the trailer, engage the parking brake and secure the vehicle using appropriate tie-downs as per standard trailering practices.

BENEFITS OF USING RACE RAMPS 11″ HEIGHT TWO-PIECE TRAILER RAMPS (RR-TR-11-2):

• Scrape-Free Loading: The progressive, low approach angles eliminate the risk of damage to low-clearance vehicles, preserving their condition.
• Time and Effort Savings: Quick and easy setup means less time spent wrestling with makeshift solutions, allowing for more efficient loading and unloading.
• Enhanced Safety: The anti-slip coating and stable design reduce the risk of accidents during loading, providing peace of mind for vehicle owners.
• Versatility: Ideal for a wide array of low-profile vehicles, including sports cars, classic cars, and dedicated race machines.
• Long-Term Value: Constructed from high-quality, resilient materials, these ramps are built to last, offering a dependable solution for years of use.

FEATURES:

• Constructed from a patented, solid high-density foam core.
• Features an advanced anti-slip coating for superior traction.

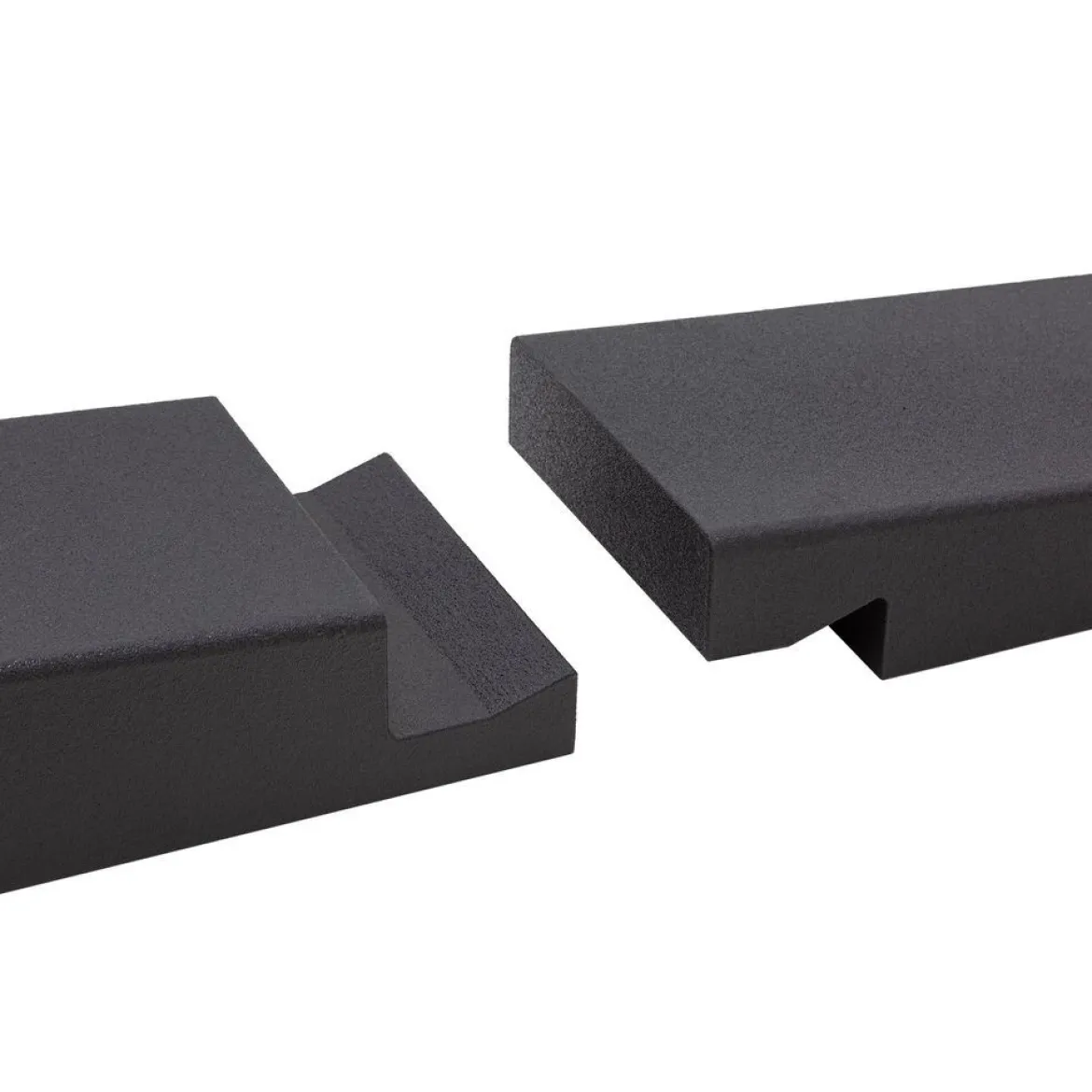

• Designed in two interlocking sections for each ramp, aiding storage and transport.
• Incorporates a dedicated notch for seamless integration with trailer doors.
• Equipped with integrated carrying straps on the upper ramp sections.
• Suitable for vehicle tires up to 12 inches wide.
• Resistant to water and most automotive fluids.
• Will not scratch or mar concrete or other garage/trailer flooring surfaces.
• Manufactured entirely in the USA.
