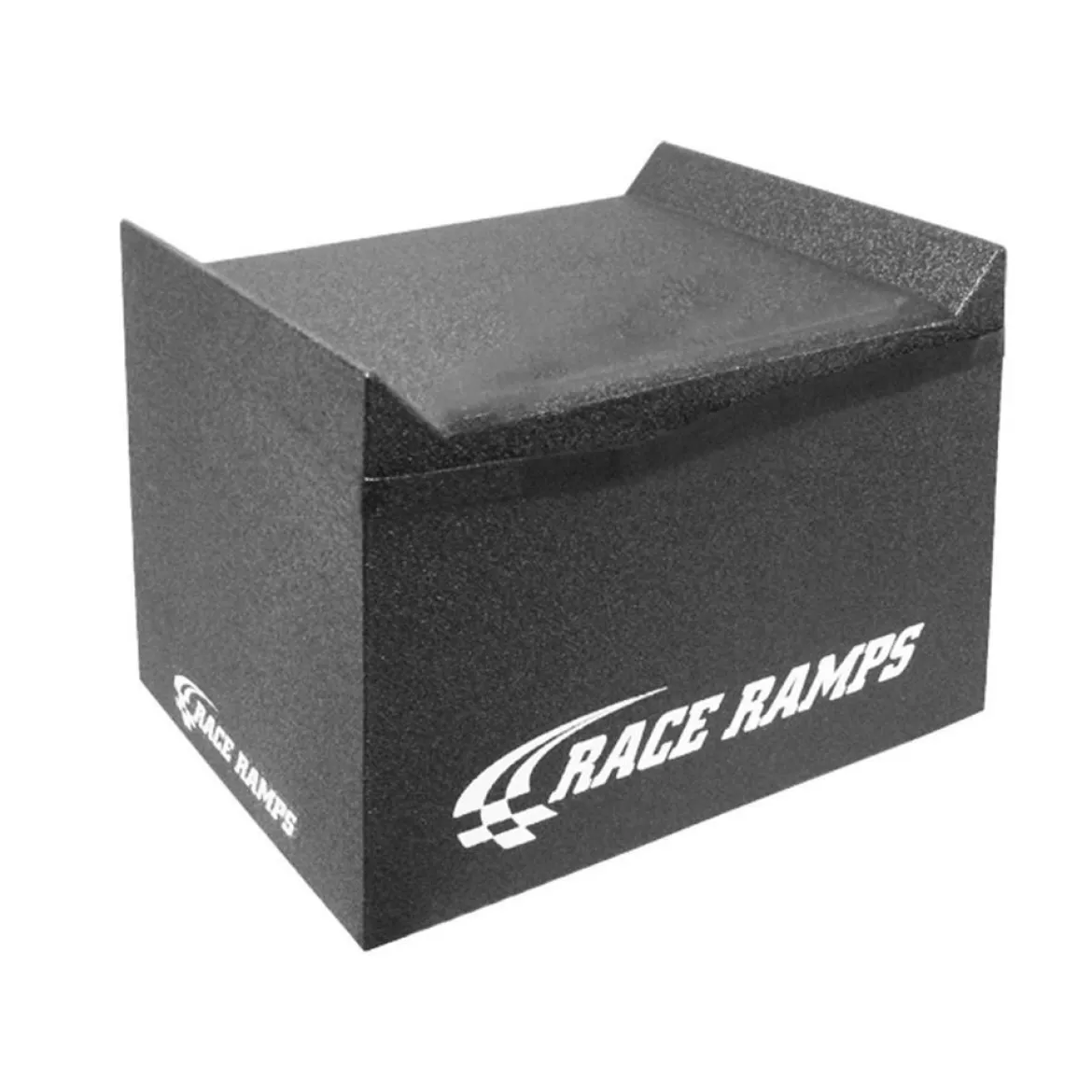

Race Ramps 23.75″ Length Slip Plate Stands (RR-SPS)

Race Ramps 23.75″ Length Slip Plate Stands (RR-SPS) offer a highly effective and portable solution for precise wheel alignment. With a substantial 14-inch lift height, these stands elevate vehicles to an optimal working level, facilitating the use of most industry-standard slip plates, grease plates, and turntables. Their lightweight design, at just 16 pounds per stand, ensures easy transportation and quick positioning, making them ideal for both professional alignment shops and mobile up-fitting operations. Beyond their core function in alignment, their clean black finish and stable design also make them an excellent choice for showcasing vehicles at exhibitions or in showrooms. Constructed from solid, high-density foam with a protective coating, these stands are built to provide consistent performance without damaging floor surfaces.

KEY FEATURES AND BENEFITS:

• High Lift Height: Provides a 14-inch lift, allowing optimal access for wheel alignment procedures and under-vehicle tasks.
• Lightweight and Portable: Weighing only 16 lbs. per stand, they are easy to transport and set up, even for mobile services.
• Slip Plate Compatibility: Designed to accommodate most industry-standard slip plates, grease plates, or turntables up to 17.75 inches in diameter.
• Dual Purpose: Suitable for use in wheel alignment as well as vehicle display applications in showrooms and exhibitions.
• Durable Construction: Made from solid, high-density foam with a traction coating that protects both the stand and the floor surface.
• Stable Design: The sturdy construction ensures safe support for a wide range of vehicles up to 6,000 lbs. total weight capacity.

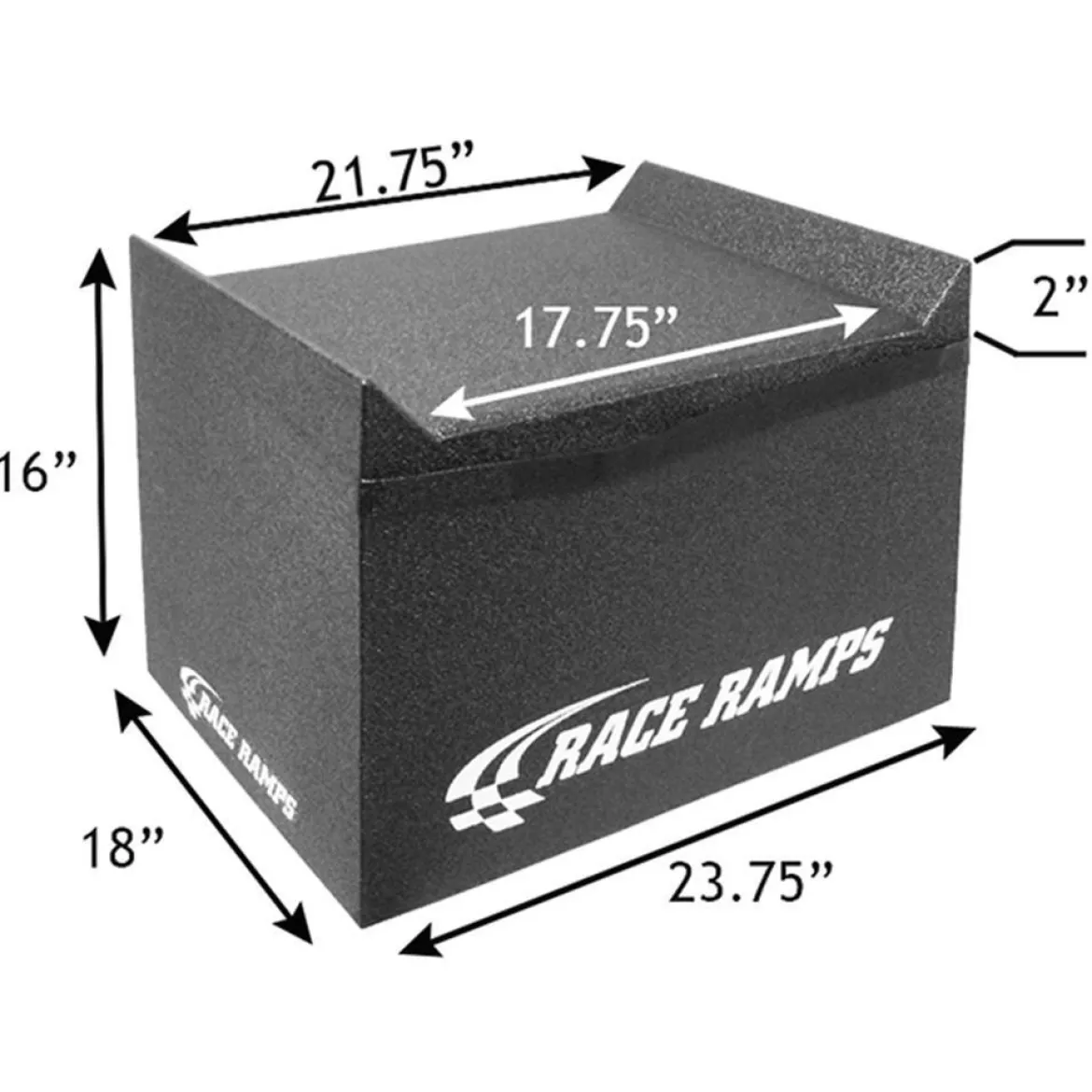

SPECIFICATIONS:

• Sold As: Pair (2 stands included)
• Length: 23-3/4 inches
• Width: 18 inches
• Height: 16 inches
• Lift Height: 14 inches
• Material: Expanded foam with traction coating
• Weight: 16 lbs. (per stand)
• Maximum Capacity: 1,500 lbs. per stand (6,000 lbs. total vehicle capacity)
• Accommodates Slip Plates: 17.75 inches (diameter)
• Color: Black
• Included in Purchase: Two (2) Race Ramps 23.75″ Length Slip Plate Stands (RR-SPS)

HOW TO USE:

1. Prepare the Surface: Ensure you are using the stands on a flat, level, and solid surface. Verify that the entire base of each stand will make full contact with the ground for stability.
2. Position the Vehicle: Carefully raise the vehicle using a suitable lift system (e.g., a two-post or four-post lift) to allow clearance for positioning the stands.
3. Place the Stands: Slide one Race Ramps Slip Plate Stand under each tire.
4. Add Slip Plates: Place your chosen industry slip plates, grease plates, or turntables on top of each Race Ramps stand. These stands are designed to fit plates up to 17.75 inches in diameter.
5. Lower the Vehicle: Slowly and carefully lower the vehicle onto the stands, ensuring that each tire is centered and stable on its respective slip plate and stand.
6. Perform Alignment: Once the vehicle is securely resting on the stands, you are ready to perform your desired wheel alignment procedures.
7. Vehicle Display (Optional): If using for display, simply position the vehicle on the stands as described above.

BENEFITS OF USING RACE RAMPS 23.75″ LENGTH SLIP PLATE STANDS (RR-SPS):

• Improves Alignment Accuracy: Provides a stable and elevated platform for more precise wheel alignment procedures.
• Reduces Physical Strain: Lightweight construction makes setup and breakdown easier for technicians and mobile service teams.
• Enhances Undercarriage Access: The 14-inch lift height creates more working room underneath the vehicle.
• Preserves Workspaces: Constructed from high-density foam with a protective coating that will not scuff or damage garage floors.
• Dual Functionality: Ideal for both professional alignment and as a vehicle display platform in shops or showrooms.
• Flexible Usage: Can be used in fixed bays or mobile setups with compatibility across various lift types.

FEATURES:

• Stable Base: The compact 18″ x 24″ base provides a stable footprint.
• High-Density Foam: Constructed from 100% solid, high-density expanded polystyrene.
• Anti-Slip Coating: Features a unique, patented anti-slip coating for secure placement on various surfaces.
• Made in the USA: Manufactured in the United States, ensuring production quality.
• Lift Compatibility: Can be utilized effectively with both two-post and four-post lift systems.
• Strong Support: Each stand is capable of supporting significant weight for a wide range of vehicles.
