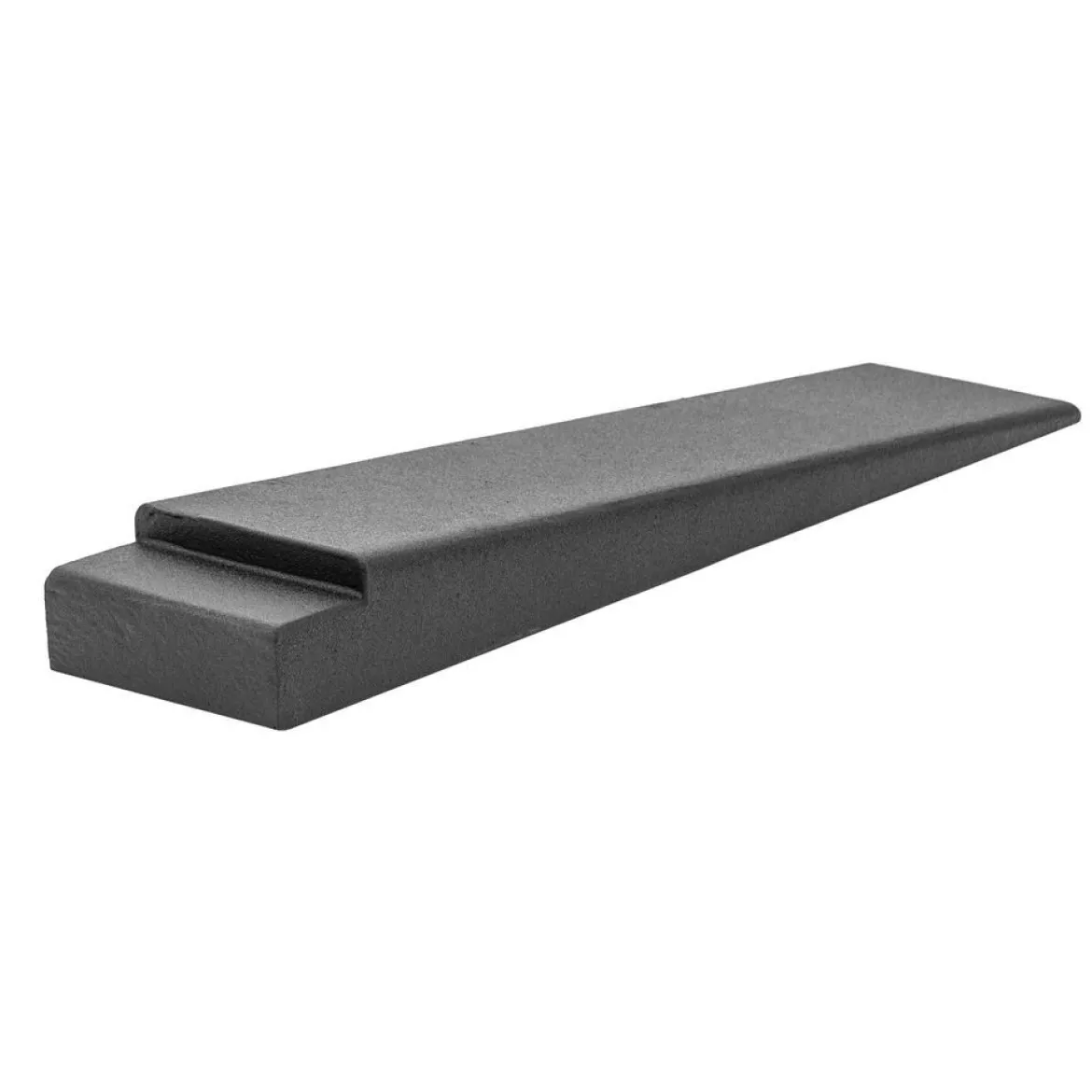

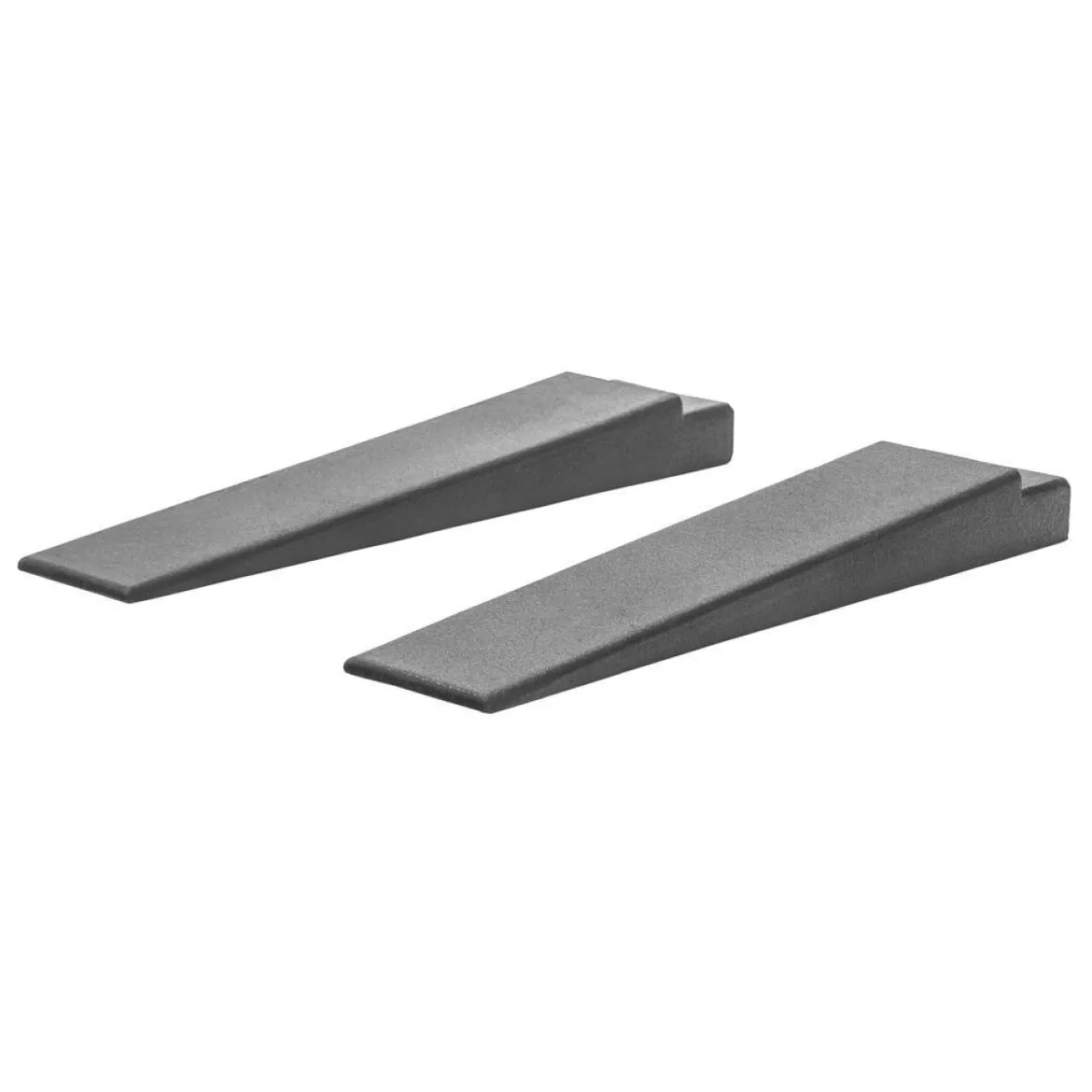

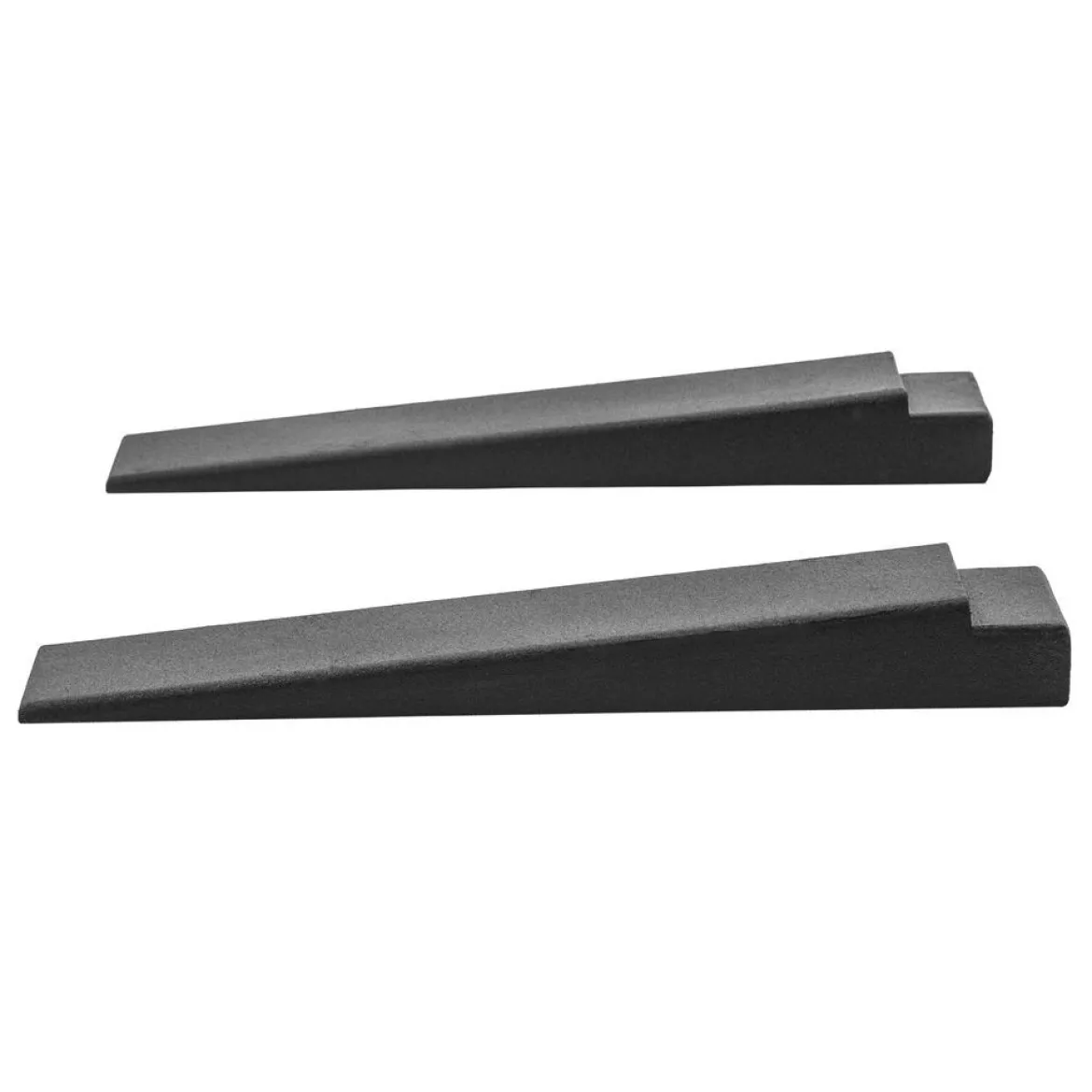

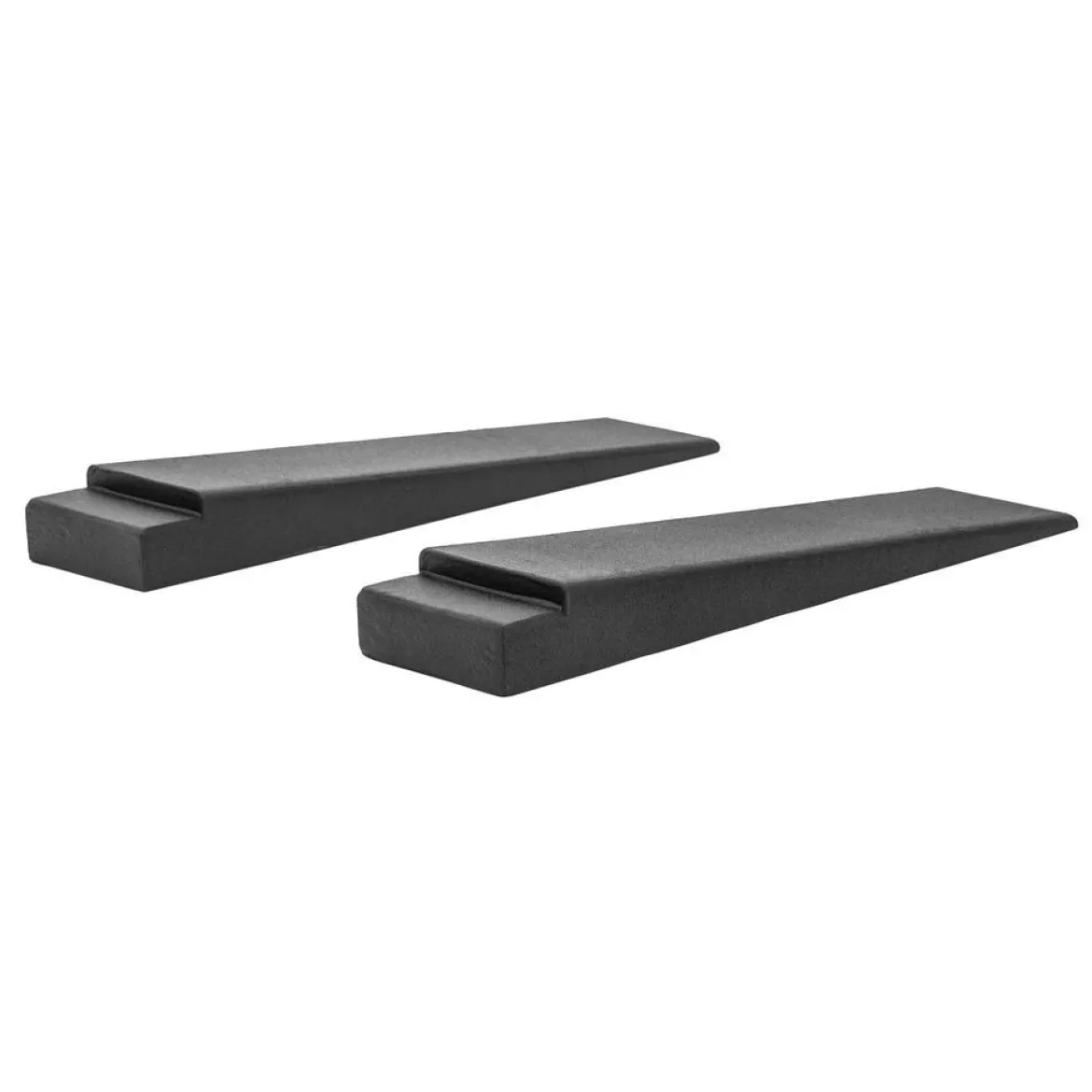

Race Ramps 42.3″ Compact Tow Ramps (BT-TT-7-10-IS)

The Race Ramps 42.3″ Compact Tow Ramps (BT-TT-7-10-IS) are engineered to simplify and secure the process of loading low-profile vehicles onto flatbed tow trucks or trailers. Designed with precision, these ramps minimize the angle of approach, ensuring vehicles with limited ground clearance, such as sports cars and exotic models, can be transported without risk of damage to their undercarriage. Crafted from high-density, anti-slip foam, these ramps offer a combination of strength and light weight, making them a practical addition for professional towers and vehicle enthusiasts. Their thoughtful design includes a secure notch for stability with rollback beds, providing a reliable and efficient loading experience.

KEY FEATURES AND BENEFITS:

• Low Approach Angle: Decreases the angle of approach to as little as 5.2 degrees, effectively preventing scrapes and damage to low-profile vehicles during loading.
• Compact Design: At 42-3/10 inches in length, these ramps are easy to handle, store, and transport, making them convenient for on-the-go use.
• High Vehicle Support: The pair of ramps supports vehicles up to 10,000 pounds, accommodating a wide range of cars including high-performance models.

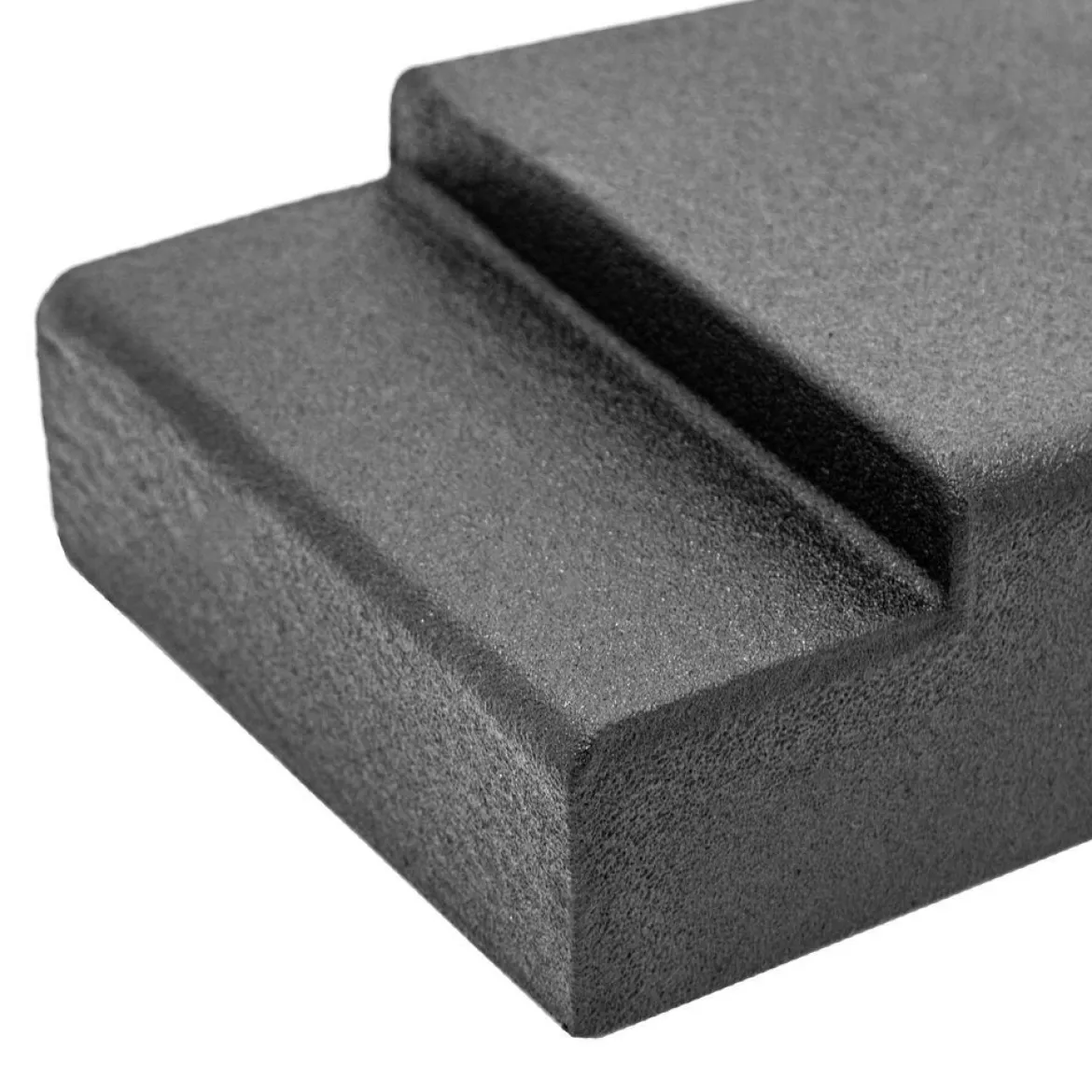

• Secure Rollback Integration: Features a 1-inch by 5-inch notch that allows the rollback of a tow truck to sit securely within the ramp, providing a stable platform for driving or winching.
• Vehicle Protection: Ensures the safety of your customer’s valuable vehicle by offering a gentle and controlled loading method.
• Lightweight and Robust: Constructed from 100% solid, high-density foam with a rugged anti-slip coating, resulting in a product that is easy to move yet capable of handling significant weight.
• Floor and Surface Safe: The anti-slip coating and material composition ensure the ramps will not slide, scratch, or damage garage floors, concrete, or asphalt surfaces.
• Versatile Use: A reinforced bottom allows the ramps to be used effectively on various surfaces, including gravel or other rough terrains encountered on the roadside.

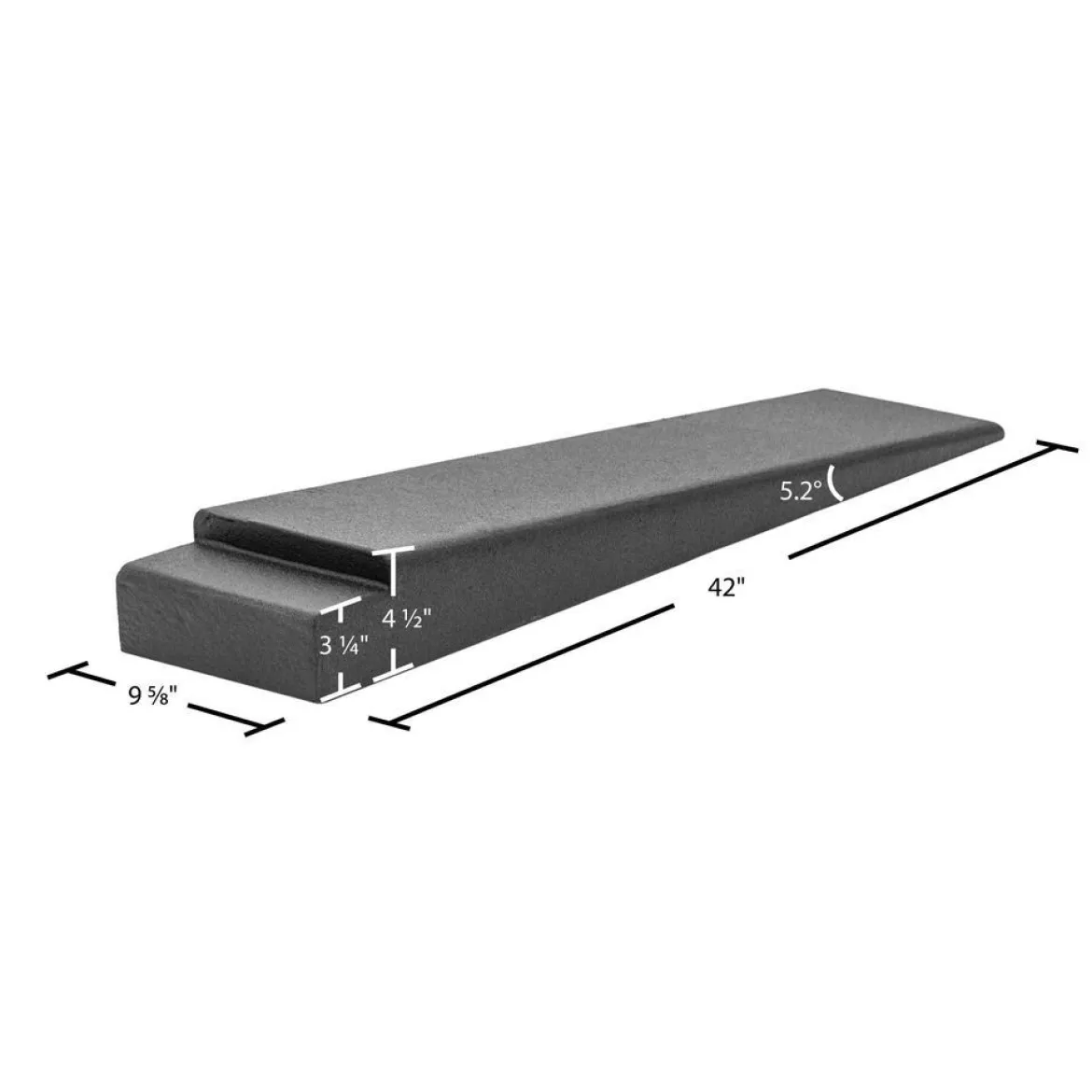

SPECIFICATIONS:

• Model Number: BT-TT-7-10-IS
• Sold As: Pair
• Length: 42-3/10 inches (107.44 cm)
• Width: 10 inches (25.4 cm)
• Height: 4-1/2 inches (11.43 cm)
• Weight: 10 lbs. per ramp
• Approach Angle Degree: 5.2°
• Maximum Capacity (per ramp): 2,500 lbs.
• Total Vehicle Capacity (per pair): 10,000 lbs. (4,535.92 kg)
• Lift Height: 4-1/2 inches
• Color: Black
• Material: Expanded foam with traction coating
• Notch Dimensions: 1 inch x 5 inches
• Maximum Tire Width: 8 inches
• Included in Product: Two (2) Race Ramps 42.3″ Compact Tow Ramps

HOW TO USE:

• Inspect Ramps: Before each use, visually inspect both ramps to ensure they are damage-free. Do not use if any damage is present.
• Prepare Surface: Place the ramps on a flat, level, and hard surface. Ensure the area is clear of debris.
• Position Ramps: Position the ramps in front of the tow truck’s rollback or trailer. The end of the ramp with the notch should be closest to the vehicle being loaded.
• Engage Rollback: Lower the tow truck’s rollback until it securely rests within the 1-inch by 5-inch notches on the ramps. Confirm the ramp makes full contact with the ground and is stable.
• Align Vehicle: Ensure the vehicle’s steering wheel is straight and the vehicle is aligned with the ramps.
• Load Vehicle: Drive the vehicle slowly and steadily up the ramps onto the tow truck or trailer. Avoid sudden acceleration or braking. If winching, securely attach the winch cable to the vehicle and slowly pull it up the ramps.
• Secure Vehicle: Once the vehicle is fully loaded onto the tow truck or trailer, secure it according to standard towing procedures.
• Remove Ramps: After the vehicle is loaded and secured, the ramps can be carefully removed and stored.

BENEFITS OF USING RACE RAMPS 42.3″ COMPACT TOW RAMPS (BT-TT-7-10-IS):

• Damage Prevention: Significantly reduces the risk of scraping or damaging the undercarriage, front bumper, or side skirts of low-clearance vehicles during the loading process.
• Enhanced Safety: Provides a stable and secure transition for vehicles onto tow trucks, reducing the likelihood of accidents or instability for both the vehicle and the operator.
• Operational Efficiency: Speeds up the loading process by eliminating the need for makeshift solutions or extreme caution typically required for low cars.
• Professional Image: Using specialized equipment like these ramps demonstrates professionalism and care to clients, particularly when handling valuable or high-end vehicles.
• Versatility: Suitable for a wide range of low-profile cars, from sports cars to show vehicles, making them a valuable tool for any towing service or car enthusiast.
• Long-Term Value: Made from materials that withstand repeated use without losing integrity, offering a lasting solution for vehicle loading needs.

FEATURES:

• Constructed via an exclusive, patented process for consistent quality.
• 100% solid, high-density foam core.
• Rugged anti-slip coating on the surface.
• Reinforced bottom for use on various ground conditions.
• Will not slide on concrete, asphalt, or other hard surfaces.
• Designed to prevent scratching or marring of floor surfaces.
• Integrated notch for securing tow truck rollback.
• Single-piece design for straightforward placement.
• Capable of supporting significant point loads.
• Maintains structural integrity under normal use.
