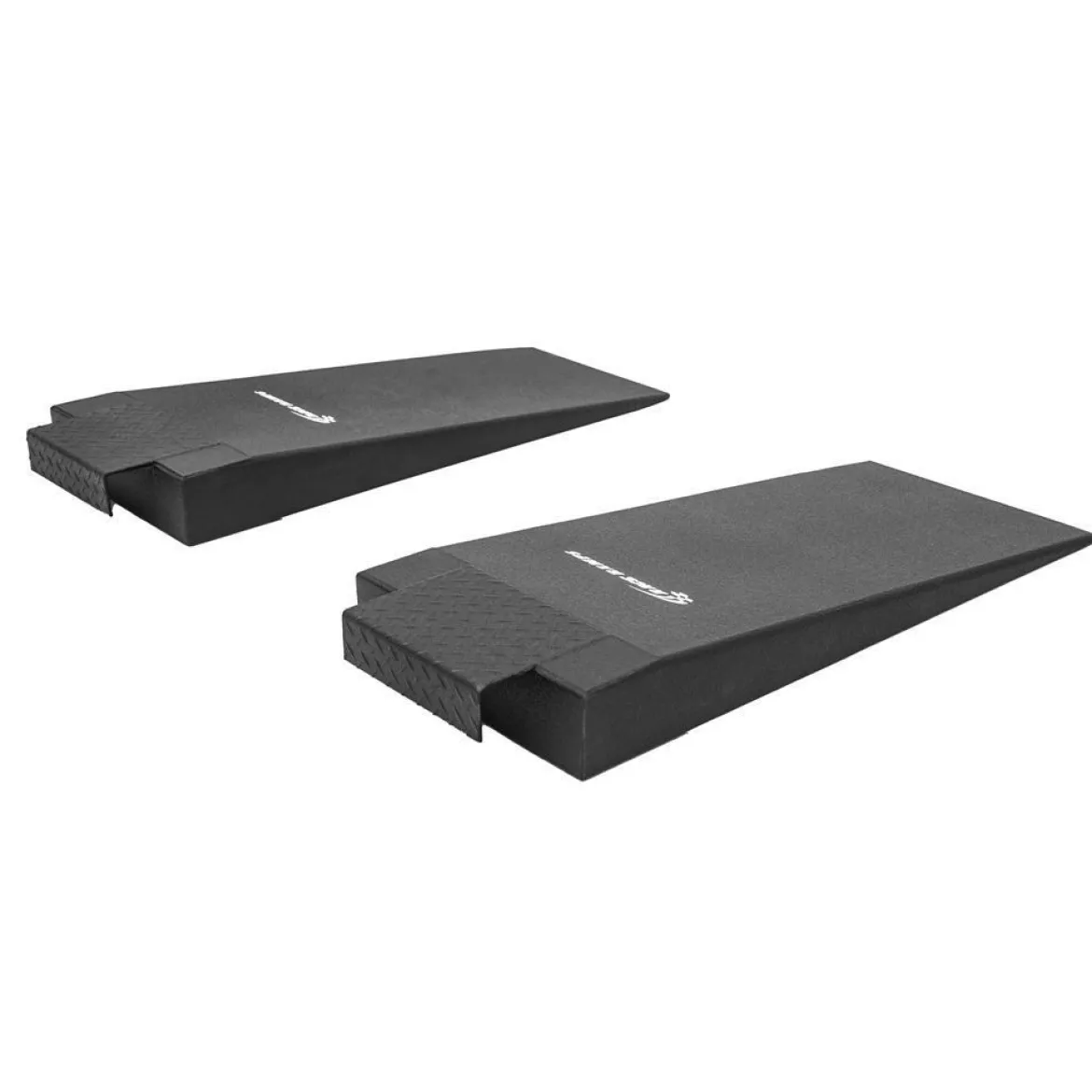

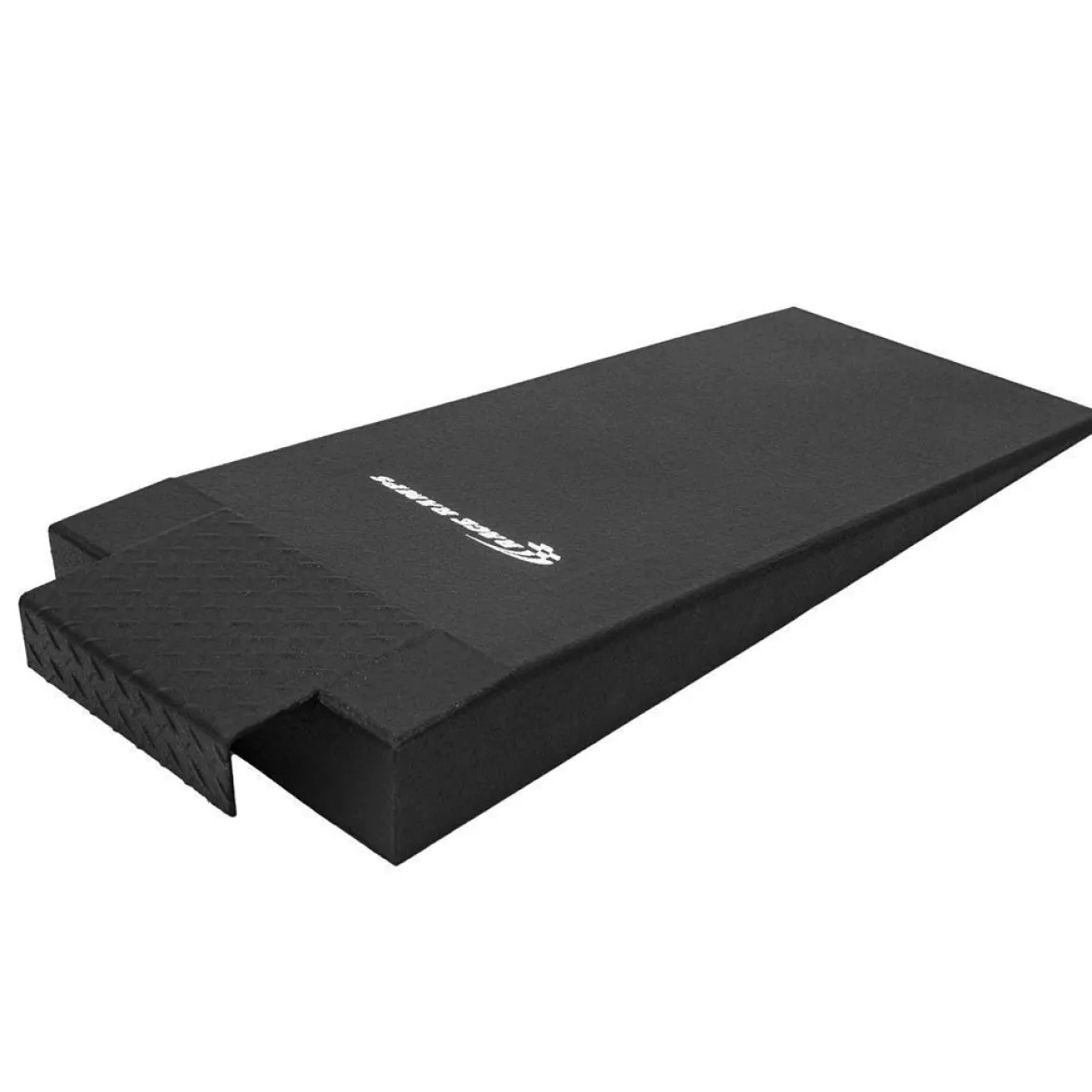

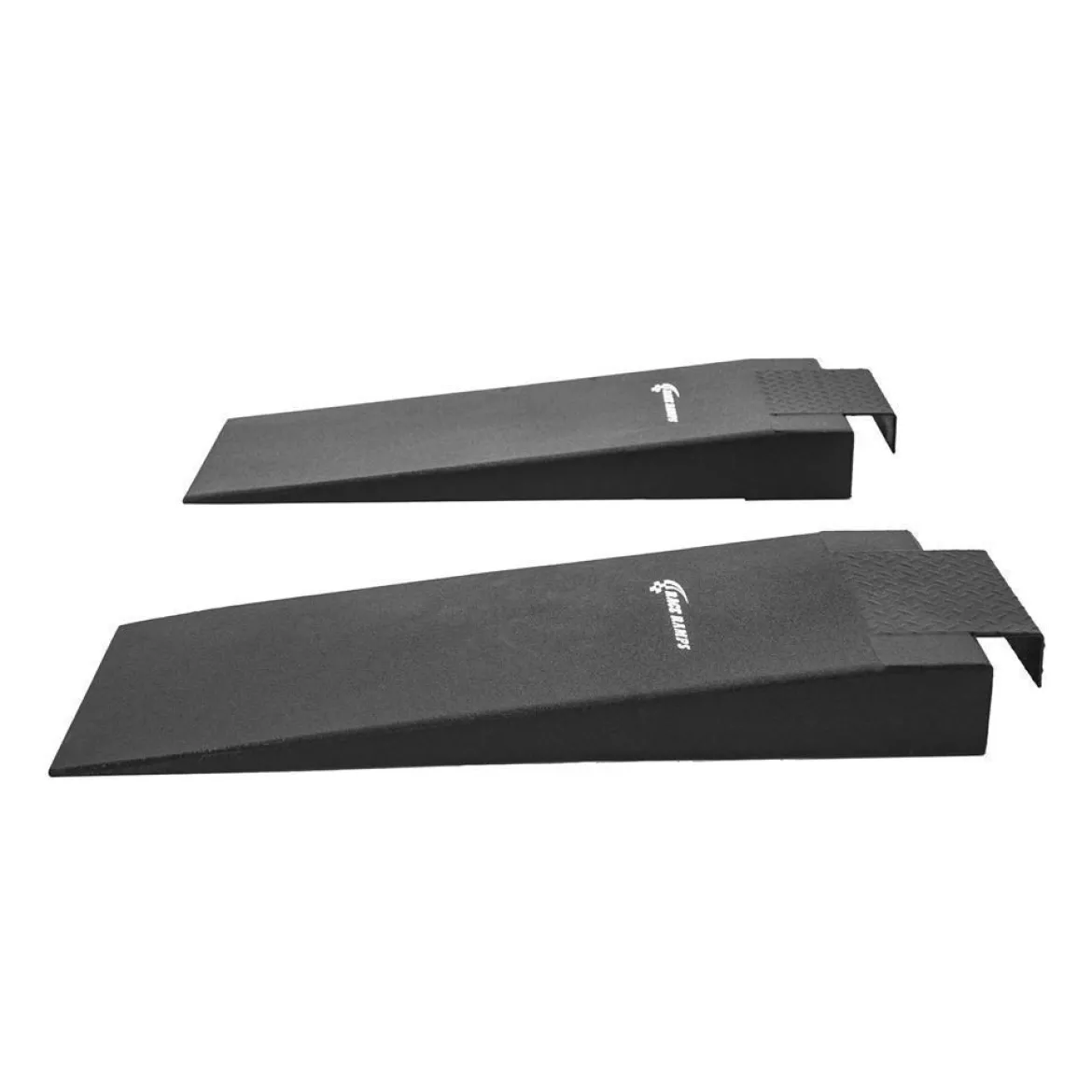

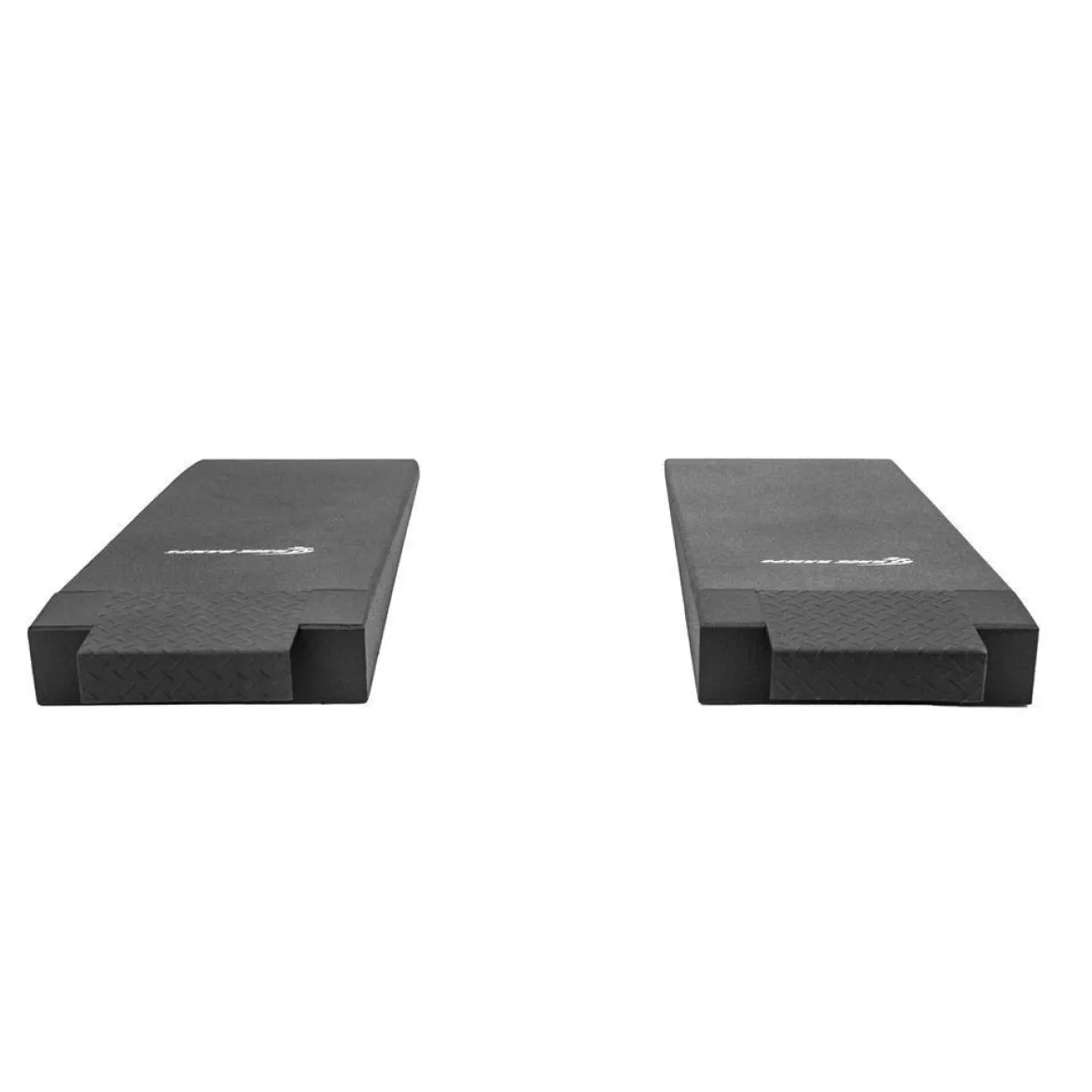

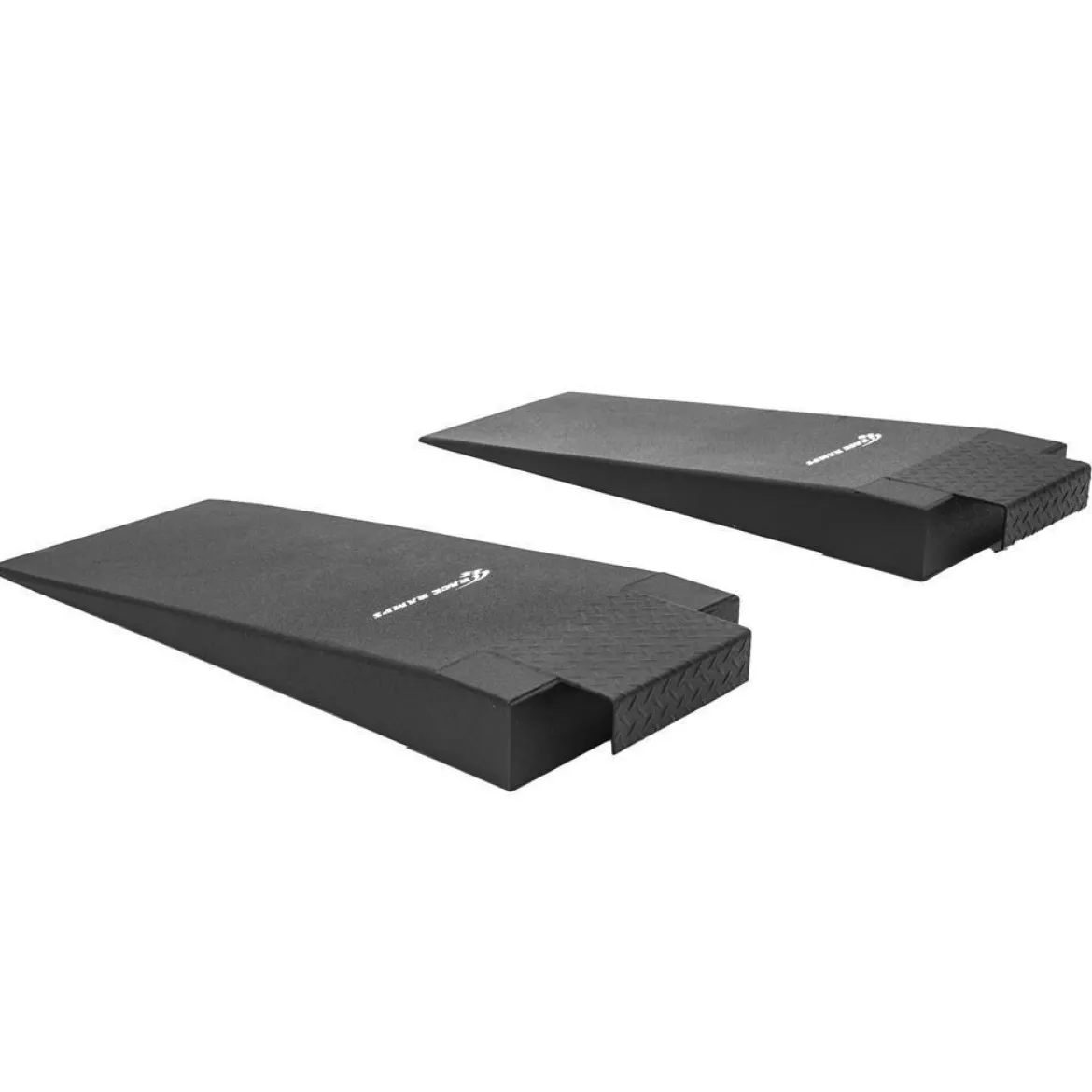

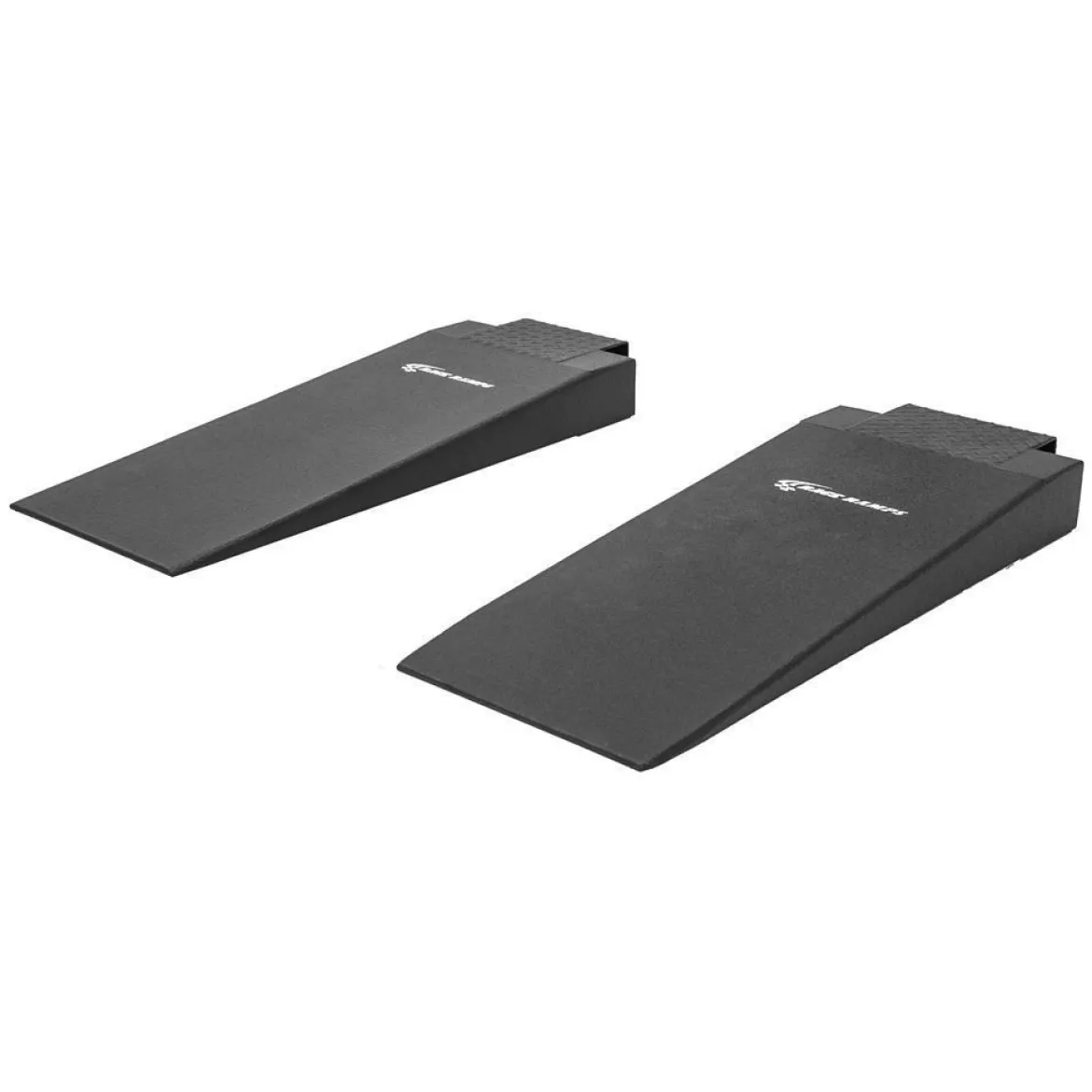

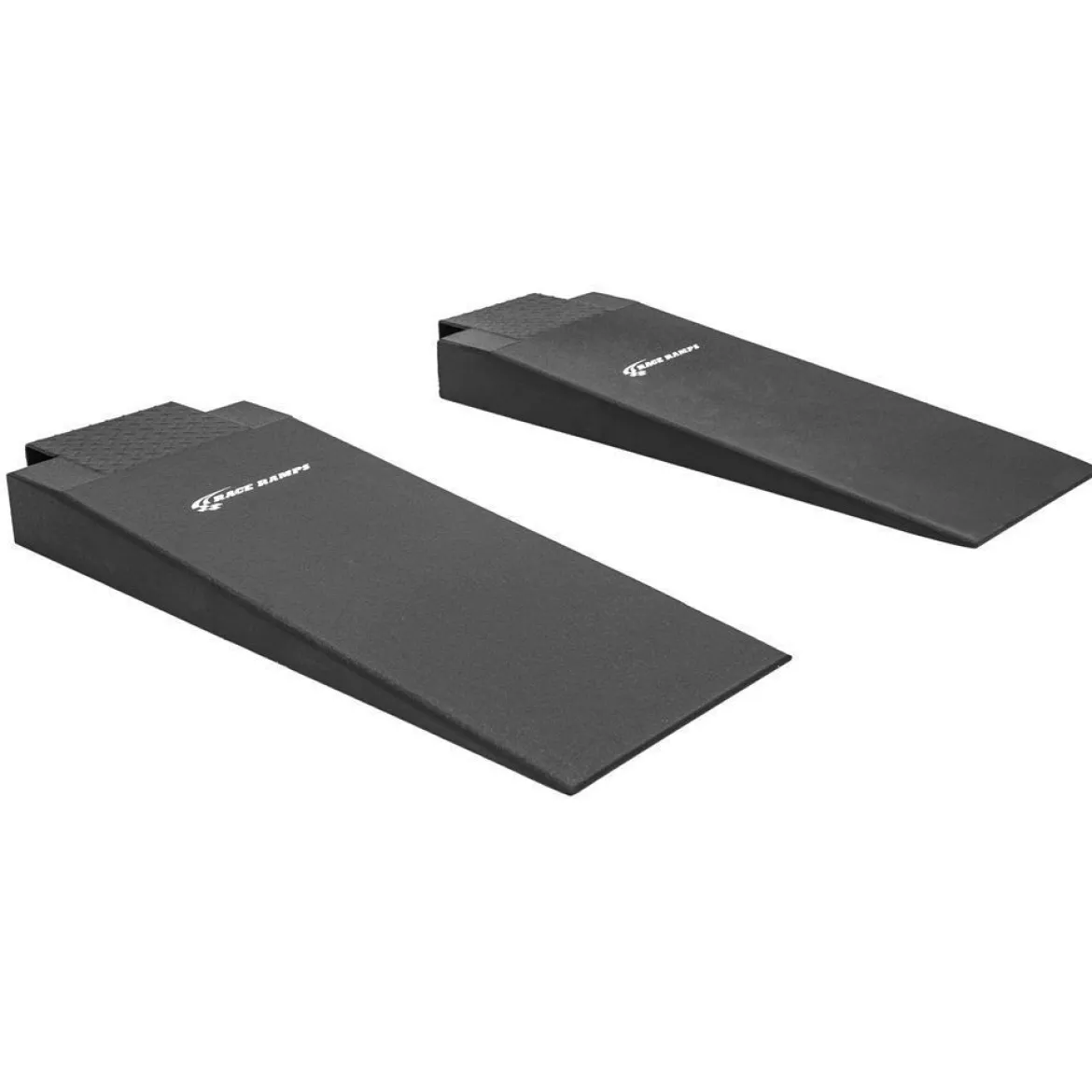

Race Ramps 5″ Height Hook Nose Extra Wide Rack Ramp (RR-RACK-HN20-5)

Race Ramps 5″ Height Hook Nose Extra Wide Rack Ramp (RR-RACK-HN20-5) is an essential tool designed to provide a safe and gentle incline for low-profile vehicles to access lifts, service platforms, or racks. Expertly engineered, these ramps eliminate the common challenge of scraping the front end or undercarriage of vehicles with limited ground clearance. Their thoughtful design ensures a smooth transition, protecting your vehicle and simplifying maintenance tasks.

KEY FEATURES AND BENEFITS:

• Reduced Approach Angle: These ramps are engineered to significantly reduce the approach angle for low-clearance vehicles, allowing them to safely drive onto lifts without causing damage.
• Lightweight Design: Each ramp is lightweight at only 15 pounds, making them easy to position and remove without significant effort.
• High-Density Foam Construction: Constructed from a unique high-density foam, they are robust enough to support substantial vehicle weights while remaining gentle on garage floors, preventing skids or scuffs.

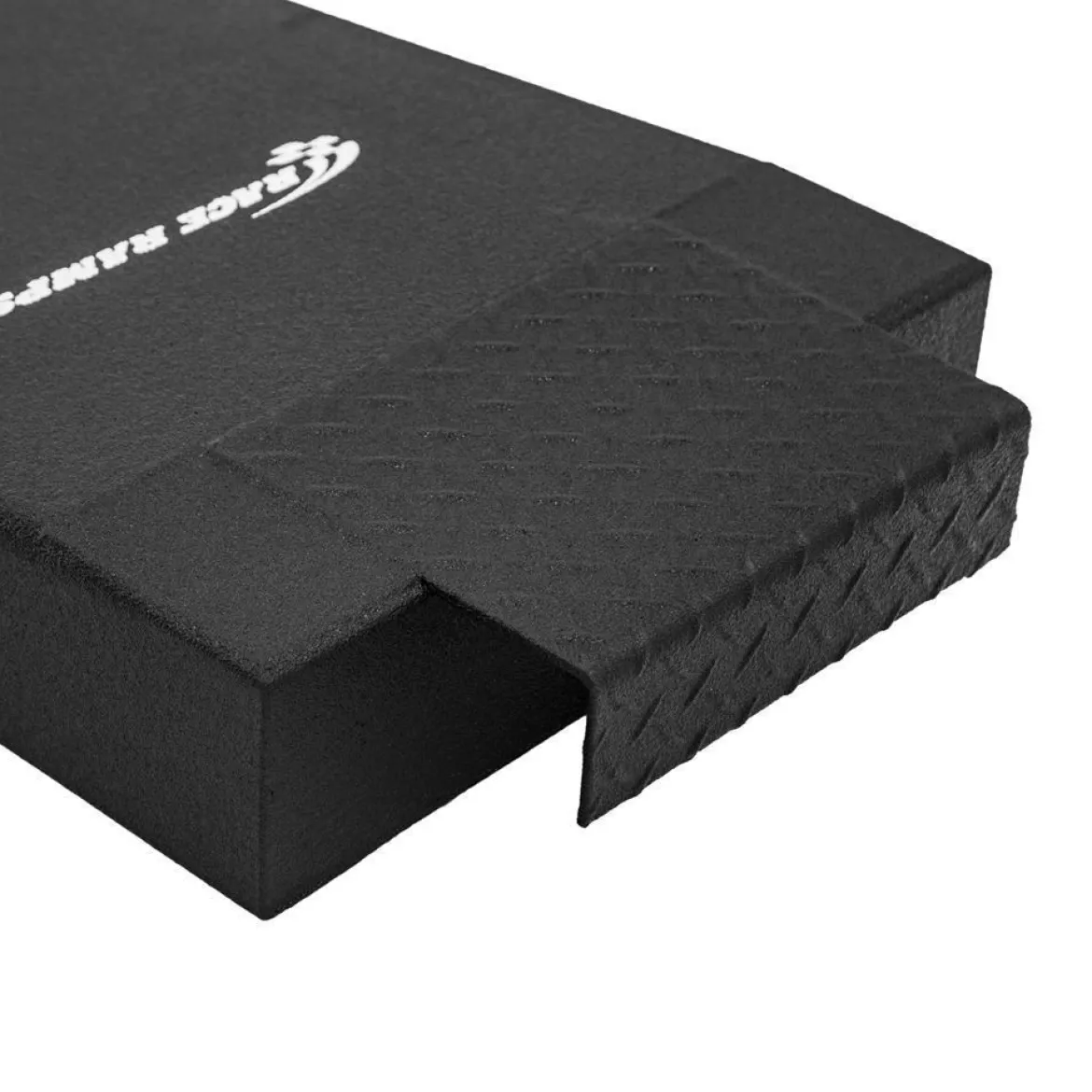

• Secure Hook Nose: The integrated 3-inch hook nose securely connects to most standard lifts, ensuring stability during use.
• Extra-Wide Surface: Their extra-wide 20-inch surface accommodates a broad range of tire widths, enhancing versatility.
• Resistant to Elements: Being impervious to most automotive fluids and resistant to rust and temperature transfer, these ramps offer a practical, long-term solution for professional and home garages alike.

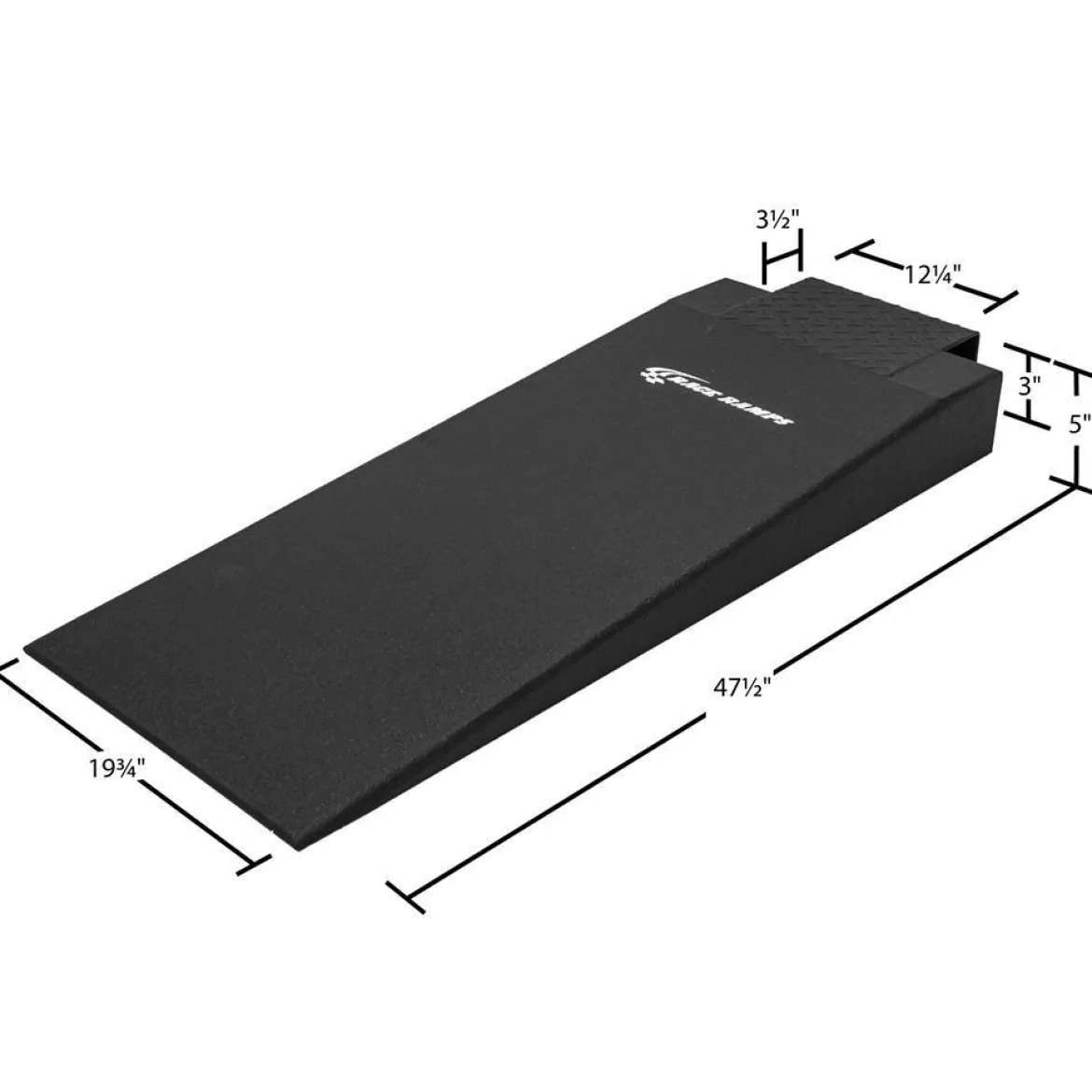

SPECIFICATIONS:

• Made in the USA: Yes
• Sold As: Pair (Set of two ramps)
• Length (per ramp): 48 inches
• Width (per ramp): 20 inches
• Height (per ramp): 5 inches
• Weight (per ramp): 15 lbs.
• Maximum Capacity (per ramp): 1,500 lbs.
• Maximum Capacity (total vehicle for pair): 6,000 lbs.
• Maximum Tire Width: 18 inches
• Approach Angle Degree: 6.4°
• Material: Expanded foam with traction coating
• Connector: 3-inch hook
• Color: Black
• Included in the product when purchased/shipped: A pair of Race Ramps 5″ Height Hook Nose Extra Wide Rack Ramps

HOW TO USE:

1. Inspect Ramps: Before each use, visually inspect both ramps to ensure they are free from any damage. Do not use damaged ramps.
2. Prepare Surface: Position the ramps on a flat, level, and stable surface. Ensure the entire base of each ramp makes full contact with the ground.
3. Position Ramps: Place one ramp directly in front of each drive wheel (front wheels are typically used for lift access). Ensure the 3-inch hook nose securely engages with the edge of your lift or platform.
4. Align Vehicle: Make sure your vehicle’s steering wheel is straight and the wheels are aligned with the center of the ramps.
5. Drive On: Drive the vehicle up the ramps slowly and steadily. Maintain a consistent, low speed until the vehicle is fully on the lift or platform, and the wheels are securely positioned. Do not stop abruptly or accelerate rapidly.
6. Secure Vehicle: Once on the lift, engage the parking brake and follow your lift’s safety procedures, such as lowering the lift arms or using wheel chocks.
7. Remove Ramps (if applicable): After servicing, reverse the process, driving slowly and steadily off the ramps. Once the vehicle is off, you can store the ramps.

BENEFITS OF USING RACE RAMPS 5″ HEIGHT HOOK NOSE EXTRA WIDE RACK RAMP (RR-RACK-HN20-5):

• Prevents Undercarriage Damage: The shallow 6.4-degree approach angle ensures that low-slung vehicles can ascend without scraping bumpers, side skirts, or other vulnerable undercarriage components.
• Enhanced Safety: Provides a stable and controlled incline, reducing the risk of sudden movements or slips during vehicle positioning on a lift.
• Effortless Handling: Their remarkably light weight (15 lbs per ramp) eliminates the struggle associated with positioning heavy steel or wooden ramps.
• Floor Protection: The non-skid, non-scuff coating safeguards garage and workshop floors from marks, scratches, and potential damage.
• Versatile Application: The extra-wide 20-inch design accommodates a broad spectrum of tire sizes, making them suitable for various vehicles.
• Long-Lasting Performance: Made from a patented, high-density foam, they are resistant to rust, corrosion, and absorption of common automotive fluids, ensuring extended product life.
• Temperature Stability: Will not transfer heat or cold, making them comfortable to handle regardless of ambient temperatures.

FEATURES:

• Shallow 6.4-degree approach allows smooth access for vehicles with minimal ground clearance.
• Extra-wide 20-inch surface provides ample width for tires up to 18 inches, increasing stability and compatibility.
• Lightweight 15 lbs design facilitates easy transport, positioning, and storage.
• High-density foam construction offers robust support while being gentle on surfaces.
• Anti-slip coating ensures secure tire grip and prevents ramps from sliding on the floor.
• Integrated 3-inch hook nose designed for positive and secure connection to most lift systems.
• 6,000 lbs total vehicle capacity capable of supporting a wide range of cars and light trucks.
• Impervious to automotive fluids, resisting damage from oil, grease, and other common workshop chemicals.
• Rust and corrosion proof for longevity and consistent performance in various environments.
• Temperature stable material will not deform or degrade due to temperature fluctuations.
