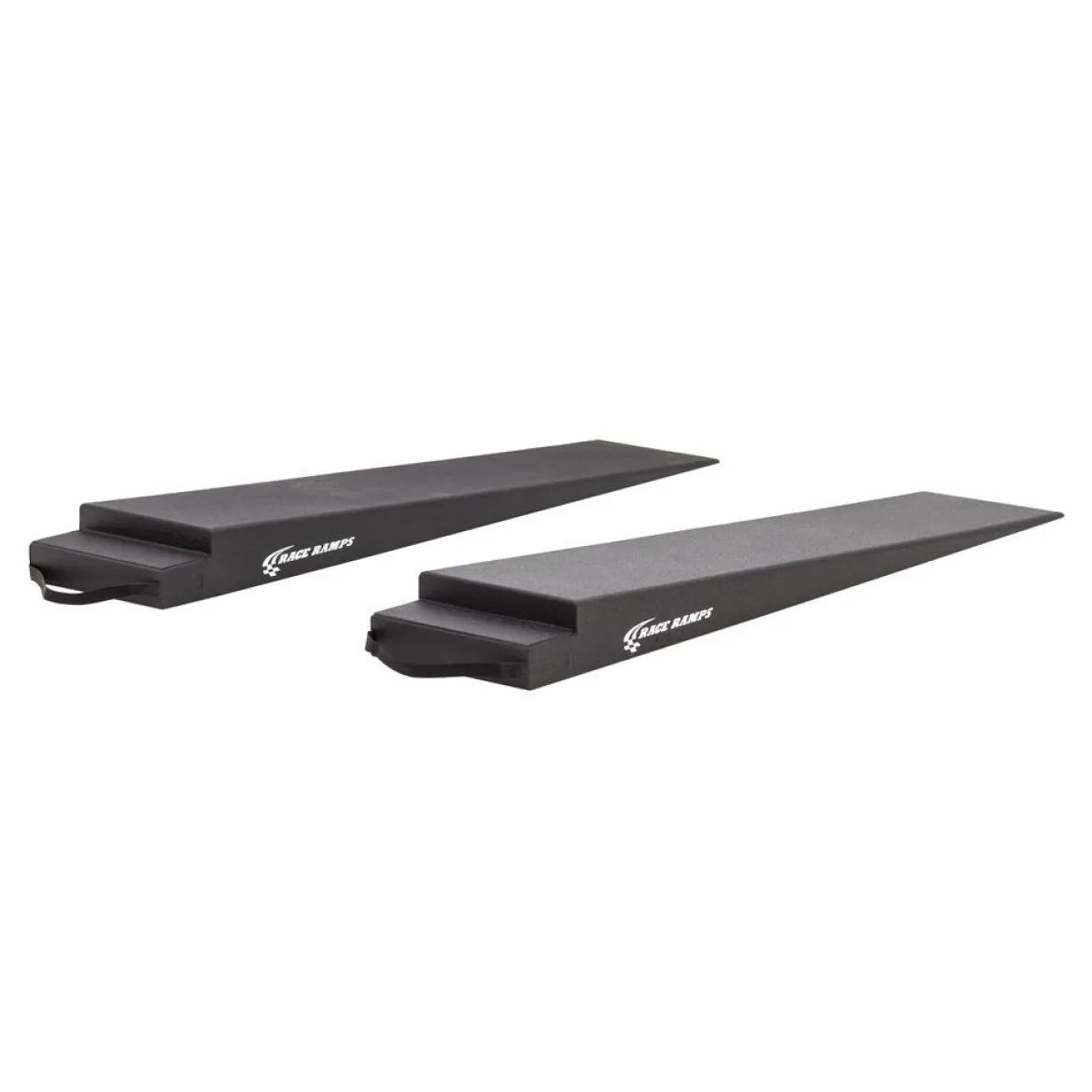

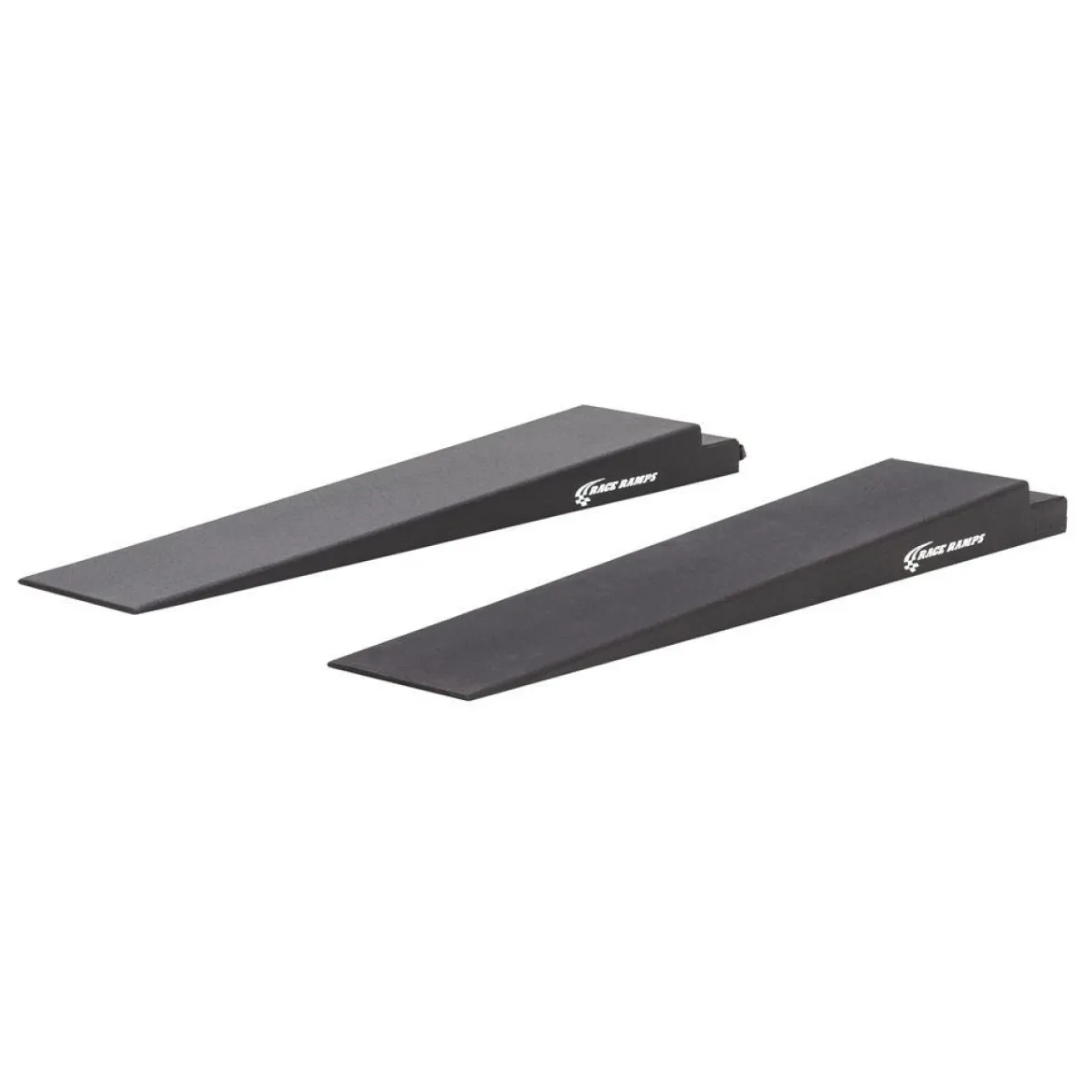

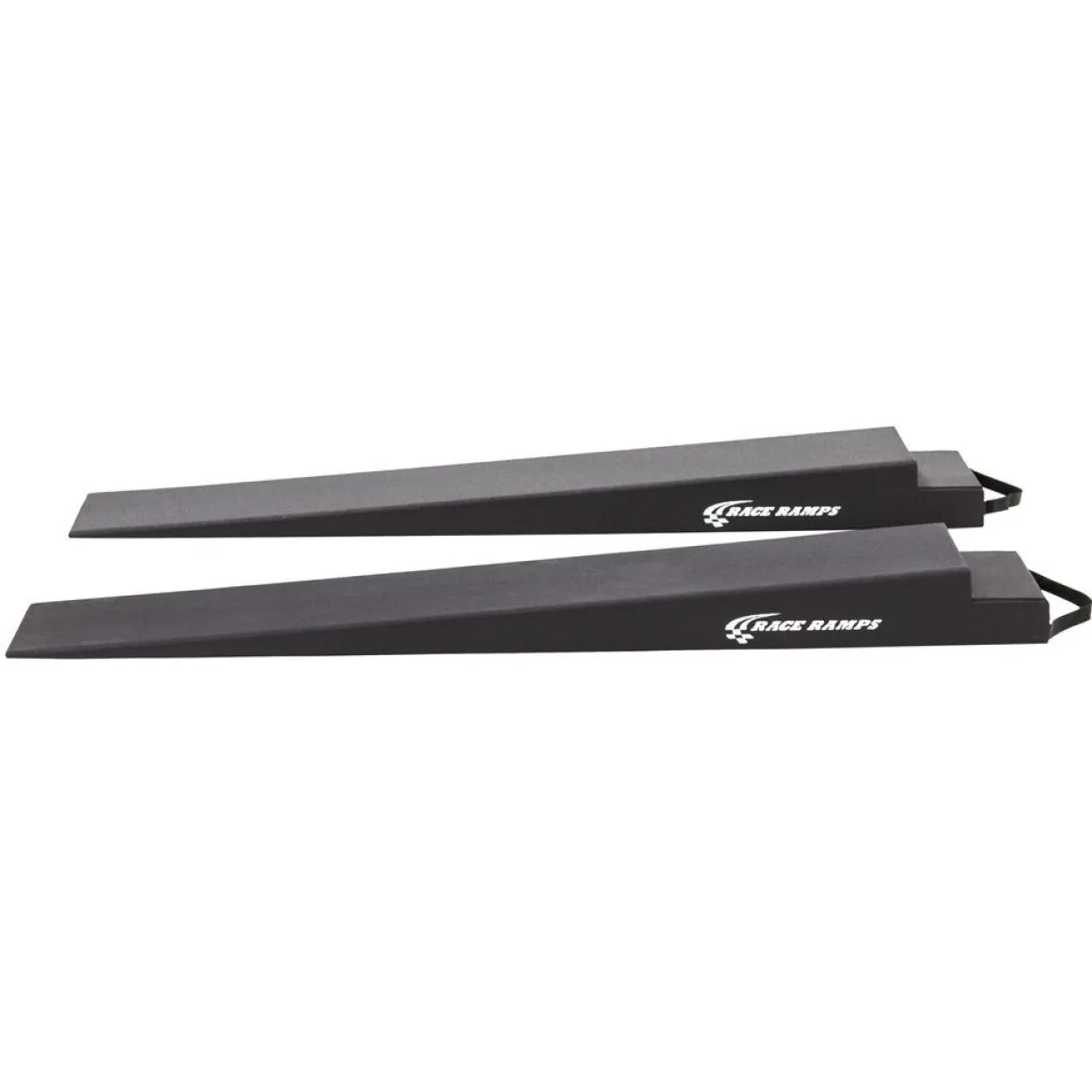

Race Ramps 5″ Height Trailer Ramps (RR-TR-5)

The Race Ramps 5″ Height Trailer Ramps (RR-TR-5) provide a precise and effective solution for safely loading low-profile vehicles onto trailers. Engineered to prevent scraping of bumpers and undercarriages, these ramps are an essential tool for owners of sports cars, race cars, or any vehicle with limited ground clearance. Their thoughtful design integrates seamlessly with most trailer setups, ensuring a smooth and damage-free loading process for various transport needs, whether for track events, car shows, or general vehicle relocation.

KEY FEATURES AND BENEFITS:

• Optimized Approach Angle: Features a minimal 4.3-degree approach angle, significantly reducing the risk of scraping the front bumper or underside of low-clearance vehicles.

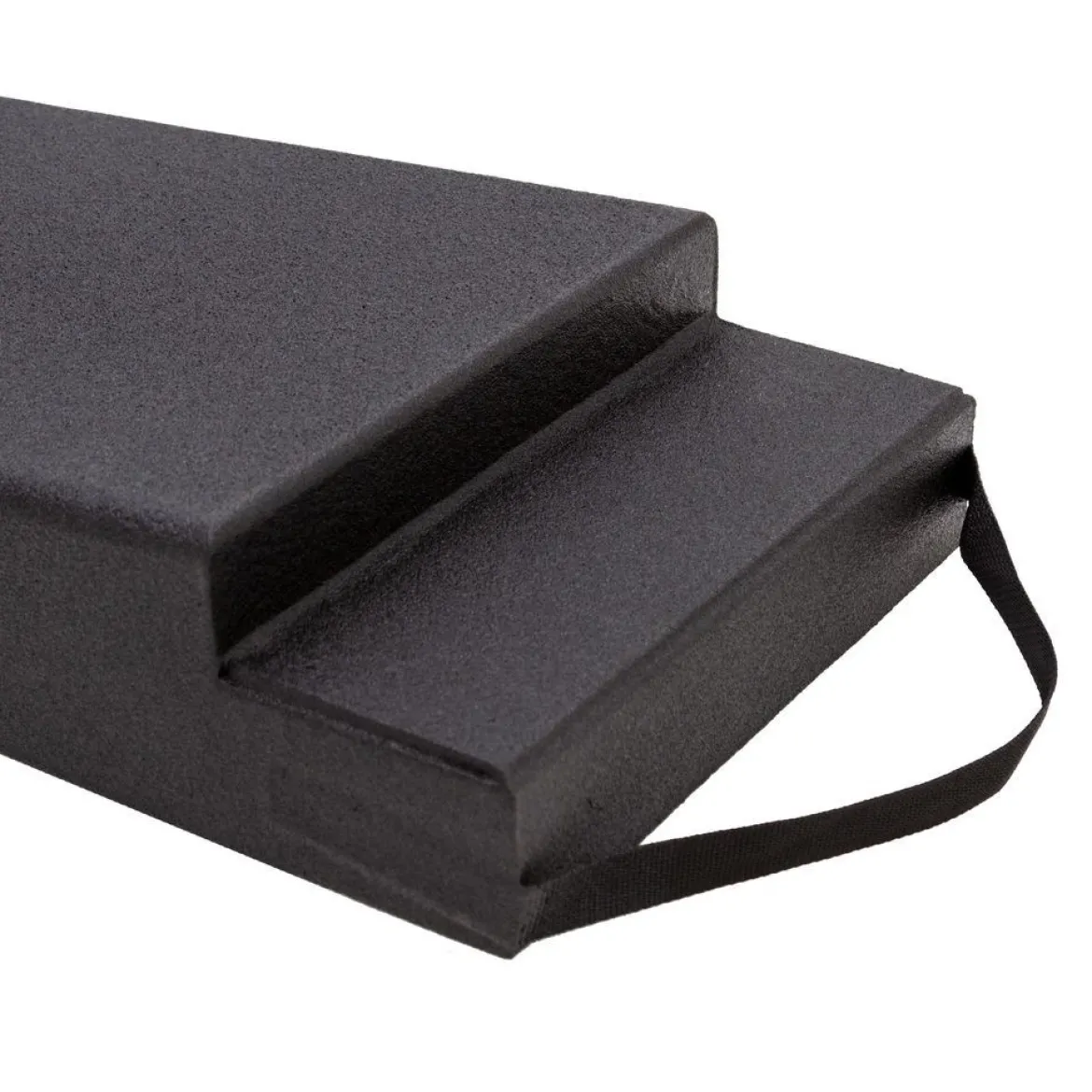

• Integrated Trailer Door Notch: Includes a specialized 5-inch long by 2-inch high notch designed to securely cradle the trailer door. This innovation ensures the door is suspended off the ground, providing additional clearance and a seamless transition from the ground onto the ramp.
• High Load Capacity: Each individual ramp is capable of supporting up to 1,500 lbs, allowing for a combined vehicle weight capacity of 6,000 lbs when used as a pair, accommodating a wide range of vehicles.
• Lightweight and Portable Design: Constructed from a high-density, solid foam material, each ramp weighs only 10 lbs, making them exceptionally easy to handle, transport, and store. A built-in carrying strap further enhances portability.
• Surface-Friendly Construction: The proprietary anti-slip coating and foam material are engineered to prevent sliding and will not scratch or damage any floor surface, including delicate epoxy-coated floors, RaceDeck® flooring, or the trailer door itself. The material also resists rust.

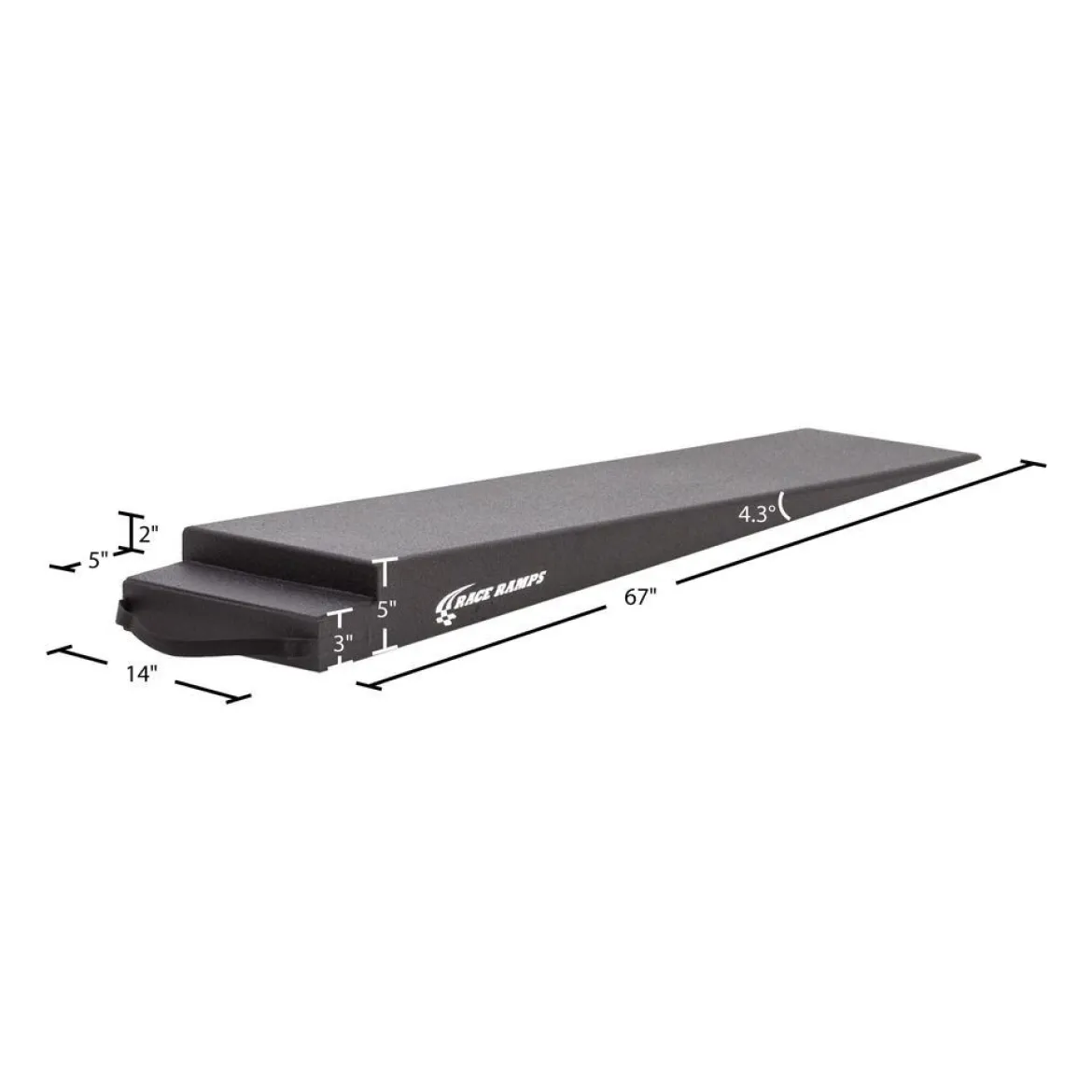

SPECIFICATIONS:

• Included in Product: Pair of (2) Race Ramps 5″ Height Trailer Ramps (RR-TR-5)
• Length: 67 inches
• Width: 14 inches
• Height: 5 inches
• Approach Angle Degree: 4.3°
• Maximum Capacity (per ramp): 1,500 lbs
• Maximum Tire Width: 12 inches
• Weight (per ramp): 10 lbs
• Color: Black
• Material: Expanded foam with traction coating
• Made in the USA

HOW TO USE:

1. Inspect Ramps: Before each use, carefully examine both ramps to ensure they are free from any damage. Do not proceed if a ramp is compromised.
2. Position Ramps: Place the ramps on a flat, level, and stable surface directly in front of your trailer’s loading area. Ensure each ramp makes full, even contact with the ground.
3. Align Trailer Door: Lower your trailer’s ramp door so that it rests securely within the 5-inch long by 2-inch high notch on each Race Ramp. Confirm the door is stable and properly seated.
4. Prepare Vehicle: Straighten your vehicle’s steering wheel and align it with the ramps.
5. Drive Up Slowly: Drive your vehicle slowly and steadily up the ramps and into your trailer. Maintain a controlled pace throughout the loading process.
6. Secure Vehicle: Once the vehicle is fully inside the trailer, engage the parking brake and secure the vehicle according to your trailer’s tie-down instructions.

BENEFITS OF USING RACE RAMPS 5″ HEIGHT TRAILER RAMPS (RR-TR-5):

• Damage Prevention: Effectively eliminates the risk of scraping the underside, front bumper, or exhaust of low-clearance vehicles during loading.
• Enhanced Safety: Provides a stable and controlled incline, reducing the chance of vehicle slippage or misalignment during loading.
• Effortless Operation: The intuitive design, especially the integrated notch, simplifies the loading process, making it straightforward even for individuals loading alone.
• Versatile Application: Suitable for a wide variety of low-profile vehicles, from high-performance sports cars to modified show cars, across different trailer types.
• Protection for Surfaces: The unique material composition ensures that neither your garage floor, driveway, nor the trailer’s interior will be scratched or marked.

FEATURES:

• Innovative trailer door recess, 5 inches long by 2 inches high.
• Constructed from a solid, high-density expanded foam core.
• Applied with a textured, anti-slip coating for superior grip.
• Includes a convenient carrying strap integrated into each ramp.
• Designed to be unaffected by moisture or environmental conditions.
• Engineered for zero rust and minimal wear over time.
