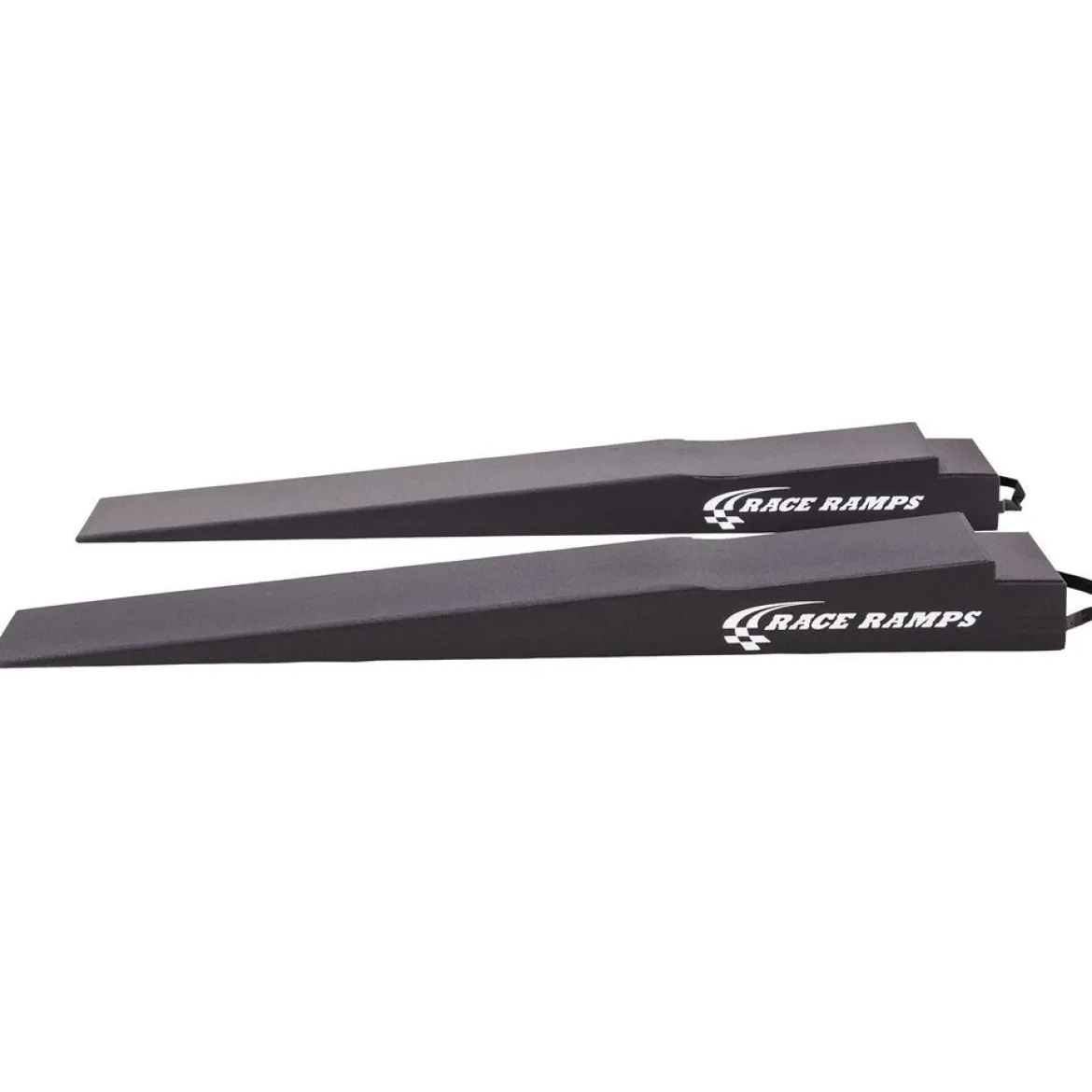

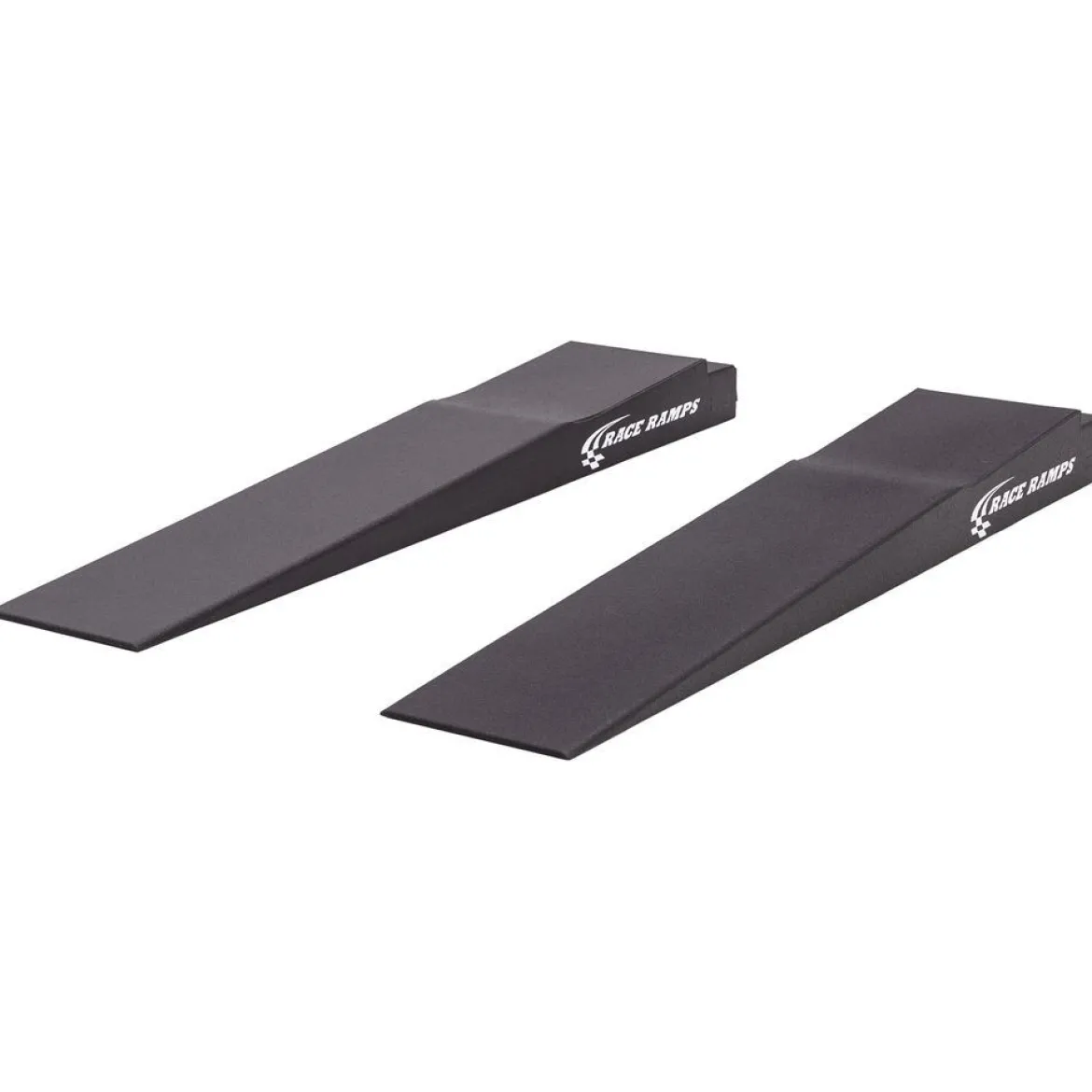

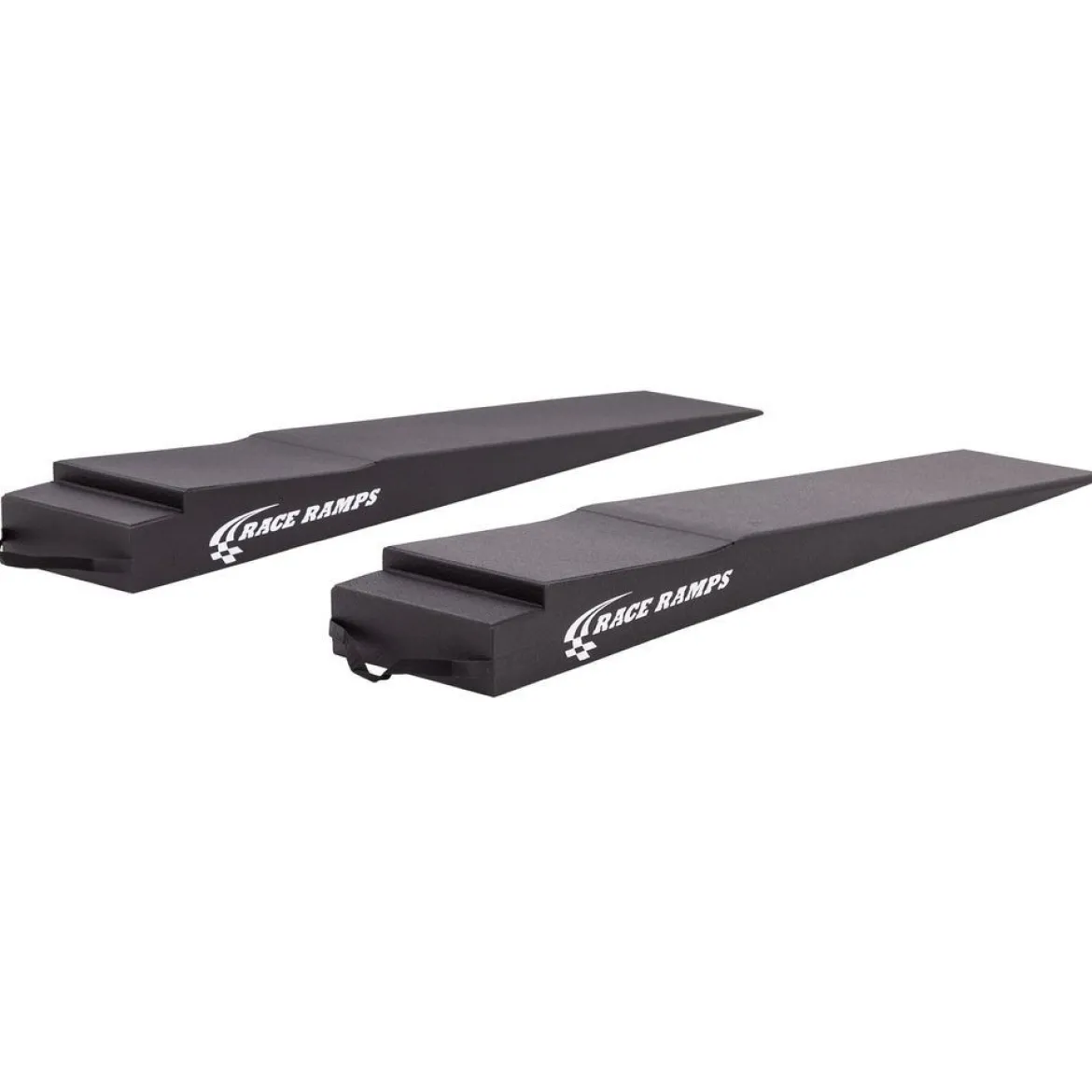

Race Ramps 7″ Height Trailer Ramps w/ Flap Cutout (RR-TR-7-FLP)

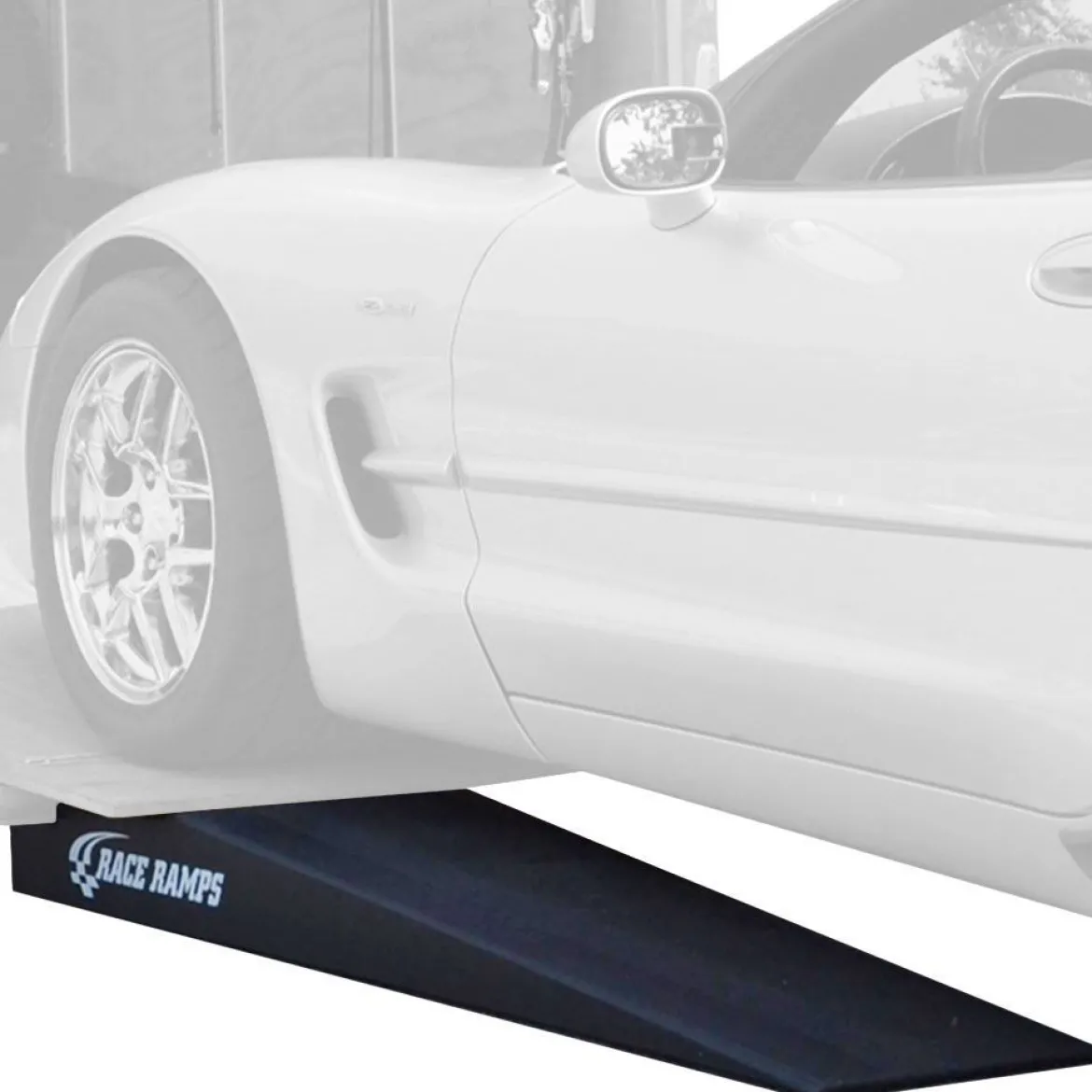

The Race Ramps 7″ Height Trailer Ramps w/ Flap Cutout (RR-TR-7-FLP) provide an effective solution for safely loading low-profile vehicles onto trailers. Designed to eliminate scraping and damage to the undercarriage and front bumper, these ramps offer a smooth and gradual transition from the ground to the trailer bed. Their lightweight construction combined with high strength makes them a reliable choice for car enthusiasts, racers, and anyone transporting lowered vehicles.

KEY FEATURES AND BENEFITS:

• Scrape-Free Loading: The primary benefit is the significant reduction in the approach angle to 5.5 degrees, effectively preventing damage to low-clearance vehicles during loading onto trailers.

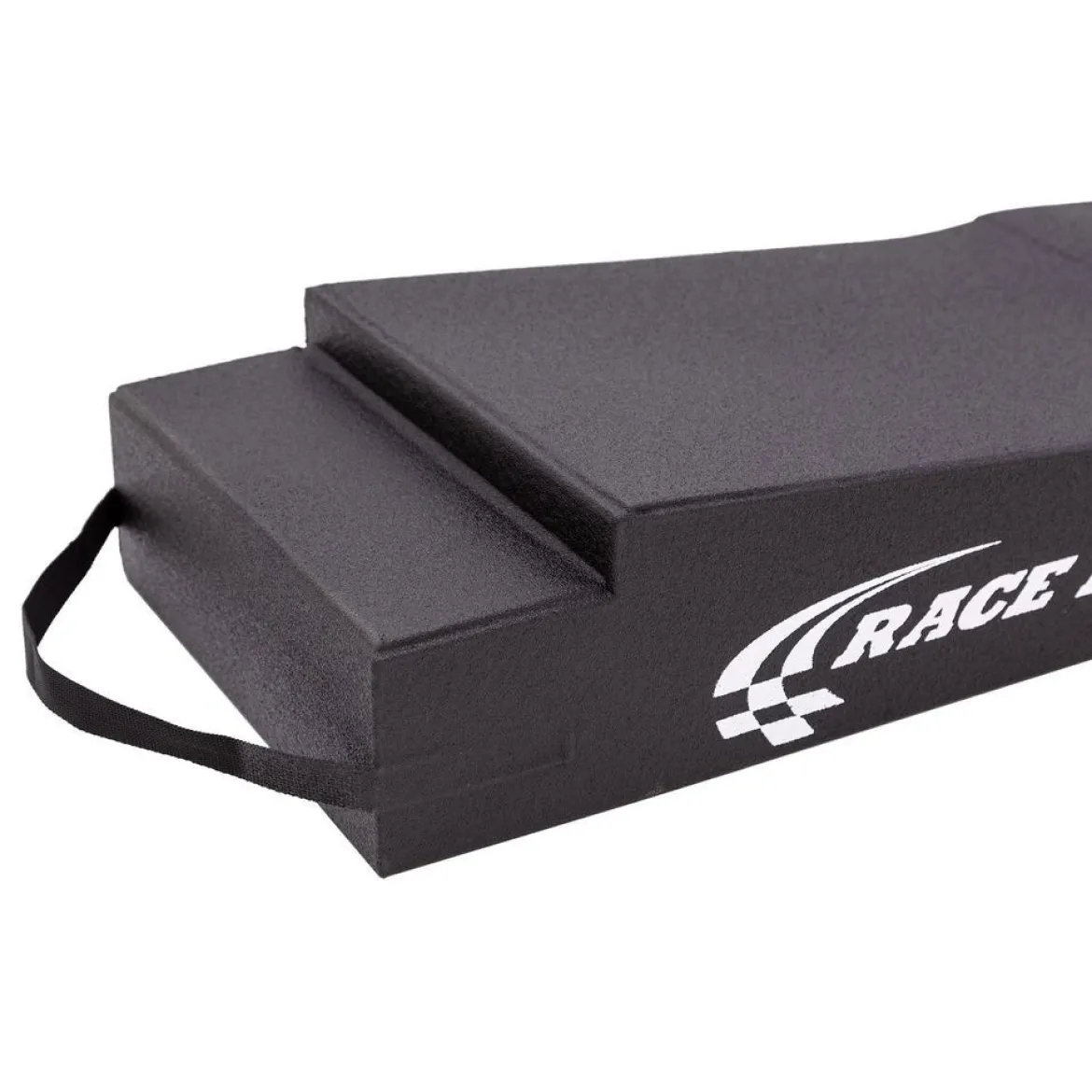

• Integrated Flap Cutout: Features a specific 5″ long by 1.5″ high notch designed to accommodate a trailer’s existing fold-down ramp flap (suitable for 12″ to 16″ flaps). This creates a continuous, gentle slope from the ground to the trailer, improving ease of use.
• Lightweight Portability: Each ramp weighs only 15 lbs, making them exceptionally easy to carry, set up, and store. Built-in carrying straps further enhance their portability.
• High Load Capacity: Despite their light weight, these ramps are engineered to support substantial loads. Each individual ramp can support up to 1,500 lbs, allowing for a total vehicle weight capacity of 6,000 lbs when loading.
• Non-Slip Surface: The ramps feature a rugged, anti-slip coating that provides excellent traction on various surfaces and prevents the ramps from sliding during use. This coating also ensures no scratching or marking of garage floors or trailer beds.

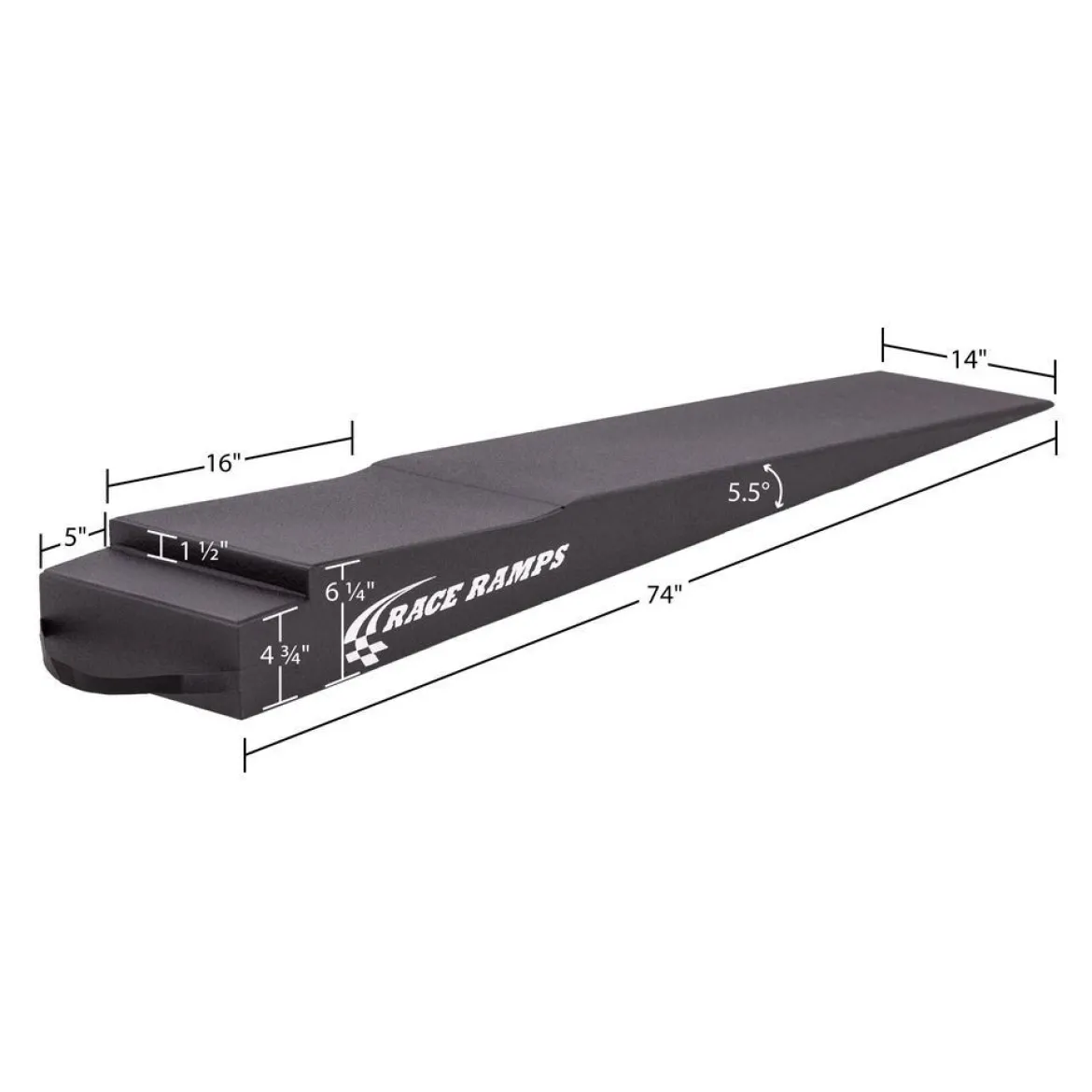

SPECIFICATIONS:

• Model Number: RR-TR-7-FLP
• Length: 74 inches
• Width: 14 inches
• Height: 6-1/4 inches
• Approach Angle: 5.5 degrees
• Notch/Cutout Size (on ramp): 5 inches (Length) x 1.5 inches (Height)
• Accommodates Trailer Flaps: 12 inches to 16 inches
• Maximum Capacity (per ramp): 1,500 lbs
• Maximum Total Vehicle Capacity: 6,000 lbs
• Maximum Tire Width: 12 inches
• Weight (per ramp): 15 lbs
• Material: 100% Solid, high-density expanded foam with a textured anti-slip coating
• Color: Black
• Manufacture: Made in the USA
• Included in Purchase/Shipped: Sold as a pair of ramps.

HOW TO USE:

1. Inspect Ramps: Before each use, thoroughly check both ramps for any signs of damage. Do not use if damaged.
2. Position Ramps: Place the ramps on a flat, level surface directly behind your trailer. Ensure the ramps make full and stable contact with the ground.

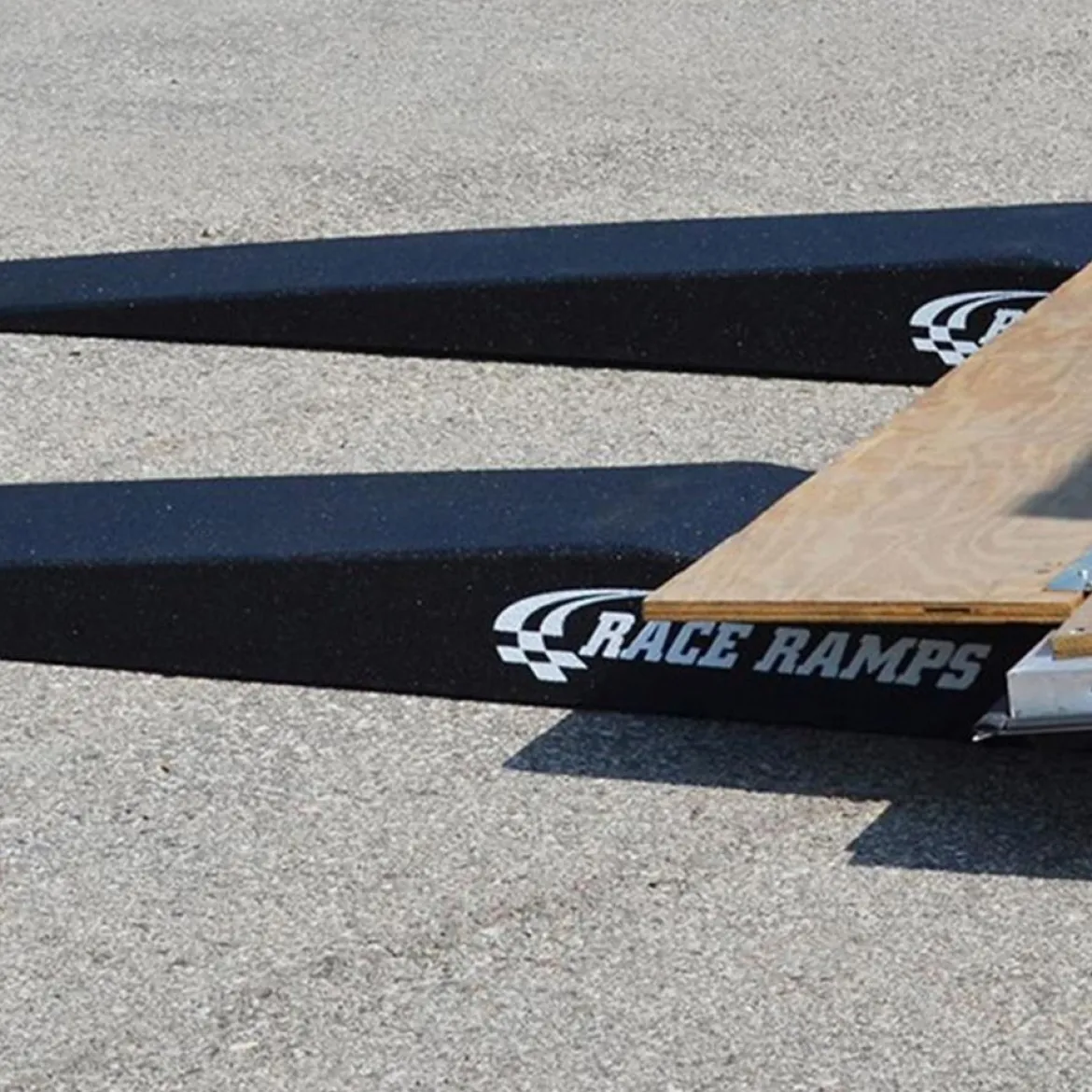

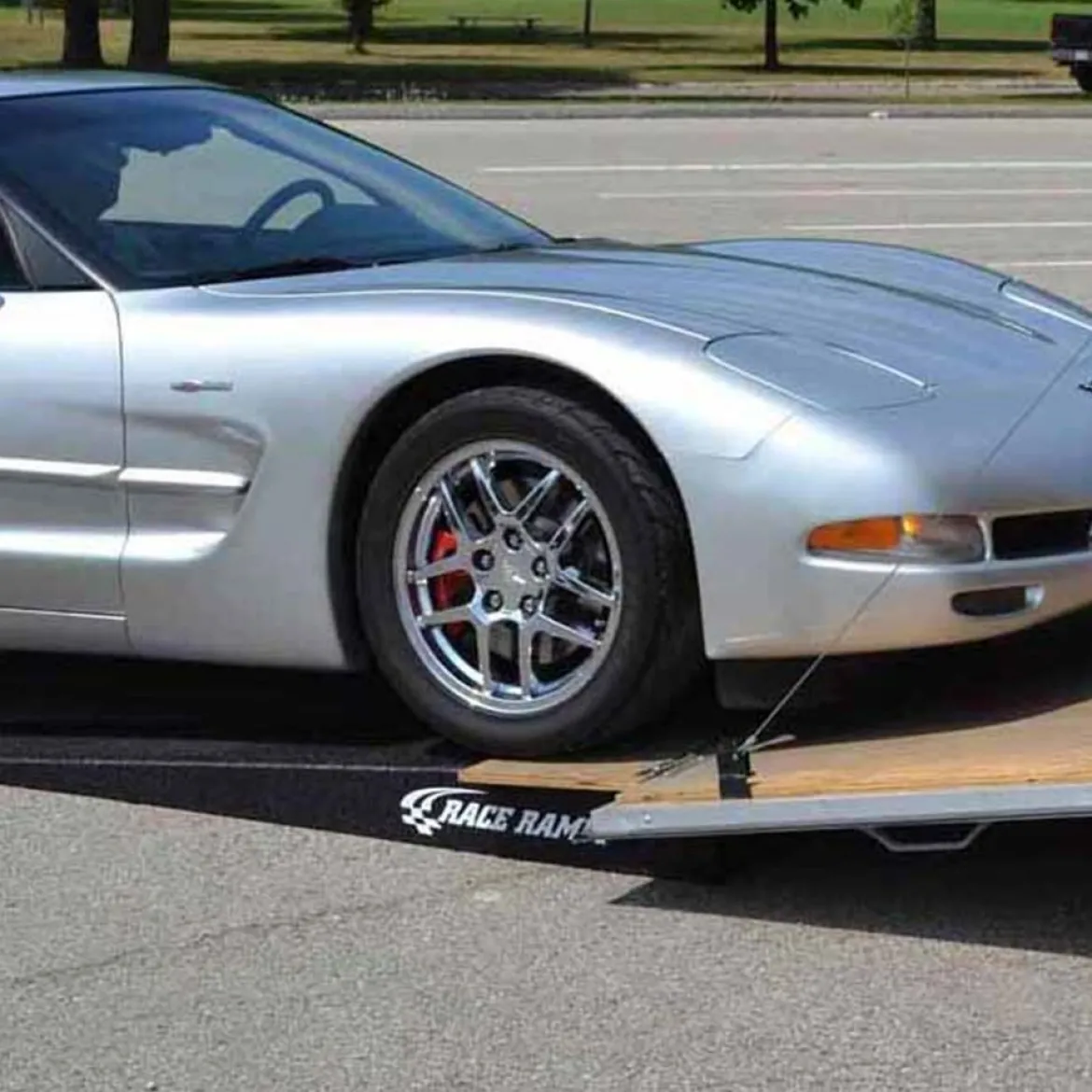

3. Align Trailer Flap: Lower your trailer’s fold-down ramp door directly into the designated notch on the Race Ramps. This will create a seamless transition from the ramps to the trailer.
4. Align Vehicle: Ensure your vehicle’s steering wheel is straight.

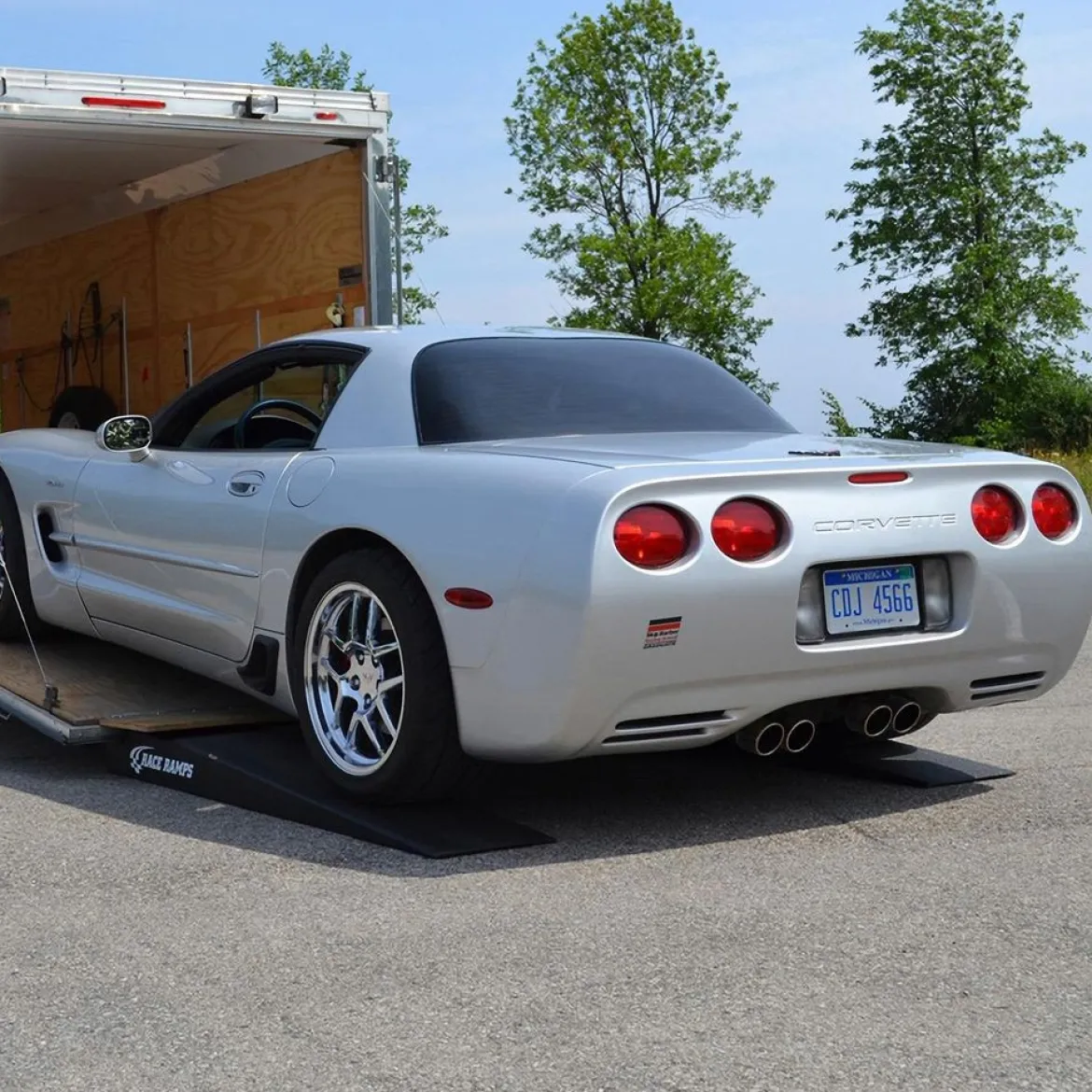

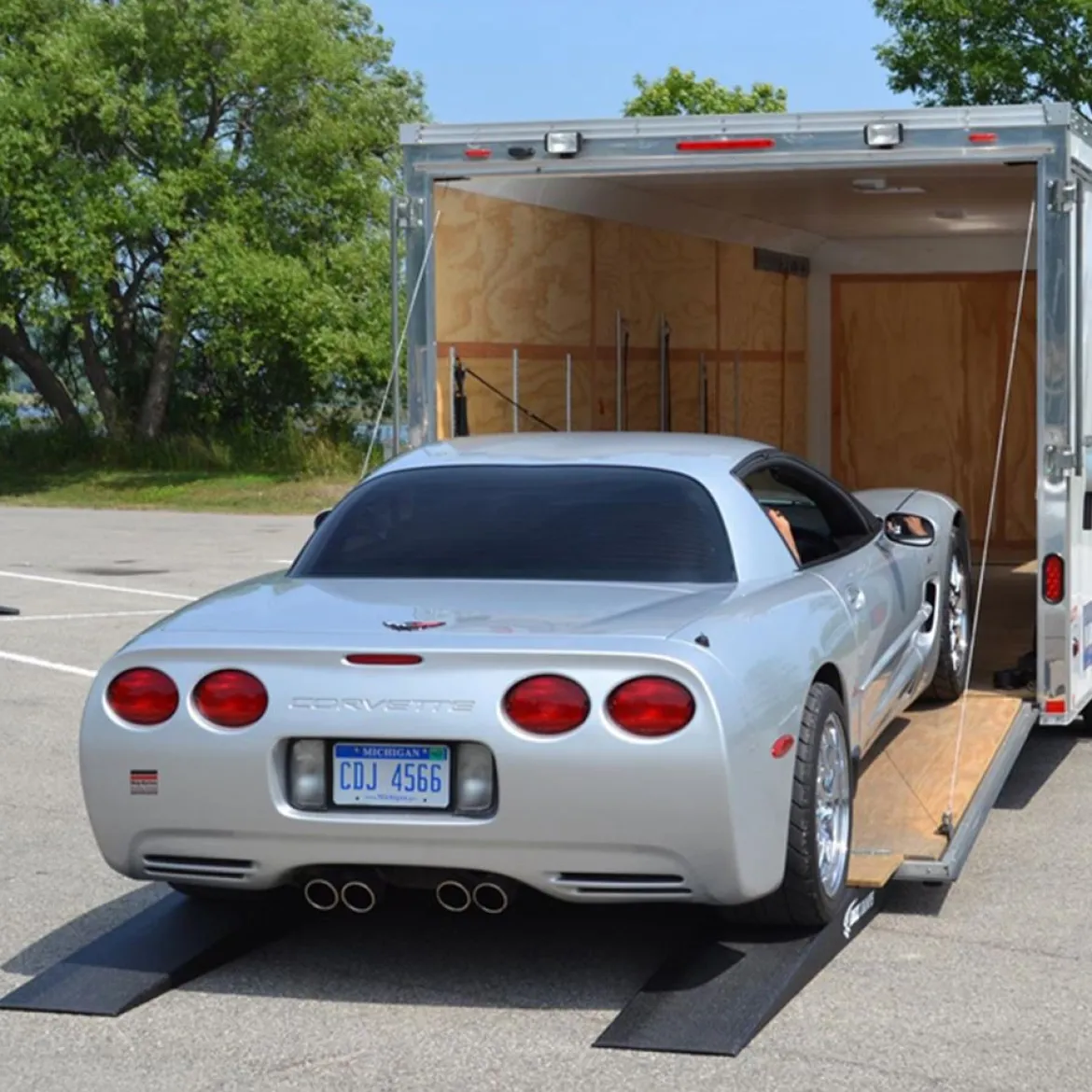

5. Drive Slowly: Drive your low-profile vehicle slowly and steadily up the ramps and onto your trailer. Maintain a consistent, slow speed.
6. Secure Vehicle: Once the vehicle is fully on the trailer, secure it according to your trailer and vehicle tie-down procedures.
7. Remove Ramps: After loading, carefully remove the ramps.

BENEFITS OF USING RACE RAMPS 7″ HEIGHT TRAILER RAMPS W/ FLAP CUTOUT (RR-TR-7-FLP):

• Protects Vehicle: Safeguards sensitive front bumpers, spoilers, and undercarriages from expensive scrapes and damage during the loading process.
• Effortless Loading: Simplifies the process of loading extremely low-profile vehicles, eliminating the need for makeshift ramps or risky maneuvers.
• Space-Saving Storage: The lightweight design and built-in straps make them easy to hang or store in small spaces when not in use.
• Long-Lasting Performance: Constructed from high-quality, solid foam and a robust coating, these ramps are designed for repeated use without cracking, bouncing, or deteriorating.
• Versatile Application: Ideal for various low-clearance vehicles, including race cars, sports cars, custom show cars, and any vehicle with reduced ground clearance.

FEATURES:

• Integrated carrying straps for convenient transport and hanging storage.
• Resistant to water and most automotive fluids, ensuring longevity and easy cleaning.
• Patented manufacturing process ensures a unique combination of strength and low weight.
• Designed to prevent slipping or sliding on concrete, asphalt, and other common surfaces.
• Will not scratch or mar delicate garage floors, trailer beds, or paved surfaces.
• Solid core construction eliminates bouncing or shifting during vehicle ascent.
