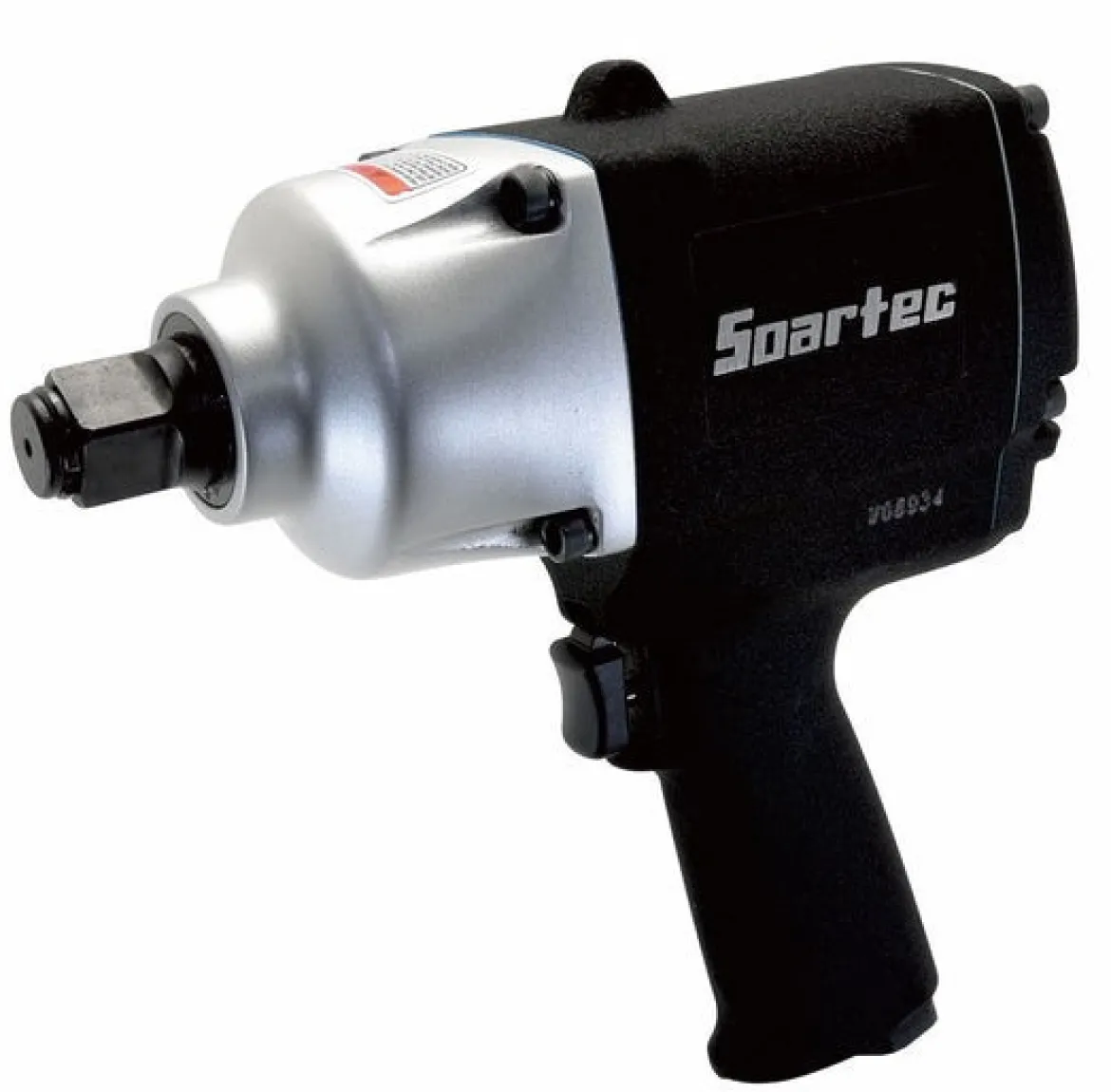

Soartec 3/4″ 2000 ft-lb Air Impact Wrench (WS-2076)

The Soartec 3/4″ 2000 ft-lb Air Impact Wrench (WS-2076) is a high-performance pneumatic tool engineered for rigorous industrial and automotive applications. Designed to handle the most challenging fastening and loosening tasks, this impact wrench provides substantial power and control. Its robust construction and efficient design make it an essential tool for mechanics, technicians, and maintenance professionals working with heavy-duty vehicles, machinery, and equipment. The WS-2076 combines high torque output with user-friendly features, ensuring reliable operation and effective results in demanding work environments.

KEY FEATURES AND BENEFITS:

• Exceptional Torque Output: Delivers a maximum reverse torque of 2,000 ft-lbs, providing ample power to remove even the most stubborn or rusted fasteners. The forward torque of 1,900 ft-lbs ensures strong tightening capabilities.
• High Free Speed: Operates at a rapid 7,500 RPM free speed, allowing for quick rundown and removal of fasteners, which enhances efficiency during demanding tasks.
• Precision Power Control: Equipped with a 6-position power regulator, offering 3 distinct settings for forward and 3 for reverse operation, allowing users to precisely match power output to the specific application.
• Durable Twin Hammer Mechanism: Features a Twin Hammer clutch type, providing balanced power delivery and efficient torque transfer, which contributes to the tool’s durability and consistent performance over time.
• Optimized Air Consumption: Maintains a low air consumption rate of 21.1 CFM at load, making it efficient for various air compressor setups while still delivering significant power.
• Compact and Manageable Design: Weighing only 8.6 lbs (or 8.7 lbs), this tool provides a favorable power-to-weight ratio, reducing user fatigue during extended use.
• Extended Warranty: Comes with a 3-year limited warranty, offering assurance regarding the product’s quality and reliability.

SPECIFICATIONS:

• SKU: WS-2076
• Drive Size: 3/4 inches Square Drive
• Max. Reverse Torque: 2,000 ft-lbs
• Max. Forward Torque: 1,900 ft-lbs
• Min. Working Torque: 100 ft-lbs
• Max. Working Torque: 1,400 ft-lbs
• Max. Torque @ 5 sec: 2,000 ft-lb
• Nut Busting Torque: 1,900 ft-lbs
• Free Speed: 7,500 RPM
• Standard Bolt Capability: 1-1/8 inches (or 1.13 inches)
• Weight: 8.7 lbs
• Length: 210 mm
• Ship Weight: 10.4 LB
• Air Consumption: 21.1 cfm (600 l/min)
• CFM at Load: 21
• Max. PSI: 90
• Air Inlet Size: 3/8 inch NPT
• Minimum Hose Size: 1/2 inch
• Noise Level: 95.3 dB
• Clutch Type: Twin Hammer
• Anvil: Standard
• Included in Product: The product includes the Soartec 3/4″ 2000 ft-lb Air Impact Wrench (WS-2076) unit. No case or additional accessories are specified as included with purchase.

HOW TO USE:

• Connect Air Supply: Attach a 1/2-inch minimum diameter air hose to the 3/8-inch NPT air inlet on the impact wrench. Ensure a secure connection to prevent air leaks.
• Adjust Air Pressure: Set your air compressor’s output pressure to a maximum of 90 PSI to ensure optimal performance and tool longevity.
• Select Direction: Use the 6-position power regulator lever, typically located on the back or side of the tool, to select either forward (tightening) or reverse (loosening) direction.
• Choose Power Setting: Within the selected direction, use the power regulator to choose one of the three available power settings to match the torque requirement of your task. Start with a lower setting for less demanding fasteners and increase as needed.
• Attach Socket: Securely attach the appropriate 3/4-inch drive impact-rated socket to the anvil of the wrench.
• Position on Fastener: Place the socket firmly onto the bolt or nut you intend to work on.
• Operate Tool: Depress the variable speed trigger to begin operation. Control the speed by varying the pressure on the trigger. For maximum torque, fully depress the trigger.
• Release Trigger: Once the fastener is tightened or loosened, release the trigger.
• Disconnect Air (When Finished): After use, disconnect the air hose from the impact wrench and store the tool in a clean, dry place.

BENEFITS OF USING SOARTEC 3/4″ 2000 FT-LB AIR IMPACT WRENCH (WS-2076):

• Facilitates rapid and efficient removal of rusted or overtightened bolts and nuts, significantly reducing manual effort and time required.
• Provides robust performance suitable for heavy-duty applications in truck service, agricultural equipment repair, industrial machinery maintenance, and construction.
• Offers versatile power settings for both forward and reverse, allowing for precise control when handling a variety of fastener sizes and torque specifications.
• Designed for reliability in demanding work environments, minimizing downtime due to equipment failure.
• The ergonomic considerations in its design help in reducing operator fatigue during prolonged use.

FEATURES:

• Responsive Trigger Mechanism: Ensures consistent tool operation even under varying air pressure conditions.
• Robust Aluminum Casing: Built with a high-strength aluminum alloy case, offering durability and resistance to wear in harsh working environments.
• Balanced Weight Distribution: Engineered to provide a well-distributed weight that enhances handling and maneuverability without compromising power.
• Integrated Exhaust System: Designed to direct air away from the workpiece, contributing to a cleaner work area.
• Standard Anvil Compatibility: Utilizes a widely compatible standard anvil, allowing for easy attachment of common 3/4″ drive impact sockets.
