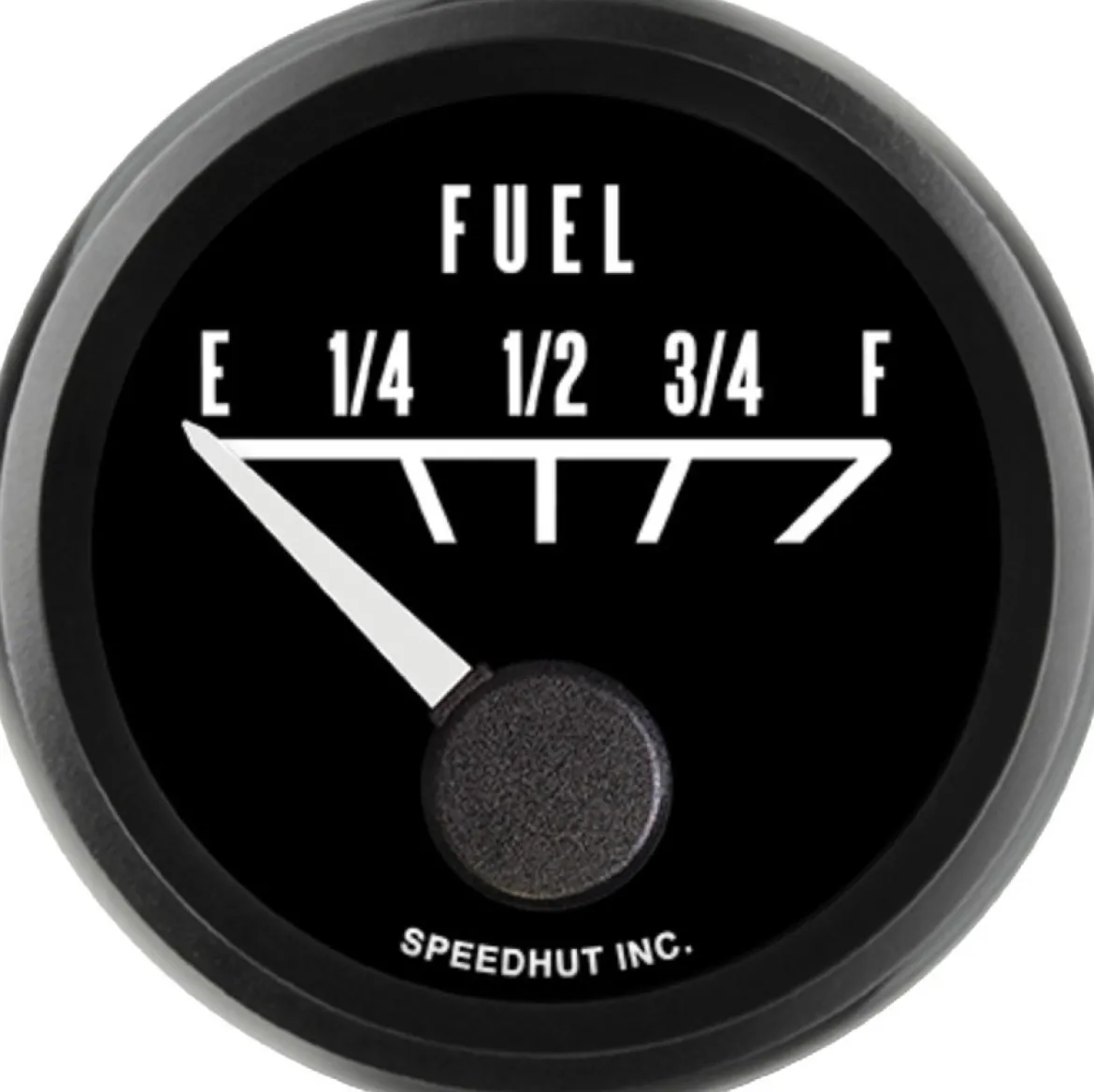

Speedhut 2-1/16″ Pontiac 90° Sweep Prog. Fuel Level Gauge (L2-FL2-PTC)

The Speedhut 2-1/16″ Pontiac 90° Sweep Prog. Fuel Level Gauge (L2-FL2-PTC) offers a way to monitor your vehicle’s fuel level with a gauge designed to complement the styling of classic Pontiac instrument panels. This aftermarket gauge provides accurate readings when properly calibrated to your existing or a new fuel level sending unit (sold separately). Its programmable nature ensures compatibility with a wide range of sensors operating at 300 ohms or less.

KEY FEATURES AND BENEFITS:

• Precise Monitoring: Allows for accurate tracking of fuel supply, helping avoid unexpected depletion.
• Stylish Design: Intended to integrate visually with classic Pontiac interiors.
• Programmable Compatibility: Works with most fuel level sensors up to 300 ohms.
• Easy Installation: Includes wiring harness and mounting hardware for a straightforward setup.
• LED Version Setup: Programming button provided for calibrating LED-lit models to your fuel sensor.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less (sensor not included)
• Size: 2 1/16 inch (52mm)
• Range: Empty (E) to Full (F)
• Hole Size: 2.05 inch (52mm)
• Warning Light: No
• Included: Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness (for LED-lit gauges and clocks), Gauge Programming Button (for LED-lit gauges)

HOW TO USE:

1. Mount the Gauge: Secure the 2 1/16″ gauge in a suitable 2.05″ diameter opening in your dashboard using the provided spin-lock ring.
2. Connect the Wiring Harness: Attach the included 2-wire cable harness to the back of the fuel level gauge.
3. Connect Power and Lighting: Use the 3 ft power and lighting harness to connect the gauge to a suitable power source and lighting circuit in your vehicle (if applicable for LED illumination).
4. Connect to Fuel Level Sensor: Connect the appropriate wires from the gauge’s wiring harness to your fuel level sending unit in the fuel tank. Ensure correct polarity and connections based on your vehicle’s wiring diagram and the sending unit’s specifications.
5. Program the Gauge (if LED-lit): Use the included programming button to calibrate the gauge to your specific fuel level sending unit’s ohm range (0-300 ohms or less). Follow the manufacturer’s instructions for the programming sequence. This typically involves setting the empty and full resistance values.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ PONTIAC 90° SWEEP PROG. FUEL LEVEL GAUGE (L2-FL2-PTC):

• Combines classic Pontiac styling with modern programmable technology.
• Ensures accurate fuel level readings tailored to your specific sensor.
• Maintains a consistent aesthetic with your original gauge cluster.
• Reduces the risk of fuel shortages by providing real-time level awareness.
• LED-lit models offer flexible calibration for diverse sending units.

FEATURES:

• Designed to visually align with original equipment manufacturer (OEM) gauges found in Pontiac vehicles.
• Compatible with a broad range of fuel level sending units that operate at 300 ohms or less.
• Compact 2 1/16 inch (52mm) size, suitable for standard gauge mounting locations.
• Clear E-F (Empty to Full) range markings for easy readability.
• Utilizes a 90-degree sweep for quick and intuitive indication of the fuel level.
• Includes a wiring harness for simplified electrical connections.
• Comes with a 3 ft power and lighting harness for illumination (if applicable).
• Features a programming button (for LED-lit versions) to allow calibration to your specific sending unit.
