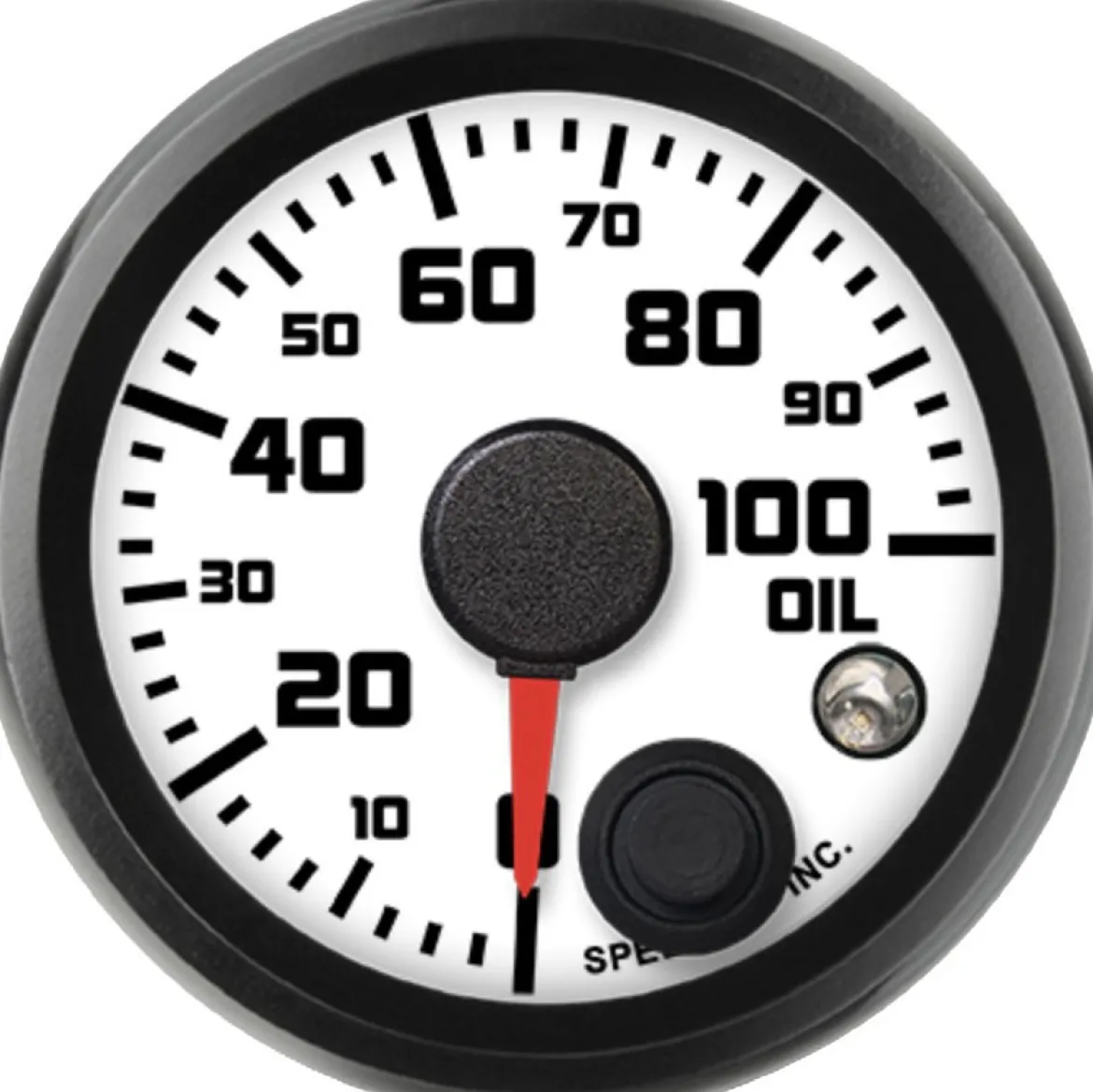

Speedhut 2-1/16″ Street XL 100 PSI Oil Pressure w/Warning (R2-OP3-SXL)

The Speedhut 2-1/16″ Street XL 100 PSI Oil Pressure w/Warning (R2-OP3-SXL) is engineered to deliver accurate and dependable oil pressure monitoring for any vehicle. Featuring a large, easy-to-read display, this gauge enhances visibility and ensures you stay informed about your engine’s vital stats. It includes an integrated warning light for added protection and a military-grade 3-wire transducer to deliver precision across its 0–100 PSI range. With all necessary installation components included, it’s a practical and performance-driven addition to any automotive dashboard.

KEY FEATURES AND BENEFITS:

• Large Display: 2-1/16 inch size ensures excellent visibility and readability.
• Warning Light: Integrated light alerts you to critical low oil pressure conditions.
• High-Performance Transducer: Military-grade 3-wire pressure sensor offers accurate readings.
• Complete Kit: Includes wiring harnesses and mounting hardware for easy installation.
• Wide Pressure Range: Monitors 0-100 PSI, suitable for a variety of engine setups.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-100 PSI
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.05 inch (52mm)
• Warning Light: Yes
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 100 psi
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Choose a location on the dashboard and drill a 2.05-inch (52mm) hole. Use the mounting spin ring to secure the gauge.
2. Install the Pressure Sensor: Identify an oil system port on the engine and install the 100 PSI pressure sensor.
3. Connect the Wiring Harnesses:
   – Attach the 3-wire pressure gauge harness from the sensor to the gauge.
   – Connect the power & lighting harness to the gauge’s power and ground terminals. Ensure a good ground connection.
4. Connect Power and Lighting: Wire the power harness to a 12V switched source and ground. Optionally connect the lighting wire to the vehicle’s lighting circuit.
5. Set the Warning Light (Optional): Refer to the manual for configuring the low pressure threshold.
6. Verify Operation: Start the vehicle to ensure the gauge and warning light function correctly.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ STREET XL 100 PSI OIL PRESSURE W/WARNING (R2-OP3-SXL):

• Engine Health Monitoring: Allows for real-time tracking of oil pressure, a key engine health indicator.
• Early Warning System: The integrated warning light gives prompt alerts to low pressure conditions.
• Precision Readings: The military-grade transducer ensures accurate oil pressure data.
• Enhanced Visibility: The Street XL display offers quick, clear information even at a glance.
• Improved Maintenance: Helps prevent engine damage by identifying issues before they escalate.

FEATURES:

• Oversized Display: The 2-1/16 inch Street XL design improves readability.
• Real-time Monitoring: Provides continuous feedback on oil pressure status.
• Integrated Alert System: Customizable warning light signals low pressure events.
• High-Accuracy Sensor: 3-wire military-grade transducer ensures precise readings.
• Simplified Installation: Comes with harnesses and mounting hardware included.
• Illuminated Display: Connects to your vehicle’s lighting system for nighttime visibility.
