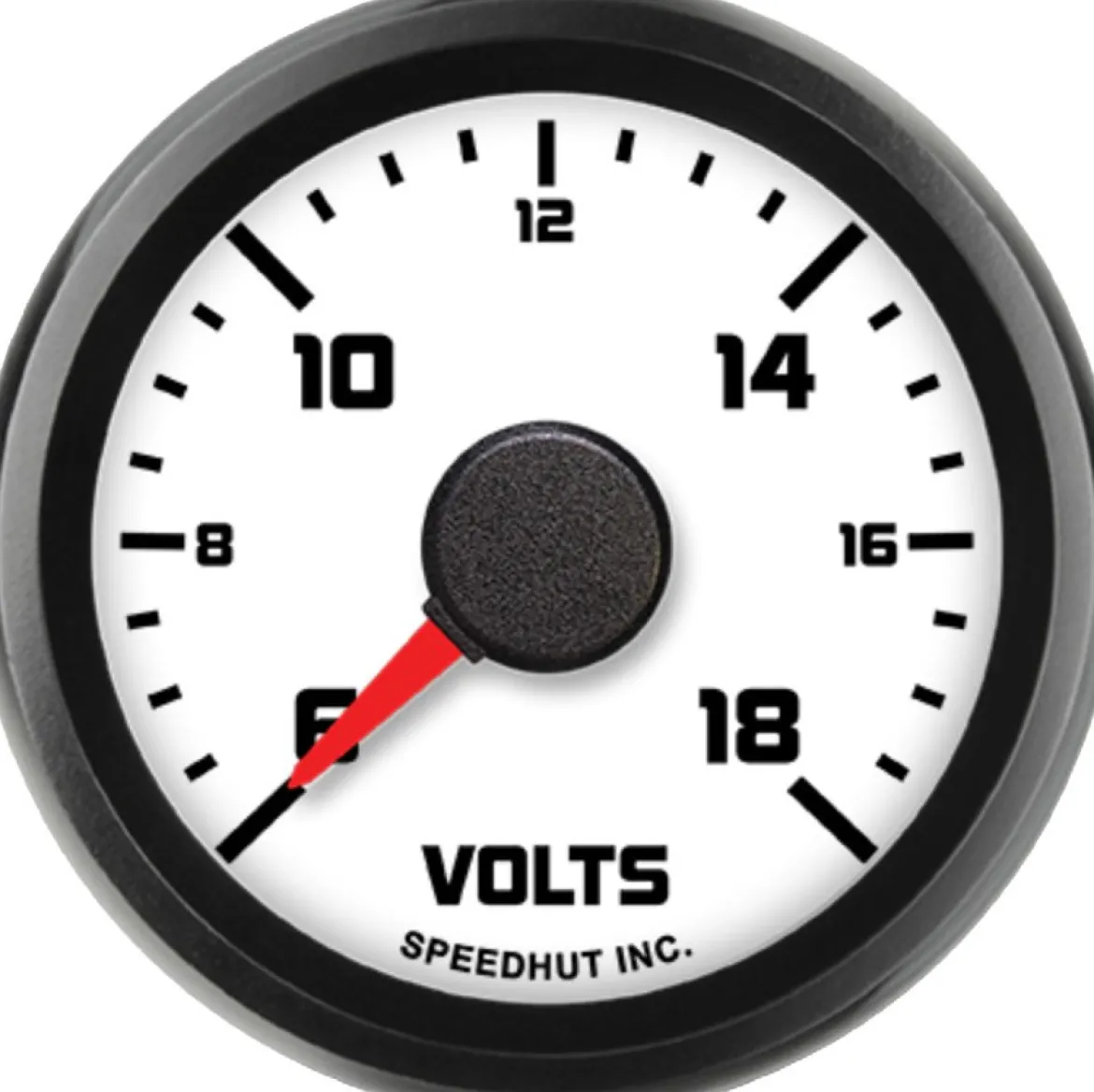

Speedhut 2-1/16″ Street XL 6-18V Volt Gauge (L2-V1-SXL)

The Speedhut 2-1/16″ Street XL 6-18V Volt Gauge (L2-V1-SXL) offers a straightforward and reliable way to monitor your vehicle’s electrical system voltage. Designed for a 2 1/16 inch (52mm) mounting, this gauge provides accurate readings of systems ranging from 6 to 18 volts by directly connecting to a power wire. The integrated LED backlighting ensures clear visibility of the voltage display.

KEY FEATURES AND BENEFITS:

• Constant Monitoring: Allows real-time observation of your vehicle’s electrical system for early detection of issues.
• Wide Compatibility: 6-18V range supports a broad variety of vehicle systems.
• Universal Fit: Standard 2 1/16 inch size fits most aftermarket gauge pods or mounts.
• Enhanced Readability: Built-in LED backlighting provides visibility in all lighting conditions.

SPECIFICATIONS:

• Gauge Type: Voltage Gauge
• Voltage Signal Type: Voltage from Power Wire
• Range: 6-18 volts
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.05 inch (52mm)
• Warning Light: No
• Ships With: 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.05 inch (52mm) diameter hole in your desired mounting location. Secure the gauge in the hole.
2. Connect the Power Harness: Connect the provided 3 ft Power & Lighting Harness to the gauge.
3. Connect to Power: Identify a suitable power wire in your vehicle’s electrical system. Connect the power wire from the harness to this power source. Ensure the connection is secure and properly insulated.
4. Connect the Ground: Connect the ground wire from the harness to a reliable ground point on your vehicle’s chassis.
5. Connect Lighting (Optional): If you wish to utilize the LED backlighting, connect the appropriate wire from the harness to your vehicle’s lighting circuit (e.g., headlight or parking light wire).
6. Verify Functionality: Once all connections are made, turn on your vehicle’s ignition to ensure the gauge powers on and displays the current voltage. Turn on your lights to check the LED backlighting.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ STREET XL 6-18V VOLT GAUGE (L2-V1-SXL):

• Allows proactive monitoring of your vehicle’s electrical health and performance.
• Helps detect issues such as failing alternators, weak batteries, or excessive electrical draw early.
• Reduces the risk of unexpected breakdowns and associated repair costs.
• Clear voltage display helps ensure consistent and safe vehicle operation.
• LED illumination enhances visibility for convenient day and night usage.

FEATURES:

• Real-time monitoring of electrical system voltage.
• 6-18 volt measurement range for compatibility across various vehicles.
• Standard 2 1/16 inch diameter supports versatile mounting options.
• Direct voltage reading through power wire connection.
• LED backlighting for clear visibility in all light settings.
• Installs easily into a 2.05 inch (52mm) hole.
• Includes a 3 ft power and lighting harness for easy setup.
