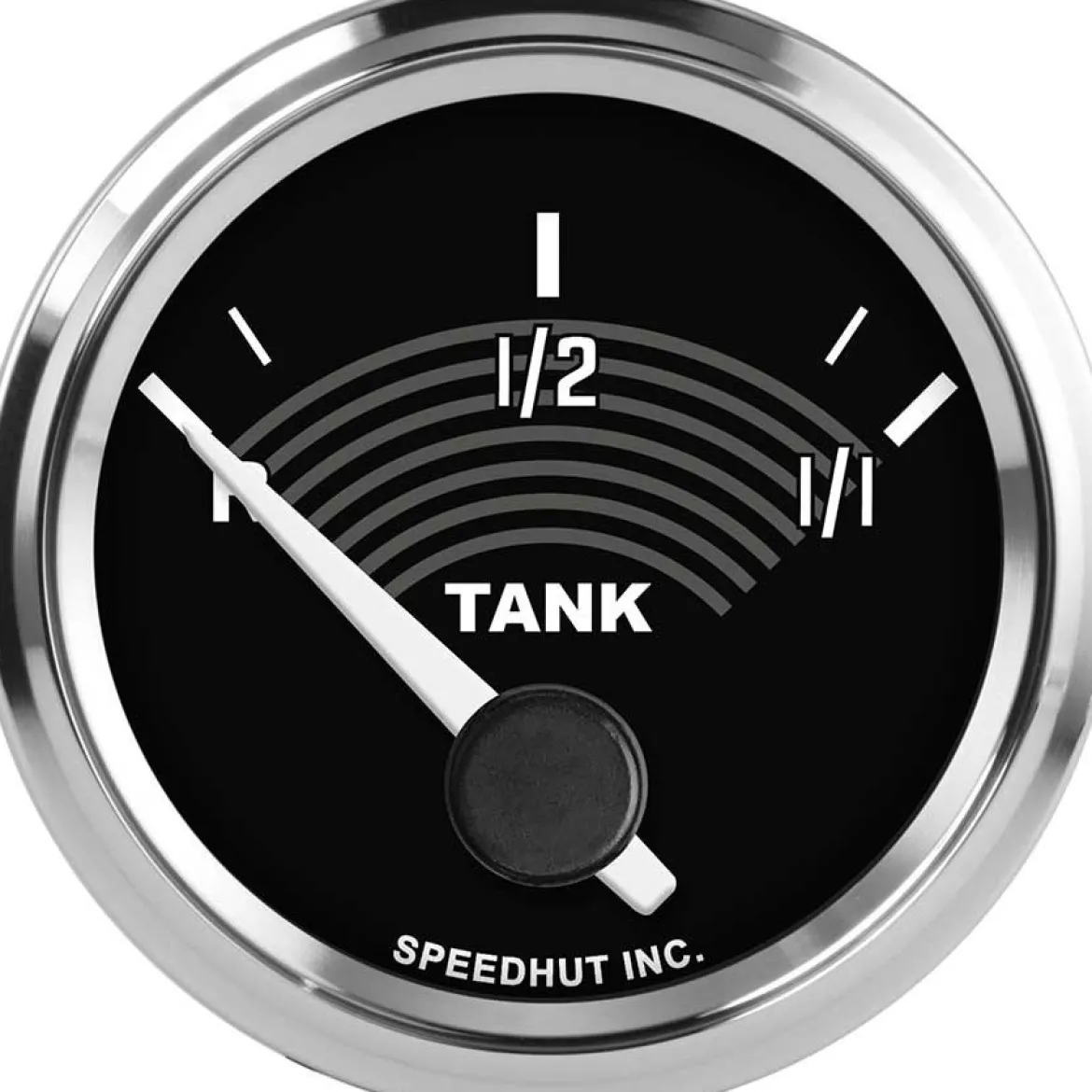

Speedhut 2-1/16″ VW Design Programmable Fuel Level Gauge (L2-FL2-VW)

The Speedhut 2-1/16″ VW Design Programmable Fuel Level Gauge (L2-FL2-VW) offers a way to monitor your vehicle’s fuel level with a classic aesthetic that complements Volkswagen styling. This gauge provides the flexibility of being programmable to work with a wide range of fuel level sending units that operate at 300 ohms or less, making it suitable for custom applications and various vehicle setups. While designed to evoke the look of original equipment manufacturer (OEM) gauges, it is important to note that this is a universal fit product and not a direct OEM replacement. It requires proper wiring and mounting to integrate into your vehicle’s dashboard or gauge pod.

KEY FEATURES AND BENEFITS:

• VW-Inspired Design: The gauge face and styling are created to match the look and feel of Volkswagen’s factory gauges, providing a cohesive and period-correct appearance for VW enthusiasts.
• Programmable Functionality: This key feature allows the gauge to be calibrated to accurately read the fuel level from most aftermarket and some OEM fuel level sensors with a resistance of 300 ohms or less.
• Standard 2-1/16″ Size: The gauge’s 2-1/16 inch diameter is a common size for aftermarket instruments, offering versatility in mounting options and compatibility with standard gauge pods and openings.
• Clear E-F Range: The gauge face clearly displays the standard “Empty” to “Full” markings, providing an intuitive and easily understandable indication of the fuel level.
• Included Wiring Harnesses: The gauge ships with the necessary wiring harnesses for power and lighting, as well as a 2-wire cable for connecting to the fuel level sender unit.
• Gauge Programming Button: A dedicated programming button is included, which is essential for calibrating the gauge to your specific fuel level sender, ensuring accurate readings.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 1/16 inch (52mm)
• Range: E-F
• Hole Size Required: 2.05 inch (52mm)
• Included: 3 ft Power & Lighting Harness, Wiring Harness (2-Wire Cable), Gauge Programming Button

HOW TO USE:

1. Mount the Gauge: Install the Speedhut fuel level gauge into a 2.05-inch (52mm) opening in your dashboard or chosen gauge mounting location.
2. Connect Power and Lighting: Using the included 3 ft Power & Lighting Harness, connect the gauge to a suitable 12V power source, ground, and lighting circuit in your vehicle.
3. Connect Fuel Level Sender: Attach the included 2-Wire Cable to the output terminal of your fuel level sending unit and connect the other end to the designated input on the back of the Speedhut gauge.
4. Program the Gauge:
   • Locate the included Gauge Programming Button.
   • Follow the specific programming instructions provided with the gauge to set the empty and full resistance values of your fuel sender.
   • Refer to the Speedhut documentation for the precise steps for your gauge model.
5. Verify Operation: Once programmed, turn on your vehicle’s ignition to check if the fuel level gauge is reading correctly as the fuel level changes.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ VW DESIGN PROGRAMMABLE FUEL LEVEL GAUGE (L2-FL2-VW):

• Maintains Classic VW Aesthetics: Perfect for Volkswagen owners who want to upgrade their fuel monitoring without compromising the original style and feel of their vehicle’s interior.
• Ensures Accurate Fuel Readings: The programmability feature allows for precise calibration with your specific fuel level sender.
• Offers Versatile Compatibility: The ability to work with most fuel level sensors up to 300 ohms makes it suitable for a wide range of vehicles and custom fuel system setups.
• Simplifies Installation: The inclusion of necessary wiring harnesses and a programming button streamlines the setup process.
• Provides a Standard Fit: The 2-1/16″ size ensures compatibility with numerous aftermarket gauge pods and mounting solutions.

FEATURES:

• Designed with visual cues reminiscent of vintage and contemporary Volkswagen gauges.
• Adaptable calibration for fuel level senders with a resistance range of 300 ohms or less.
• Industry-standard 2 1/16 inch (52mm) diameter for easy integration.
• Displays fuel level on a traditional “Empty” to “Full” scale.
• Includes dedicated wiring for power, illumination, and sender signal.
• Programming facilitated by a separate, included button for precise setup.
• Intended as a universal fit gauge, requiring appropriate wiring and mounting.
