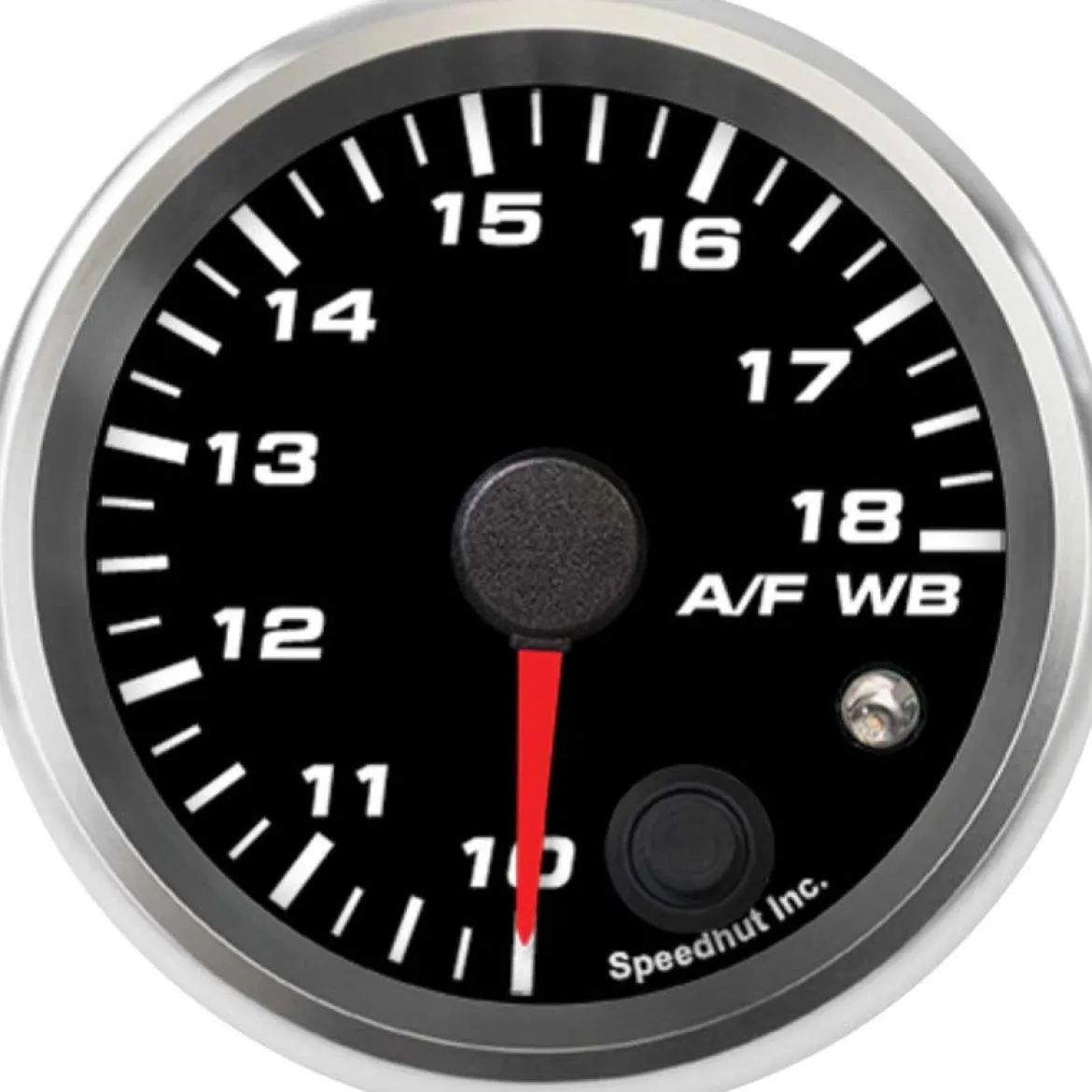

Speedhut 2-5/8″ Innovate 10-18 Air/Fuel Gauge w/ Warning (R25-WB6-REV)

The Speedhut 2-5/8″ Innovate 10-18 Air/Fuel Gauge w/ Warning (R25-WB6-REV) is an essential instrument for anyone needing to closely monitor their engine’s air-to-fuel mixture. Designed for accuracy and reliability, this gauge provides real-time feedback on whether your engine is running lean, rich, or at an optimal ratio. When paired with an Innovate LC-1 or LC-2 wideband controller, it offers a comprehensive view of your engine’s combustion, allowing for precise tuning and the prevention of potential engine damage. Its clear display and integrated warning light ensure that critical air/fuel conditions are immediately brought to your attention.

KEY FEATURES AND BENEFITS:

• Wideband Monitoring: Displays air/fuel ratios from 10:1 to 18:1 for accurate tuning.
• Innovate Compatibility: Seamlessly integrates with Innovate LC-1 and LC-2 wideband controllers.
• Integrated Warning System: Visual alert when AFR exceeds user-defined lean or rich thresholds.
• Standard Gauge Size: Fits standard 2-5/8″ (68 mm) gauge openings for easy installation.
• Enhanced Engine Protection: Helps avoid engine damage due to improper AFR.
• Backlit Display: LED illumination ensures visibility in all lighting conditions.

SPECIFICATIONS:

• Gauge Type: Air/Fuel Gauge
• Gauge Subtype: Air/Fuel Wideband Gauge
• Controller Compatibility: Innovate (LC-1 or LC-2)
• Range: 10-18
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68 mm)
• Warning Light: Yes
• Input Voltage Range: 0.88 volts to 3.54 volts
• Ships With:
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• AF/WB Throttle Position Harness (LED Lite Gauges)

HOW TO USE:

1. Connect the Innovate LC-1 or LC-2 Controller: Ensure your wideband oxygen sensor is properly connected to an Innovate LC-1 or LC-2 wideband controller according to the controller’s instructions.
2. Wire the Gauge for Power and Lighting: Use the provided 3 ft Power & Lighting Harness to connect the gauge to a suitable power source and ground in your vehicle. This harness also powers the gauge’s LED illumination.
3. Connect the Signal Wire: Connect the output signal wire from the Innovate LC-1 or LC-2 controller to the appropriate input on the Speedhut gauge.
4. Connect the Warning Light (Optional): If desired, connect the wiring for the integrated warning light to a suitable indicator or alarm system.
5. Mount the Gauge: Install the 2-5/8″ gauge into a 68 mm diameter opening in your dashboard or a gauge pod. Secure it using the appropriate mounting hardware.
6. Calibrate (if necessary): Refer to the Speedhut and Innovate manuals for any necessary calibration procedures.
7. Monitor Readings: Power on the system and monitor the real-time AFR to ensure optimal performance.
8. Set Warning Thresholds (if applicable): Configure the gauge to trigger the warning light at user-defined lean and rich limits.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ INNOVATE 10-18 AIR/FUEL GAUGE W/ WARNING (R25-WB6-REV):

• Provides real-time, accurate AFR readings for optimal engine tuning.
• Protects against engine damage from lean or rich running conditions.
• Improves engine efficiency, fuel economy, and performance.
• Seamless integration with Innovate LC-1 and LC-2 wideband controllers ensures reliable data.
• Easy-to-read analog display with backlight for quick monitoring during any driving condition.
• Warning light alerts drivers instantly to unsafe AFR conditions.

FEATURES:

• Precise AFR monitoring from 10:1 to 18:1 for tuning accuracy.
• Compatible with Innovate LC-1 and LC-2 wideband controllers.
• Includes programmable warning light for critical AFR deviations.
• Standard 2-5/8″ (68 mm) diameter fits most gauge pods.
• Operates on a 0.88V to 3.54V input from the wideband controller.
• LED backlighting for excellent visibility at night or in low-light conditions.
• Complete with wiring harnesses for quick and secure installation.
• Offers real-time data to optimize tuning and performance.
• Assists in diagnosing and preventing engine issues related to fuel and air mixture.
