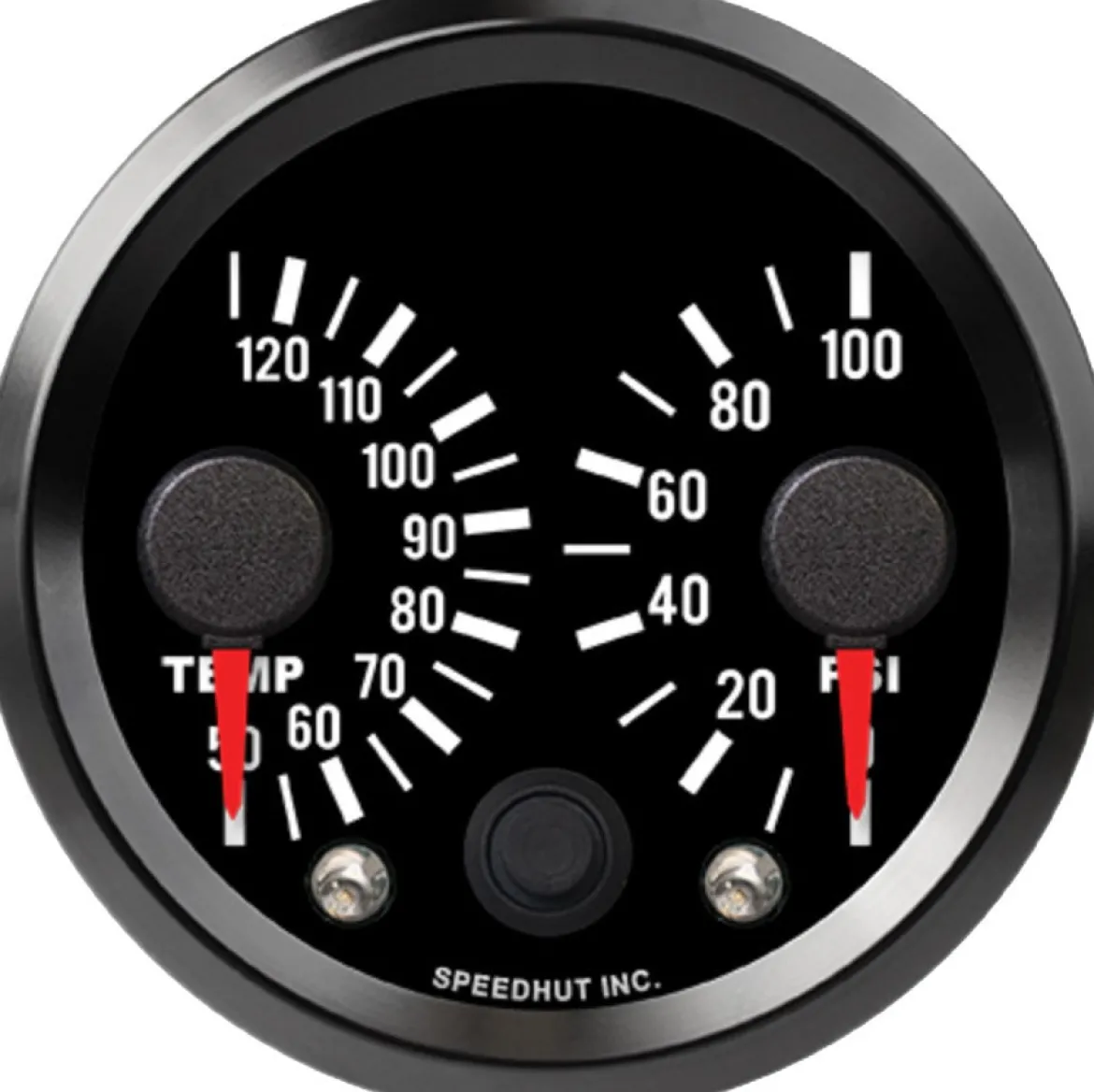

Speedhut 2-5/8″ JDM 510 Celsius Water Temp/Oil Pressure (R25-DG5-510)

The Speedhut 2-5/8″ JDM 510 Celsius Water Temp/Oil Pressure (R25-DG5-510) offers a compact, dual-function solution for real-time monitoring of critical engine data. Combining both water temperature (in Celsius) and oil pressure (in PSI) within a single stylish gauge, it brings a clean, efficient design ideal for vehicles with limited dashboard space. Styled with a unique Japanese Domestic Market (JDM) 510 appearance, this gauge adds character while ensuring reliability and accuracy. Equipped with an integrated warning light system, it alerts the driver to potential mechanical issues early, helping prevent major engine damage. Whether you’re driving daily or tracking performance, this gauge offers the essential information you need with clarity and confidence.

KEY FEATURES AND BENEFITS:

• Dual-Function Monitoring: Measures both water temperature and oil pressure in a single unit.
• Space-Saving Design: Combines two gauges into one 2 5/8″ instrument to reduce dashboard clutter.
• JDM 510 Styling: Enhances vehicle interior with a distinctive aesthetic.
• Real-Time Accuracy: Provides immediate engine status to support proactive maintenance.
• Integrated Warning Light: Alerts you to potentially dangerous readings for added safety.
• Includes Sensors and Mounting Ring: Comes with all necessary components for simplified installation.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Oil Pressure
• Water Temperature Range: 50-125 °C
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Metric
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
• Speedhut Temperature Sensor
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Pressure Sensor – 100 psi
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

• Mount the Gauge: Find a 2.67-inch (68mm) diameter hole on your dash or panel. Insert the gauge and secure it using the supplied mounting ring.
• Connect the Temperature Sensor: Install the sensor in the engine’s coolant system and connect it to the gauge using the 2-wire harness.
• Connect the Pressure Sensor: Fit the 100 psi sensor into the oil system and link it to the gauge via the 3-wire harness.
• Power and Lighting: Use the 3 ft power and lighting harness to provide 12V power and connect the gauge’s backlighting.
• Configure the Warning Light: If applicable, set the warning light activation thresholds as per the instruction manual.
• Start and Test: Turn on your vehicle to ensure proper readings and functionality of the warning light.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM 510 CELSIUS WATER TEMP/OIL PRESSURE (R25-DG5-510):

• Real-Time Engine Monitoring: Detects abnormal water temp or oil pressure before damage occurs.
• Dashboard Optimization: Saves space while maintaining essential information access.
• Stylish Integration: Adds a clean and unique JDM 510 design element to your vehicle.
• Quick Installation: Comes complete with sensors, wiring, and mounting gear.
• Warning System: Built-in alert helps maintain engine safety during operation.

FEATURES:

• Displays both coolant temperature (Celsius) and oil pressure (PSI) simultaneously.
• Distinctive JDM 510 visual design for enhanced interior appearance.
• Backlit interface via included power and lighting harness for night visibility.
• Integrated alert system warns of abnormal readings.
• Compact 2 5/8″ size helps minimize dashboard space usage.
• Direct-connect sensors ensure high accuracy and fast response.
• Comes with dedicated wiring harnesses for easy setup.
• Mounting ring included for secure dashboard installation.
