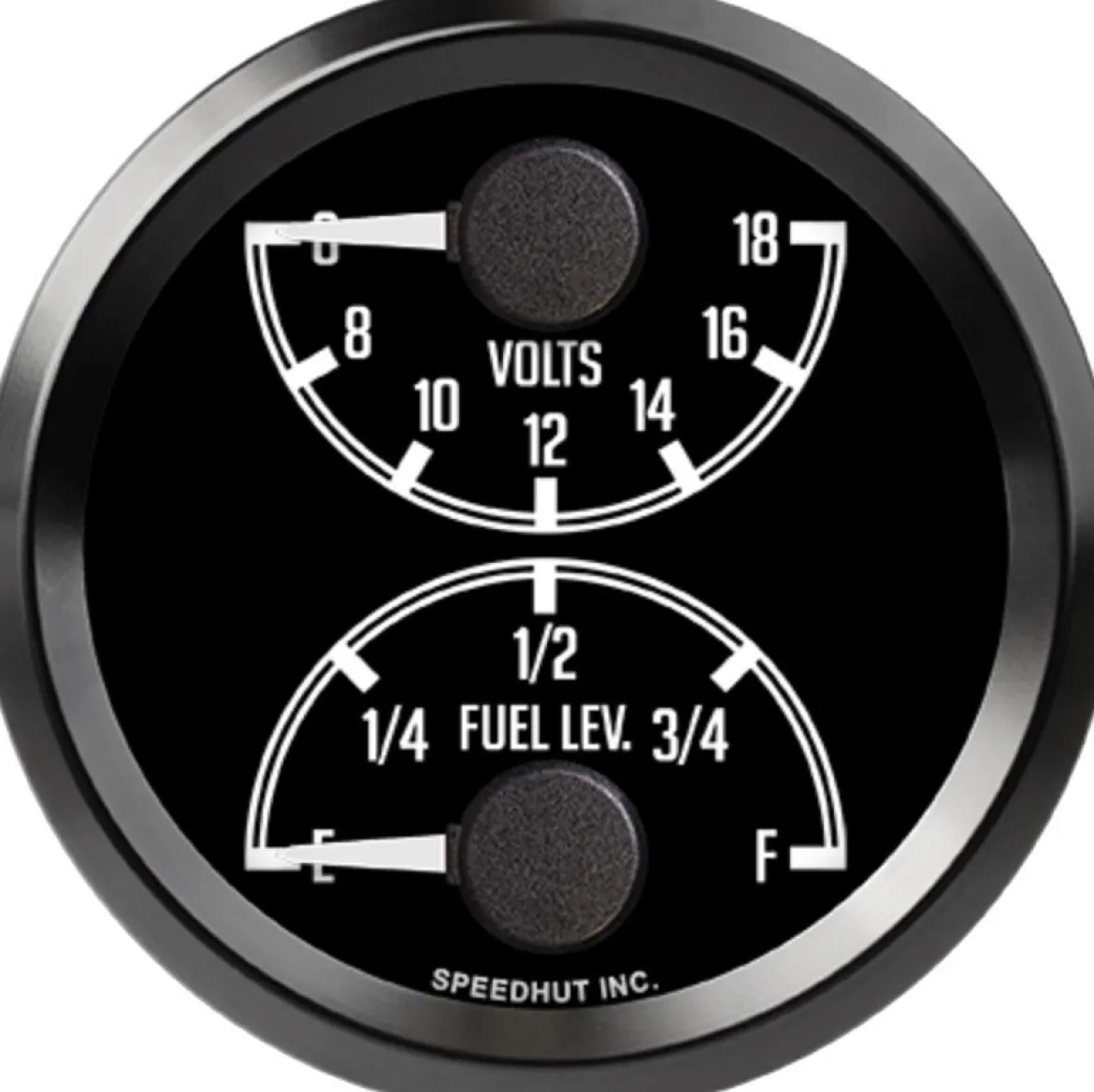

Speedhut 2-5/8″ JDM Datsun Z Volts/Fuel Level (top/bot) (L25-DG2-DATZ)

Speedhut 2-5/8″ JDM Datsun Z Volts/Fuel Level (top/bot) (L25-DG2-DATZ) maximizes the functionality and aesthetics of your Datsun Z’s dashboard. This meticulously designed instrument combines two critical readings – voltage and fuel level – into a single, compact unit. Perfect for preserving valuable dashboard space while providing essential real-time information about your vehicle’s electrical system and fuel supply. Its JDM styling complements the classic look of Datsun Z models, offering both a functional and visual enhancement.

KEY FEATURES AND BENEFITS:

• Space-efficient dual gauge for monitoring voltage and fuel level simultaneously.
• Integrates a voltmeter and fuel level indicator to reduce dashboard clutter.
• Clear and easy-to-read standard scales (6-18 volts and Empty-Full) for immediate feedback.
• Aids in timely diagnostics and preventative maintenance.
• Included mounting ring ensures straightforward installation.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Measurement System: Standard
• Combined Readings: Voltage and Fuel Level
• Voltage Range: 6 – 18 volts
• Fuel Level Range: E – F
• Gauge Size: 2 5/8 inch
• Required Mounting Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Included: Gauge Mounting Ring

HOW TO USE:

1. Preparation: Identify a suitable 2.67″ (68mm) diameter location on your Datsun Z’s dashboard for mounting the gauge. Ensure there is adequate clearance behind the dashboard for the gauge and its wiring.
2. Wiring Connection (Power & Lighting): Connect the included 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle’s electrical system. This harness will also power the gauge’s illumination. Refer to your vehicle’s wiring diagram for correct connections.
3. Wiring Connection (Voltage): Connect the voltage input wires from the gauge to a reliable 12V source in your vehicle that is active when the ignition is on.
4. Wiring Connection (Fuel Level): Connect the fuel level input wire from the gauge to the signal wire coming from your Datsun Z’s fuel level sending unit in the fuel tank.
5. Gauge Mounting: Insert the gauge into the prepared 2.67″ hole in your dashboard. Secure the gauge from the rear using the included mounting ring. Tighten the ring sufficiently to hold the gauge firmly in place without overtightening.
6. Testing: Once all connections are made, turn on your vehicle’s ignition to check if the gauge powers on and displays the correct voltage and fuel level readings. Verify the illumination also functions as expected.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM DATSUN Z VOLTS/FUEL LEVEL (TOP/BOT) (L25-DG2-DATZ):

• Consolidated display of two crucial vehicle parameters, maximizing limited dashboard space.
• Real-time voltage monitoring for early detection of electrical issues, preventing breakdowns.
• Clear and accurate fuel level readings to avoid unexpected fuel depletion.
• JDM-inspired styling enhances interior aesthetics with a period-correct look.
• Relatively straightforward installation with the included mounting ring, accessible for most enthusiasts.

FEATURES:

• Integrated Voltage and Fuel Level Display: Provides two essential readings in a single 2 5/8″ unit.
• JDM-Inspired Design: Specifically styled to complement the interior of Japanese Domestic Market vehicles, particularly Datsun Z models.
• Standard Measurement Scales: Utilizes easily understandable 6-18 volt and Empty-Full ranges.
• Compact 2 5/8″ Size: Ideal for installations where space is a premium.
• Direct Fit for 2.67″ (68mm) Opening: Ensures a clean and professional-looking installation.
• Included Mounting Ring: Simplifies the process of securing the gauge to the dashboard.
• Clear LED Illumination: Enhances visibility of the readings, especially in low-light conditions (wiring harness included for power and lighting).
