Speedhut 2-5/8″ JDM Z Cels Wat Temp/Oil Press (top/bot) (L25-DG5-DATZ)

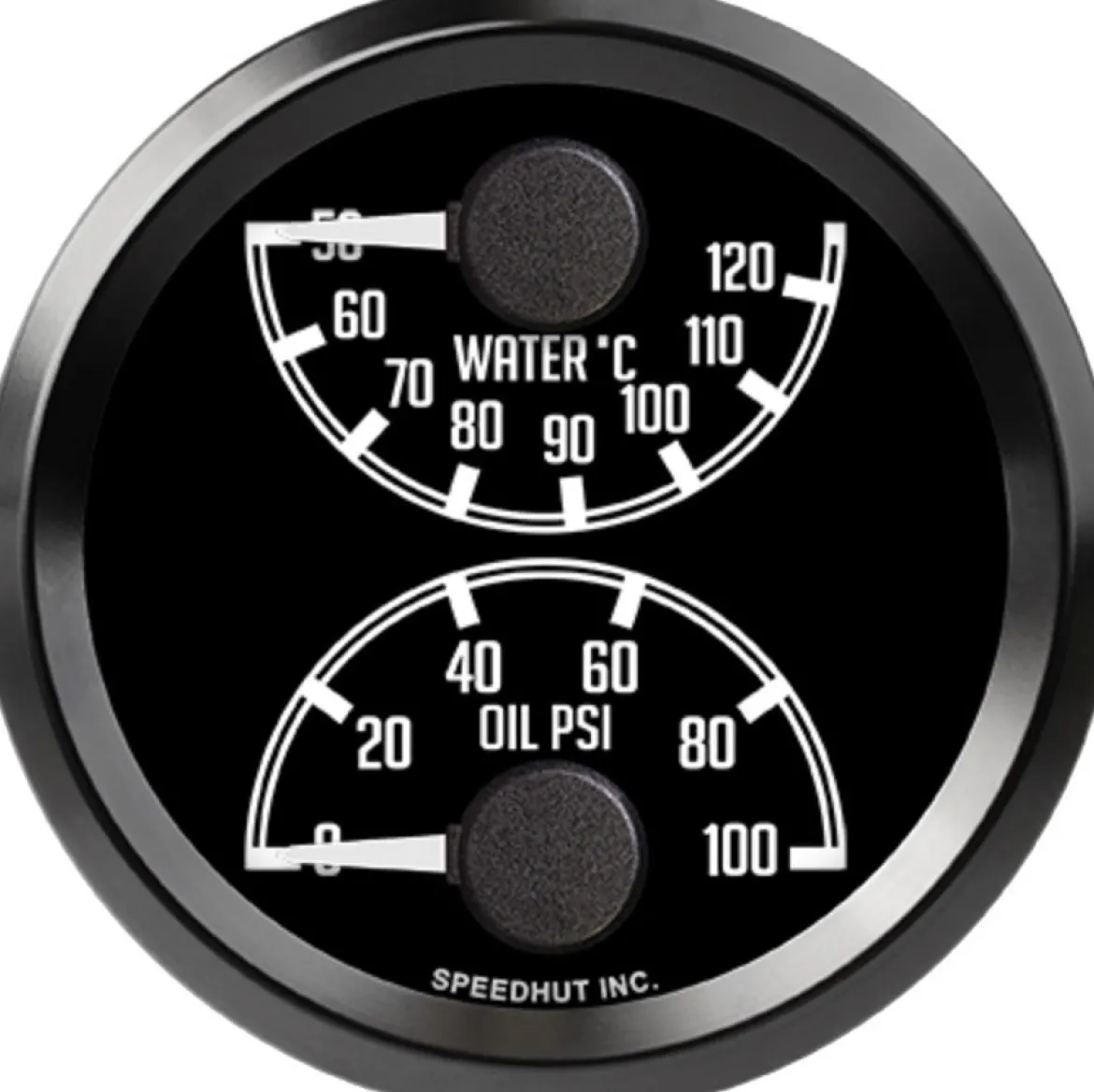

The Speedhut 2-5/8″ JDM Z Cels Wat Temp/Oil Press (top/bot) (L25-DG5-DATZ) is a space-saving solution for monitoring two critical aspects of your engine’s performance. This dual gauge combines a water temperature gauge (displaying in Celsius) and an oil pressure gauge (displaying in PSI) into a single, easy-to-read 2-5/8″ unit. Designed with a JDM (Japanese Domestic Market) Z series aesthetic, this gauge offers accurate, real-time feedback on your engine’s health, allowing for proactive maintenance and performance optimization.

KEY FEATURES AND BENEFITS:

• Compact Dual Functionality: Combines water temperature and oil pressure readings in a single unit.
• Real-Time Monitoring: Provides simultaneous, accurate data for efficient engine performance evaluation.
• Installation Simplified: Includes sensors, harnesses, and a mounting ring for quick setup.
• Optimized Dashboard Space: Perfect for vehicles with limited gauge mounting options.
• JDM-Inspired Aesthetic: Styled to complement Datsun Z and other JDM vehicles.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature (top) and Oil Pressure (bottom)
• Temperature Range: 50-125 °C
• Pressure Range: 0-100 psi
• Units: Metric (Celsius for Temperature, PSI for Pressure)
• Size: 2 5/8 inches
• Mounting Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Included:
  • Pressure Sensor – 100 psi
  • Speedhut Temperature Sensor
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Secure the 2-5/8″ dual gauge in a suitable location on your dashboard using the included mounting ring. Ensure the mounting hole size is 2.67 inches (68mm).
2. Install the Temperature Sensor: Locate the appropriate port on your engine for the Speedhut temperature sensor and install it securely.
3. Install the Pressure Sensor: Identify the correct port for the 100 psi pressure sensor on your engine and install it.
4. Connect the Wiring Harnesses:
   • Connect the 2-wire temperature gauge wiring harness between the temperature sensor and the gauge.
   • Connect the 3-wire pressure gauge wiring harness between the pressure sensor and the gauge.
   • Connect the 3 ft power & lighting harness to a suitable power source and the gauge to provide power and illumination (if applicable).
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
6. Power On: Start your vehicle and observe the gauge readings to confirm proper installation and functionality. The top display will show water temperature in Celsius, and the bottom display will show oil pressure in PSI.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM Z CELS WAT TEMP/OIL PRESS (TOP/BOT) (L25-DG5-DATZ):

• Consolidated Monitoring: Simplifies engine monitoring by combining two gauges into one unit.
• Preventative Maintenance: Helps detect overheating or low oil pressure early to prevent engine damage.
• Precise Metric Readings: Offers accurate measurement in Celsius and PSI for technical clarity.
• Enhanced Dashboard Aesthetics: Adds a JDM-styled professional look to your interior.
• Easy Installation: Comes with all required sensors and harnesses for a hassle-free setup.

FEATURES:

• Integrated Monitoring: Provides simultaneous display of water temperature and oil pressure in one unit.
• Space Optimization: The 2-5/8″ size efficiently utilizes limited dashboard area.
• Metric System: Displays temperature in Celsius and pressure in PSI for accurate readings.
• Direct Installation: Designed for a 2.67″ (68mm) mounting hole.
• Complete Kit: Ships with the necessary pressure and temperature sensors.
• Simplified Wiring: Includes dedicated wiring harnesses for both temperature and pressure readings, along with a power and lighting harness.
• Secure Mounting: Comes with a gauge mounting ring for stable installation.
