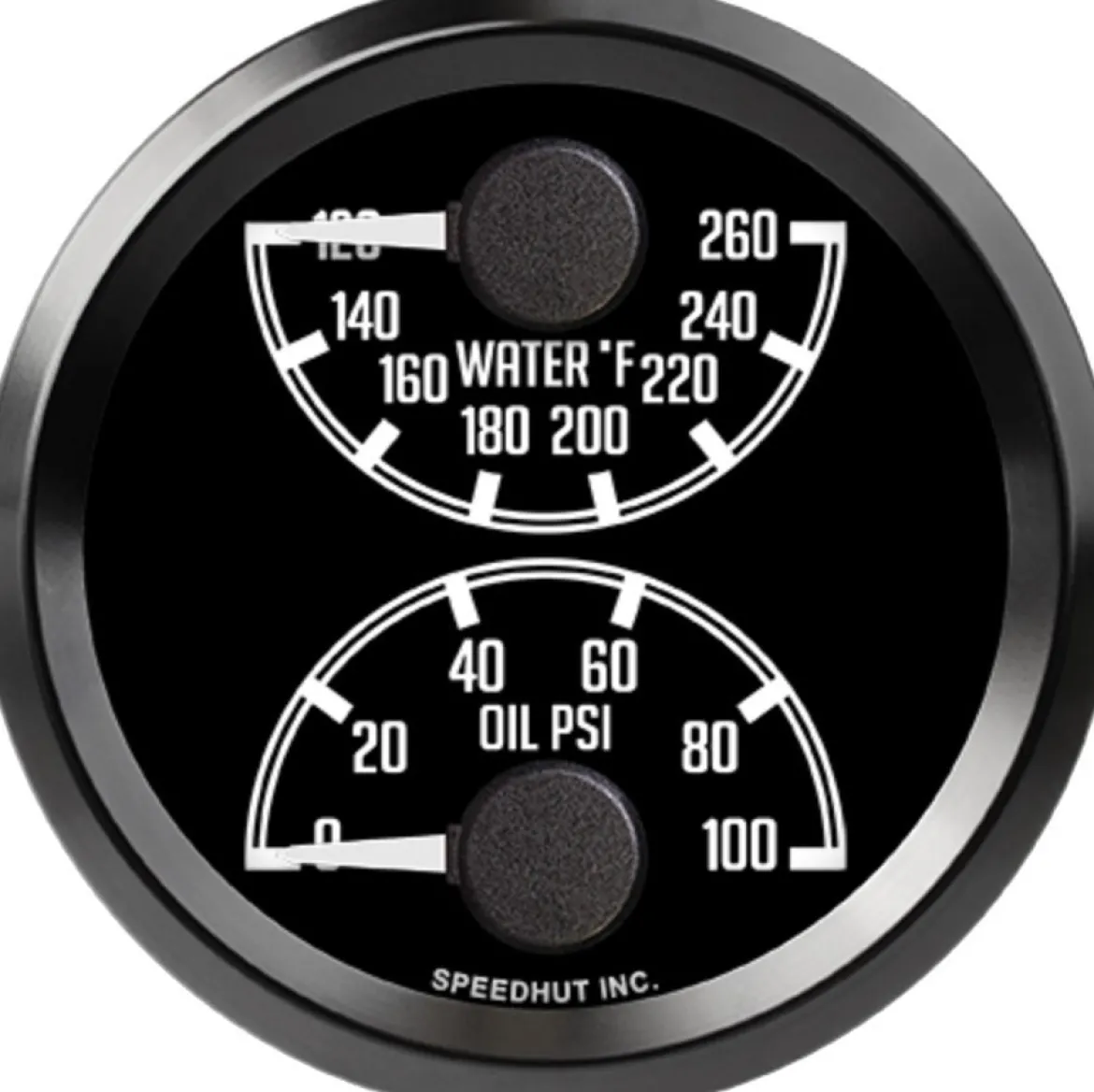

Speedhut 2-5/8″ JDM Z Water Temp/Oil Pressure (top/bot) (L25-DG1-DATZ)

The Speedhut 2-5/8″ JDM Z Water Temp/Oil Pressure (top/bot) (L25-DG1-DATZ) offers a space-efficient solution for monitoring two critical engine parameters in a single, stylish 2 5/8″ unit. Designed with a classic Datsun aesthetic, this gauge provides real-time readings of both water temperature and oil pressure, allowing you to stay informed about your engine’s health and performance. Its straightforward design and included components simplify the installation process, making it a valuable addition for any vehicle owner seeking reliable engine monitoring. This dual gauge not only enhances the functionality of your dashboard but also provides a visual upgrade with its distinct styling.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Combines water temperature and oil pressure readings into one compact gauge, saving valuable dashboard space.
• Real-Time Data: Provides immediate and accurate feedback on crucial engine parameters, allowing for proactive maintenance.
• Complete Kit: Ships with all necessary sensors (pressure and temperature) and wiring harnesses for a comprehensive installation.
• Simplified Diagnostics: Offers a direct and easy way to assess engine performance and identify potential issues early.
• Visual Upgrade: The Datsun-inspired design adds a touch of classic styling to your vehicle’s interior.
• User-Friendly Installation: Designed for relatively straightforward installation with included mounting ring and wiring.

SPECIFICATIONS:

• Gauge Type: Dual Gauge (Water Temperature and Oil Pressure)
• Combo Options: Water Temp (Top) and Oil Pressure (Bottom)
• Water Temperature Range: 120-260 °F
• Oil Pressure Range: 0-100 psi
• Unit System: Standard (Imperial)
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Included:
  • Pressure Sensor – 100 psi
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Speedhut Temperature Sensor
  • Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Secure the 2 5/8″ dual gauge in a suitable location on your dashboard using the included mounting ring. Ensure the 2.67″ (68mm) hole size is appropriate for the mounting location.
2. Connect the Power and Lighting: Attach the 3 ft power and lighting harness to a suitable power source and the gauge to illuminate the LED lighting.
3. Install the Temperature Sensor: Mount the provided Speedhut temperature sensor in a location that allows it to accurately read the engine coolant temperature. Connect the 2-wire temperature gauge wiring harness between the sensor and the gauge.
4. Install the Pressure Sensor: Mount the included 100 psi pressure sensor to an appropriate port on your engine’s oil system. Connect the 3-wire pressure gauge wiring harness between the sensor and the gauge.
5. Verify Readings: Once all connections are made, start your vehicle and check that the gauge is displaying accurate readings for both water temperature and oil pressure within their respective ranges (120-260 °F and 0-100 psi).

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM Z WATER TEMP/OIL PRESSURE (TOP/BOT) (L25-DG1-DATZ):

• Simultaneously monitor two critical engine parameters – water temperature and oil pressure – in a single, space-saving unit, reducing dashboard clutter.
• Receive real-time feedback enabling quick detection of abnormal engine conditions, potentially preventing costly damage through timely intervention.
• Enjoy simplified installation with included sensors and wiring, accessible to a wide range of users.
• Enhance your vehicle’s interior with the unique Datsun-inspired styling that blends classic design with functionality.
• Gain immediate access to vital engine information to better understand vehicle health and optimize performance for reliability and longevity.

FEATURES:

• Integrated Display: Presents both water temperature and oil pressure readings clearly on a single gauge face.
• Datsun Styling: Features a design aesthetic that complements classic Datsun vehicles.
• LED Illumination: Enhances visibility of the gauge readings, especially in low-light conditions.
• Dedicated Sensors: Includes specific sensors for accurate measurement of both temperature and pressure.
• Plug-and-Play Wiring: Comes with pre-designed harnesses for simplified electrical connections.
• Compact Form Factor: The 2 5/8″ size allows for installation in various dashboard configurations without occupying excessive space.
