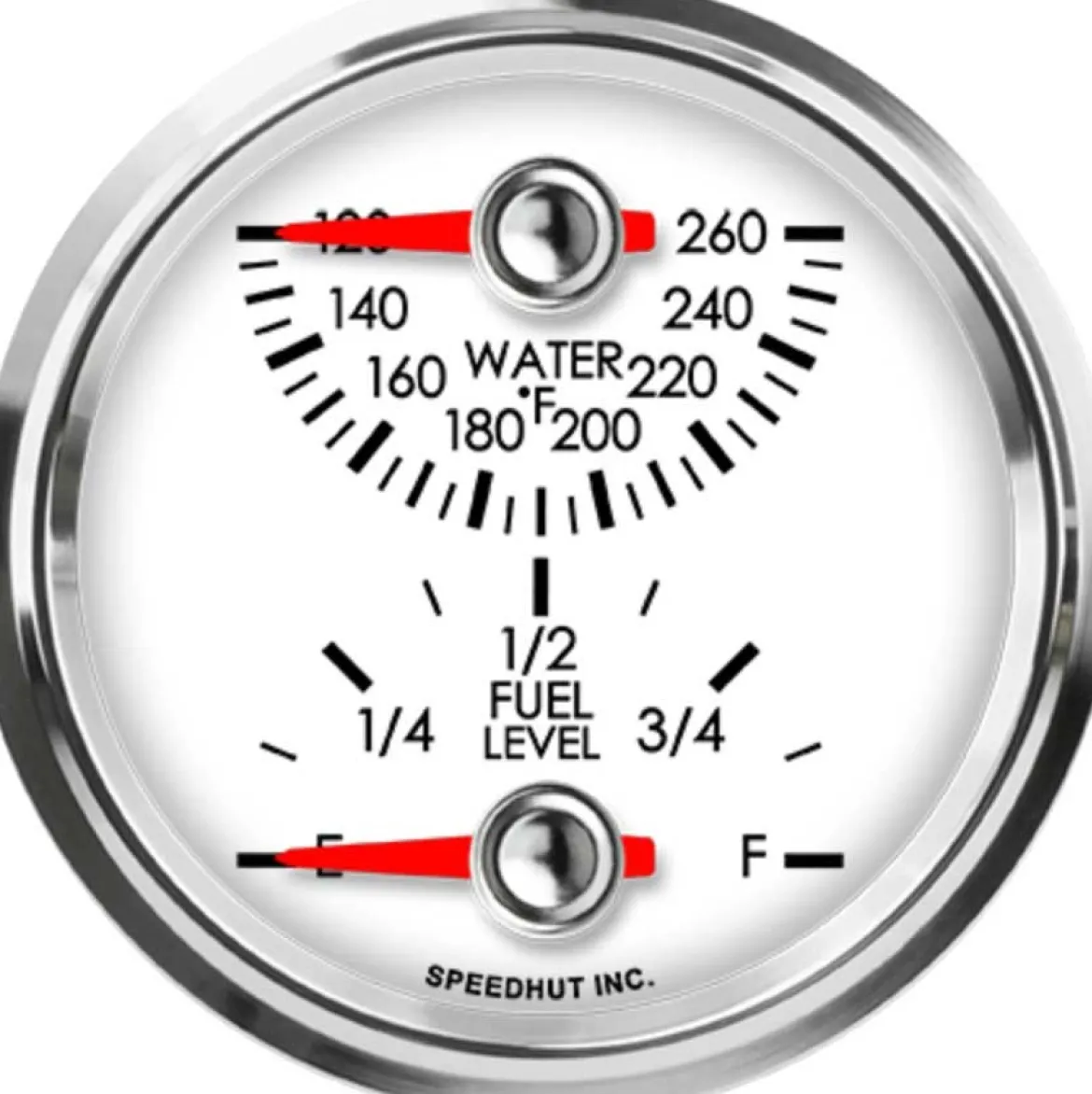

Speedhut 2-5/8″ Water Temp / Fuel Level Gauge (top/bot) (L25-DG3-LEG)

Maximize your dashboard space with the Speedhut 2-5/8″ Water Temp / Fuel Level Gauge (top/bot) (L25-DG3-LEG). This single, compact unit provides simultaneous real-time readings of two essential vehicle parameters: water temperature and fuel level. Designed for straightforward installation and ease of use, this gauge helps you stay informed about your engine’s condition and fuel status.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines a water temperature gauge and a fuel level gauge in a single 2-5/8 inch (67mm) unit, saving dashboard space.
• Water Temperature Range: Displays accurate readings from 120 to 260 °F to monitor engine operating temperature.
• Fuel Level Indication: Shows fuel level from Empty to Full for precise monitoring.
• Space Efficiency: Helps reduce clutter by combining two gauges into one unit.
• Easy Installation: Comes with a gauge mounting ring for simplified dashboard integration.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Standard or Metric: Standard (Fahrenheit)
• Combo Options: Water Temperature and Fuel Level
• Water Temperature Range: 120-260 °F
• Fuel Level Range: E-F
• Size: 2 5/8 inch (67mm)
• Hole Size: 2.67 inches (68mm)
• Gauge Mounting Ring: Included
• Ships With: 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)

HOW TO USE:

1. Prepare the Mounting Location: Choose a suitable location on your dashboard with a 2.67-inch (68mm) diameter cutout.
2. Install the Gauge: Insert the gauge into the cutout from the front of the dashboard.
3. Secure the Gauge: Use the included mounting ring to tighten and secure the gauge from the back of the dashboard.
4. Connect the Wiring Harness: Attach the 3 ft Power & Lighting Harness to the gauge’s terminals. Connect power, ground, and lighting wires according to your vehicle’s system.
5. Connect Temperature Sensor Wiring: Link the vehicle’s water temperature sensor wiring to the gauge using the designated harness.
6. Connect Fuel Level Sensor Wiring: Connect your vehicle’s fuel level sender wiring to the appropriate terminals on the gauge.
7. Test the Gauge: Switch on the ignition and verify that both water temperature and fuel level readings are accurate and functional.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ WATER TEMP / FUEL LEVEL GAUGE (TOP/BOT) (L25-DG3-LEG):

• Dashboard Optimization: Combines two gauges into one unit, saving valuable space.
• Efficient Monitoring: Enables real-time tracking of coolant temperature and fuel level simultaneously.
• Improved Awareness: Helps drivers stay on top of crucial engine and fuel data for better maintenance and safety.
• Neat Installation: Requires only one cutout and includes mounting hardware for a clean look.
• User-Friendly Design: Straightforward wiring and setup suitable for most vehicles.

FEATURES:

• Displays water temperature from 120 to 260 °F in real time.
• Shows fuel level from Empty to Full for accurate tracking.
• Compact 2-5/8 inch design fits standard dashboard cutouts.
• Standard 2.67 inch (68mm) hole size compatibility.
• Includes mounting ring for easy and secure installation.
• Comes with 3 ft Power & Lighting Harness for simple electrical hookup.
• LED backlighting enhances nighttime visibility (assumed based on harness type).
