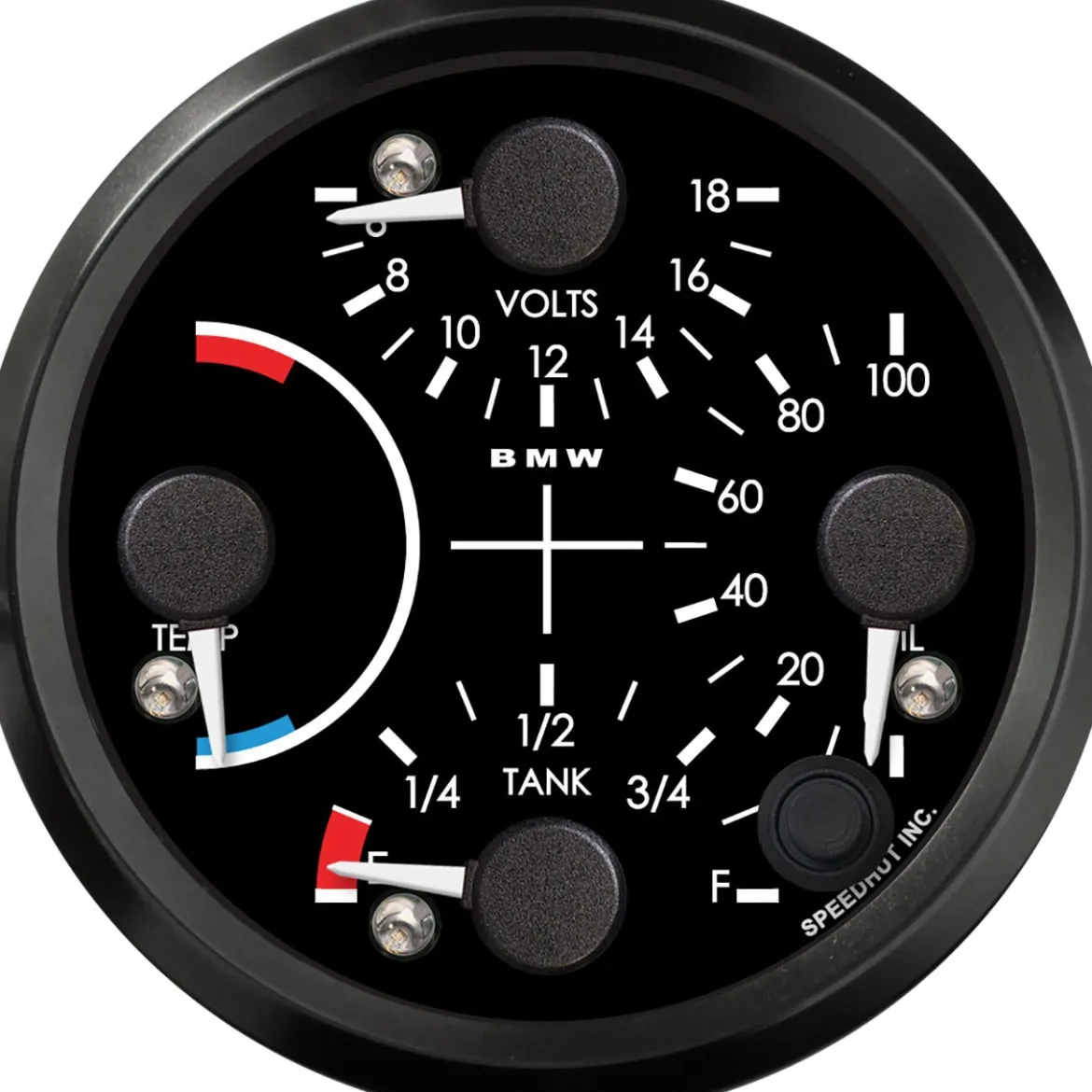

Speedhut 3-3/8″ BMW WatTemp/Volt/Oil PSI/Fuel Level Gauge (R3-QG2-BMW)

The Speedhut 3-3/8″ BMW WatTemp/Volt/Oil PSI/Fuel Level Gauge (R3-QG2-BMW) is a comprehensive instrument designed to provide BMW drivers with a clear and concise overview of their vehicle’s most critical operating parameters. This single, space-saving gauge integrates four essential readings: Water Temperature, Voltage, Oil Pressure, and Fuel Level. By combining these functions, it offers a streamlined dashboard aesthetic without sacrificing vital information, allowing you to monitor your engine’s health and fuel status with ease.

KEY FEATURES AND BENEFITS:

• Consolidates four crucial gauges into one, reducing dashboard clutter and simplifying the driver’s view.
• Provides real-time readings of Water Temperature ranging from 120 to 260 °F for effective engine cooling system monitoring.
• Displays Voltage from 6 to 18 volts to track electrical system performance.
• Monitors Oil Pressure from 0 to 100 psi to ensure engine lubrication awareness.
• Fuel Level indicator from Empty to Full for instant fuel status assessment.
• Built-in warning light to alert drivers of potential issues.
• Designed for a 3 3/8 inch (85mm) mounting hole compatible with various dashboards.
• Includes temperature sensor and 100 psi pressure sensor with necessary wiring harnesses.
• Remote button available upon request for easier access if gauge face buttons are hard to reach.
• Fuel level sensor must be sourced separately and operate at 300 ohms or less for compatibility.

SPECIFICATIONS:

• Gauge Type: Quad Gauge (Water Temperature, Voltage, Oil Pressure, Fuel Level)
• Voltage Range: 6-18 volts
• Water Temperature Range: 120-260 °F
• Fuel Level Range: Empty (E) to Full (F)
• Oil Pressure Range: 0-100 psi
• Size: 3 3/8 inch (85mm) diameter
• Mounting Hole Size: 3.28 inch (83mm) diameter
• Units: Standard (Fahrenheit, PSI)
• Warning Light: Yes
• Fuel Level Sensor Compatibility: 300 ohms or less (Sensor Not Included)
• Included:
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Wiring Harness (2-Wire Cable)
  • Speedhut Temperature Sensor
  • Pressure Sensor – 100 psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Installation: Mount the Speedhut Quad Gauge into a 3.28 inch (83mm) diameter hole in your BMW’s dashboard.
2. Wiring – Power and Lighting: Connect the 3 ft Power & Lighting Harness to a suitable power source, ground, and lighting circuit in your vehicle.
3. Wiring – Temperature Sensor: Connect the provided Speedhut Temperature Sensor to the engine’s coolant system using the Temperature Gauge Wiring Harness (2-Wire Cable).
4. Wiring – Pressure Sensor: Install the included 100 psi Pressure Sensor at an appropriate port on your engine’s oil system and connect it using the Pressure Gauge Wiring Harness (3-Wire Cable).
5. Wiring – Voltage: Connect the designated wires from the Wiring Harness (2-Wire Cable) to a reliable voltage reference point in your vehicle.
6. Wiring – Fuel Level Sensor: Connect your separately sourced fuel level sensor (300 ohms or less) to the designated wires on the Wiring Harness (2-Wire Cable).
7. Calibration/Testing: Test each function of the gauge to ensure accurate readings. Refer to Speedhut documentation for calibration procedures.
8. Remote Button (Optional): If requested, install the remote button in an accessible location and connect it according to the instructions.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ BMW WATTEMP/VOLT/OIL PSI/FUEL LEVEL GAUGE (R3-QG2-BMW):

• Centralizes four critical vehicle parameters in one clear display, enhancing driver awareness.
• Helps prevent costly engine damage by enabling early detection of temperature or oil pressure issues.
• Saves dashboard space for a cleaner, more organized interior.
• Provides real-time voltage monitoring for electrical system health.
• Accurate fuel level readings to avoid unexpected fuel shortages.
• Includes sensors for temperature and pressure for simplified installation.
• Remote button option adds convenience when gauge face access is limited.

FEATURES:

• Combines water temperature, voltage, oil pressure, and fuel level readings in a single 3 3/8″ unit.
• Clear and easily readable display of essential vehicle data.
• Includes a dedicated warning light for immediate alerts.
• Designed for a standard 3 3/8 inch (85mm) mounting hole.
• Voltage monitoring range of 6 to 18 volts.
• Water temperature range of 120 to 260 °F.
• Oil pressure range from 0 to 100 psi.
• Fuel level displayed from empty to full.
• Comes with Speedhut temperature sensor and 100 psi pressure sensor.
• Includes all necessary wiring harnesses for temperature, pressure, power, and lighting.
• Optional remote button available for easier gauge control access.
• Compatible with fuel level sensors operating at 300 ohms or less (sensor not included).
