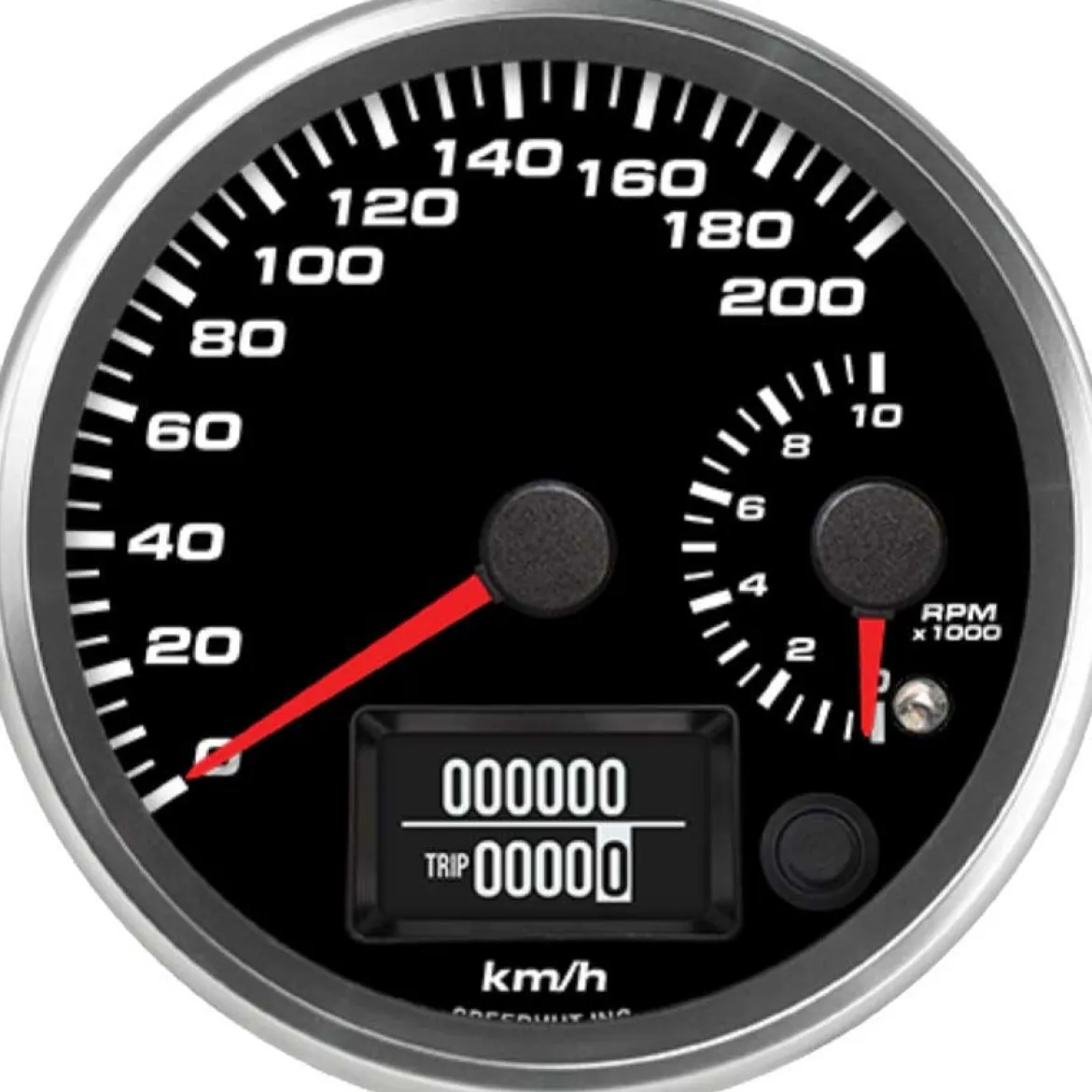

Speedhut 4″ 200km/h GPS Speedometer/10K Tachometer Gauge (R4-DS18-REV)

The Speedhut 4″ 200km/h GPS Speedometer/10K Tachometer Gauge (R4-DS18-REV) delivers accurate, real-time vehicle data using advanced GPS technology for speed and an integrated tachometer for engine RPM monitoring. Designed for metric-readout users, this dual-function gauge offers a maximum speed reading of 200 km/h and supports RPM tracking up to 10,000. Installation is simplified by requiring only a 12V power supply and the included waterproof GPS antenna—no calibration needed for tire size or gear ratios. The tachometer works with virtually any engine providing a tach signal over one volt, from 1/2 to 6 pulses per revolution. Built to withstand rigorous conditions, this gauge ensures dependable operation for performance or daily driving, making it a reliable companion for any vehicle enthusiast.

KEY FEATURES AND BENEFITS:

• GPS-based accuracy: Offers consistent speed readings up to 200 km/h without traditional sensors.
• Dual functionality: Combines a speedometer and tachometer into one space-efficient 4″ gauge.
• Universal tachometer compatibility: Supports 1/2 to 6 pulses per revolution for engines with tach signals over 1V.
• Easy installation: Requires only 12V power and included GPS antenna—no drivetrain connections needed.
• No calibration required: Speed readings remain accurate regardless of tire size or gear ratio changes.
• Free GPS signal usage: Operates globally without subscription or data transmission.
• Lifetime electronic warranty: Offers long-term confidence in product quality.
• Made in the USA: Engineered and manufactured with American craftsmanship.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer and Tachometer
• Speedometer Range: 0-200 km/h
• Tachometer Range: 0-10K RPM
• Gauge Size: 4 inches (diameter)
• Mounting Hole Size: 3.93 inches (100mm)
• Units: Metric
• Speedometer Technology: GPS-based
• Tachometer Compatibility: Works with any engine and tach signal over 1 volt, 1/2 to 6 pulses per revolution
• Power Requirement: 12V
• Included:
  • 8 ft Tachometer Harness (1 Wire 2 Pin Connector)
  • 3 ft Power & Lighting Harness
  • GPS Antenna with 9.8 ft cable and male SMA connector
• Bezel Material: Solid billet aluminum

HOW TO USE:

1. Mount the Gauge: Secure the 4″ Speedhut dual gauge into a 3.93″ (100mm) diameter hole using the spin-lock ring.
2. Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to a 12V ignition-switched power source. Ground properly.
3. Connect the Tachometer Harness: Wire the 8 ft Tachometer Harness to the tach signal from your ignition or ECU.
4. Mount the GPS Antenna: Install in a location with an unobstructed view of the sky—can be internal or external.
5. Connect the GPS Antenna: Plug the SMA connector into the GPS port on the back of the gauge.
6. Power On: Turn on the vehicle’s ignition to power the gauge and acquire a GPS signal.
7. Monitor Readings: View live speed and RPM data without needing further calibration.

BENEFITS OF USING THE SPEEDHUT 4″ 200KM/H GPS SPEEDOMETER/10K TACHOMETER GAUGE (R4-DS18-REV):

• Precision monitoring: GPS eliminates traditional inaccuracies from mechanical sensors or drivetrain variations.
• Quick setup: Simple plug-and-play system with minimal wiring and no calibration requirements.
• Global GPS functionality: Works worldwide with free, subscription-free GPS signals.
• Engine compatibility: Works with a variety of engines and tach signal types.
• Built to endure: Solid billet aluminum bezel and weather-resistant design ensure durability.
• Peace of mind: Lifetime warranty on electronics guarantees long-term reliability.
• High-quality design: Proudly made in the USA for dependable performance and aesthetics.

FEATURES:

• Satellite-based speed tracking for pinpoint accuracy, regardless of tire size or modifications.
• Broad compatibility with any engine producing a tach signal over one volt.
• Effortless mounting with a slim gauge case and user-friendly spin-lock mechanism.
• Durable and stylish solid billet aluminum bezel.
• Robust construction to withstand various environmental elements.
• Backed by a limited lifetime guarantee, reflecting the product’s reliability.
• Manufactured in the USA, adhering to high standards of quality and craftsmanship.
