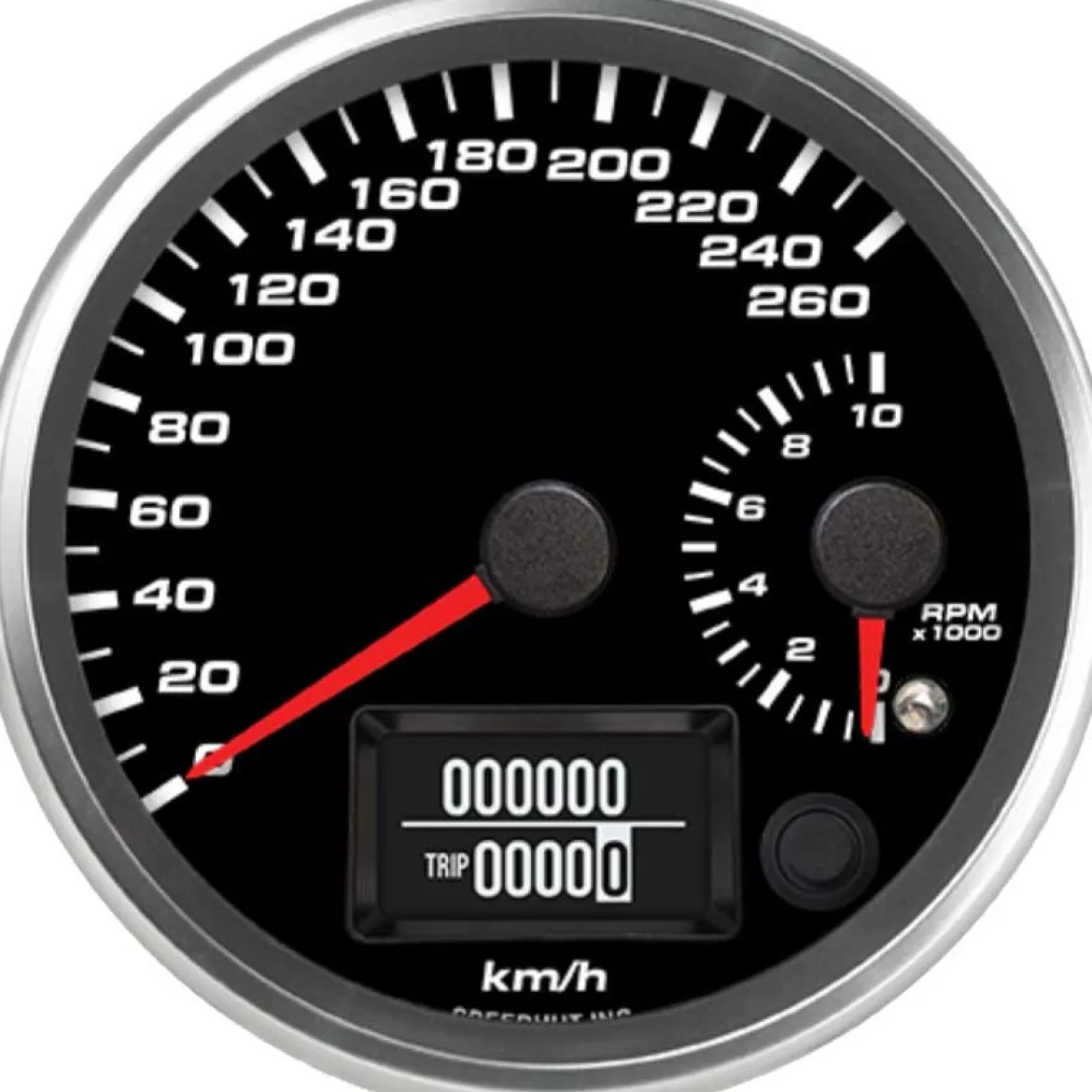

Speedhut 4″ 260km/h GPS Speedometer/10K Tachometer Gauge (R4-DS19-REV)

Experience a new level of accuracy and versatility in vehicle instrumentation with the Speedhut 4″ 260km/h GPS Speedometer/10K Tachometer Gauge (R4-DS19-REV). This 4-inch gauge seamlessly integrates a precise GPS-based speedometer with a reliable tachometer, offering essential driving data in a single, easy-to-install unit. Utilizing advanced GPS technology, the speedometer provides real-time speed readings without the need for traditional speed sensors or complex calibrations. Paired with a highly compatible tachometer, this dual gauge delivers a comprehensive overview of your vehicle’s performance, ensuring you have the information you need for confident and informed driving.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines a GPS speedometer (up to 260 km/h) and a tachometer (up to 10,000 RPM) in one 4-inch gauge.
• Effortless GPS Speedometer Installation: Requires only a 12V power connection and the included waterproof GPS antenna. No need to input tire sizes or gear ratios; the GPS automatically provides accurate speed readings.
• Worldwide GPS Operation: Operates globally using free GPS technology without any subscription fees. The system solely receives data, ensuring privacy.
• Universal Tachometer Compatibility: Calibrated to work with virtually any engine and tach signal exceeding one volt, supporting a wide range from 1/2 pulse to 6 pulses per revolution.
• Pinpoint Accuracy: Features an internal microprocessor to ensure highly accurate speed and RPM readings.
• Precise Pointer Movement: Equipped with a high torque stepper motor that guarantees accurate and smooth pointer movement, even under demanding racing conditions.
• Easy Mounting: The slim case design and convenient spin-lock ring allow for quick and straightforward installation into a standard 4-inch (100mm) gauge opening.
• Enhanced Aesthetics and Durability: Features a solid billet aluminum bezel for added robustness and a premium look. The weather-resistant design ensures reliable performance in various environmental conditions.
• Peace of Mind: Backed by a Lifetime Warranty, reflecting the quality and dependability of the product.
• Quality Craftsmanship: Proudly made in America, ensuring high standards of manufacturing and material quality.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Tachometer
• Speedometer Range: 0 – 260 km/h
• Tachometer Range: 0 – 10,000 RPM
• Size: 4 inches (100mm mounting hole diameter)
• Units: Metric (km/h, RPM)
• Included:
• 3 ft Power & Lighting Harness
• GPS Antenna with 9.8 ft cable and male SMA connector
• 8 ft Tachometer Harness (1 Wire 2 Pin Connector)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4-inch (100mm) opening in your vehicle’s dashboard or instrument panel. Insert the Speedhut gauge into the opening and secure it using the spin-lock ring from the back of the gauge.
2. Connect Power and Lighting: Connect the 3 ft Power & Lighting Harness to the gauge. Connect the red wire to a 12V positive power source that is switched with the ignition. Connect the black wire to a reliable ground. The other wires in this harness are typically for optional lighting control.
3. Install the GPS Antenna: Choose a location for the GPS antenna that has a clear view of the sky. Ensure the mounting surface is clean and secure. Connect the GPS antenna cable to the corresponding connector on the back of the gauge.
4. Connect the Tachometer Signal: Locate a suitable tachometer signal wire in your vehicle’s engine bay. This is typically a wire connected to the negative side of the ignition coil, the ECU’s tach output, or another appropriate RPM signal source. Connect this wire to the designated wire on the 8 ft Tachometer Harness. Ensure this connection is secure and properly insulated.
5. Start Your Vehicle: Once all connections are made, start your vehicle. The speedometer should begin displaying your speed as soon as it acquires a GPS signal. The tachometer should display the engine’s RPM.

BENEFITS OF USING THE SPEEDHUT 4″ 260KM/H GPS SPEEDOMETER/10K TACHOMETER GAUGE (R4-DS19-REV):

• The GPS speedometer eliminates the complexities of mechanical cable installations and the need for calibration based on tire size or gear ratios, offering a straightforward and accurate speed reading.
• Global operation ensures functionality wherever your travels take you.
• The tachometer’s broad compatibility with various engine types makes it a versatile tool for monitoring engine performance.
• Combined functionality saves space and simplifies your instrument panel.
• Robust construction and lifetime warranty provide long-term reliability and peace of mind.
• American-made quality signifies a commitment to high standards and craftsmanship.

FEATURES:

• Utilizes satellite-based positioning for precise velocity measurement.
• Displays engine rotation speed in revolutions per minute.
• Compact 4-inch design for versatile dashboard integration.
• Simple electrical connections for power and tachometer signal.
• Automatic speed acquisition upon vehicle movement.
• Wide-ranging compatibility with different engine pulse outputs.
• Robust aluminum outer ring for a refined and strong exterior.
• Designed to withstand various weather conditions for lasting performance.
• Backed by a manufacturer’s guarantee for the product’s lifespan.
• Manufactured in the USA, adhering to strict quality control standards.
