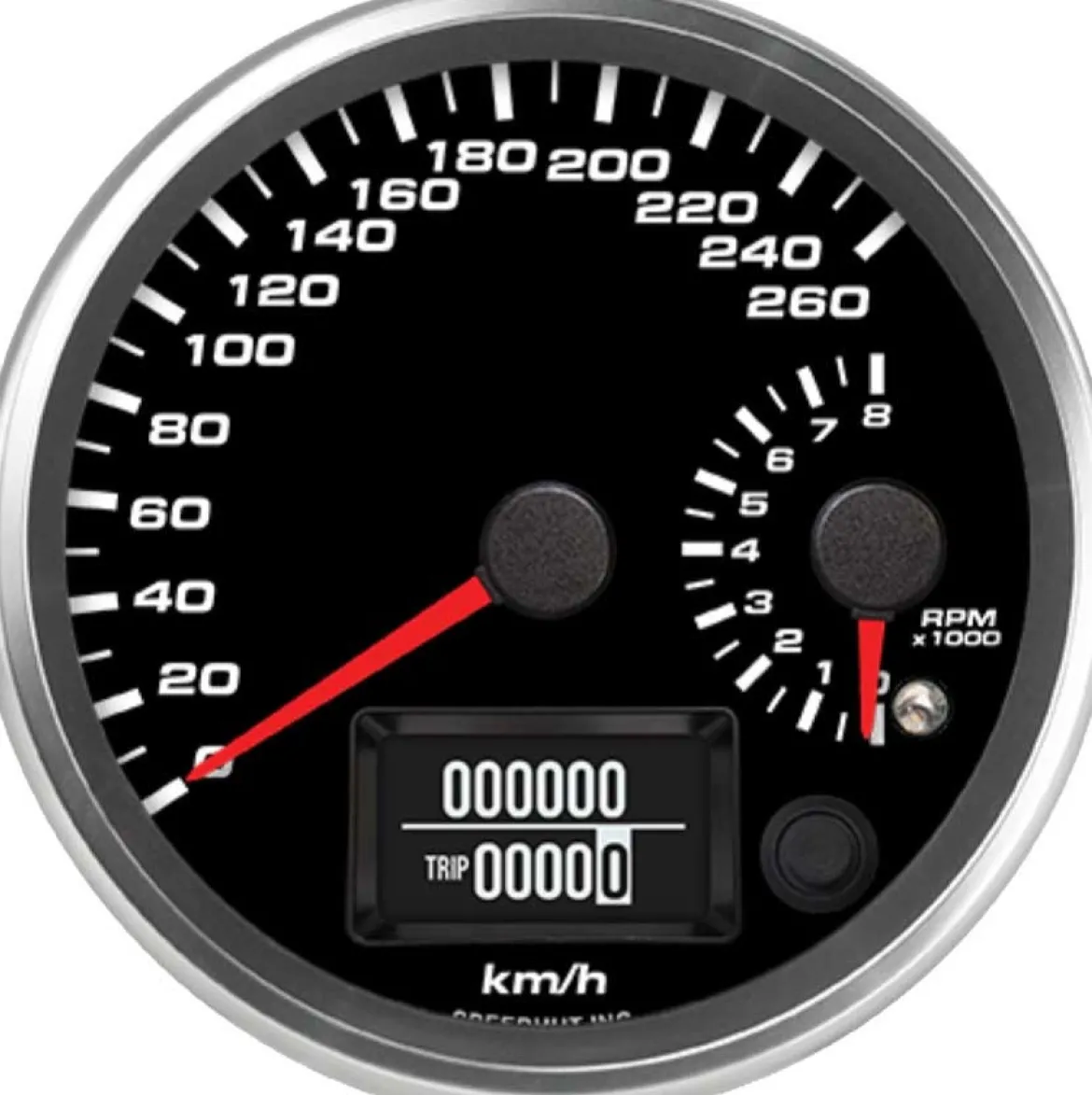

Speedhut 4″ 260km/h GPS Speedometer / 8K Tachometer Gauge (R4-DS8-REV)

Experience precise vehicle speed and RPM tracking with the Speedhut 4″ 260km/h GPS Speedometer / 8K Tachometer Gauge (R4-DS8-REV). This dual-function gauge combines satellite-accurate GPS speed readings with a universally compatible tachometer capable of measuring up to 8,000 RPM. Designed for effortless installation, it requires only a 12V power source and comes equipped with a waterproof GPS antenna. Eliminating the need for mechanical sensors and calibration, this system operates globally without subscription fees. Built to endure, it features a robust aluminum bezel, high-torque stepper motor, internal microprocessor, and weather-resistant construction. Made in the USA and backed by a lifetime warranty, this gauge delivers dependable performance and sleek aesthetics in one compact unit.

KEY FEATURES AND BENEFITS:

• Accurate GPS Speed: Utilizes GPS technology for precise speed readings up to 260 km/h, with no need for mechanical connections or calibration.
• 8K Tachometer: Measures engine RPM up to 8,000, compatible with any tach signal over 1 volt from 1/2 to 6 pulses per revolution.
• Effortless Installation: Requires a basic 12V power connection and simple mounting with the included spin-lock ring.
• Universal Compatibility: Tachometer works with virtually any engine and tach signal source including ignition coils, ECUs, or crankshaft sensors.
• Integrated Microprocessor: Ensures accurate data processing for both speed and RPM.
• Smooth Pointer Movement: High-torque stepper motor delivers precise needle response under all conditions.
• Weather-Resistant Design: Built to withstand harsh environments for consistent performance.
• Sleek & Durable: Constructed with a solid billet aluminum bezel that combines style and strength.
• Global Functionality: Operates worldwide using free GPS signals with no subscriptions or transmission fees.
• Peace of Mind: Includes a Lifetime Warranty for long-term reliability and confidence.
• Made in the USA: Proudly manufactured in America, ensuring top-quality craftsmanship.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Tachometer
• Speedometer Range: 0-260 km/h
• Tachometer Range: 0-8,000 RPM
• Gauge Size: 4 inch
• Mounting Hole Size: 3.95 inches (100mm)
• Units: Metric
• Tachometer Compatibility: Any engine with a tach signal over 1 volt, 1/2 to 6 pulses per revolution
• Included:
  • 8 ft Tachometer Harness (1 Wire 2 Pin Connector for LED Lit Gauges)
  • GPS Antenna with 9.8 ft long cable and male SMA connector
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)

HOW TO USE:

1. Mount the Gauge: Create a 3.95-inch (100mm) hole in your dashboard and secure the gauge using the spin-lock ring.
2. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to a 12V power source and ground. Use this harness for LED illumination as needed.
3. Install the GPS Antenna: Mount the waterproof antenna in a sky-facing location. Route the 9.8 ft cable to the back of the gauge and connect it using the male SMA connector.
4. Connect the Tachometer Harness: Locate the tach signal output from your engine (ignition coil, ECU, or crank sensor) and connect to the 8 ft harness, then plug it into the gauge.
5. Operation: Upon powering the system, the speedometer will start acquiring GPS signals for real-time speed, while the tachometer displays RPM as the engine runs.

BENEFITS OF USING THE SPEEDHUT 4″ 260KM/H GPS SPEEDOMETER / 8K TACHOMETER GAUGE (R4-DS8-REV):

• Gain precise, real-time speed and engine RPM data in a single integrated gauge.
• Enjoy hassle-free installation without calibration or complex sensor setups.
• Benefit from global GPS functionality without recurring fees or subscriptions.
• Monitor engine performance accurately with the universal tachometer input.
• Upgrade your dashboard with a visually appealing, billet aluminum design.
• Trust in long-term performance with weather resistance and a Lifetime Warranty.
• Support American manufacturing and quality assurance.

FEATURES:

• Satellite-based GPS technology for real-time speed tracking.
• Integrated tachometer supporting a wide range of engines and pulse signals.
• Simple power and ground wiring for easy speedometer functionality.
• Direct tach signal input from ignition coil, ECU, or crank sensor.
• Internal microprocessor for precise data accuracy.
• Stepper motor for high-response, smooth pointer movement.
• Compact, low-profile housing for versatile mounting.
• Durable billet aluminum bezel for enhanced aesthetics and protection.
• Weather-resistant for dependable outdoor and high-performance use.
• Lifetime warranty included.
• Proudly engineered and manufactured in the USA.
