Speedhut 4″ Dual Met Water Temp / Oil Pressure Gauge (R4-DG5-REV)

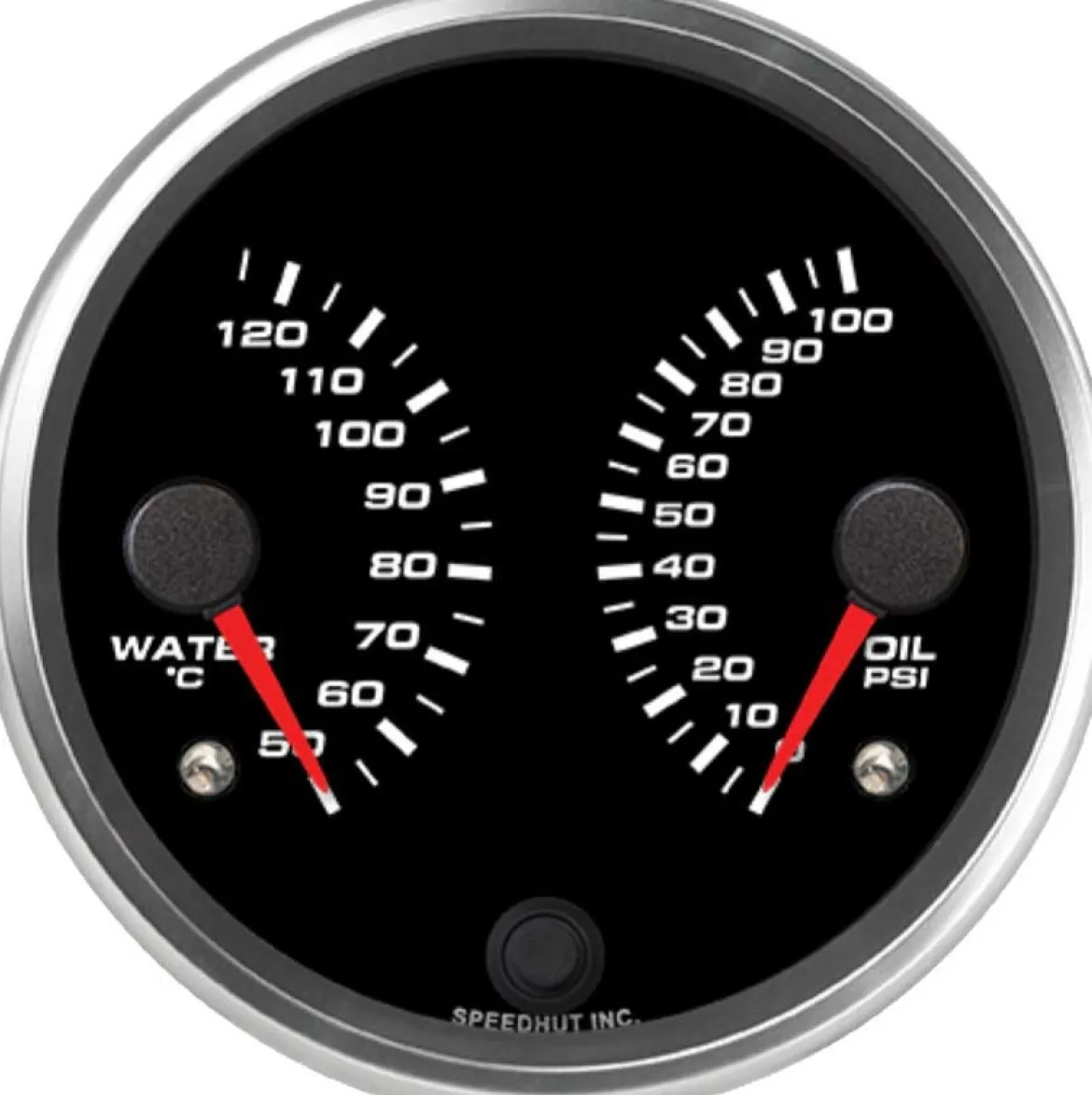

Keep a close eye on your engine’s critical metrics with the Speedhut 4″ Dual Met Water Temp / Oil Pressure Gauge (R4-DG5-REV). This combination gauge offers a space-saving solution by displaying both water temperature and oil pressure in a single, easy-to-read 4-inch (100mm) unit. Equipped with a warning light for immediate alerts, this gauge provides the essential information you need to ensure optimal engine performance and prevent potential issues. Installation is straightforward with the included mounting ring, and the necessary wiring and sensors are provided for a seamless setup.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Monitors both water temperature (50-125°C) and oil pressure (0-100 psi) in one compact gauge.
• Early Warning System: Integrated warning light can be set to alert you to critical temperature or pressure levels, helping to protect your engine.
• Simplified Installation: Comes with a gauge mounting ring for easy and secure mounting in a 3.95″ (100mm) hole.
• Complete Wiring and Sensors: Includes all the necessary wiring harnesses for power, lighting, temperature, and pressure, along with the corresponding temperature and pressure sensors.
• Metric Measurements: Provides readings in Celsius (°C) for water temperature and pounds per square inch (psi) for oil pressure.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Oil Pressure
• Water Temperature Range: 50-125 °C
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Metric
• Size: 4 inches (100mm)
• Hole Size: 3.95 inches (100mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Pressure Sensor – 100 psi
• Speedhut Temperature Sensor
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Insert the 4″ gauge into a 3.95″ (100mm) hole in your desired location and secure it using the included gauge mounting ring.
2. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the gauge. Connect the power and ground wires to your vehicle’s electrical system, and connect the lighting wire to your preferred illumination source if applicable.
3. Install Temperature Sensor: Mount the Speedhut Temperature Sensor in a suitable location on your engine’s cooling system, ensuring it is in contact with the coolant. Connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the sensor and the gauge.
4. Install Pressure Sensor: Install the Pressure Sensor (100 psi) in an appropriate port on your engine’s oil system. Connect the Pressure Gauge Wiring Harness (3-Wire Cable) between the sensor and the gauge.
5. Set Warning Light (Optional): Refer to the gauge’s specific instructions on how to set the desired high and/or low warning thresholds for both temperature and pressure.
6. Verify Functionality: Once all connections are made, start your vehicle and observe the gauge readings to ensure they are functioning correctly. Check that the warning light activates when the set thresholds are reached.

BENEFITS OF USING THE SPEEDHUT 4″ DUAL MET WATER TEMP / OIL PRESSURE GAUGE (R4-DG5-REV):

• Consolidated Monitoring: Provides two critical engine readings in a single gauge, saving space and simplifying your dashboard layout.
• Proactive Engine Protection: The integrated warning light allows for early detection of potential overheating or low oil pressure, helping to prevent costly engine damage.
• Accurate and Reliable Readings: Designed to provide precise measurements of your engine’s vital fluids.
• Easy Installation: The included mounting ring and comprehensive wiring harnesses and sensors streamline the installation process.
• Clear and Instant Information: The 4-inch display offers easy readability of both temperature and pressure values at a glance.

FEATURES:

• Simultaneously displays water temperature and oil pressure readings.
• Dedicated warning light for immediate alerts on out-of-range values.
• Designed for a standard 4-inch (100mm) mounting opening.
• Utilizes separate wiring harnesses for power/lighting, temperature sensor, and pressure sensor.
• Includes a 100 psi pressure sensor specifically for oil pressure measurement.
• Comes with a Speedhut-branded temperature sensor for accurate coolant readings.
• Features metric units for both temperature (°C) and pressure (psi).
• Secure mounting facilitated by the included spin-lock ring.
