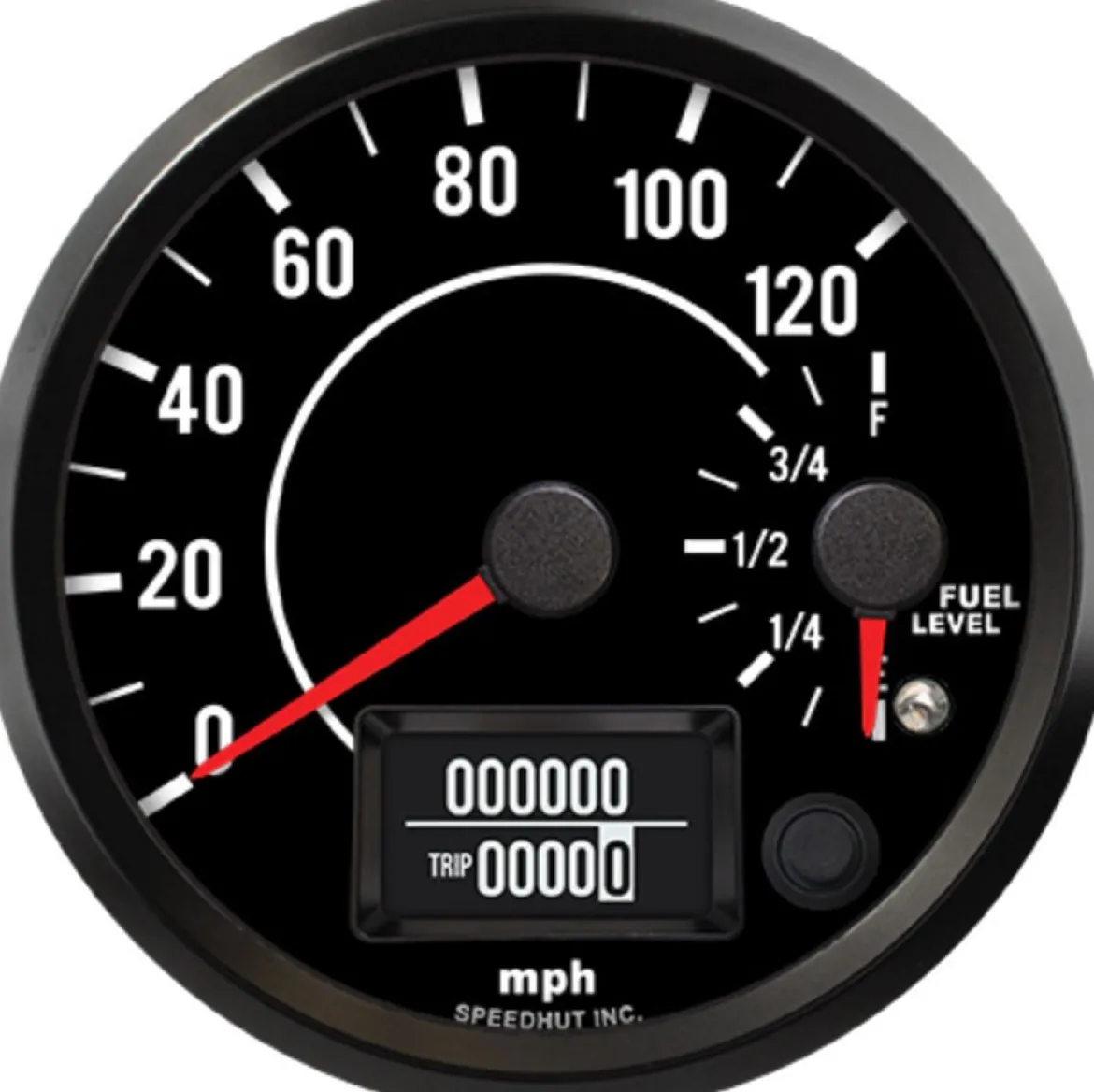

Speedhut 4″ JDM 510 120mph GPS Speedometer/Fuel Lev Gauge (R4-DS1-510)

Experience enhanced driving awareness with the Speedhut 4″ JDM 510 120mph GPS Speedometer/Fuel Lev Gauge (R4-DS1-510). This integrated gauge combines the precision of GPS-based speed measurement with reliable fuel level indication in a single, stylish 4-inch unit. Designed for ease of installation and global functionality, this gauge offers a modern solution for monitoring vital vehicle information.

KEY FEATURES AND BENEFITS:

• Dual-Function Gauge: Displays GPS-based speed and real-time fuel level in one compact unit.
• GPS Accuracy: Provides precise speed readings without needing wheel sensors or calibration.
• Hassle-Free Installation: Only requires a 12V power source and included GPS antenna.
• Integrated Fuel Display: Connects to your vehicle’s fuel sending unit for consistent fuel level tracking.
• Worldwide Compatibility: Operates globally with no subscription or service fees.
• Advanced Engineering: Features a microprocessor and stepper motor for reliable operation and smooth needle movement.
• Sturdy Design: Slim case with a spin-lock mounting system and billet aluminum bezel.
• Weather-Resistant: Built for dependable performance in various conditions.
• 510-Specific Fitment: Includes adapter for easier Datsun 510 installation.
• Made in the USA: Crafted with precision and backed by a lifetime warranty.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level
• Speedometer Range: 0-120 MPH
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4 inch (4″)
• Hole Size: 3.95 inches (100mm)
• Standard or Metric: Standard
• Included: GPS Antenna with 9.8 ft long cable and male SMA connector, Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Secure the 4″ Speedhut dual gauge in a 3.95″ (100mm) opening in your dashboard using the slim case and spin-lock ring. For Datsun 510 vehicles, utilize the dedicated adapter for simplified mounting.
2. Connect Power: Attach the 2-wire wiring harness to a 12V power source and ground in your vehicle. Use the provided 3 ft Power & Lighting Harness for the gauge’s operation and illumination.
3. Install GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. Connect the antenna cable (with the male SMA connector) to the corresponding port on the gauge.
4. Connect Fuel Level: Wire the fuel level portion of the gauge to your vehicle’s existing fuel level sending unit. Ensure compatibility with your sender’s resistance range for accurate readings.
5. Operation: Once all connections are made, the GPS speedometer will automatically acquire satellite signals and display your vehicle’s speed. The fuel level gauge will show the current fuel level based on the signal from the sending unit. No calibration for speed is required.

BENEFITS OF USING THE SPEEDHUT 4″ JDM 510 120MPH GPS SPEEDOMETER/FUEL LEV GAUGE (R4-DS1-510):

• Experience highly accurate speed readings without the need for mechanical sensors or manual calibration, thanks to integrated GPS technology.
• Enjoy a simplified installation process, especially for Datsun 510 vehicles with the available adapter.
• The combined speedometer and fuel level display saves valuable dashboard space and offers a clean, integrated look.
• Benefit from worldwide speedometer operation without any subscription fees.
• The robust construction and weather-resistant design ensure long-lasting performance, backed by a lifetime warranty for ultimate peace of mind.
• The JDM styling adds a touch of visual appeal to your vehicle’s interior.

FEATURES:

• Provides precise speed data derived directly from global positioning satellites.
• Eliminates the necessity for external speed sensors or intricate calibration procedures.
• Offers a straightforward electrical connection for the speedometer function.
• Designed with a specific adapter to streamline installation in Datsun 510 models.
• Incorporates an advanced internal processor for consistently accurate measurements.
• Utilizes a high-torque stepper motor for swift and reliable pointer movement.
• Features a low-profile housing and a secure spin-lock mechanism for easy mounting.
• Showcases a machined billet aluminum bezel for enhanced strength and aesthetics.
• Engineered to withstand various environmental conditions for lasting reliability.
• Supported by a limited lifetime warranty, demonstrating product confidence.
• Manufactured in the USA, adhering to high standards of quality and craftsmanship.
