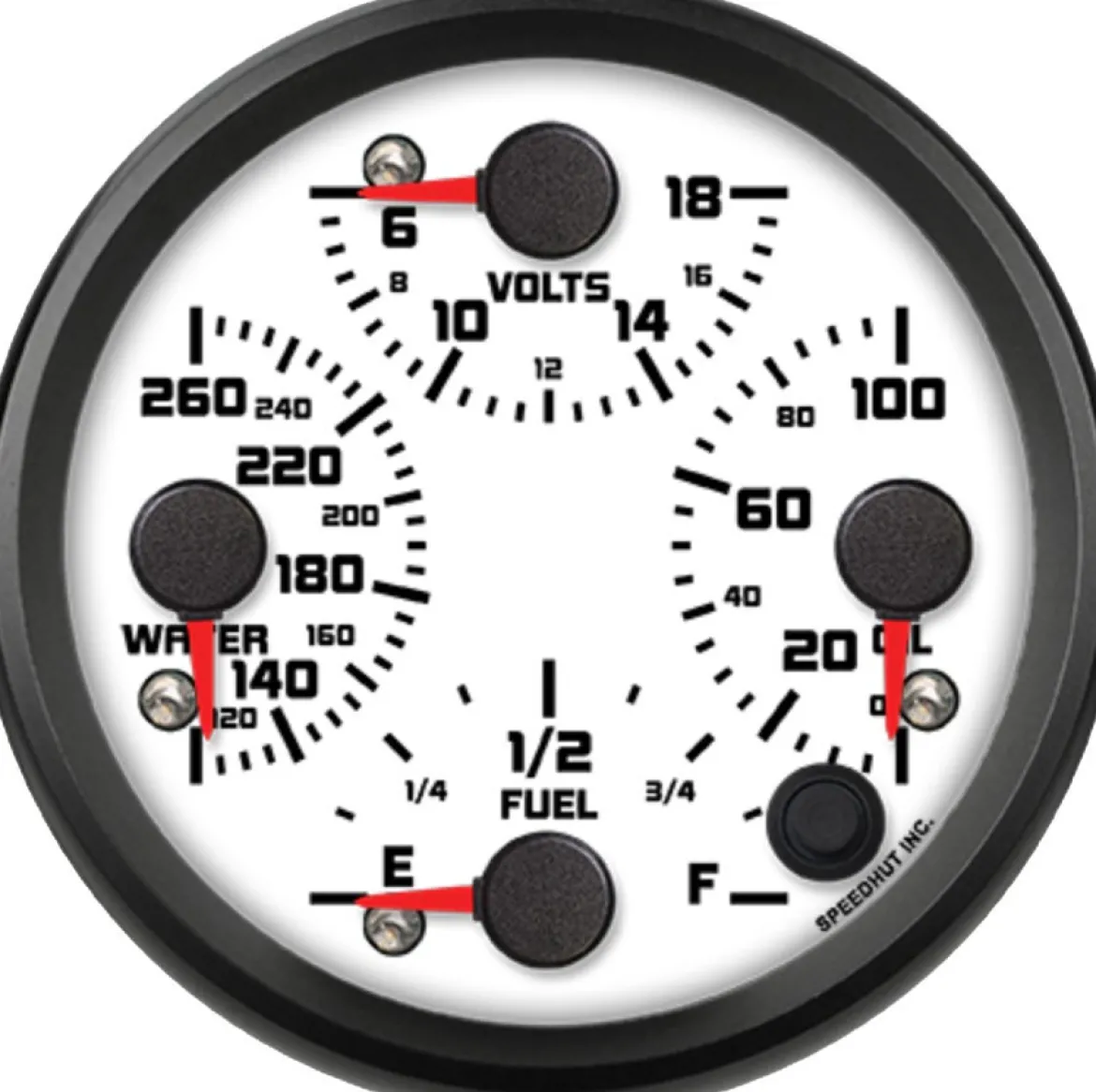

Speedhut 4″ Street XL Water Temp/Volt/Oil PSI/Fuel Level (R4-QG2-SXL)

The Speedhut 4″ Street XL Water Temp/Volt/Oil PSI/Fuel Level (R4-QG2-SXL) is a comprehensive instrument designed to provide a clear and accurate overview of your vehicle’s most important operating conditions. This single, 4-inch gauge consolidates four essential readings, saving space on your dashboard while offering immediate insight into your engine’s health and fuel status.

KEY FEATURES AND BENEFITS:

• Multi-function display: Monitors water temperature (120–260°F), voltage (6–18V), oil pressure (0–100 PSI), and fuel level (E–F).
• Integrated warning light: Offers immediate alerts for any abnormal readings.
• Space-saving design: Combines four critical gauges into one compact 4-inch unit.
• Easy installation: Includes mounting ring and wiring harnesses for quick setup.
• Fuel sensor compatibility: Works with most fuel level sensors rated at 300 ohms or less.

SPECIFICATIONS:

• Gauge Type: Quad Gauge
• Voltage Range: 6–18 volts
• Oil Pressure Range: 0–100 psi
• Fuel Level Range: E–F
• Water Temperature Range: 120–260 °F
• Size: 4 inch
• Hole Size: 3.93 inch (100mm)
• Units: Standard
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Fuel level signal type: 300 ohms or less
• Ships With:
  • Pressure Sensor – 100 psi
  • 3 ft Power & Lighting Harness
  • Speedhut Temperature Sensor
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Secure the 4-inch gauge in a 3.93-inch (100mm) opening in your dashboard using the included mounting ring.
2. Connect the Power and Lighting Harness: Attach the 3 ft power and lighting harness to the gauge and your vehicle’s electrical system.
3. Install the Temperature Sensor: Mount the Speedhut temperature sensor in an appropriate engine location and connect it using the provided wiring harness.
4. Install the Pressure Sensor: Install the 100 psi pressure sensor in the oil pressure port and connect it using the designated wiring harness.
5. Connect the Fuel Level Sensor: Connect your existing or separately purchased compatible fuel level sensor to the gauge.
6. Verify Readings: Start your vehicle and ensure all four readings display accurately on the gauge.

BENEFITS OF USING THE SPEEDHUT 4″ STREET XL WATER TEMP/VOLT/OIL PSI/FUEL LEVEL (R4-QG2-SXL):

• Centralized monitoring: Allows real-time observation of key engine parameters in one convenient location.
• Early issue detection: Helps identify potential engine or system problems before they become costly repairs.
• Dashboard space efficiency: Combines multiple gauges into a single, sleek instrument.
• Improved vehicle management: Keeps track of essential readings for better performance and maintenance planning.
• Clean aesthetics: Offers a neat and integrated look for your vehicle’s dashboard.

FEATURES:

• Four-function integration in a single 4-inch gauge unit.
• Clear display for water temp, voltage, oil pressure, and fuel level.
• Warning light for immediate problem alerts.
• Includes pressure and temperature sensors.
• Wiring harnesses for straightforward connection.
• Secure spin-lock mounting ring included.
• Compatible with fuel sensors up to 300 ohms.
